GE 45231 Manuel utilisateur

For indoor/outdoor use. Do not use in wet locations.

www.jascoproducts.com

1-800-654-8483

45231

Home Monitoring

Wired Color

Camera

User Manual

Thank you for purchasing the GE 45231 Wired

Color Camera. Please review these instructions

carefully before attempting to operate the unit.

PRODUCT FEATURES

Night Vision feature – can view up to 10 ft. in

low or no light

Connects to any video input for an “instant

monitoring system”

Small, unique design is simple to set up and

easy to use

Wall or desk mount

For Indoor/Outdoor use

PACKAGE CONTENTS

Please check and identify all the parts before

proceeding with the installation.

1. 45231 Color Camera with desktop mount

2. Wall mounting bracket with mounting hardware

3. AC adapter

4. 60 ft. camera cable (not rated for in-wall use)

5. 3-Wire Adapter cable

•

CHOOSING A CAMERA MOUNTING LOCATION

The 45231 Color Camera can be positioned on

a desktop, or mounted to a wall. It is suitable for

indoor or outdoor use. When choosing a mounting

location, please be advised:

Do not use in wet locations. If using outdoors,

position in sheltered location.

DO NOT position the camera so that it points

directly into the sun or any bright light, as this

may cause damage to the camera.

Avoid viewing areas where half the area is in

bright sunlight and the other half is dark, such

as in the shadow of a building. All types of

cameras have difﬁculty “seeing” into areas of

such divergent light levels.

In low light conditions, the camera will

automatically activate the Infrared (IR) LED’s

and switch the camera to Night Vision mode.

Night Vision viewing distance is up to 10 feet.

TESTING THE SYSTEM

Before beginning installation, we recommend that

you connect the 45231 Color Camera to your TV,

VCR or DVR to help you familiarize yourself with the

camera system and choose the best location for

installing the camera.

•

CONNECTING TO A TV

The 45231 connects to the video and audio input

jacks on the back of your TV, VCR or DVR. If you are

not using a VCR or DVR, connect the 45231 Color

Camera to your TV as shown below.

To view:

1. Switch on the TV; set the volume to midpoint.

Connect to the 45231 Color Camera.

Note: For temporary installation you can connect the camera

to the TV, VCR or DVR without using the 60 ft. extension cable.

Simply connect the 3-Wire adapter cable directly to the end of

the 6 ft. cable coming from the camera.

2. Plug in the AC adapter and insert the yellow

cable to the video jack and the white cable to the

left/mono audio jack of the TV.

3. Select the AV input on your TV by pressing the

button labeled AV or VIDEO on either your TV or TV

Video In

Power

Audio In

remote control. You should now be able to see and

hear the output from the camera.

Note: You can extend the cable using the 60 ft. extension cable

at any time to optimally locate the camera (provided the cable

length is sufﬁcient). The camera cable can be extended up to

300 ft. Contact the Customer Service Group (1-800-654-8483)

to purchase extension cables.

CONNECTING TO A VCR or DVR

If you using a VCR or DVR, connect the 45231 Color

Camera as shown below:

To view:

1. Switch on the TV and VCR or DVR; Connect the

45231 Color Camera to the VCR or DVR by connecting

the 3-Wire adapter cable directly to the end of the

6 ft. cable coming from the camera. Plug in the AC

adapter and insert the yellow cable to the video jack

Video

Out

Power

Audio

Out

VCR

and the white cable to the left/mono audio jack. You

can extend the cable using the extension cable at

any time to optimally locate the camera (provided

the cable length is sufﬁcient).

2. Select the VCR channel on your TV (3 or 4). This

should be the normal channel or input you normally

use to watch the VCR or DVR.

3. Select the AV input on your VCR or DVR by

pressing the button labeled AV or VIDEO on the

VCR/DVR or on the VCR/DVR’s remote control. You

should now be able to see and hear the output from

the camera.

Once your preferred mounting location has been

chosen, disconnect the camera lead and turn off

power to the TV, VCR or DVR and proceed to the

Installation section.

Night Vision

The 45233 Wireless Color

Camera features Night

Vision technology. Objects

and images can be seen in

little or no light up to 10 ft.

The camera uses a special

image sensor that

automatically detects

available light levels.

Sensor

Infra-Red

(IR) LEDs

It turns on/off the Infra-Red (IR) LEDs on the front of

the camera. These LEDs provide artiﬁcial light that

allows the camera to ‘see’ in the dark. Night Vision

will appear as a Black and White image. When the

image sensor detects enough light, color will return

to the images.

INSTALLATION

Desktop Mount:

1. Place camera in desired location on a ﬂat surface.

2. Run the 60’ cable from the camera’s location to

the location of the TV, VCR or DVR. Use the cable

clips provided to keep the cable in place. (See Notes

on Cable Installation.) Do not run cable inside wall;

Take care not to pierce, puncture or cut the cable

when securing.

Video

Out

Power

Audio

Out

VCR

3. Connect the camera cable to the TV, VCR or DVR

by connecting the 3-Wire adapter cable to the end

of the 60 ft. cable coming from the camera. (See

diagram). Locate the connector on the 3-Wire

adapter labeled ‘power’ and plug in the AC adapter.

Insert the yellow plug to the video jack and the

white plug to the left/mono audio jack on the TV,

VCR or DVR.

4. Switch on the power to the TV, VCR or DVR.

Select appropriate AV input on TV, VCR or DVR.

(Refer to “Connecting to a TV” or “Connecting to a

VCR or DVR” sections.)

5. Adjustments can now be made to the camera

viewing angle by rotating the camera head or

desktop mount.

Wall Mount:

1. Disconnect the camera’s cable.

2. Unscrew the camera from the

desktop base and screw on to the

wall mount bracket.

3. Drill three 1/8” holes in mounting

location and insert wall anchors

provided. Position wall bracket over

the anchors and install screws,

or screw directly into a stud.

4. Run the 60’ cable from the camera’s location to

the location of the TV, VCR or DVR. Use the cable

clips provided to keep the cable in place. (See Notes

on Cable Installation.) Do not run cable inside wall;

Take care not to pierce, puncture or cut the cable

when securing.

5. Connect the camera cable to the TV, VCR or DVR

by connecting the 3-Wire adapter cable to the end

of the 60 ft. cable coming from the camera. Locate

the connector on the 3-Wire adapter labeled

‘power’ and plug in the AC adapter. Insert the

yellow plug to the video jack and the white plug to

the left/mono audio jack on the TV, VCR or DVR.

6. Adjustments can now be made to the camera

viewing angle by loosening the adjustment knob

and tilting and rotating the camera head.

NOTES ON CABLE INSTALLATION

1. Use care when running the cable from the

camera to the TV, VCR or DVR; when securing the

cable, do not cut, pierce or puncture. DO NOT RUN

CABLE INSIDE WALLS.

2. Keep the camera cable away from other cables

where possible, in order to reduce the risk of picture

and audio interference.

3. Avoid laying the cable next to any heat sources.

4. If the cable is run along the ground, a protective

covering must be used to prevent the cable from

being damaged, stepped on or becoming a tripping

hazard.

5. If additional cable length is required, a 60 ft.

extension cable is available; contact Customer

Service at 800-654-8483.

If you have any questions or feel the camera

system is not operating correctly, or you simply

need additional information, please visit our web

site www.jascoproducts.com, or contact our

Customer Service Group 1-800-654-8483.

SPECIFICATIONS (Subject to change without notice.)

AC/DC Adapter

Power supply operating voltage................................................120V 60Hz

Output voltage...............................................................................................9V DC

Table des matières

Autres manuels GE Caméra de sécurité

GE 45406 Manuel utilisateur

GE KTC-CBH24 Manuel utilisateur

GE IDP-1111 Manuel utilisateur

GE Interlogix KTC-115CC Manuel utilisateur

GE 45234 Manuel utilisateur

GE UVD-EVRDNR(-P) Manuel utilisateur

GE GEC-HDR Manuel utilisateur

GE UVD-IP-EVRDNR Manuel utilisateur

GE UVD-XP3DNR(-P) Manuel utilisateur

GE 45233 Manuel utilisateur

GE 45234 Manuel utilisateur

GE CyberDome II Manuel utilisateur

GE UVD-XP3DNR Manuel utilisateur

GE 45238 - Jasco Wireless Decoy Security Cam Manuel utilisateur

GE Security TruVision TVD Series Instructions de montage

GE Add-on Wireless Color Digital Camera Manuel utilisateur

GE 16X PTZ Manuel utilisateur

GE KTC-810C Manuel utilisateur

GE CyberDome Series Manuel utilisateur

GE DR-1200 Manuel utilisateur

GE PI-450 Manuel utilisateur

GE TruVision TVD Series Instructions de montage

GE Legend IP Manuel utilisateur

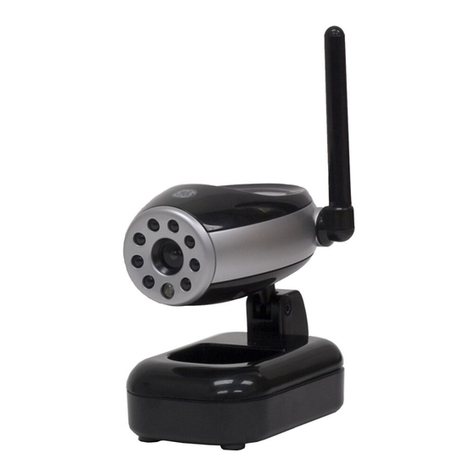

GE 45238 Manuel utilisateur
