Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
†Note: Check local codes for required breaker size.
Effective January 1, 1996, the National Electrical Code requires that new
construction (not existing) utilize a 4-conductor connection to an electric range.

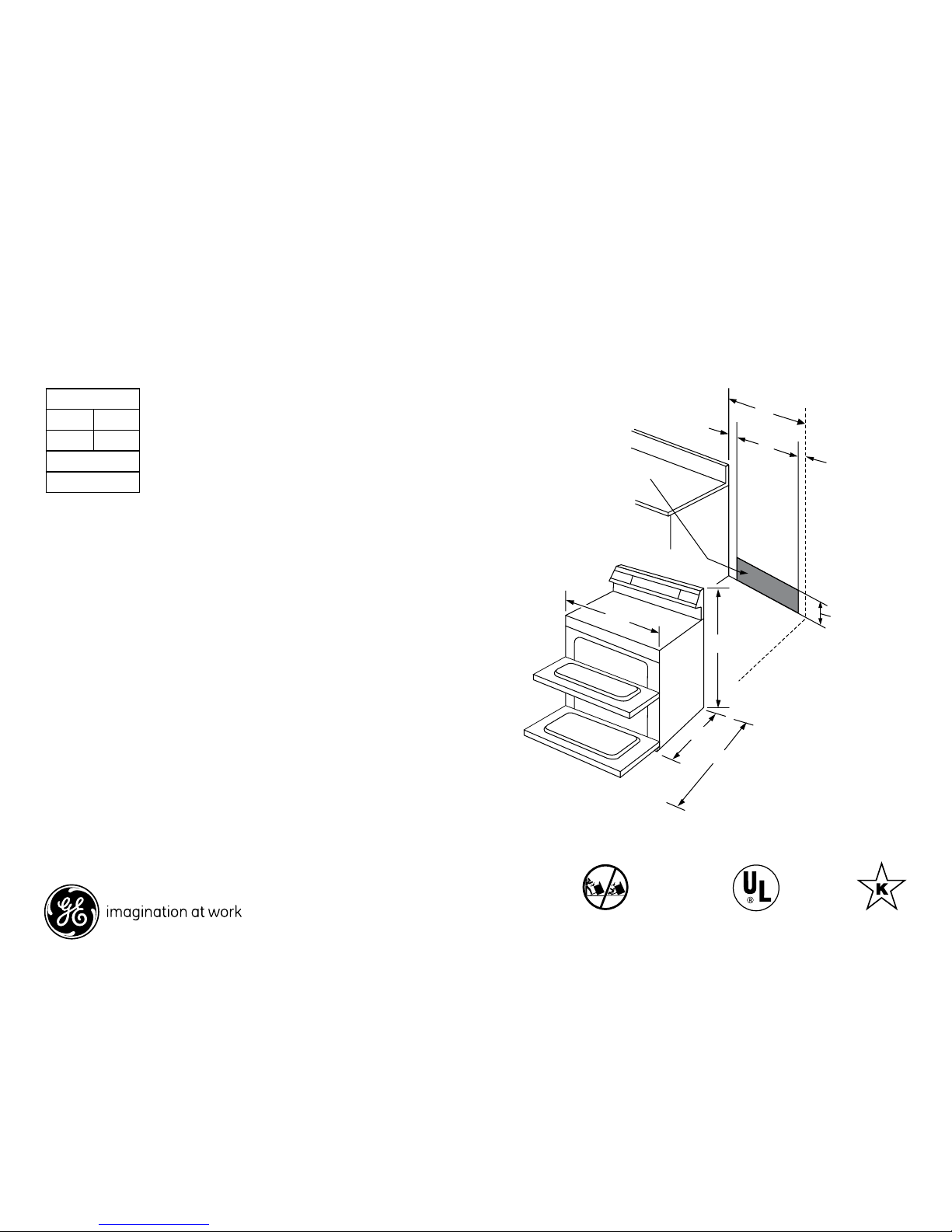

Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals
are not accessible after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow range to be installed
directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent
walls below countertops. To reduce possibility of scorching walls, engineering
recommends a minimum of 1-1/2" spacing to allow for possible extended, high-
heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
KW Rating
240V 14.3
208V 10.7
Breaker Size
40 Amps†
PB978DP/TP
GE Profile™ 30" Free-Standing Electric Range
Specification Revised 5/09 221018
30
24
3
7-1/2
29-7/8
25-3/4*
45
47
3
Acceptable electrical
outlet area
Orient the electrical
receptacle so the length
is parallel to the floor.
*Dimension from wall to front of
closed oven door handle is 28-7/8.
fse_dual_cavity_install.eps
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Features and Benefits
• 6.6cu.ft.totalovencapacity-Largecapacityisidealforbigmeals
• PreciseAir™convection system - A reversing fan circulates heat and air for evenly
browned and baked foods
• Convectioncook-Areversingfansurroundedbyathirdelementcirculateshotairfor
great results on every rack
• Nextstepcontrols-Knob-freecontrolsilluminatetoleadthroughthecontrol
setting process
• T r u e T e m p ™griddle system - Griddle can be set to heat from 200˚ – 400˚F for a variety
of cooking options
• 12"/9"/6"Tri-RingElement-Providesthreecookingareasinonefortheultimatein
cooking versatility
• PizzaMode-Providesidealcookingconditionsforpreparingfreshorfrozenpizzasat
the touch of a button
• Slowcookmode-Twoslowcookoptions–beefandpoultry–deliveridealconditions
for specific meals
• 5"/8"Dualelement-Toheatingelementsinoneallowsyoutochooseeithera5"or8"
element for your cookware
• WarmingZone-Provideslowheatcapabilityforfoods,makingmealcoordinationsimple
•ModelPB978DPBB–Blackonblack
•ModelPB978TPWW–Whiteonwhite
PB978DP/TP
GE Profile™ 30" Free-Standing Electric Range
Specification Revised 5/09 221018

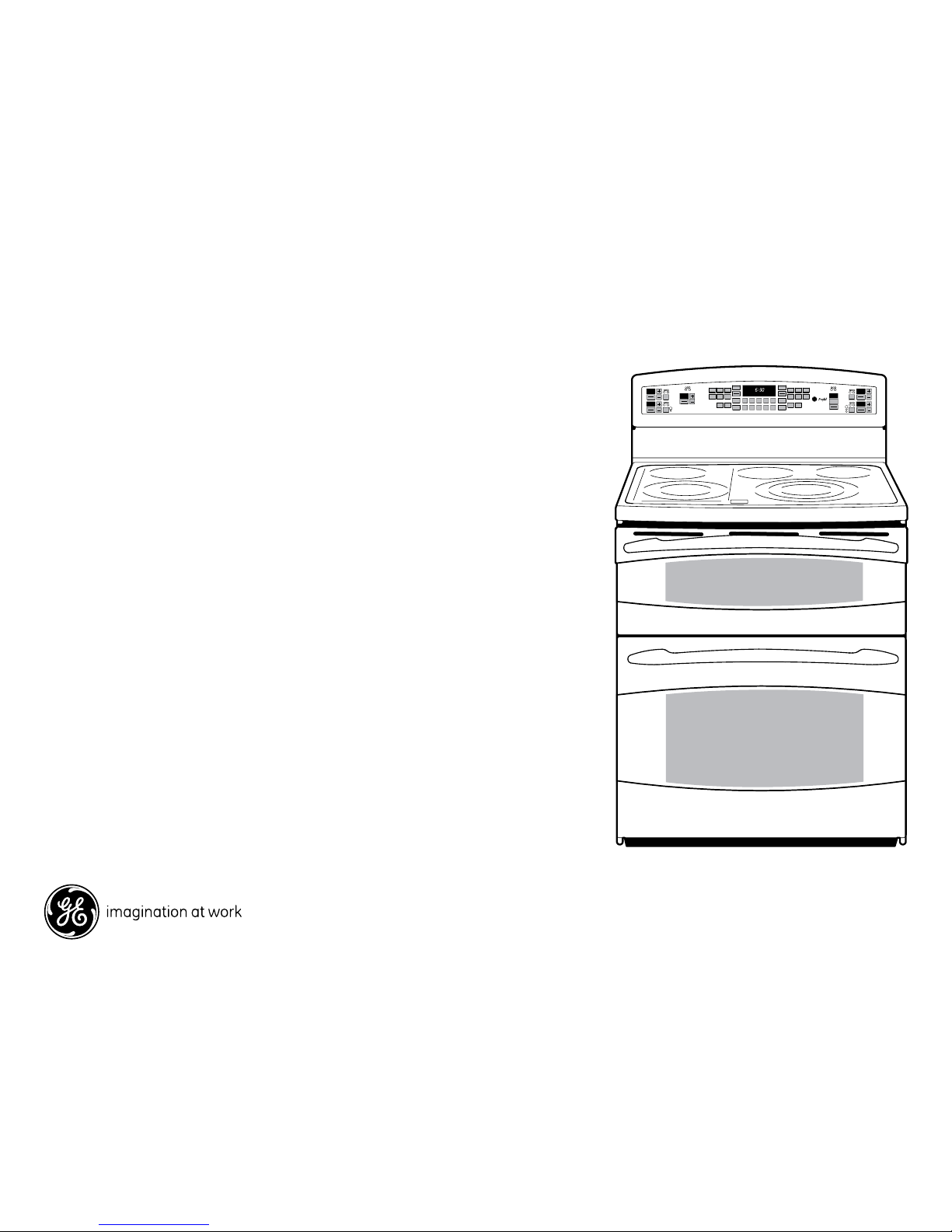

PB978TPWW/DPBB
M
ELT
B
URNER
S
IZE
O
N
O
FF
O
N
O
FF
O
N
O
FF
M
ELT
B
URNER
S
IZE
O
N
O
FF
O
N
O
FF
O
N
O
FF
S
ELECT
WARMINGZONE
B
AKE
W
ARM
B
ROIL
C
LOCK
C
LEAN
S
ELF
S
TART
T O D
D
ELAY
S
TART
C
OOK
T
IME
C
LEAR
O
FF
12345
67890
U
PPER
O
VEN
U
PPER
O
VEN
S
ETTINGS
H
R:
M
IN
L
OWER
O
VEN
G
RIDDLE
C
ONTROL
H 3 S
O
C
ONTROL
L
OCKOUT
S
TART
T O D
D
ELAY
S
TART
C
OOK
T
IME
C
LEAR
O
FF
P
IZZA
L
IGHTS
O
VEN
B
AKE
P
ROBE
B
ROIL
T
IMER
O
C
T
IMER
C
LEAN
S
ELF
C
OOK
S
LOW
L
OWER
O
VEN
K
ITCHEN
T
IMER
C
OOK
