GE JGB428SERSS Manuel

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

Dimensions and Installation Information (in inches)

Depth with door closed

(includes handle)

14-1/2 2-1/2

Recommended area

for thru the floor

connection of pipe stub

and shut-off valve

Recommended common

area for gas outlet and

electrical outlet

Recommended

area for 120V outlet

on rear wall and

area for thru the

wall connection

of pipe stub and

shut-off valve

47"36-1/4 ±1/4

Depth varies

depending on model.

See specifications

sheet for your model.

29-3/4"

47"

Depth with

door open

26-5/8"

Depth with door closed

(includes handle)

14-1/2 2-1/2

Recommended area

for thru the floor

connection of pipe stub

and shut-off valve

Recommended common

area for gas outlet and

electrical outlet

Recommended

area for 120V outlet

on rear wall and

area for thru the

wall connection

of pipe stub and

shut-off valve

47"36-1/4 ±1/4

Depth varies

depending on model.

See specifications

sheet for your model.

29-3/4"

47"

Depth with

door open

26-5/8"

JGB428SER

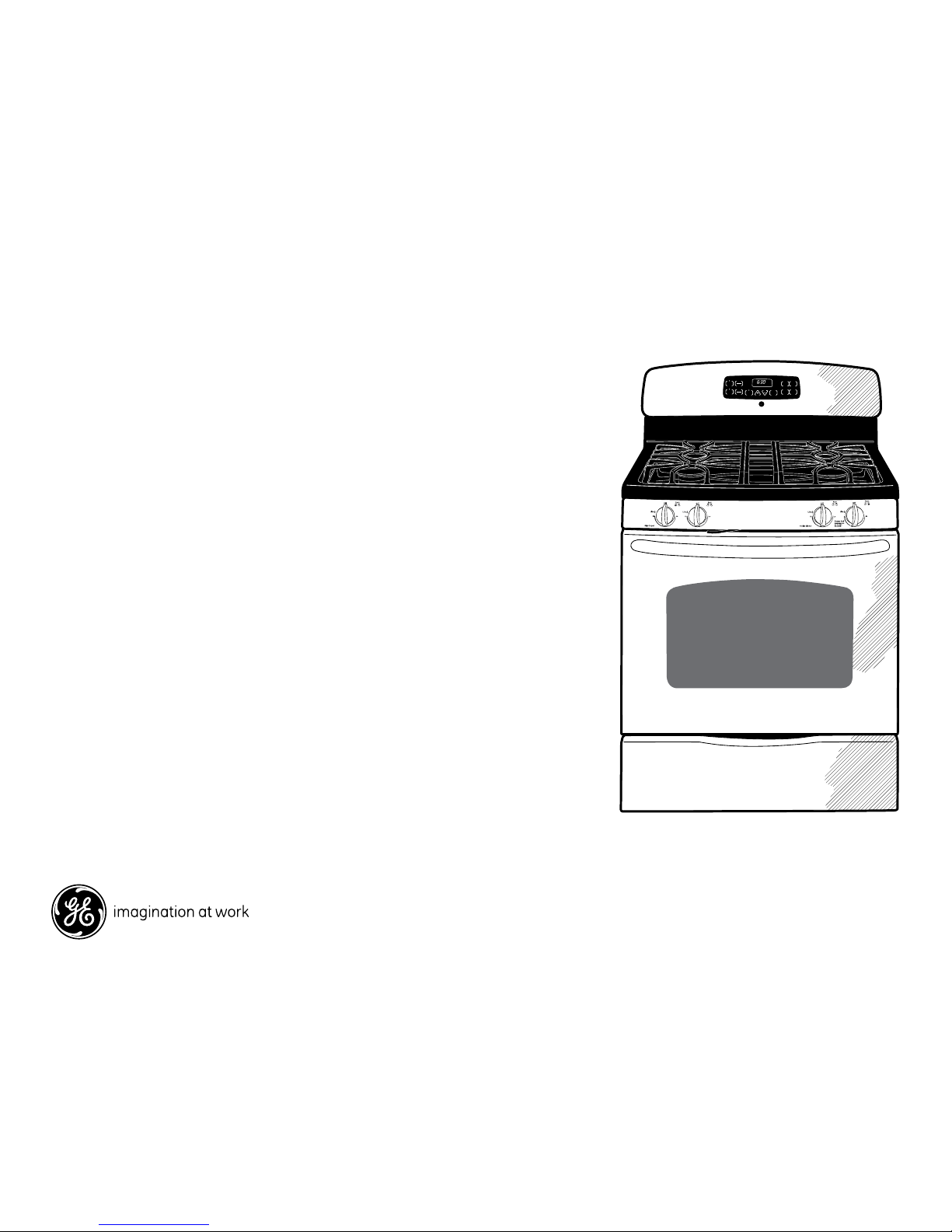

GE® 30" Free-Standing Self-Clean Gas Range

Note: Dimension from the wall to the front of the closed door

handle is 29-3/4”. Depth to front edge of cooktop 25-1/4”.

Optional Gas Range Accessory Drip Pans for Sealed and

Standard Burner Models: (Available at additional cost)

To order these accessory drip pans, call toll-free 800-626-2002.

Electrical Rating: 120V, 60Hz, 5A

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

330506

Specification Created 12/10

All 30" GE gas and electric range backguards

are 30-7/8" wide.*

Note: 30" ranges conform to U.L. requirements

for 0" spacing from adjacent walls below

countertops. To reduce possible scorching of

walls, engineering recommends a minimum of

1-1/2" spacing to allow for possible extended,

high heat, no-load heating element operation.

*Except these models: JGBS07, JGBS04, all GE

Profile free-standing electric and gas ranges

Fits most countertop backsplash applications.

Consult Use & Care Manual for detailed

installation instructions.

30-7/8"

Features and Benefits

• Gas-on-glasscooktop–Ceramicglasssurfacelookssleekandis

incredibly easy to wipe clean

• Super-largeovencapacity–Remarkablylargeoveninteriorisidealfor

holidays, dinner parties and everyday family cooking

• Heavy-cast,continuousgrates–Matte-finish,connectedcooktopgrates

provide a study, uninterrupted surface that allows pots and pans to

move easily

• PowerBoil™15,000BTUburner–Thispowerfulburnerinstantlysupplies

the intense heat need for boiling, sautéing and stir frying

• PreciseSimmerburner–Allowsforlow,evenheatdistributionthatis

ideal for delicate foods and sauces

• Stainlessappearanceknobs–Stainlessappearanceknobsaddatouch

of style that complements the overall stainless steel exterior

•  T r u e T e m p ™ovensystem–Thisfeaturehelpsensurethetemperature

you set is the temperature you get, with less variance, to give you the

baking and broiling performance you desire

• ModelJGB428SERSS-Stainlesssteelwithblackaccents

JGB428SER

Start

Clear

Off

Bake

TempRecall

Clock

Broil

Hi/ Lo

Kitchen

Timer

On/ Off

Oven

Light

On/ Off

Self

Clean

Cooking

Time Start

Time

AutomaticOven

TrueTemp

Oven Controls Time Controls

JGB428SER

GE® 30" Free-Standing Self-Clean Gas Range

330506

Specification Created 12/10
