GE 940 Manuel utilisateur
GE
Security
U.S.
T 888 GE SECURITY (1 888 437 3287)
F 561 998 6224
Asia
T 852 2907 8108
F 852 2142 5063
Australia
T 61 3 9259 4700
F 61 3 9259 4799
Europe
T 32 2 725 11 20
F 32 2 721 86-13
Latin America
T 305 593 4301
F 305 267 4300
www.gesecurity.com
©2008 General Electric Company
All Rights Reserved.
460585001E/01-08

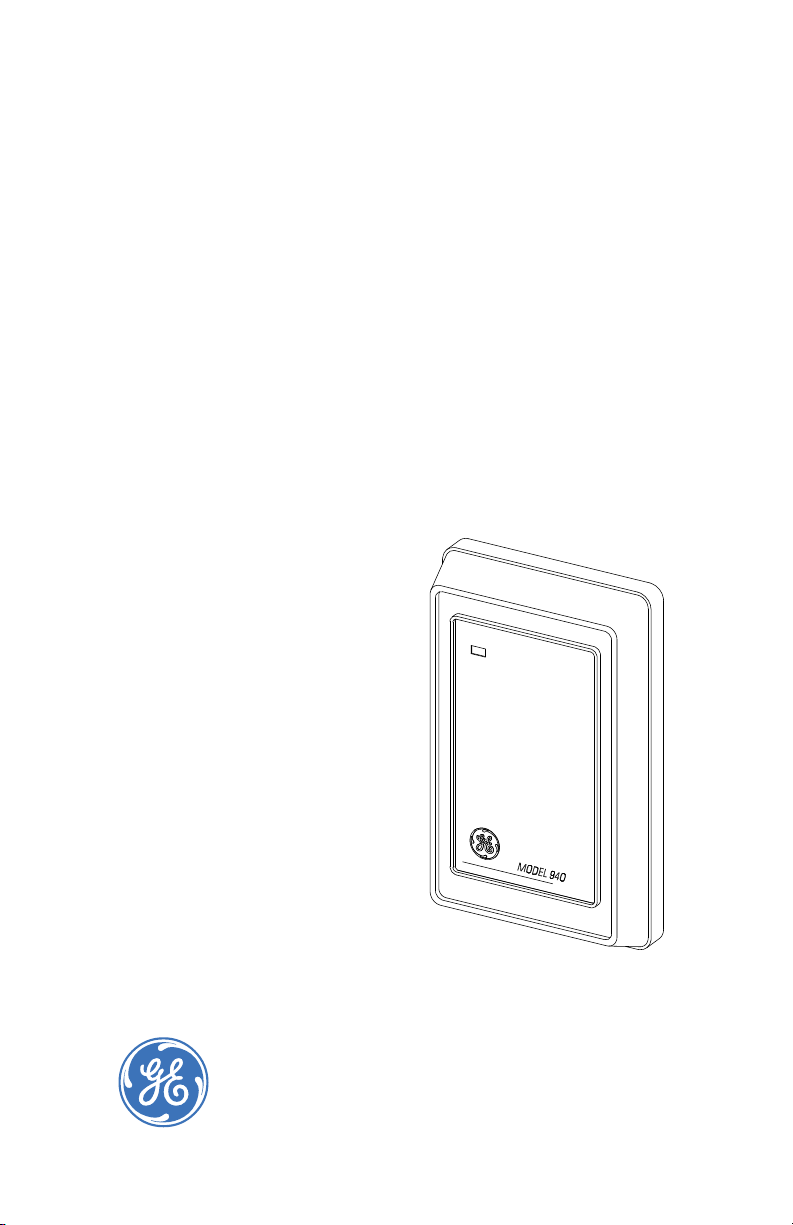

Model 940 Proximity Reader
Installation Manual
Copyright Copyright © 2008, GE Security Inc. All rights reserved.
This document may not be copied or otherwise reproduced, in whole or in part,
except as specifically permitted under US and international copyright law,
without the prior written consent from GE.
Document number/460585001E (January 2008).
Disclaimer THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. GE ASSUMES NO RESPONSIBILITY FOR INACCURACIES OR OMISSIONS
AND SPECIFICALLY DISCLAIMS ANY LIABILITIES, LOSSES, OR RISKS, PERSONAL OR
OTHERWISE, INCURRED AS A CONSEQUENCE, DIRECTLY OR INDIRECTLY, OF THE
USE OR APPLICATION OF ANY OF THE CONTENTS OF THIS DOCUMENT. FOR THE
LATEST DOCUMENTATION, CONTACT YOUR LOCAL SUPPLIER OR VISIT US ONLINE
AT WWW.GESECURITY.COM.
This publication may contain examples of screen captures and reports used in
daily operations. Examples may include fictitious names of individuals and
companies. Any similarity to names and addresses of actual businesses or
persons is entirely coincidental.
Trademarks
and patents
GE and the GE monogram are registered trademarks of General Electric.
Model 940 Proximity Reader product and logo are trademarks of GE Security.
Other trade names used in this document may be trademarks or registered
trademarks of the manufacturers or vendors of the respective products.
Intended use Use this product only for the purpose it was designed for; refer to the data sheet
and user documentation. For the latest product information, contact your local
supplier or visit us online at www.gesecurity.com.
FCC
compliance
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful inter-
ference to radio communications.
You are cautioned that any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate
the equipment.
Regulatory
i
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Radio interference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Electrostatic discharge (ESD) precaution . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Configuring the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Supervised F/2F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Unsupervised F/2F or Wiegand 4001 . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Connect the reader to the micro. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Wiring diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Testing the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Regulatory approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
UL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Model 940 Reader
Installation Manual
ii
Figures
Figure 1. Off-the-wall tamper activation................................................ 9
Figure 2. Recommended additional mounting instructions for
off-the-wall tamper switch activation9
Figure 3. Model 940 reader - Gang box mounting...........................10
Figure 4. Model 940 reader - Direct wall mounting.........................11
Figure 5. Model 940 Reader .......................................................................13
Figure 6. Supervised F/2F wiring diagram ..........................................16
Figure 7. Unsupervised F/2F wiring diagram ....................................18
Figure 8. Wiegand wiring diagram .........................................................20
Figure 9. Typical installation (Internal to the micro)
using shielded cable/drain wire25
Figure 10. Typical installation (External to the micro)
using shielded cable/drain wire25
Figure 11. Proprietary burglar alarm unit accessory configuration
27
Introduction 1
Introduction
This manual is an installation guide for the GE Model 940
proximity reader which features two-state supervision that
continuously monitors for closed and open circuit conditions at
door contacts and request to exit (REX) connections. An internal
tamper switch automatically alerts security personnel ifthe reader
is violated. This supervision ensures that security personnel are
immediately notified if someone tampers with the reader or a
door is breached. Upon an alert, the reader is taken off-line to
prevent a breach at that access point.
This GE proximity card reader also offers expanded hassle-free
contactless convenience when entering and exiting secure
facilities. A new reader optimization technology automatically
adjusts to a wide range of installation environments to provide
consistent read range performance no matter where or on what
the reader is mounted. It automatically detects and optimizes the
credential read field, even in challenging environments with
metal surfaces. By optimizing the GE 940 proximity card reader,
to any metal or non-metal environment, cardholders experience
consistent reader performance, regardless of location or
environment.
Model 940 Reader
Installation Manual
2
Safety
Radio interference
Electrostatic discharge (ESD) precaution
WARNING: This is an FCC Class A product. In a domestic
environment, this product may cause radio
interference, in which case, the user may be
required to take adequate measures.
WARNING: Circuit board components are vulnerable to damage
by electrostatic discharge (ESD). ESD can cause
immediate or subtle damage to sensitive electronic
parts. An electrostatic charge can build up on the
human body and then discharge when you touch a
board. A discharge can be produced when walking
across a carpet and touching a board, for example.
Before handling any board, make sure you dissipate
your body’s charge by touching ground. This
discharges any static electricity build-up.
Product features 3
Product features
The GE Model 940 Proximity PerfectTM reader combines the
convenience of contactless proximity technology with flexibility
of operation.
The GE Model 940 Reader offers:
• State-of-the-art architecture.
• The ability to read all ISO ProxLiteTM, ProxLite, and
Entrée badges and key tags.1
• Supervised F/2F communications with 2-state Door/REX
supervision.
• Unsupervised F/2F communications.
• 40-bit Wiegand (4001 and 4002) format output.
• Reader to micro cable lengths up to 3,000 feet (914.4
meters).
• Weather-resistant housing for outdoor use.
• 12 VDC operation.
• A clear, logical user interface with tri-color LED and
beeper.
• Rugged molded ABS construction with backplate.
• Cover removal and off-the-wall tamper detection.
1. The new Model 940 reader (single LED) does not support Proximity Perfect
cards.
Model 940 Reader
Installation Manual
4
System requirements
Host software • Secure Perfect®Edition 3.0 or later
•PicturePerfect
™1.7 or later
Microcontrollers • Micro/5-PX with 2RP or 8RP
•Micro/5-PXNwith2RPor8RP
•M5PXNplus
• Micro/PX-2000
•Micro/PXN-2000
• M2000PXNplus
• M3000PXNplus
Micro firmware • For Micro/5-PX, Micro/5-PXN, Micro/PX-2000
and Micro/PXN-2000:
Secure Perfect: 3.1.0.6 or later
Picture Perfect: 1.7.0 or later
Badge and keytag
formats
•CASIProxLite
•Entrée
•ISOProxLite
Note: Proximity Perfect credentials, which were
discontinued in 2001, are not supported.
Technical specifications 5
Technical specifications
For UL compliant installation notes, refer to UL listed
installations on page 26
Operating temperature
range
-31 F (-35 C) to +150 F (+66 C)
Relative humidity 5% to 95% (non-condensing)
Physical dimensions
(HxWxD)
4.75" (121 mm) x 2.9" (74 mm) x 0.90" (23 mm)
Index of protection IP51
Input voltage range 10 to 15 VDC (measured at the reader)
Reader power
consumption
85 mA @ 12 VDC or 95 mA @ 15 VDC
Cable specifications Belden 8725 or equivalent, 20 AWG
minimum, shielded pairs
Maximum cabling
distancea
a. The maximum cabling distance of 3,000 ft (914.4 meters) is influenced by a
number of factors including wire gauge and reader power requirements.
3000 ft (914 m) @ 12 VDC with 20 AWG cable
Read range ProxLite: up to 6 inches
ISO ProxLite: up to 5 inches
ProxLite Keytag: up to 3 inches
Operating modes Supervised F/2F
Unsupervised F/2Fb
Wiegand 40-bitb
b. Operating the reader in this mode, requires a programming card for set up. Refer
to“Configuring the reader” on page 12 for more information.
Agency approvals FCC Class A
CE
Model 940 Reader
Installation Manual
6
Parts list
• Model 940 Reader with backplate (gray or black)
• Optional installation wrench
Refer to the GE price list for part numbers and ordering
information.
