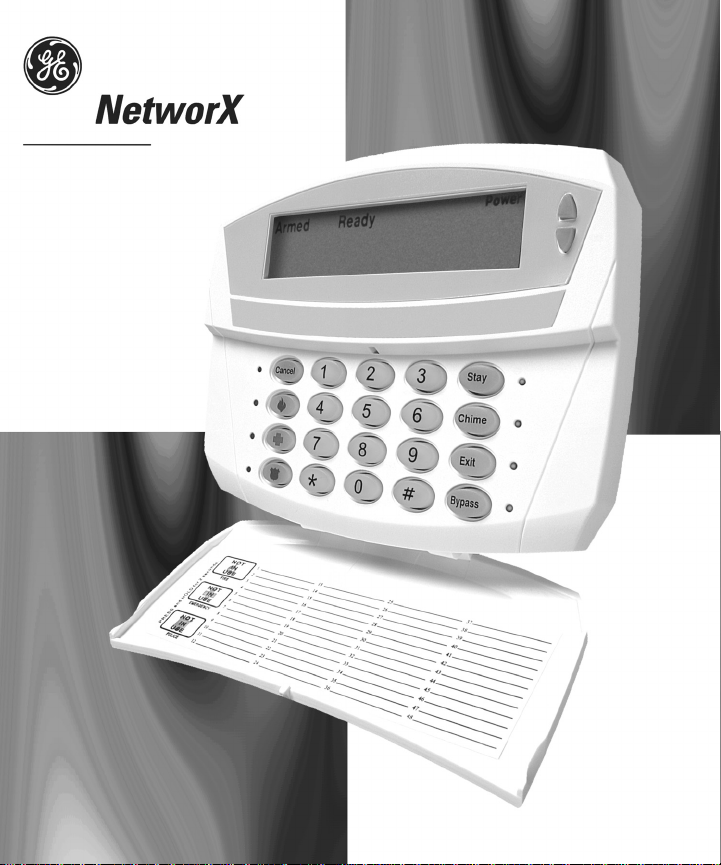

GE NX-1448E - Security NetworX 48-Zone Fixed Manuel utilisateur

NX-1448E

Fixed English Keypad

User’s Manual

Page 2 NX1448E Icon Keypad

SECURITY SYSTEM NOTES

Installing/Service Company _________________________________

For Service Call __________________________________________

Central Station ___________________________________________

Duress Code ____________________

This system is is not partitioned.

EMERGENCY ACTIVATION KEYS (check if enabled)

Fire Auxiliary Emergency Police

PROGRAMMED FUNCTIONS

Abort Delay (s) Cancel Alarm Forced Arming (s)

Auto Bypass (s) Change Partitions Group Bypass (s)

Auto Instant Chime Quick Arm (s)

Battery Test Communicator Test Re Exit

Siren Test

(s)These features should not be enabled on UL listed systems.

ENTRY / EXIT DELAY TIMES

Exit Delay Time __________ Secondary Exit Delay Time ________

Entry Delay Time _________ Secondary Entry Delay Time _______

NX1448E Icon Keypad Page 3

ZONE DESCRIPTIONS

01 _________________________ 25 _________________________

02 _________________________ 26 _________________________

03 _________________________ 27 _________________________

04 _________________________ 28 _________________________

05 _________________________ 29 _________________________

06 _________________________ 30 _________________________

07 _________________________ 31 _________________________

08 _________________________ 32 _________________________

09 _________________________ 33 _________________________

10 _________________________ 34 _________________________

11 _________________________ 35 _________________________

12 _________________________ 36 _________________________

13 _________________________ 37 _________________________

14 _________________________ 38 _________________________

15 _________________________ 39 _________________________

16 _________________________ 40 _________________________

17 _________________________ 41 _________________________

18 _________________________ 42 _________________________

19 _________________________ 43 _________________________

20 _________________________ 44 _________________________

21 _________________________ 45 _________________________

22 _________________________ 46 _________________________

23 _________________________ 47 _________________________

24 _________________________ 48 _________________________

Page 4 NX1448E Icon Keypad

INTRODUCTION

This manual is furnished to help you understand your security system and

become proficient in its operation. All users of your security system

should read and follow the instructions in this booklet and, if possible,

practice on the keypad control while your professional installer is on site.

Failure to do so could result in the security system not working properly.

Please keep this booklet in an accessible location for the life of the

security system. If you do not understand any part of this manual you

should notify your installing company.

The SECURITY CONTROL can be turned on (ARMED) and off (DISARMED)

by entering a 4 or 6 digit code into the Keypad Control, which is similar to

a telephone keypad. If your Security Control has been so programmed,

you may be able to turn on (ARM) your System by simply pressing the

[STAY] or [EXIT] key. The system must always be disarmed using a 4 or 6

digit code. The LED keypad includes up to 60 icons and a built-in

electronic sounder. These provide specific information relating to the

status of the security system which is described in the booklet.

Understanding what the icons and sounds mean will help you easily

operate your system.

Keep in mind, the level of security you will obtain with this system relates

specifically with two major factors:

1. The quantity, quality and placement of security devices attached

to this system.

2. The knowledge you have of the security system and how that

knowledge is utilized in a weekly test of the complete system.

You should be aware of the following facts when preparing a

safety/security plan for your home/business.

 Your security system is an electronic device and is subject to failure

or malfunction. Do not rely on it as your single source of security.

 Your system should be tested weekly.

NX1448E Icon Keypad Page 5

 Your system will not work without power.

 Warning devices will need to be loud enough, wired correctly, and

properly placed to provide notification of an alarm event.

 Smoke and heat detectors may not detect heat and smoke in all

situations.Use qualified security professionals to install and maintain

your security system.

 It may be possible to arm the security system without the backup

battery connected. Your periodic test should be done with AC Power

removed to verify the battery is connected and adequately charged.

 Care should be taken to plug in and restrain the AC Transformer after

testing.

Please read the following information and instructions carefully

before operating your security control system.

Page 6 NX1448E Icon Keypad

TABLE OF CONTENTS

GLOSSARY OF TERMS .......................................................................8

ICON KEYPAD DISPLAY ....................................................................9

EMERGENCY ACTIVATION KEYS .....................................................10

UNDERSTANDING THE ICONS & LIGHTS.........................................11

ARMED ICON ................................................................................. 11

BYPASS LIGHT............................................................................... 11

CANCEL LIGHT .............................................................................. 11

CHIME LIGHT ................................................................................ 11

EXIT LIGHT ................................................................................... 11

FIRE ICON .................................................................................... 11

INSTANT ICON .............................................................................. 12

LISTEN-IN ICON ............................................................................ 12

POWER ICON................................................................................. 12

READY / NOT READY ICON .............................................................. 12

SILENCED ICON............................................................................. 12

STAY LIGHT .................................................................................. 12

TAMPER/TROUBLE ICONS ............................................................... 12

ZONE ICON ................................................................................... 12

KEYPAD FUNCTIONS ......................................................................13

ARMING YOUR SYSTEM IN THE “AWAY” MODE................................... 13

ARMING YOUR SYSTEM IN THE “STAY” MODE .................................... 14

USING THE QUICK ARM ................................................................. 15

CHANGING MODES WHILE SYSTEM IS ARMED ................................... 15

NX1448E Icon Keypad Page 7

(Table of Contents continued…)

DISARMING THE SYSTEM................................................................ 15

CANCEL / ABORT FEATURE ............................................................. 16

BYPASSING ZONES ........................................................................ 16

GROUP BYPASS ............................................................................. 16

UNBYPASSING............................................................................... 17

TURNING THE DOOR CHIME ON AND OFF ......................................... 17

CHANGING USER CODES.................................................................17

ASSIGNING USER CODE AUTHORITY LEVELS..................................18

OTHER KEYPAD FUNCTIONS ...........................................................20

SETTING THE KEYPAD TONE............................................................ 20

CHANGE PARTITION – Optional........................................................ 20

VIEW ALARM MEMORY .................................................................... 20

TEST FUNCTION – Optional ............................................................. 21

RESET FUNCTION .......................................................................... 21

SET SYSTEM DATE ......................................................................... 21

SETTING THE SYSTEM CLOCK.......................................................... 22

SETTING THE KEYPAD LIGHTING ..................................................... 23

SERVICE MENU ...............................................................................23

KEYPAD CONTROL TONES (BEEPS) .................................................25

EMERGENCY EVACUATION PLANS...................................................26

Page 8 NX1448E Icon Keypad

GLOSSARY OF TERMS

Abort Delay An option that allows a delay in reporting to the

central station.

Authority Level The level of access an individual has when using

an alarm panel.

Central Station The location where alarm data is sent during an

alarm report.

Chime Feature An option that allows the keypad to sound a

ding-dong whenever an entry/exit door is

opened.

Codes Can be either User Codes (relating to a person)

or Function Codes (a toggle switch to turn

specific functions on/off). NOTE: A system may

have either 99 four-digit codes or 66 six-digit

codes, but not a mixture of the two.

Duress Code An option that allows a special code to be sent to

the central station that indicates the alarm

system is being operated under duress.

Forced Arming An option that allows the system to be turned on

(ARMED) with one or more zones open. A system

that is ready to be “force armed” will flash the

ready icon. (Note: Those zones that are not

ready will not create an alarm.)

Function Code A Function Code is either a four (4) or six (6)

digit code that has been programmed by the

installer to operate a device.

Group Bypass An option that allows the user to bypass multiple

zones with a single operation.

Instant/Delay An option that allows an instant alarm condition

for Entry/Exit doors, or grants a delay to allow

someone to enter/exit the building without an

alarm, or before entering a user code to disarm.

Master Code A master arm/disarm code that can program

other user codes.

NX1448E Icon Keypad Page 9

Partitioned System A system divided into multiple areas in which its

own user or users control each area.

Perimeter The outer edge of the protected area.

Quick Arm An option that allows you to turn on (ARM) the

security system by pressing either the [STAY] or

[EXIT] key on the keypad control (for ARMING

only) as programmed by the installing company.

User Code A four (4) or six (6) digit entry code used to arm

or disarm the system.

ICON KEYPAD DISPLAY

Armed

Instant

Ready

FIRE

Power

Service

Enter Code Silenced

Trouble Tamper

12345678910111213141516

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38

40 41 42 43 44 45 46 47 48

ALARM

Listen-in

Not

Page 10 NX1448E Icon Keypad

EMERGENCY ACTIVATION KEYS

NOTES: You must hold these keys for 2 seconds to activate these

functions. Your system may not be programmed for these activation keys

(see page 1). You should press these keys only in an emergency situation

that requires response by emergency personnel. If your system is

programmed for these functions, the following reports can be sent.

Fire Key – This key can activate the fire alarm when pressed for two

seconds. If your system is connected to a monitoring center, an

emergency report could be sent to that center.

Auxiliary Emergency Key – This key can activate the auxiliary alarm

when pressed for two seconds. If your system is connected to a

monitoring center, an emergency report could be sent to that center.

Police (Panic/Hold-Up) Key - This key can sound a local audible alarm

when pressed for two seconds. If your system is connected to a

monitoring center, an emergency report could be transmitted to that

center. NOTE: Some Panic/Hold-Up alarms are programmed to be silent

at the protected site while reporting an alarm to the monitoring center.

Check with your installing company to determine how your security

system will respond to the Panic/Hold-Up activation.

Table des matières

Autres manuels GE Clavier

GE NetworX NX-1600E Series Manuel utilisateur

GE KTD-404 Mode d'emploi

GE NX-1348E-ICON Manuel utilisateur

GE 60-924-3-01 - ITI Simon 3 Wireless Touch Talk... Feuille d'instructions

GE NX-148E - Security NetworX LCD Keypad Manuel utilisateur

GE AL-1103 Manuel utilisateur

GE LCD Keypad Manuel utilisateur

GE NetworX NX-1500E Manuel utilisateur

GE NX-148E - Security NetworX LCD Keypad Manuel utilisateur

GE NX-148E - Security NetworX LCD Keypad Manuel

GE NetworX NX-1500E Manuel utilisateur

GE KTD-405 Manuel utilisateur

GE NX-148E - Security NetworX LCD Keypad Manuel utilisateur

GE AL-1111 Manuel utilisateur

GE NX-108E - Security NetworX NX-4 System Manuel utilisateur

GE Interlogix Aritech ATS1155 Manuel utilisateur

GE KTD-405 Manuel utilisateur

GE NX-148E-RF - Security NetworX NX-8E System Manuel utilisateur

GE Dialog QS1500 00 Touchtalk Manuel utilisateur

GE NetworX Series Guide de l'utilisateur

GE KTD-405 Manuel utilisateur

GE NX-148E - Security NetworX LCD Keypad Manuel utilisateur

GE 45146- - Keypad Transmitter Remote Manuel utilisateur

Manuels Clavier populaires d'autres marques

BFT

BFT SELETTO Manuel utilisateur

Micro Id

Micro Id MP7G3BL Manuel d'instructions

WindowMaster

WindowMaster WLI 130 Manuel utilisateur

ACT

ACT ACT PRO 1030 Manuel utilisateur

Cardin

Cardin SSB Series Manuel utilisateur

Harman Kardon

Harman Kardon KP 1 Manuel utilisateur

Chamberlain

Chamberlain KPR2000 Guide de l'utilisateur

CYP

CYP CR-KP1 Manuel utilisateur

Aeware

Aeware k-35 Series Guide de référence

Aritech

Aritech CS-175 Series Manuel utilisateur

Lenze AC Tech

Lenze AC Tech MC SERIES Manuel utilisateur

Burg Wächter

Burg Wächter secuENTRY 7711 Manuel utilisateur

Aeware

Aeware in.k450 Manuel utilisateur

Lenze

Lenze EPM-H410 Manuel utilisateur

Toshiba

Toshiba RKP007Z Manuel utilisateur

Gemini

Gemini GEM-DXK1 KEYPAD Manuel utilisateur

Russound

Russound MDK-C5 Manuel d'utilisation

Bosch

Bosch D1260 Series Manuel utilisateur
