GE GFDL110EH Manuel

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Listed by

Underwriters

Laboratories

Dimensions and Installation Information (in inches)

Exhaust Options: 4-way via rear, right, left and bottom.

Circuit Requirements: An individual, properly grounded

branch circuit, protected by a 30-amp circuit breaker or

a time-delay fuse, is required.

Note: Dryer wall outlet must be located within 36”

of service cord entry and accessible when dryer is

mounted in position.

Installation Information: For complete information, see

installation instructions packed with your dryer.

Electric Dryer Rating

240V 5600W, 24A, 60Hz

208V 4400W, 22A, 60Hz

360499

GFDL110EH

GE®7.0 Cu. Ft. Capacity Electric Dryer with 200 ft. long-venting

Specification Revised 3/14

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Special Installation Requirements:

Stacked Installation:

• Brackets for stacking dryer over washer are not included with the dryer.

GEFLSTACK or part no. WE25X10018.

Alcove or Closet Installation:

• If your dryer is approved for installation in an alcove or closet, it will be

stated on a label on the dryer back.

• The dryer MUST be exhausted to the outside.

• Minimum clearances between dryer cabinet and adjacent walls or other

surfaces are: 0" either side, 3" front and rear.

• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52".

• Closet doors must be louvered or otherwise ventilated and must contain a

minimum of 60 sq. in. of open area equally distributed. If this closet contains

both a washer and a dryer, doors must contain a minimum of 120 sq. in. of

open area equally distributed.

• No other fuel-burning appliance shall be installed in the same closet with

a gas dryer.

Bathroom or Bedroom Installation:

• The dryer MUST be exhausted to the outdoors.

• The installation must conform with the local codes, or in the absence of

local codes, with the National Electric Code and National Fuel Gas Code, ANSI Z223

for gas dryers.

Minimum Clearance other than Alcove or Closet Installations:

• Minimum clearances to combustible surfaces 0" both sides, 3" rear.

For more information on venting kits and accessories,

please call 1-800-GE-CARES.

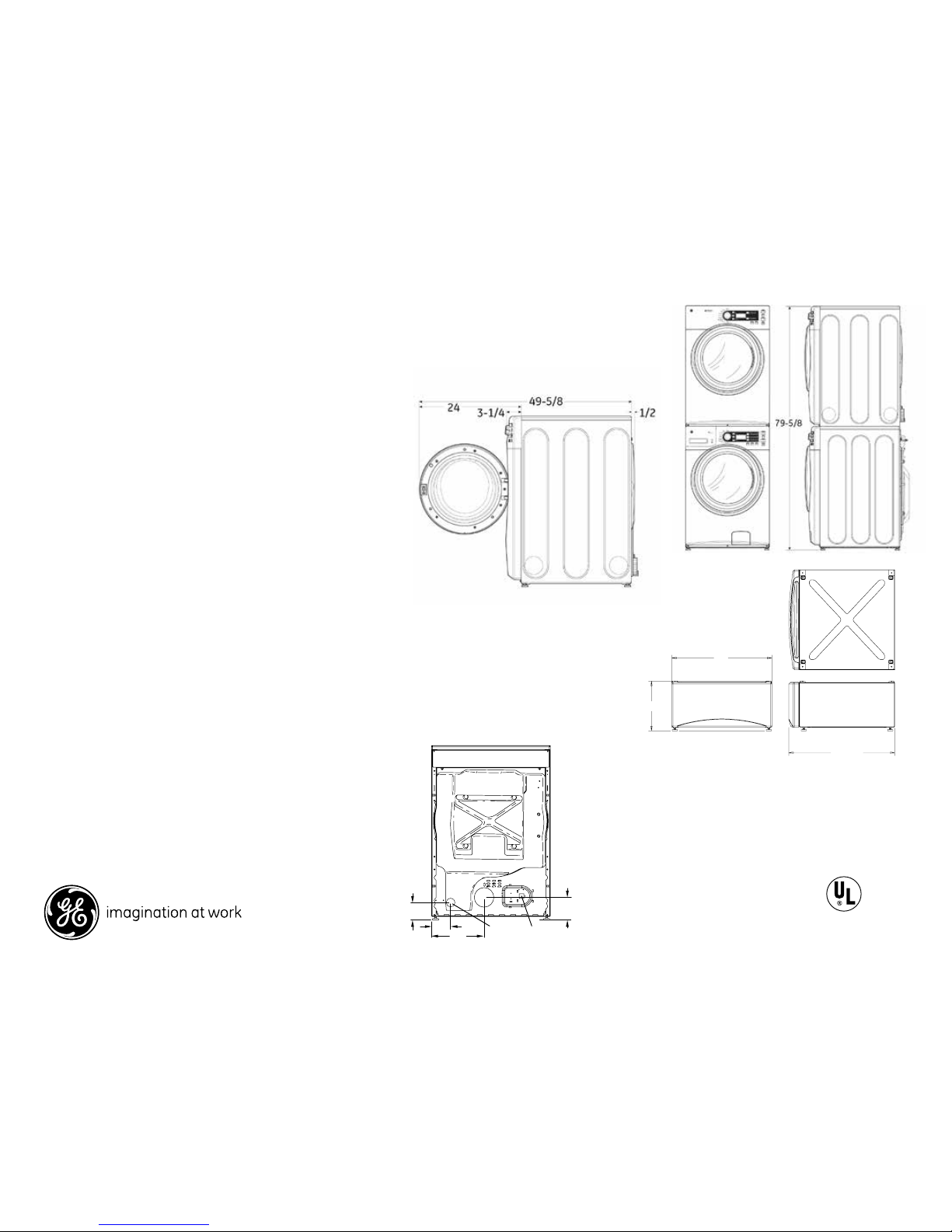

Stacked Dimensions (in inches)

28-3/4

Pedestal Dimensions (in inches)

SBSD137HWW - white

This optional 13" pedestal raises

the door opening and height of

the washer or dryer. Feet on 13"

pedestal allow it to adjust to

13-3/8" height.

Listed by

Underwriters

Laboratories

Above illustrations intended for dimensional reference only.

Refer to photography for actual product appearance.

2-1/2

1-3/4

3-1/2

Electrical

Connection

Gas Pipe

Connection

360499

GFDL110EH

GE®7.0 Cu. Ft. Capacity Electric Dryer with 200 ft. long-venting

Specification Revised 3/14

Dryer Exhausting Information – Metal Duct Only

For complete information, see installation instructions packed with your dryer.

Ducting Materials: For best performance, this dryer should be vented with 4” diameter

all rigid metal exhaust duct. If rigid metal duct cannot be used, then UL-listed flexible

metal (semi-rigid) ducting can be used (Kit WX08X10077). In special installations, it may

be necessary to connect the dryer to the house vent using a flexible metal (foil-type) duct.

A UL-listed flexible metal (foil-type) duct may be used ONLY in installations where rigid

metal or flexible metal (semi-rigid) ducting cannot be used AND where a 4” diameter can

be maintained throughout the entire length of the transition duct. Please see installation

instruction packed with your dryer for complete instructions when using flexible metal (foil

type) ducting.

Exhaust Length Calculation:

1. Determine the number of 90° turns needed for your installation. If you exhaust to the

side or bottom of dryer, add one turn.

2. The maximum length of 4’ rigid (aluminum or galvanized) duct which can be tolerated is

shown in the table.

A turn of 45° or less may be ignored. Two 45° turns within the duct length should be

treated as a 90° elbow.

A turn over 45° should be treated as a 90° elbow.

Dryers must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed

house floor (crawl space), or into an attic, since the accumulated lint could create a fire

hazard or moisture could cause damage. Never terminate the exhaust into a common duct

or plenum with a kitchen exhaust, since the combination of lint and grease could create a

fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird

nesting, etc. The wall cap must also be located at least 12" above the ground or any other

obstruction with the opening pointed down.

For more information on venting kits and accessories, please call 1-800-GE-CARES.

Listed by

Underwriters

Laboratories

360499

GFDL110EH

GE®7.0 Cu. Ft. Capacity Electric Dryer with 200 ft. long-venting

Specification Revised 3/14

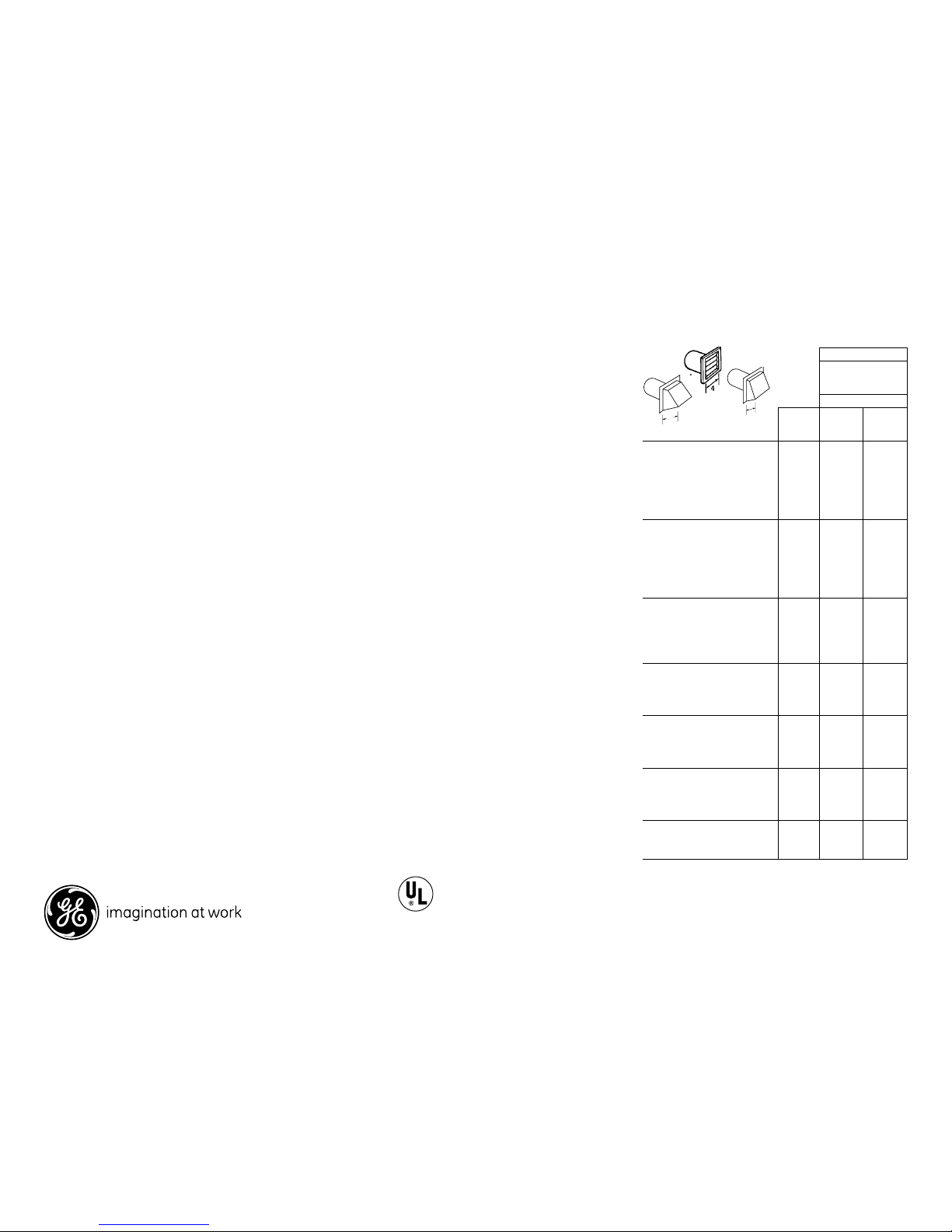

Dryer exhausting information—use metal

duct only vertical and horizontal ducting

2-1/2

GE Dryer Vent

2-1/2

GE Dryer Vent

Best performance

Maximum length

of 4" dia rigid

metal duct

Exhaust hood type

Domestic dryer models

Number

of 90°

turns

opening

2-1 /2"

opening

GE Frontload Long Vent 7.0

cu. ft. capacity electric dryer

(GFDL)

0200 ft. 175 ft.

1185 ft. 165 ft.

2175 ft. 155 ft.

3165 ft. 145 ft.

4155 ft. 135 ft.

5145 ft. 125 ft.

All Long Vent 6.0 - 8.0 cu. ft.

capacity electric & gas dryers

(GTDL)

0150 ft. 125 ft.

1135 ft. 115 ft.

2125 ft. 105 ft.

3115 ft. 95 ft.

4105 ft. 85 ft.

595 ft. 75 ft.

All 6.0 - 8.3 cu. ft. capacity

models electric and gas dryers

(GFDS, GFDR, GFDN, GTDS,

GTDN, GHDN, GHDS, GTDP,

GLDP, GTDX, HTDP, HTDX)

090 ft. 60 ft.

160 ft. 45 ft.

245 ft. 35 ft.

335 ft. 25 ft.

425 ft. 15 ft.

DCVH480

090 ft. 60 ft.

160 ft. 45 ft.

245 ft. 35 ft.

335 ft. 25 ft.

All 3.6 cu. ft. (DSKS, DSKP)

electric dryers

046 ft. 37 ft.

137 ft. 30 ft.

230 ft. 22 ft.

323 ft. 15 ft.

Laundry Center GTUP270,

GTUN275

056 ft. 42 ft.

148 ft. 34 ft.

240 ft. 26 ft.

332 ft. 18 ft.

Laundry Center GTUP240

043 ft. 36 ft.

133 ft. 26 ft.

224 ft. 16 ft.

For every extra 90° elbow, reduce the allowable vent system length by 10 ft.

Two 45° elbows will be treated like one 90° elbow.

For the side exhaust installations, add one 90° elbow to the chart.

The total vent system length includes all the straight portions and elbows of the system (transition

duct included).

Laundry Center length includes factory-installed elbow that does not impact vent length.

Features and Benefits

• Dura Drum provides long-lasting dependability

• HE SensorDry™with dual thermistors continually monitors moisture and

temperature to prevent clothing wear and tear due to over-drying and

inconsistent heat

• Speed Dry quickly dries items and small loads for families on the go

• eDry option—energy saving option reduces dry temperatures on select

cycles without sacrificing performance

• 4 heat settings provide the right temperature for the right drying needs

• 6 dry cycles—additional cycles for your clothes-drying needs

• 200 ft. long-venting capability - Provides flexible installation

• Model GFDL110EHWW – White

360499

GFDL110EH

GE®7.0 Cu. Ft. Capacity Electric Dryer with 200 ft. long-venting

Specification Revised 3/14
