GE GLDT690T Manuel

Specification Revised 8/10 350210

Listed by

Underwriters

Laboratories

GLDT690T/GLDT696T

GE®Built-In Dishwasher with Hidden Controls

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

24

24"

MAX.

20-1/2

4

4" (Adjustable)

32-11/32" MIN.

adj. to 34-1/2"

25-5/8

22

This wall area

must be free of

pipes or wires

Countertop

4

6

Hot

water

line on

left

44

2Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

6

34" to 34-3/4"

Underside

of countertop

to floor

55

90°

Electrical

wiring on

right

Electrical

wiring is

3" from

cabinet

Dimensions and Installation Information (in inches)

Electrical Rating

Voltage AC.......................................................... 120

Hertz.................................................................... 60

Total connected load amperage............. 10

Calrod®heater watts max....................... 875

For use on adequately wired 120-volt, 15-amp circuit

having 2-wire service with a separate ground wire.

This appliance must be grounded for safe operation.

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Revised 8/10 350210

GLDT690T/GLDT696T

GE®Built-In Dishwasher with Hidden Controls

GLDT690TWW_BB

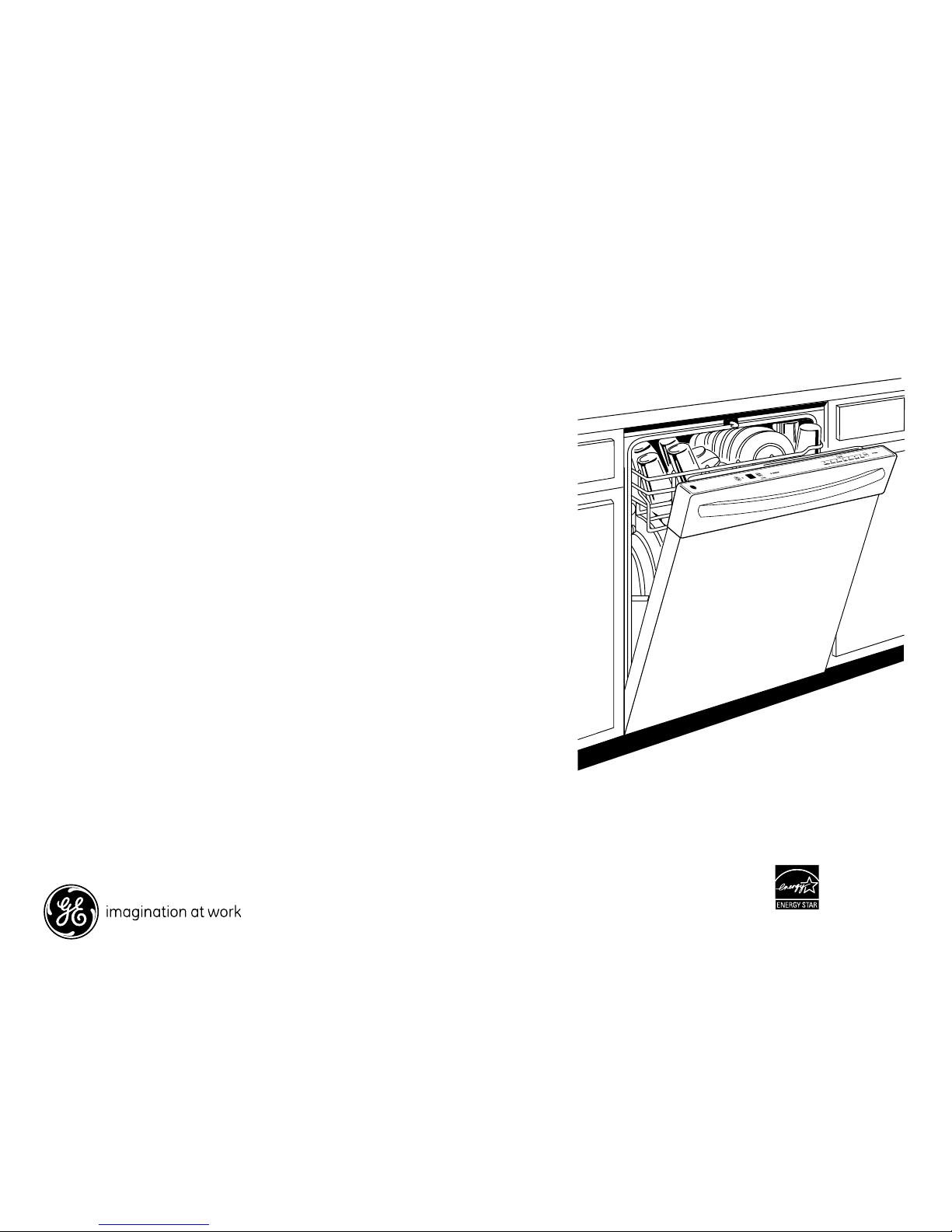

Features and Benefits

• Bright,stainlesssteelinterior

• Low-profileinstallationcapable

• 5washlevels-Scrubdishesclean

• 2-digitcountdowndisplaywith1-24hr.delaystart

• TwoutilityshelvesinupperrackwithStemSafe

• Nylonracks-Durableracksaredesignedtoresistrustand

secure dishes

• Audibleend-of-cyclesignal-Thedishwashermakesasoundto

tell you when the load is complete and dishes are ready to unload

• ADA-compliant-Dishwasherdesignallowsforsimpleoperationand

easy access

• SaniWashCycle-Specialcyclereduces99.99%ofharmfulgerms

and bacteria

• ModelGLDT690TWW–Whiteonwhite

• ModelGLDT690TBB–Blackonblack

• ModelGLDT696TSS–Stainlesssteel(shown)

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.
