GE Profile JGP990SEL Manuel

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Listed by

Underwriters

Laboratories

Specification Created 12/05

230281

*Note: A 8" minimum spacing to adjacent side wall is required

Wall Installation: Wall installations require 25”

countertop

depth. When cabinet is flush against

the wall, the fan housing can be rotated to the

horizontal position for direct venting through

rear wall. Make a countertop cutout in the

range cabinet according to unit dimensions

and installation type. Duct hole is positioned in

back of cabinet for through-the-wall ducting.

Requires special offset adapter JXRW89.

Peninsula or Island Installation: For peninsula/

islands a minimum 26”

countertop

depth is suggested.

Blower should be in vertical position. Island or

peninsula cabinets may require adjustment in cutout

depth and/or location within the width dimensions.

Duct hole is positioned in bottom of cabinet for island

or peninsula installation.

Slab Installation: For peninsula or island installation

and rear wall ducting, 6” PVC duct or locally

approved piping should be used if installing under

a poured concrete slab.

Installation Information: Before installing, consult

installation instructions, packed with product, for

current dimensional data.

Note: These cooktops are approved for indoor use only.

3-1/4 x 10

4-3/16

28-3/4

21-3/4

20-1/2

Tie down bolt

on each end

Select appropriate

duct cutout

(see ducting installation instructions.)

Pressure regulator

Wiring box cover

Grease

container

9-1/2

29 +_1/16

1-7/8"

Min.

15/16"

Min.

clearance

Blower can be swiveled 90°

14-3/16

30 21-3/4

21 +_1/16

JGP990SEL

GE Profile™ 30" Downdraft Gas Cooktop

Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Listed by

Underwriters

Laboratories

Installing the Ductwork: Use galvanized

or aluminum duct in 6” round or 3-1/4” x

10” size, or combination of both. PVC duct

or locally approved piping should be used

if installing under a poured concrete slab.

Local building code must be followed in

specifying type and schedule of all duct used.

Note: Ductwork must be vented to outside.

Do not vent into a wall, ceiling, crawlspace,

attic or any concealed space. Always use

an appropriate roof or wall cap with damper.

Laundry-type wall caps should never

be used. For maximum efficiency use the

shortest and straightest duct run possible,

with as few fittings as possible.

For satisfactory

performance the duct run

should not exceed 100 feet equivalent length.

Refer to the table of equivalent lengths

(shown in installation instructions) for

various duct configurations.

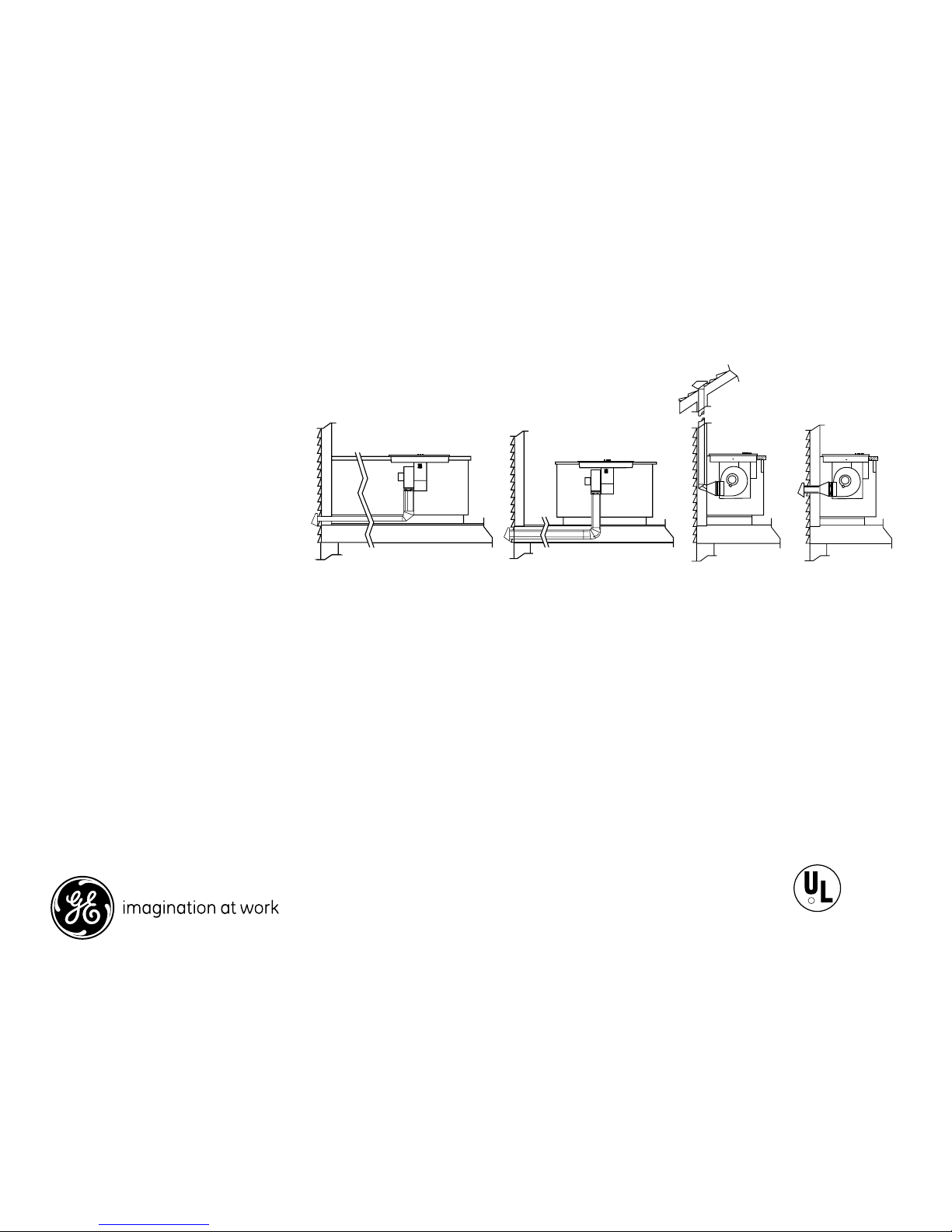

Venting Options

Through Cabinet Toe Space Inside Wall to Roof Direct to Outside

Between Floor Joist

Specification Created 12/05

230281

JGP990SEL

GE Profile™ 30" Downdraft Gas Cooktop

Dimensions and Installation Information (in inches)

Features and Benefits

• Modular Cooktop Options - Allows the cooktop to be customized to

suit individual cooking styles and tastes. Modules sold separately.

• Two-Burner Gas Module - Offers a range of temperature settings for

cooking versatility

• Downdraft Exhaust - Powerful exhaust system effectively pulls

smoke and steam out of the kitchen

• Variable 3 Speed Fan Control - Powerful variable speed exhaust

system that effectively pulls smoke and vapors out of the kitchen

• Sealed Cooktop Burners - Adhere to cooktop to help contain spills

and make cleaning quick and easy

• Continuous Grates - Provide a flat, sturdy surface allowing easy

movement of pans between burners

• Electronic Pilotless Ignition - Provides reliable burner ignition

operation, eliminating the need for a standing pilot

• Upfront Controls - Controls are placed within easy reach at the front

center of the cooktop

• Deep Recessed Cooktop - Designed with a recessed surface to help

contain spills and make cleaning easy

• Model JGP990SELSS - Stainless steel

LITE

OFF

LITE

OFF

LITE

OFF

LITE

OFF

MED

OFF

JGP990SK

Specification Created 12/05

230281

JGP990SEL

GE Profile™ 30" Downdraft Gas Cooktop
