For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
130255
Specification Created 6/07
Listed by
Underwriters
Laboratories
ZHU30RBM
GE Monogram®30" Electric Induction Cooktop
Dimensions and Installation Information (in inches)
Cutout Dimensions:
30" Models A B C D
ZHU30RBM 29-3/4" 21-3/8" 28-1/2" 19-5/8"
269Dia1
A
C
2" Min.
to Side Walls
B
2-1/2"
Min.
to Front
Edge
1-3/4"
Min.
D
269Dia2
3-1/4" 6-1/4"
5-1/2"
557ZEU669
16" Min
Junction
Box
Combination installations
Consideration must be given to electrical supply locations
when the cooktop is installed with other products in the same
cabinet. Always refer to each product's installation instructions
for clearances and electrical requirements.
• Install these cooktops with any exhaust hood of the same
or treater width; 300 CFM or greater air flow rating is
recommended.
• The 30" cooktop may be installed in combination with a
Monogram®30" downdraft vent. Install the 36" cooktop with
a 36" downdraft vent. See downdraft vents for details.
• A Monogram single oven may be installed below these
cooktops.
The serial plate is located on the bottom of the cooktops.
Electrical requirements
Product rating is 120/240V, 60Hz, 36" cooktops
to a 50-amp circuit; and 30" cooktops to a 40-
amp circuit. The cooktops must be connected
to a supply circuit of the proper voltage and
frequency and protected by a time-delay fuse or
circuit breaker.
All models require 12" minimum clearance below
the cooktop bottom to combustible materials.
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
130255
Specification Created 6/07
Listed by
Underwriters
Laboratories
ZHU30RBM

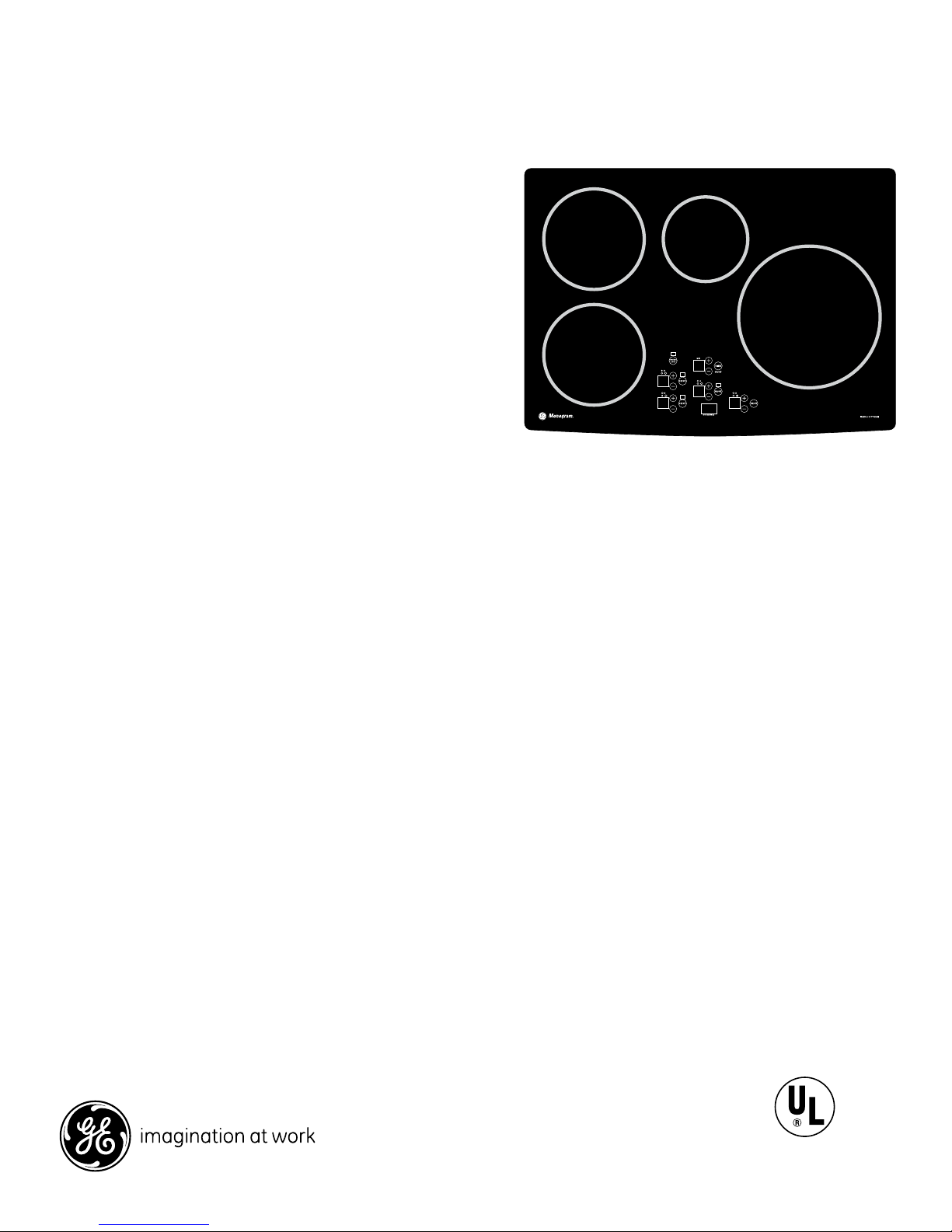

GE Monogram®30" Electric Induction Cooktop
Features and Benefits
• Induction Technology - Induction elements use
electricity to produce a magnetic field that reacts
with the iron in metal cookware - including cast
iron and magnetic stainless steel pans - and
transfers the heat to the cookware
• Sophisticated Styling - Frameless black models
are smooth from edge to edge, making them
easy to clean
• Digital Controls - Embedded in the cooktop offer
added style and convenience
• 3,700-Watt, 11" Element - The most powerful
induction in the industry, it provides instantaneous
heat across 19 different cooking settings
• Digital Pan-Sensing Technology - Detects the
presence of pans made of iron materials, a
requirement for induction cooking
• Pan Size Sensor - Automatically adjusts the heating
element to the size of the pan
• Warm Setting - provides just enough heat to
maintain an ideal serving temperature
• Timer, Control-Lock Capability and Hot-Surface
Indicator - provide an extra measure of
convenience and safety
• Flexible Installation - Above a Monogram single
wall oven is made possible by shallow-depth
configuration with integrated cooling system
• Model ZHU30RBMBB – Black
ZHU30RBMBB
