Dimensions and Installation Information

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

JGP940SEK

GE Profile™ 30" Built-In Gas Cooktop

Specification Revised 10/05

230260

Dimension and installation information are shown in inches.

*Allow 5-3/4" depth at rear for electrical and gas connections

Cooktop

2-1/2

(Min.)

28-1/2

19-5/8

3-3/16*

29-3/4 21-7/16

Electrical junction

box 12" MIN.

below countertop

30" MIN. to

unprotected

cabinet

Cut should

not interfere

with cabinet

structure at

front

3-3/4" MIN.

clearance to

side wall

from cut-out

6" MIN.

clearance to

side wall

from cut-out

18" MIN.

to cabinet

2-1/4" to

rear wall

13" MAX.

depth

AGA Requirement: All gas cooktop models require

7/16" free area below cooktop height to combustible

material. Requires 18" minimum from countertop to

adjacent overhead cabinets.

Note: Curved front may interfere with some raised

bullnose countertops. If installing with a GE ProfileTM

Telescopic Downdraft System, consult both cooktop and

downdraft installation instructions packed with product

before installing. Cooktop gas/electric supply may need

to be re-routed to install downdraft.

Electrical Rating: 120V, 60Hz, 5A

Installation With Single Wall Oven Information:

30" Gas Cooktops are approved for use over select GE 27"

and 30" Wall Ovens and Warming Drawers. 30" and 36"

Gas cooktops are approved for use over 30" Wall Ovens

and Warming Drawers. Refer to cooktop and wall oven/

warming drawer installation instructions packed with

product for current dimensional data.

Installation Information: Before installing, consult

installation

instructions, packed with product, for current

dimensional data.

JGP940SEK

GE Profile™ 30" Built-In Gas Cooktop

Specification Revised 10/05

230260

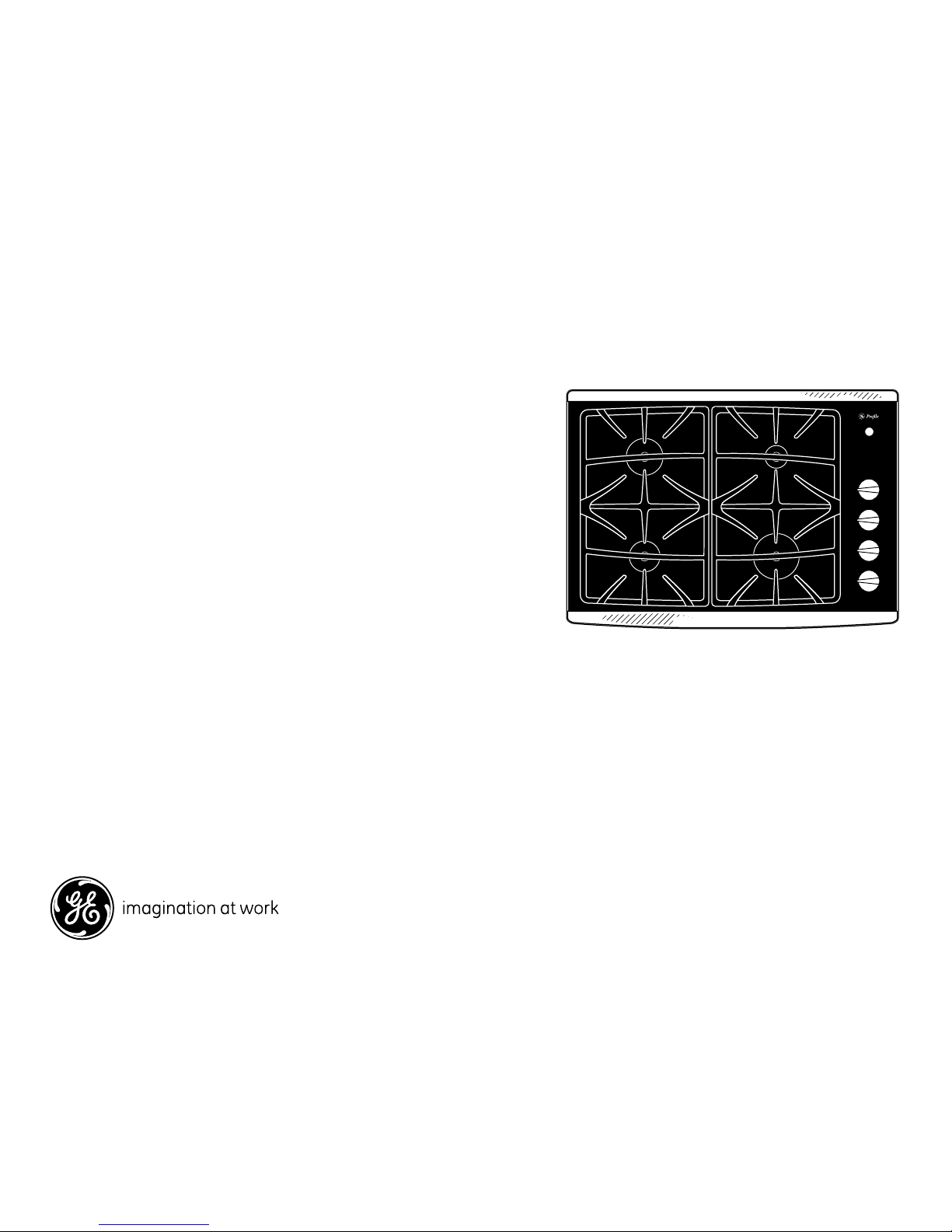

Features and Benefits

• Gas On Glass Cooktop - Features a flat one-piece ceramic glass surface that is

sleek and easy-to-clean

• Sealed Cooktop Burners - Eliminates the space between the burners and the

cooktop to help contain spills and boil over liquids, ensuring easy cleanup

• Power Boil™ Burner - Delivers 15,000 BTUs of forceful heat for rapid boiling

• Precise Simmer Burner - Delivers a low settng of 140 degrees, ideal for delicate

foods and sauces

• Continuous Grates - Provide a flat, sturdy surface allowing easy movement of

pans between burners

• Dishwasher-Safe Grates and Knobs - Feature durable construction for worry-

free, effortless cleaning and maintenance

• Control Lock Capability - Shuts off gas to prevent unintended activation.

Only GE has it!

• Deluxe Cast Grates - Constructed from a premium cast iron material for a

long-lasting performance

and durability

• Electronic Pilotless Ignition - Provides reliable burner ignition operation, eliminating the need for a

standing pilot

• Heavy-Duty Die-Cast Knobs - Add durability and brushed chrome for enhanced style and performance

• Model JGP940SEKSS - Stainless steel

JGP940SEK
