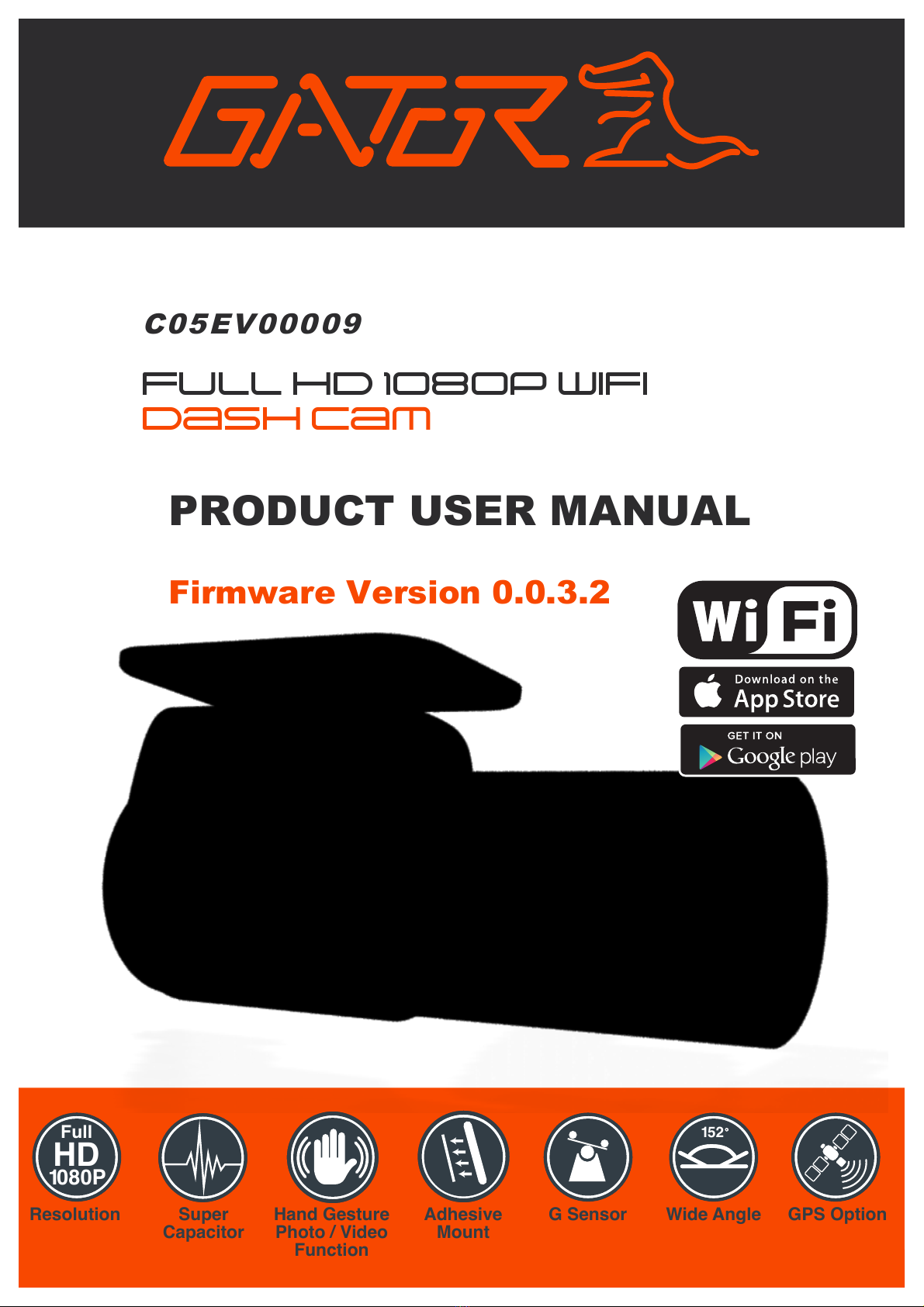

Gator C05EV00009 Manuel d'exploitation

FULL HD 1080P wIFI

DaSH cam

C05EV00009

Firmware Version 0.0.3.2

PRODUCT USER MANUAL

152

Wide AngleAdhesive

Mount

G Sensor GPS Option

Hand Gesture

Photo / Video

Function

Resolution

1080P

Full

Super

Capacitor

Introduction

Thank you for purchasing theGator FULL HD 1080P WiFi Dash Cam. Please

ensure that you have read the product manual and instructions infull, prior to

installation and use. Failure to dosomay result in product failure/damage or

incorrect operation and therefore impact the product performance.

Product overview

The Gator Dash Cam has been designed to provide high definition recordings of

your trips for security and evidence in the case of an accident. The DASH CAM

simply mounts to thewindscreen and records footage onto a Micro SD memory

card. It has built-inWIFI and interfaces with your smartphone.

It transfers theuser interface to thephone via the Gator Dash Cam APP. It has a

G-sensor with adjustable sensitivity and loop recording functionality.

Product features:!

FULL HD 1920x1080 @ 30FPS

152 Degree HDwide angle lens

WiFi enabled (2.4Ghz)

WiFi Via free App to Smartphone

Hand gesture photo / video function

Time and date stamp

G-Sensor function

GPS data recording (optional)

Mini USB interface

Seamless cycle loop recording

Super capacitor works in extreme temperature &

saves last recording once power is disconnected

Adhesive car mount

Built-in MIC

12/24V in-car USB charger

Supports Micro SD memory card up to 64GB, class10

Table of Contents

Introduction…………………….…………………………………………..2

Product overview………………………..…………………………………2

Product features …………………………………………………………..2

Table of contents ………………………………..…………….………….3

Package components ………………………………..…………….…….4

Optional accessories ……………………………………………………..4

Product structure……………………………….……………….…...…....5

Installation of Dash Cam…..………………..……….…...……….…......6

Fixing the Dash Cam…..…..……………………………………………..7

Indicator lights………….……………………………………………….....7

Hand gesture photo / video function….………………………………....7

Downloading the Dash Cam WiFi App………………………………….7

Pairing the Dash Cam to a Smartphone…….……………………….…8

Dash Cam interface ..…………….....…………..……………...………..9

Dash Cam App functions ..………….…..……...………………………10

Resetting Dash Cam ..……………..………..………………..…………10

Dash Cam Glossary ..…….……………….…………………….………10

Instructions for video and photo playback ………….………..……….12!

GPS logger instructions………………..…………………………….….12!

Product specification…………………………………...…….…….…....13

Trouble shooting guide……………………….…………..…..………….14

Safety information & warnings……………………..…………..…….....15

Infringement of copyright warning………………………………….…..15

Technical assistance………………….……………...…………...….....16

Package components:

Gator Dash Cam

Mounting Bracket

USB to Micro USB

GPS (optional)

Car Charger

User Guide

Optional accessories (Sold separately)

The GATOR antenna enables the user to connect directly to the DASH CAM for

power and to use the GPS tracking and recording function via the App.

The GATOR USB enables a professional installation of a GATOR DASH CAM into

your vehicle. Instead of sourcing power from the accessory socket ofthe vehicle,

the USB allows the dash cam to be wired directly to the vehicles fuse box.

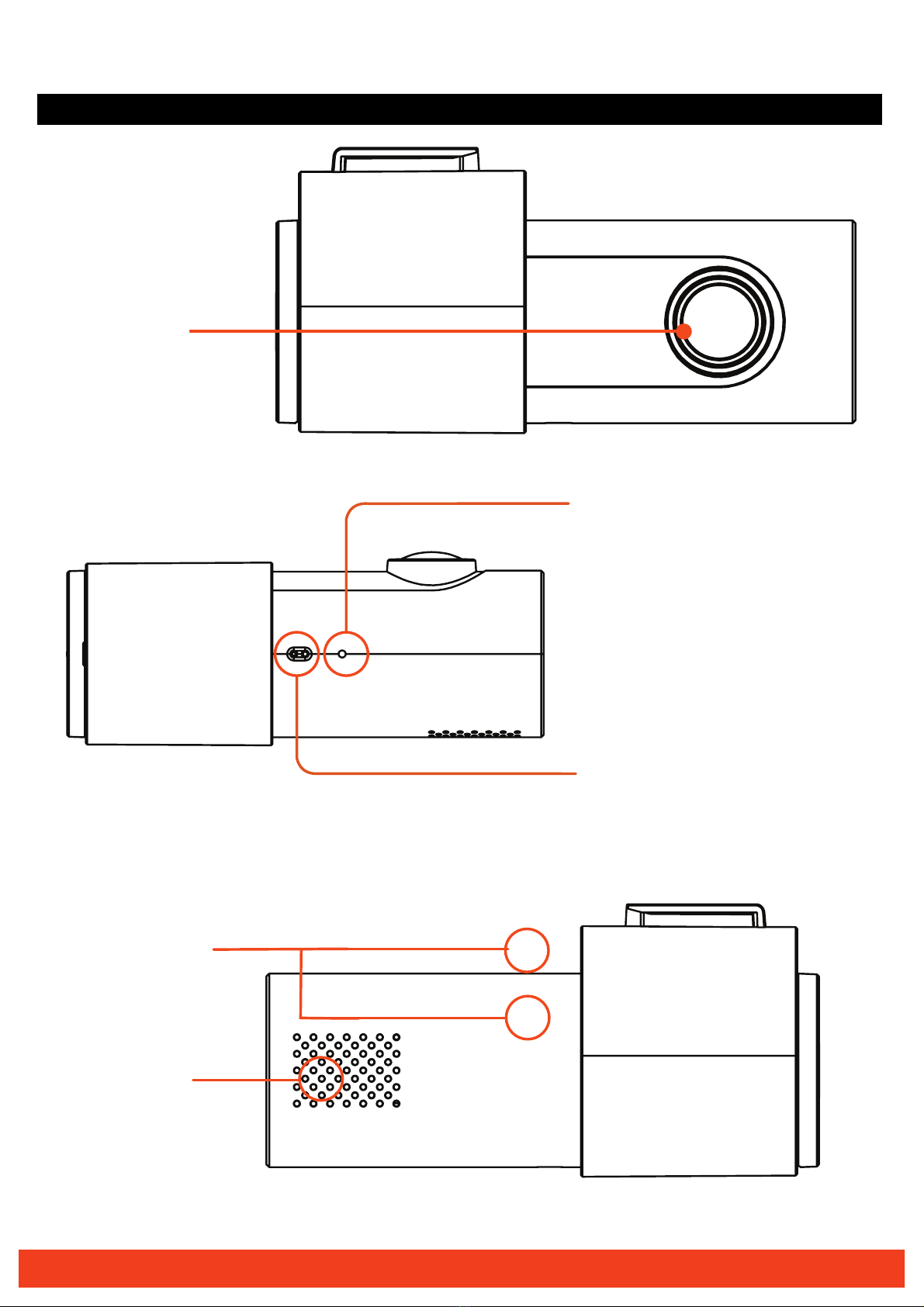

Camera

Gesture

photo function

MIC

LED

Speaker

Produ

tructure:

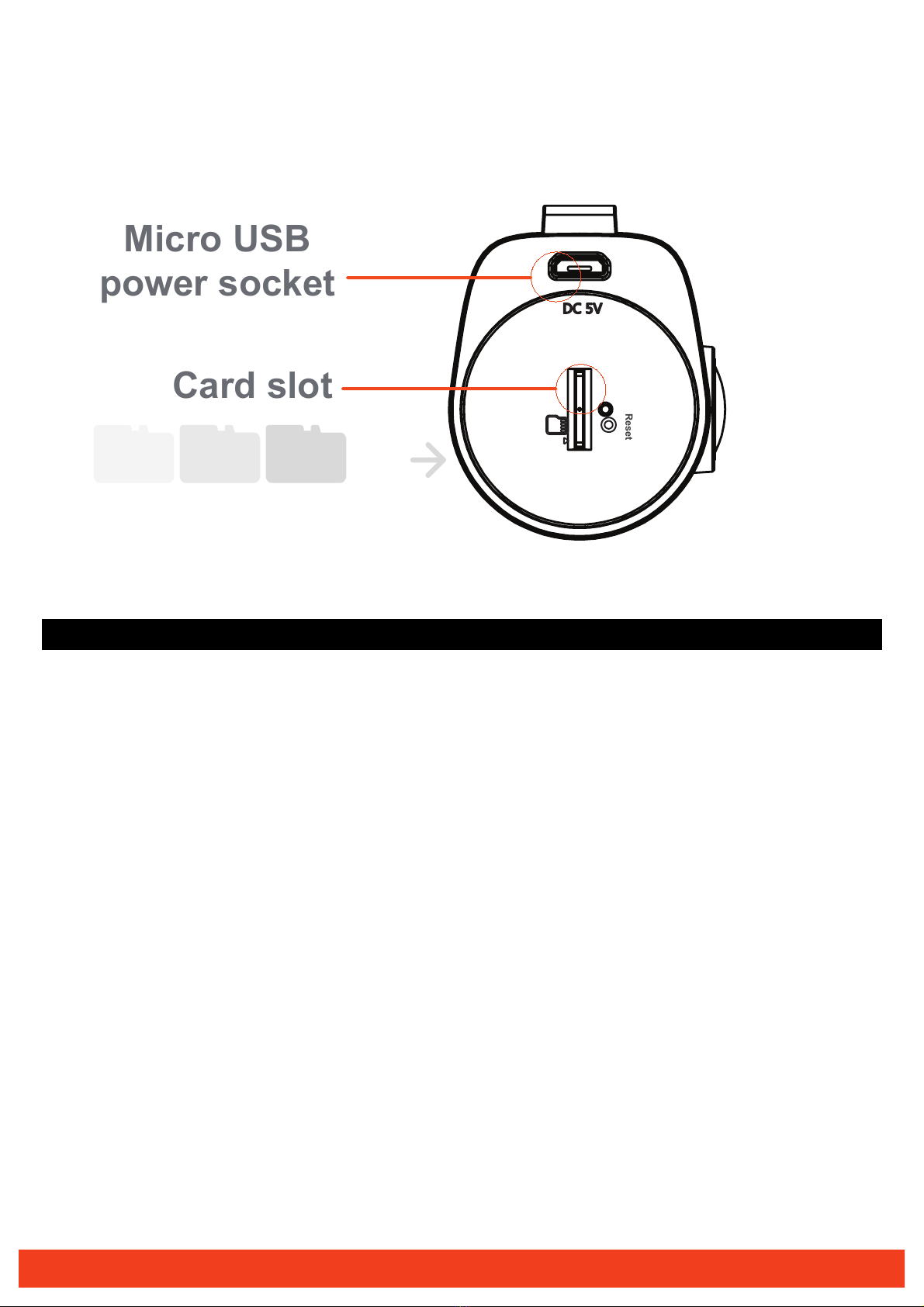

Micro USB

power socket

Card slot

Reset

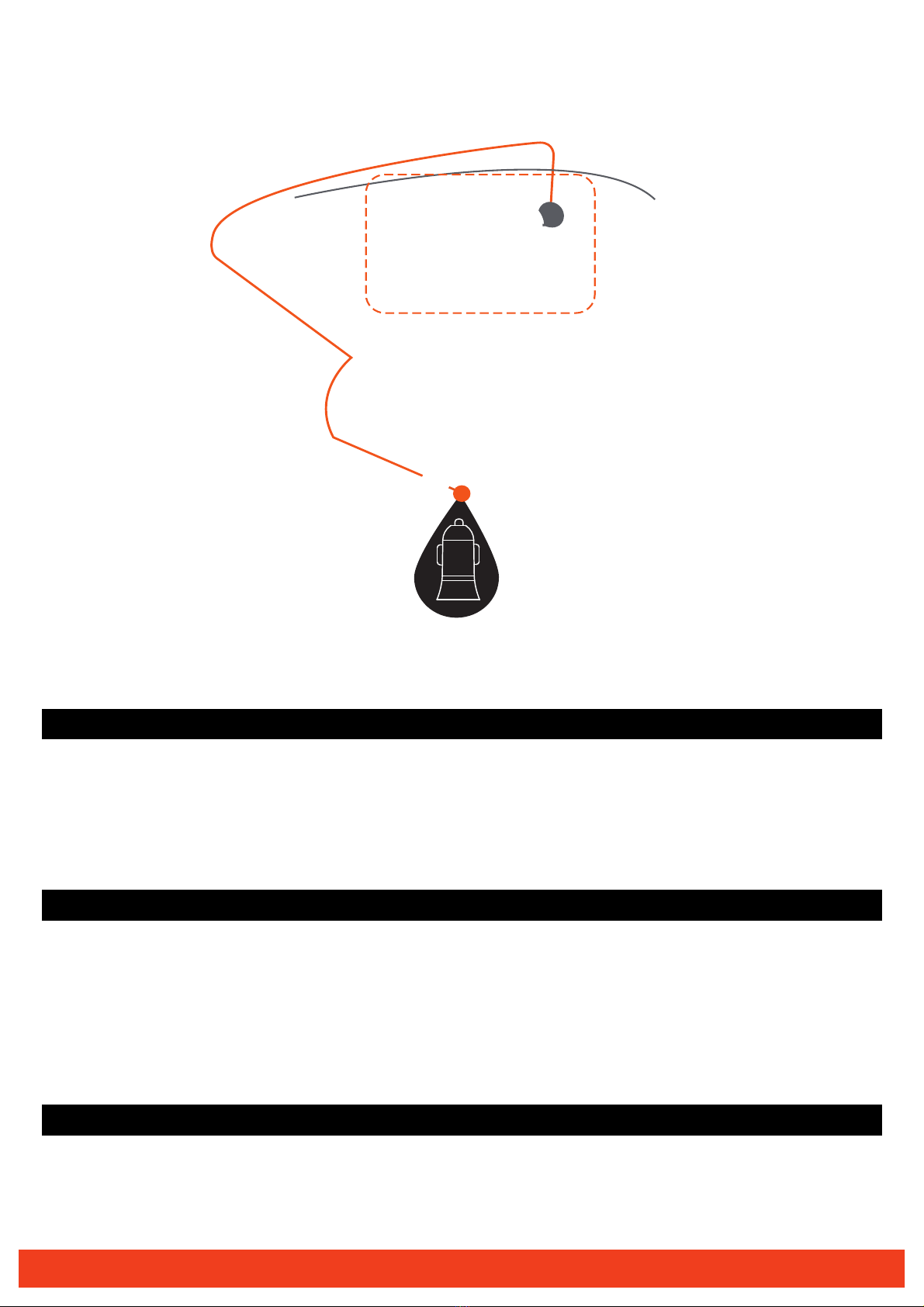

Installation of Dash Cam

1. Insert adhesive mount into the mounting bracket fixing point on the DASH

CAM.

2. Fix device onto a clean windscreen where the vision is not blocked (Place

close to rear-view mirror is recommended). Don’t install device on airbag or

within its working range.

3. Insert Micro SD card into the DASH CAM

4. Insert Mini USB end of the power cord into the Mini USB interface/ charging

point of the DASH CAM.Connect USB charging end of the cable into USB

socket adapter, place adapter into 12V power socket of vehicle.

5. Adjust the mounting bracket and rotate the camera direction to get the best

view. Ensure ¼of the vehicles bonnet is visible from the bottom of the screen

for alignment.

6. Turn vehicles ignition to accessories, the DASH CAM will automatically power

ON, you will hear an audible tone once powered.

7. A red LED will start flashing and recording will start

8. A solid green LED will show on the automatically on the DASH CAM when it

is paired correctly with your smartphone via the APP

9. For the DASH CAM to work it must receive power from the charging adapter.

Once power is removed or turned off the DASH CAM will save the current file

and turn off.

Fixing the Dash Cam

Suggested

Indicator lights

1.When the red LED is flashing, the Dash Cam is in recording mode.

2.When the green LED is on, the Dash Cam has been successfully paired with

your Smartphone.

Hand gesture photo / video function

When you wave your hand in front of the gesture photo sensor, the Dash Cam

will make a click sound and automatically takes a photo. It will also capture and

save 10 seconds of the current recorded video, 5 seconds before and 5

seconds after hand gesture initiation.

Downloading the DASH CAM WiFi APP

On your Smartphone search Gator Dash Cam APP. For iPhones search the

APP Store or for Android devices via Google Play.

Pairing the Dash Cam to a Smartphone

On the Smartphone to the Gator Dash Cam APP and press the Pair icon. This

will go to your WiFi settings and display all devices for connection. Select your

Dash Cam model. Enter the password 12345678. Join then Launch Dash Cam

APP

DASH CAM interface

Once paired to your DASH CAM select the connect icon to access functions.

DASH CAM APP functions

DASH CAM

1. To take a picture press white button in the centre

2. To access my Dash Cam videos press video icon

3. To access Dash Cam settings press settings icon

Factory Reset

To hard reset the device in the case of a system jam or crash. Insert fine point

paper clip into reset hole next to Micro SD card input

Gallery

Allows access to your downloaded videos and photos

Info

Version of the APP, Version of firmware, Language and Speed unit settings

Resetting DASH CAM

To hard reset the device in the case of a system jam or crash. Insert a fine point

paper clip into reset hole next to Micro SD card input

DASH CAM Glossary

Micro SD Slot:

Where the Micro SD card is inserted (Max size is 64GB Class 10).!

USB Interface:

The USB charging adapter is used to power the DASH CAM with the Micro USB

cable.

G-sensor Function:

The G-sensor function activates in the case of a car accident by determining the

gravitational acceleration (1g = 9.8 meters/second^2). When this function

activates, the DASH CAM will take a picture.

Super capacitor:!

This allows for the Dash Cam to be used in extreme temperatures and saves the

last recording once power is disconnected.
