Incorrectly wiring the power cable with bare wire leads can result in damage to the vehicle or

the battery and can cause bodily injury. Garmin strongly recommends having an experienced

installer with the proper knowledge of electrical systems install the unit.

See the Important Safety and Product Information guide in the product box for product

warnings and other important information.

Do not use the suction cup mount on a motorcycle.



Select a suitable and secure location to mount the zūmo on your motorcycle, based on

available power sources and safe cable routing.

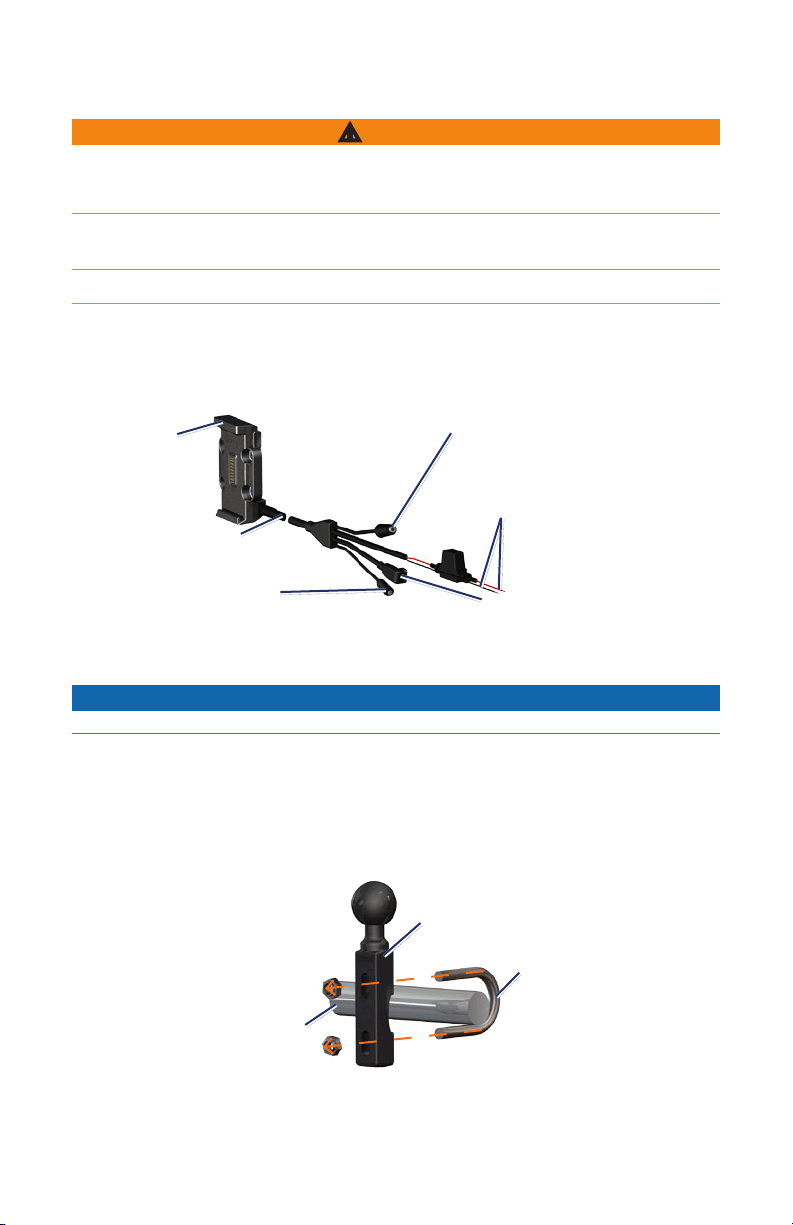

Cradle

Headphone/audio out jack (3.5 mm)

Microphone jack (2.5 mm) Mini-USB connector

(for GXM 40 Antenna)

Bare wires with

inline fuse for

power connection

Power cable



notice

The recommended torque is 50 lbf-in. Do not exceed torque of 80 lbf-in.

The zūmo includes parts for two handlebar installation solutions. Custom mounts can require

additional hardware (www.ram-mount.com).



1. Place the U-bolt around the handlebar, and thread the ends through the handlebar base.

2. Tighten the nuts to secure the base. Do not overtighten.

Handlebar

base

Handlebar

U-bolt







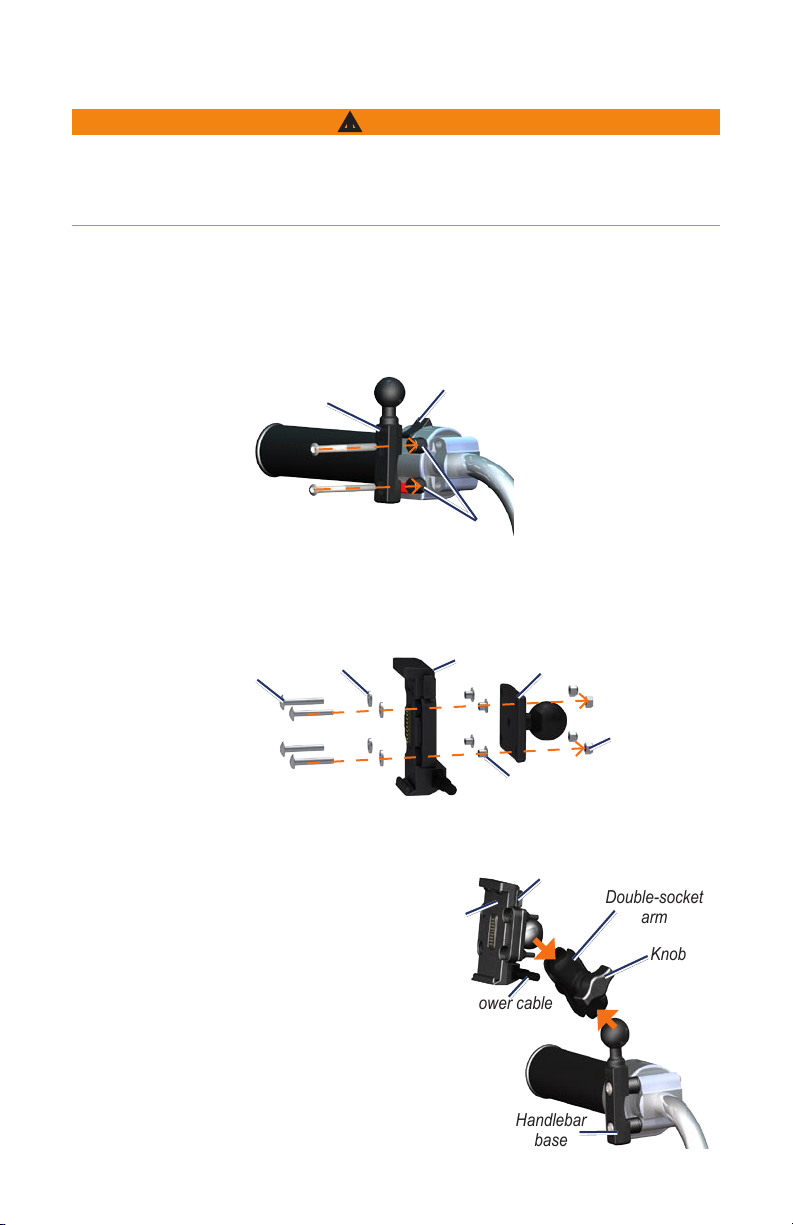

Incorrectly installing the handlebar base to the clutch/brake bracket can cause brake or clutch

malfunction, which can result in damage to the vehicle and the risk of personal injury or death.

Garmin strongly recommends having an experienced installer with the proper knowledge of

clutch/brake systems install the unit.

Note: Both 1/4 in. standard and M6 bolts are included. Match the size of the factory bolts on

your clutch/brake clamp bracket.

1. Remove the two factory bolts on your clutch/brake clamp bracket.

2. Thread the new bolts through the handlebar base, spacers, and clamp bracket.

3. Tighten the bolts to secure the base.

Clutch/brake

clamp bracket

Handlebar

base

Spacers



1. Thread the M4 × 40 mm panhead screws through the washers, cradle, spacers, and base

plate.

2. Tighten the nuts to secure the base plate.

Base plate

Cradle

Panhead screws Washers

Spacers

Nuts



1. Align the ball of the handlebar base and the ball of the base plate with the double-socket

arm.

2. Tighten the knob slightly.

3. Adjust for better viewing and operation.

4. Tighten the knob to secure the mount.





1. Fitthebottomofyourzūmointothecradle.

2. Tiltthezūmobackuntilitsnapsintoplace.

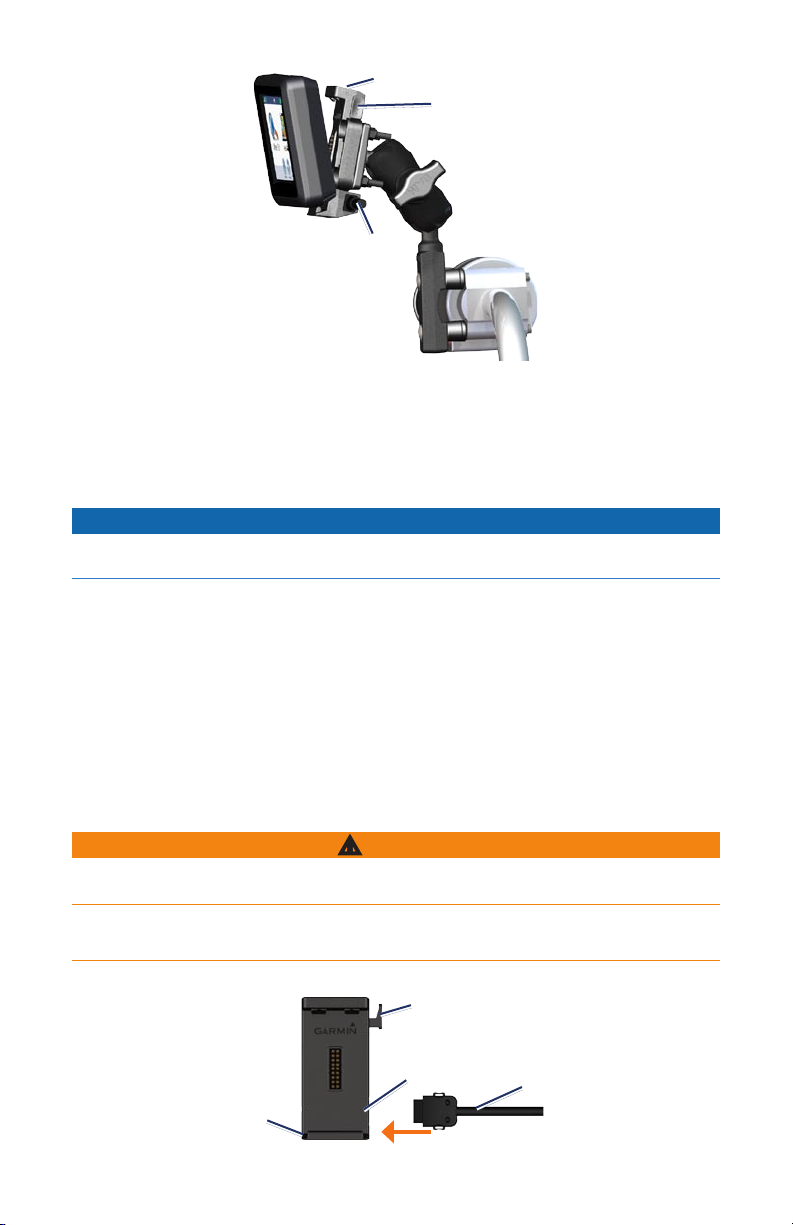

Cradle

Knob

Handlebar

base

Power cable

Base plate

Double-socket

arm

Cradle

Knob

Handlebar

base

Power cable

Base plate

Double-socket

arm

Cradle

Power

cable

Release button



1. Pressthebuttononthesideofthemounttoreleasethezūmo.

2. Liftoutthezūmo.

3. Place the weather cap on the cradle (motorcycle mount only).



notice

Do not place the GXM 40 antenna on the fuel tank or in any location where it may come into

contact with fuel or excessive heat.

1. Withthezūmoplacedinthemotorcyclemount,removetheweathercapfromthemini-USB

connector on the Power cable.

2. PlugtheGXM40antennaintothemini-USBconnector.

3. Place the GXM 40 antenna within clear view of the sky in an area where there is at least 10

cmbetweentheantennaandyourzūmo.Forbestperformance,placetheGXM40antenna

atleast30cmawayfromthezūmo.

Note: The GXM 40 antenna can also be placed in an area covered by a non-conductive

material; such as a berglass top-case, tank bag, or leather saddlebag.







See the Important Safety and Product Information guide in the product box for product

warnings and other important information.

This product contains a lithium-ion battery. To prevent damage, remove the unit from the

vehicle when exiting or store it out of direct sunlight.

1. Plug the automotive power cable into the connector on the right side of the cradle.

Cradle

Automotive

power cable

Microphone

jack (2.5 mm)

Release button

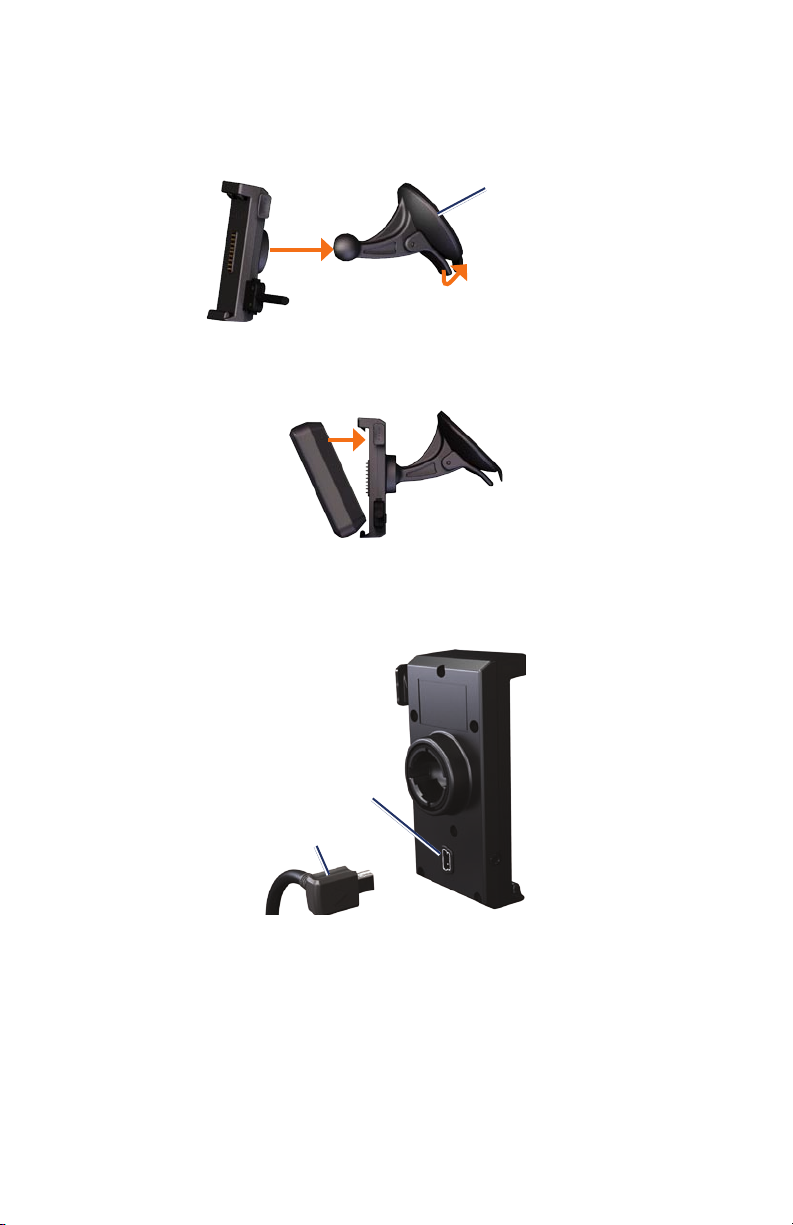

2. Remove the clear plastic from the suction cup. Clean and dry your windshield and the

suction cup with a lint-free cloth.

3. Place the suction cup on the windshield.

4. Flip the lever back, toward the windshield.

Suction cup

mount

5. Snapthecradleontothesuctioncuparm.

6. Fitthebottomofyourzūmointothecradle.

7. Tiltthezūmobackuntilitsnapsintoplace.

8. Plug the other end of the automotive power cable into a power outlet.



1. Withthezūmoplacedinthecradle,plugtheGXM40antennaintothemini-USBportonthe

back of the automotive mount.

GXM 40

antenna

Mini-USB port

2. Place the GXM 40 antenna within clear view of the sky.

Garmin

and zūmo

are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and

other countries. These trademarks may not be used without the express permission of Garmin. Other

trademarks and trade names are those of their respective owners.

January 2010 Part Number 190-01145-02 Rev. A Printed in Taiwan
