Garmin Apollo 360 MAP Manuel utilisateur

Apollo 360 Map Display

Quick Reference Guide

Use this Quick Reference Guide to quickly review:

How to use the six navigation screens, with special information on:

Moving maps Zoom feature

How to view the nearest waypoints using the GOTO/NRST key

How to get extra waypoint information using the INFO key

How to create custom waypoints with the WPT key

How to use features available with the MENU key

Power Up

The Apollo 360 Map relies on inputs from a host navigation device to

establish its position. When the unit is powered on, it will first look for

an input from the host device. If the input is present, it looks for position

and route information. With position and route information available, the

Apollo 360 Map is ready to begin assisting in navigating a trip. Refer to

the Users Guide — Getting Started section for additional details..

P/N 561-0163-00 Copyright November 1996 II Morrow Inc.

The six navigation screens form the core of the Apollo 360 interface, and are

displayed whenever not accessing the MENU, GOTO/NRST, WPT, or

INFO functions. Rotate the LARGE knob to view each screen. For full

details refer to the User’s Guide — Chapter: Topic as indicated below.

Routes (two screens available)

The arrow indicates the current TO waypoint.

Additional information for using routes is provided

on the next page. Refer to Navigating a Trip:

Route subsections. Go to Screen Controls under the

Main Menu to select either the 1-Leg or 3-Leg

route screen

Current messages

Press the ENT key to view additional messages.

Refer to Navigating a Trip: Current Messages

Screen.

Present position

Refer to Navigating a Trip: Present Position

Screen.

General navigation information

Refer to Navigating a Trip: Bearing / Range /

Ground Speed Screen.

Moving maps (two screens)

The lower left corner of the moving maps shows

the current map Zoom scale, which is changed by

rotating the SMALL knob. The Auto Zoom scale

automatically zooms in on the TO waypoint as

you fly. Refer to the Navigating a Trip: Moving

Map sections, and Navigating a Trip: Zooming In

or Out and Auto Zoom sections.

II Morrow Inc. Copyright November 1996 P/N 561-0163-00

Introduction to the Apollo 360 Apollo 360 Map Display

Using Routes

The Apollo 360 Map displays route information from the host navigation

device in either a 1-Leg or 3-Leg route screen. The screen shows either

two or four waypoints (depending on the screen selected) of the current

route, as well as the desired track and distance between the displayed

waypoints. The 1-Leg screen uses larger characters for easier viewing.

The 3-Leg screen provides more information on a single screen.

To change the route screen selection, press the MENU key. Rotate the

LARGE knob to select Screen Controls then press the ENT key. Rotate

the SMALL knob to select 1-Leg or 3-Leg and press the ENT key twice

to return to the navigation mode.

To search for nearest waypoints, press the

GOTO/NRST key. The nearest 30 waypoints will

be displayed in order of distance from your

present position. The waypoint type, bearing to

the waypoint and range to the waypoint also

shows.. Refer to Navigating a Trip: Searching for

Nearest Waypoints.

To view waypoint information, press the INFO

key. When displaying navigation screens,

information is for the TO waypoint. When

viewing the nearest waypoints, rotate the LARGE

knob to select a waypoint then press the INFO key

to display information for that waypoint. Rotate

the LARGE knob to view additional information

screens. Press the INFO or ENT keys to exit the

Info screen. Refer to the User’s Guide —

Waypoint Database.

Create User waypoints at any time by pressing

the WPT key. Change the waypoint information

by rotating the LARGE and SMALL knobs. When

complete, press the ENT key. Refer to Navigating

a Trip: Creating Waypoints.

P/N 561-0163-00 Copyright November 1996 II Morrow Inc.

Apollo 360 Map Display Introduction to the Apollo 360

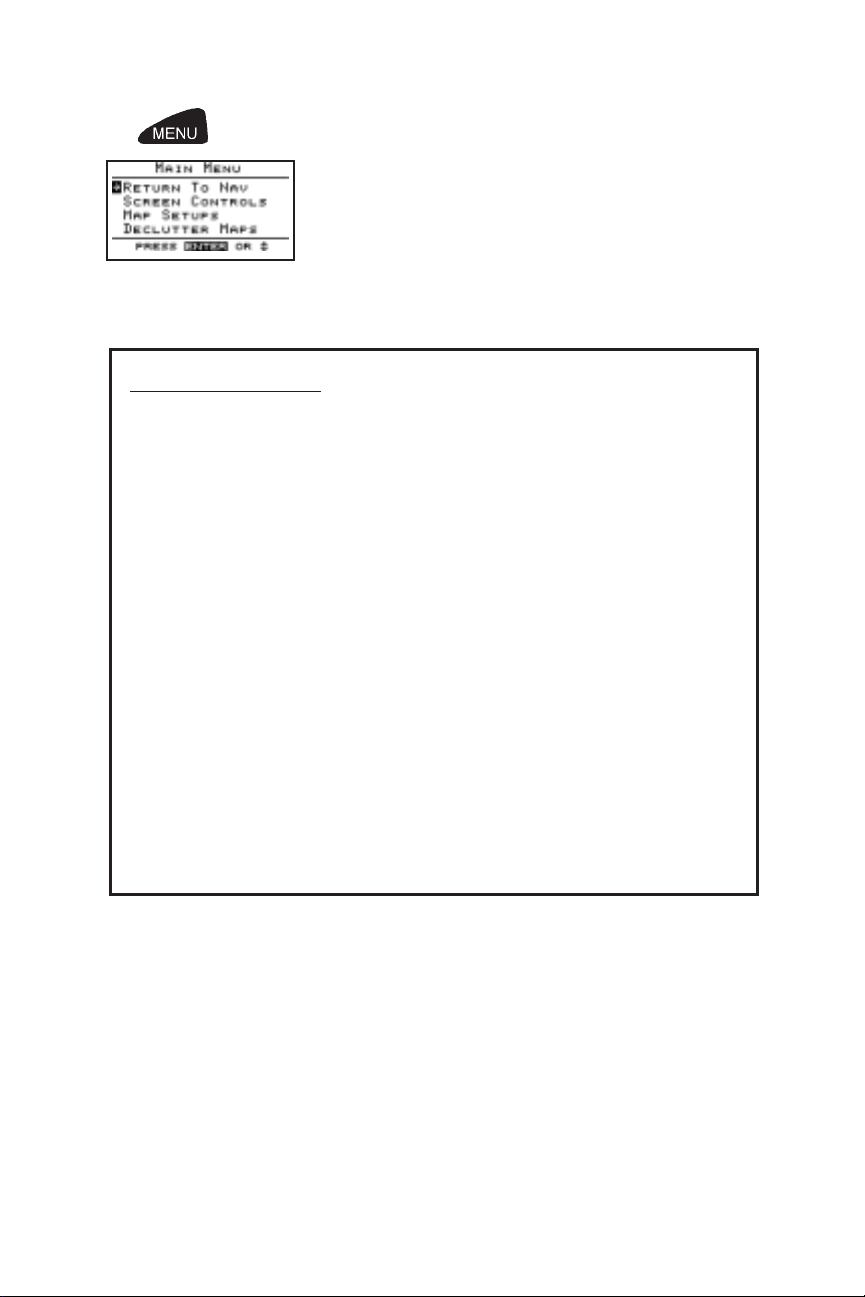

The MENU key accesses the Main Menu, which

provides system setup information. While viewing

this screen, rotate the LARGE knob to select a

menu option, then press the ENT key to view the

option screen.

To return to the navigation screens at any time,

press the MENU key, then press the ENT key.

Refer to the Users Guide — Menu Function Options for detailed

information.

II Morrow Inc. Copyright November 1996 P/N 561-0163-00

Introduction to the Apollo 360 Apollo 360 Map Display

Main Menu Options

Return To Nav: Return to the navigation screens

Screen Controls: Change between 1-leg and 3-leg route display,

change contrast and brightness settings

Map Setups: Choose moving map display options for airspaces,

route paths, and map orientation

Declutter Maps: Choose which types of waypoints are displayed on

the moving maps and in the nearest waypoints list

Track Point Hist: Choose whether a trail showing where you have

been is displayed on the moving maps

Arrival Alerts: Choose the waypoint arrival alert radius

Airspace Alerts: Choose the airspace alert options for distance and

time

Countdown Time: Start a countdown timer to give an alert message

Display Units: Choose distance, altitude, and position units of

display for navigation

User Wpt Mgmt: Modify or delete waypoints that were created

with the WPT feature

System Info 1: View current version information
