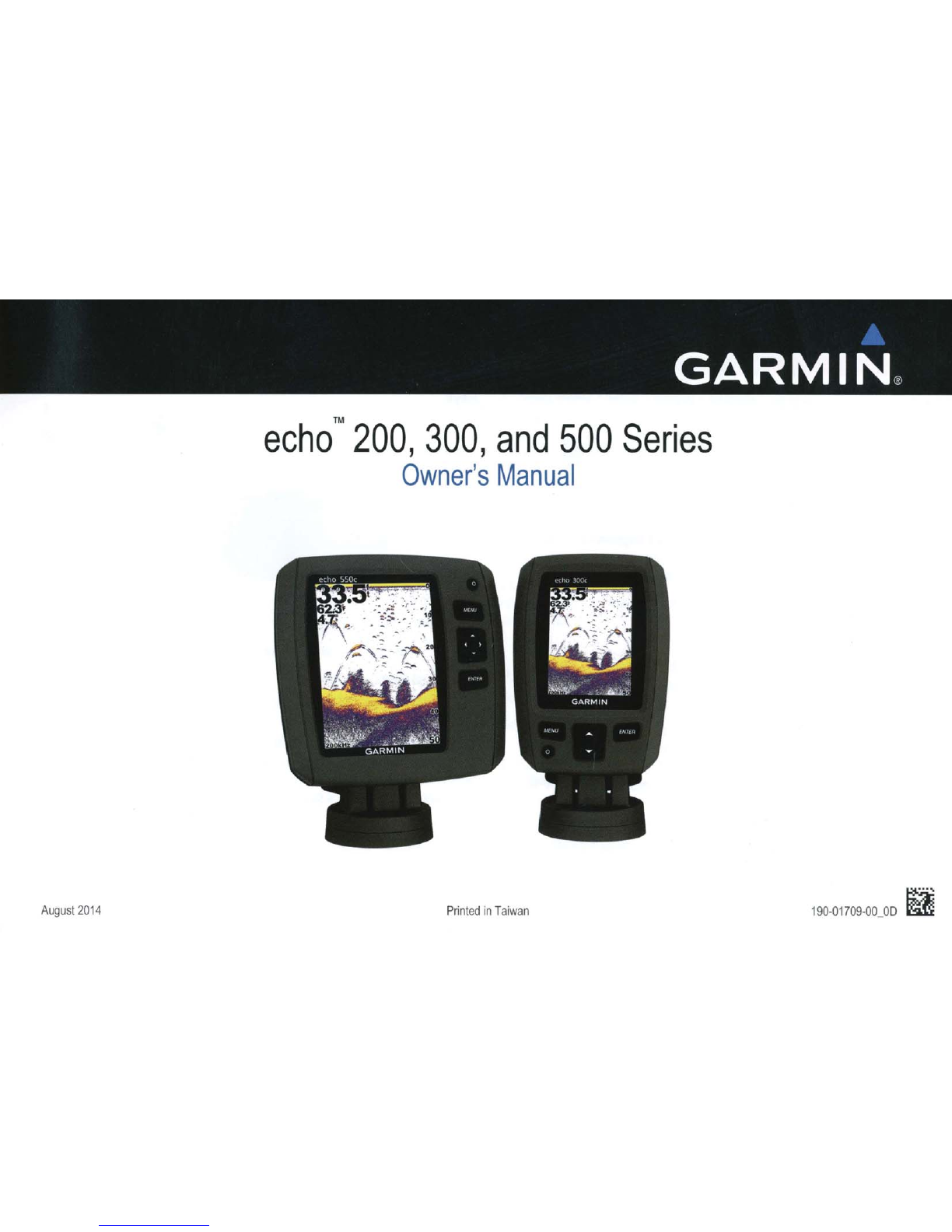

August2014

echo

TM

200,

300,

and

500

Series

Owner

's

Manual

Printed

in

Taiwan

190-01709-00_00

~

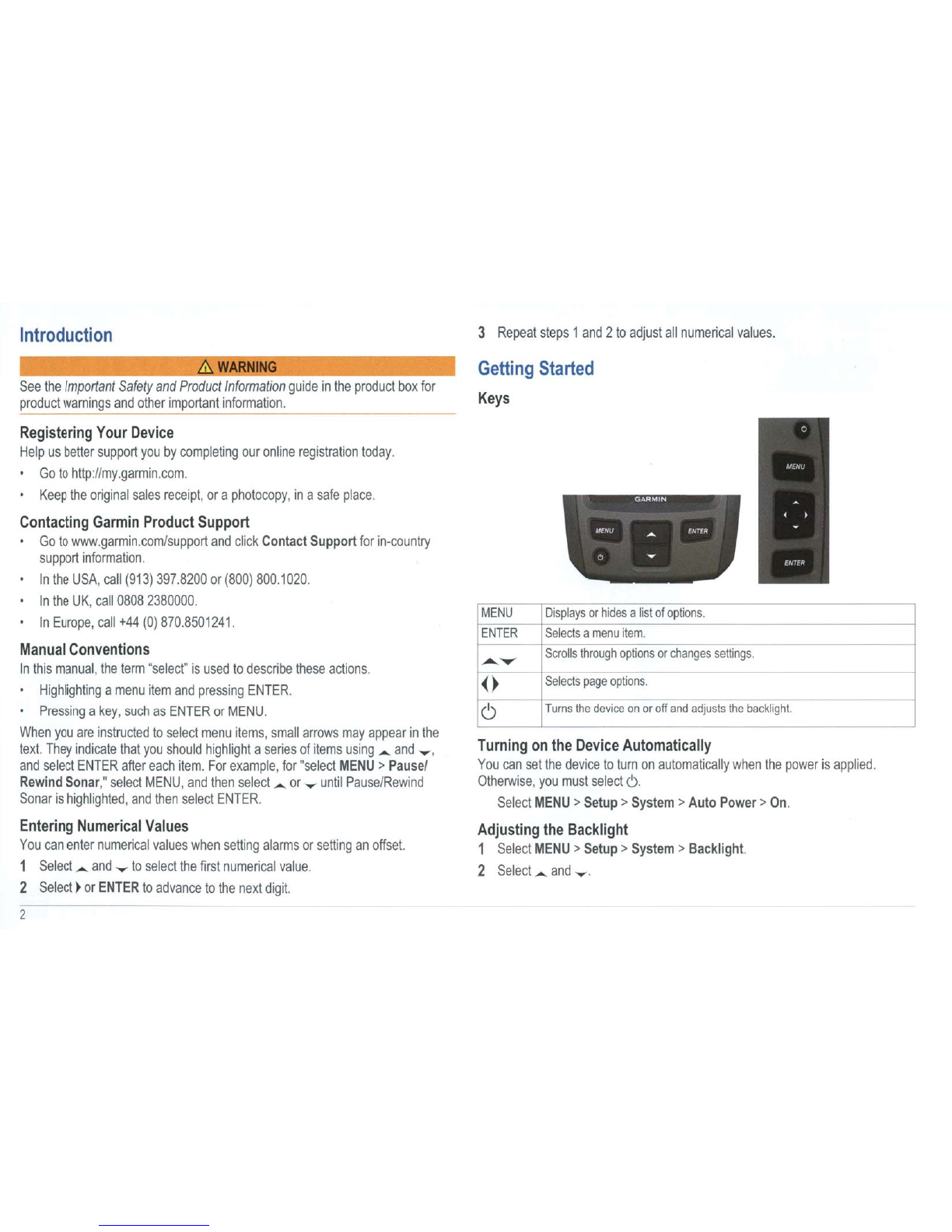

Introduction

,

WARNING

See

the

Important

Safety

and

Product

Information

guide

in

the

product

box

for

product

warnings

and

other

important

information.

Registering

Your

Device

Help

us

better

support

you

by

completing

our

online

registration

today.

•

Go

to

http://my.garmin.com.

•

Keep

the

original

sales

receipt,

or

a

photocopy,

in

a

safe

place.

Contacting

Garmin

Product

Support

•

Go

to

www.garmin.com/support

and

click

Contact

Support

for

in-country

support

information.

•

In

the

USA,

call

(913)

397.8200

or

(800)

800.1020.

•

In

the

UK,

call

0808

2380000.

•

In

Europe,

call

+44

(0)

870.8501241.

Manual

Conventions

In

this

manual,

the

term

"se

lect

"

is

used

to

describe

these

actions.

•

Highlighting

a

menu

item

and

pressing

ENTER.

•

Pressing

a

key,

such

as

ENTER

or

MENU.

When

you

are

instructed

to

select

menu

items,

small

arrows

may

appear

in

the

text.

They

indicate

that

you

should

highlight

a

series

of

items

using

....

and

....

.

and

select

ENTER

after

each

item.

For

example,

for

"select

MENU

>

Pause/

R

ew

in

dS

onar

,"

select

MENU,

and

then

select

....

or

....

until

Pause/Rewind

Sonar

is

highlighted

,

and

then

select

ENTER.

Entering

Numerical

Values

You

can

enter

numerical

values

when

setting

alarms

or

setting

an

offset.

1

Select

....

and

....

to

select

the

first

numerical

value.

2

Select

~

or

EN

T

ER

to

advance

to

the

next

digit.

2

3

Repeat

steps

1

and

2

to

adjust

all

numerical

values.

Getting

Started

Keys

MENU

Displays

or

hides

a

list

of

options.

ENTER

Selects

a

menu

item.

..........

Scrolls

through

options

or

changes

settings

.

()

Selects

page

options.

6

Turns

the

device

on

or

off

and

adjusts

the

backlight.

Turning

on

the

Device

Automatica

ll

y

You

can

set

the

device

to

turn

on

automatically

when

the

power

is

applied.

Otherwise,

you

must

select

C).

Select

ME

NU

>

Se

t

up

>

System

>

Auto

Power>

On

.

Adjusting

the

Backlight

1

Select

MENU

>

Setup

>

System

>

Backlight.

2 Select""

and

....

.

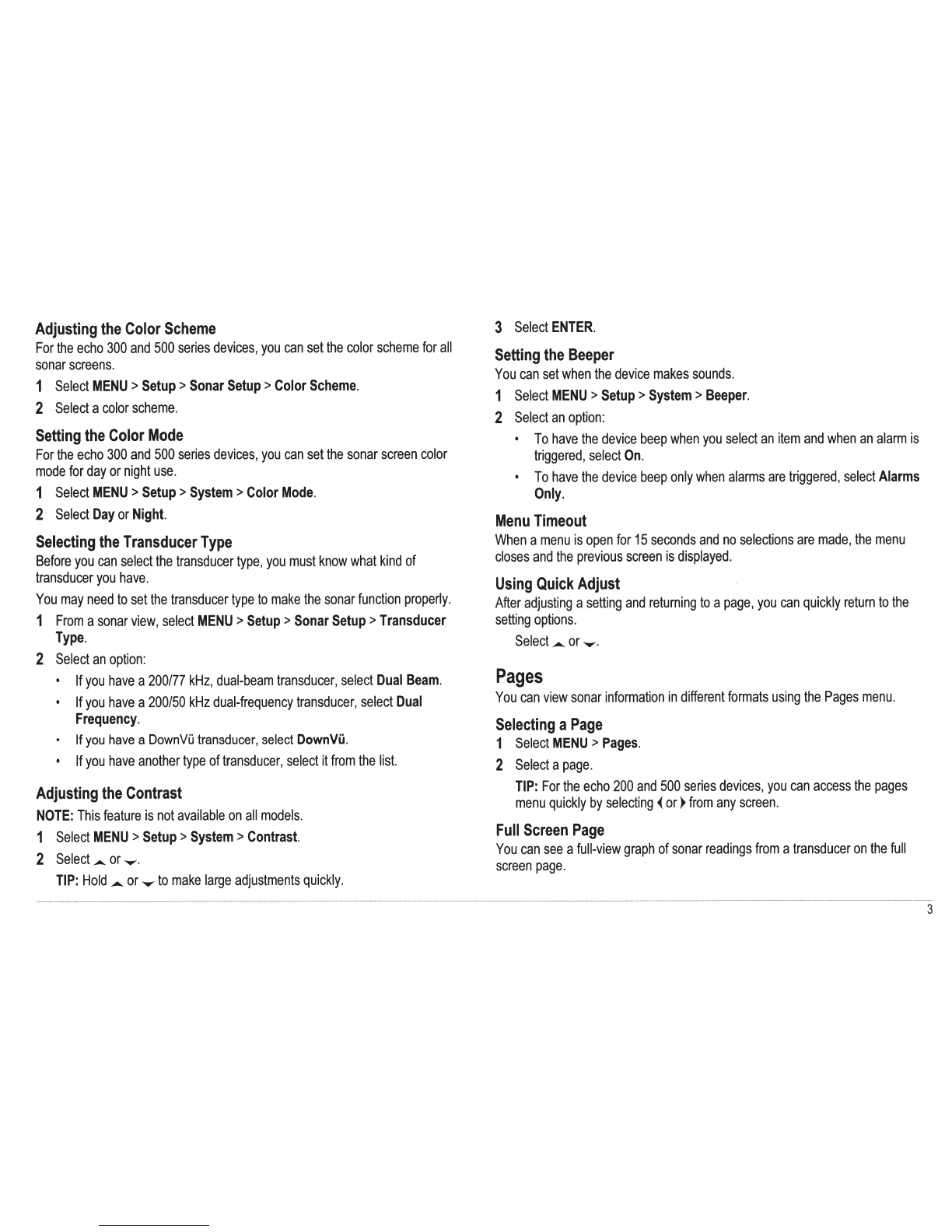

Adjusting

the

Color

Scheme

For

the

echo

300

and

500

series

devices,

you

can

set

the

color

scheme

for

all

sonar

screens.

1

Select

MENU

>

Setup

>

Sonar

Setup

>

Color

Scheme.

2

Select

a

color

scheme.

Setting

the

Color

Mode

For

the

echo

300

and

500

series

devices,

you

can

set

the

sonar

screen

color

mode

for

day

or

night

use.

1

Select

MENU>

Setup>

System>

Color

Mode.

2

Select

Day

or

Night.

Selecting

the

Transducer

Type

Before

you

can

select

the

transducer

type,

you

must

know

what

kind

of

transducer

you

have.

You

may

need

to

set

the

transducer

type

to

make

the

sonar

function

properly.

1

From

a

sonar

view,

select

MENU>

Setup>

Sonar

Setup>

Transducer

Type.

2

Select

an

option:

•

If

you

have

a

200/77

kHz,

dual-beam

transducer,

select

Dual

Beam.

•

If

you

have

a

200/50

kHz

dual-frequency

transducer,

select

Dual

Frequency.

•

If

you

have

a

DownVO

transducer,

select

DownVu.

•

If

you

have

another

type

of

transducer,

select

it

from

the

list.

Adjusting

the

Contrast

NOTE:

This

feature

is

not

available

on

all

models.

1

Select

MENU

>

Setup

>

System

>

Contrast.

2

Select

A.

or,...-.

TIP:

Hold

A.

or,....

to

make

large

adjustments

quickly.

3

Select

ENTER.

Setting

the

Beeper

You

can

set

when

the

device

makes

sounds.

1

Select

MENU

>

Setup

>

System

>

Beeper

.

2

Select

an

option:

•

To

have

the

device

beep

when

you

select

an

item

and

when

an

alarm

is

triggered,

select

On.

•

To

have

the

device

beep

only

when

alarms

are

triggered,

select

Alarms

Only.

Menu

Timeout

When

a

menu

is

open

for

15

seconds

and

no

selections

are

made,

the

menu

closes

and

the

previous

screen

is

displayed.

Using

Quick

Adjust

After

adjusting

a

setting

and

returning

to

a

page,

you

can

quickly

return

to

the

setting

options.

Select

A.

or

,....

.

Pages

You

can

view

sonar

information

in

different

formats

using

the

Pages

menu

.

Selecting

a

Page

1

Select

MENU

>

Pages.

2

Select

a

page.

TIP:

For

the

echo

200

and

500

series

devices,

you

can

access

the

pages

menu

quickly

by

selecting

~or~

from

any

screen.

Full

Screen

Page

You

can

see

a

full-view

graph

of

sonar

readings

from

a

transducer

on

the

full

screen

page.

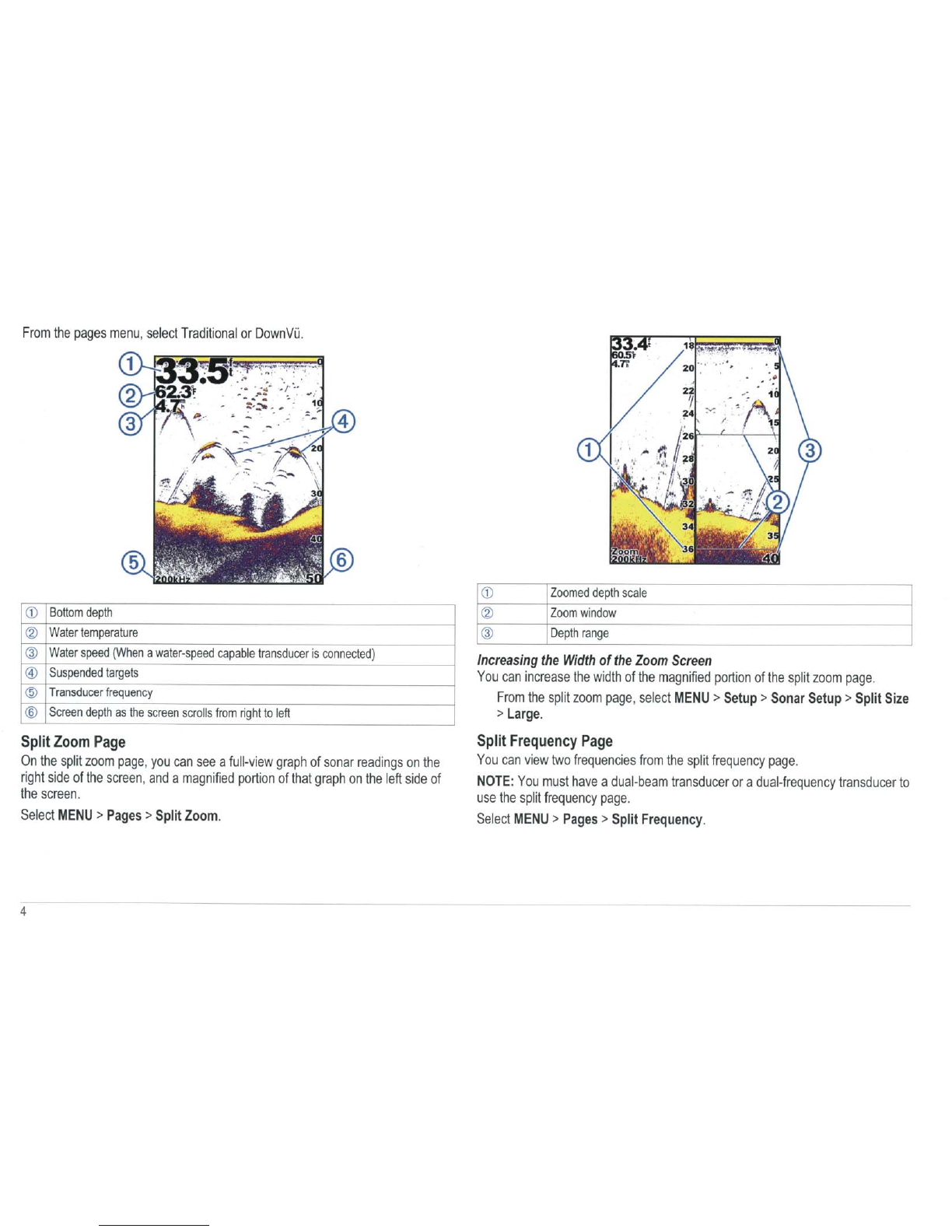

3

From

the

pages

menu,

select

Traditional

or

DownVi.l.

..

.

..;

-

:

,.

:.

,.

...

...

. . .,

-...

...

-

~

·=-

-

....

.

;

-

<D

Bottom

depth

®

Water

temperature

®

Water

speed

(

When

a

water-speed

capable

transducer

is

connected

)

@

Suspended

targets

@

Transducer

frequen

cy

@

Screen

depth

as

the

sc

r

een

scrolls

from

ri

ght

to

l

eft

·-

Split

Zoom

Page

On

the

split

zoom

page

,

you

can

see

a

full-view

graph

of

sonar

readings

on

the

right

side

of

the

screen

,

and

a

magnified

portion

of

that

graph

on

the

left

side

of

the

screen.

Select

MENU

>

Pages

>

Split

Zoom

.

4

<D

Zoomed

depth

scale

®

Zoom

window

®

Depth

range

Increasing

the

Width

of

the

Zoom

Screen

You

can

increase

the

width

of

the

magnified

portion

of

the

split

zoom

page

.

From

the

split

zoom

page

,

select

MENU

>

Setup

>

Sonar

Setup

>

Split

Size

>

Large

.

Split

Frequency

Page

You

can

view

two

frequencies

from

the

split

frequency

page

.

NOTE

:

You

must

have

a

dual-beam

transducer

or

a

dual-frequency

transducer

to

use

the

split

frequency

page.

Select

MENU

>

Pages

>

Split

Frequen

cy.

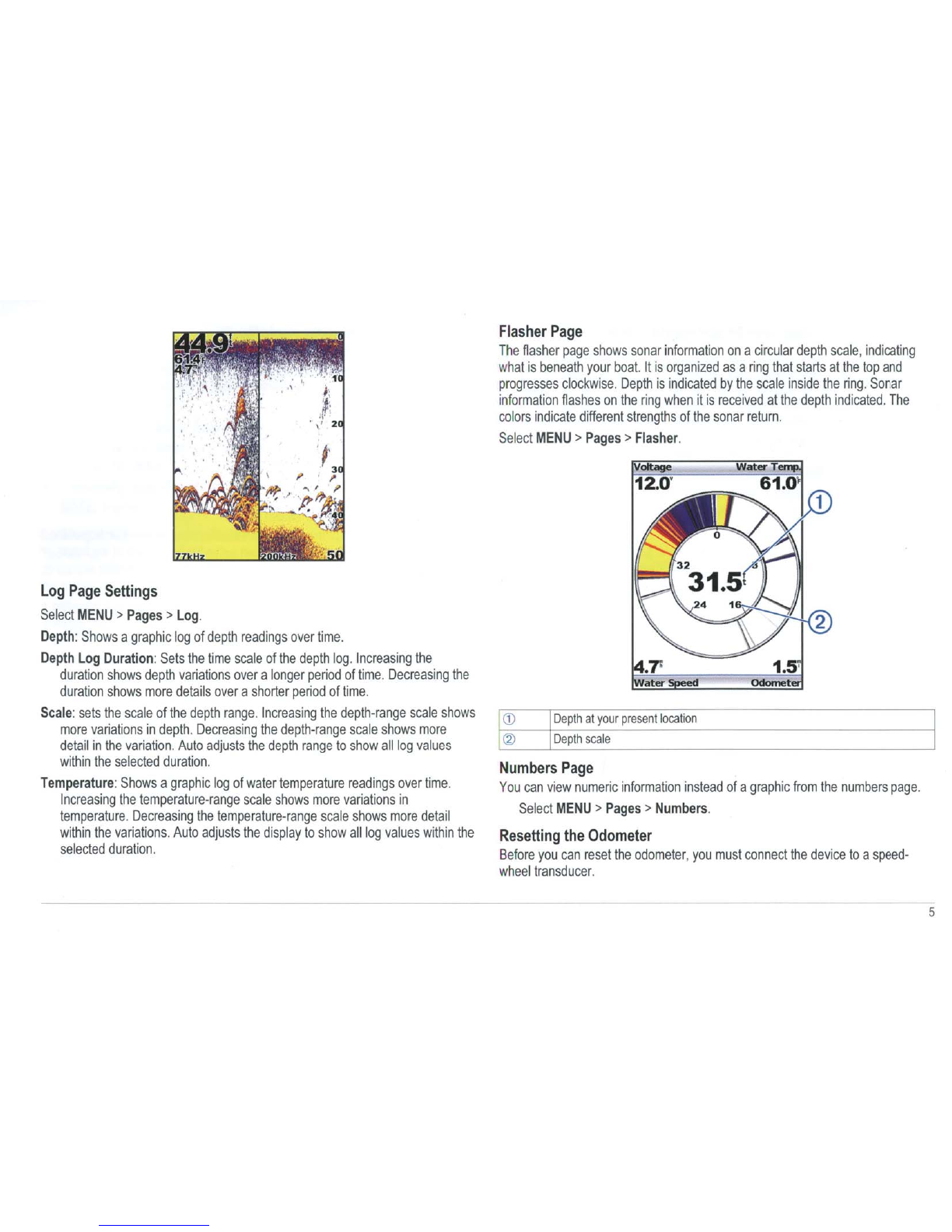

Log

Page

Settings

Select

MENU

> Pages>

Log

.

Depth

:

Shows

a

graphic

log

of

depth

readings

ove

r

time.

De

pth

L

og

Du

r

at

i

on

:

Sets

the

time

scale

of

the

depth

log.

Increasing

the

duration

shows

depth

variations

over

a

longer

period

of

time.

Decreasing

the

duration

shows

more

details

over

a

shorter

period

of

time.

Scale

:

sets

the

scale

of

the

depth

range.

Increasing

the

depth-range

scale

shows

more

variations

in

depth.

Decreasing

the

depth-range

scale

shows

more

detail

in

the

variation.

Auto

adjusts

the

depth

range

to

show

all

log

values

within

the

selected

duration.

Temperatu

re:

Shows

a

graphic

log

of

water

temperature

readings

over

time.

Increasing

the

temperature-range

scale

shows

more

variations

in

temperatu

r

e.

Decreasing

the

temperature-range

scale

shows

more

detail

within

the

variations.

Auto

adjusts

the

display

to

show

all

log

values

within

the

selected

duration

.

Flasher

Page

The

flasher

page

shows

sonar

information

on

a

circular

depth

scale

,

indicating

what

is

beneath

your

boat.

It

is

organized

as

a

ring

that

starts

at

the top

and

progresses

clockwise.

Depth

is

indicated

by

the

scale

inside

the

ring.

Sonar

information

flashes

on

the

ring

when

it

is

received

at

the

depth

indicated.

The

colors

indicate

different

strengths

of

the

sonar

return.

Select

MENU

> Pages>

Fl

a

sher

.

(!)

Depth

at

your

present

location

@

Depth

sca

le

Numbers

Page

You

can

view

numeric

information

instead

of

a

graphic

from

the

numbers

page.

Select

MENU

>

Pages

>

Numbers

.

Resetting

the

Odometer

Before

yo

u

can

reset

the

odometer,

you

mu

st

connect

the

device

to

a

speed-

wheel

transducer

.

5

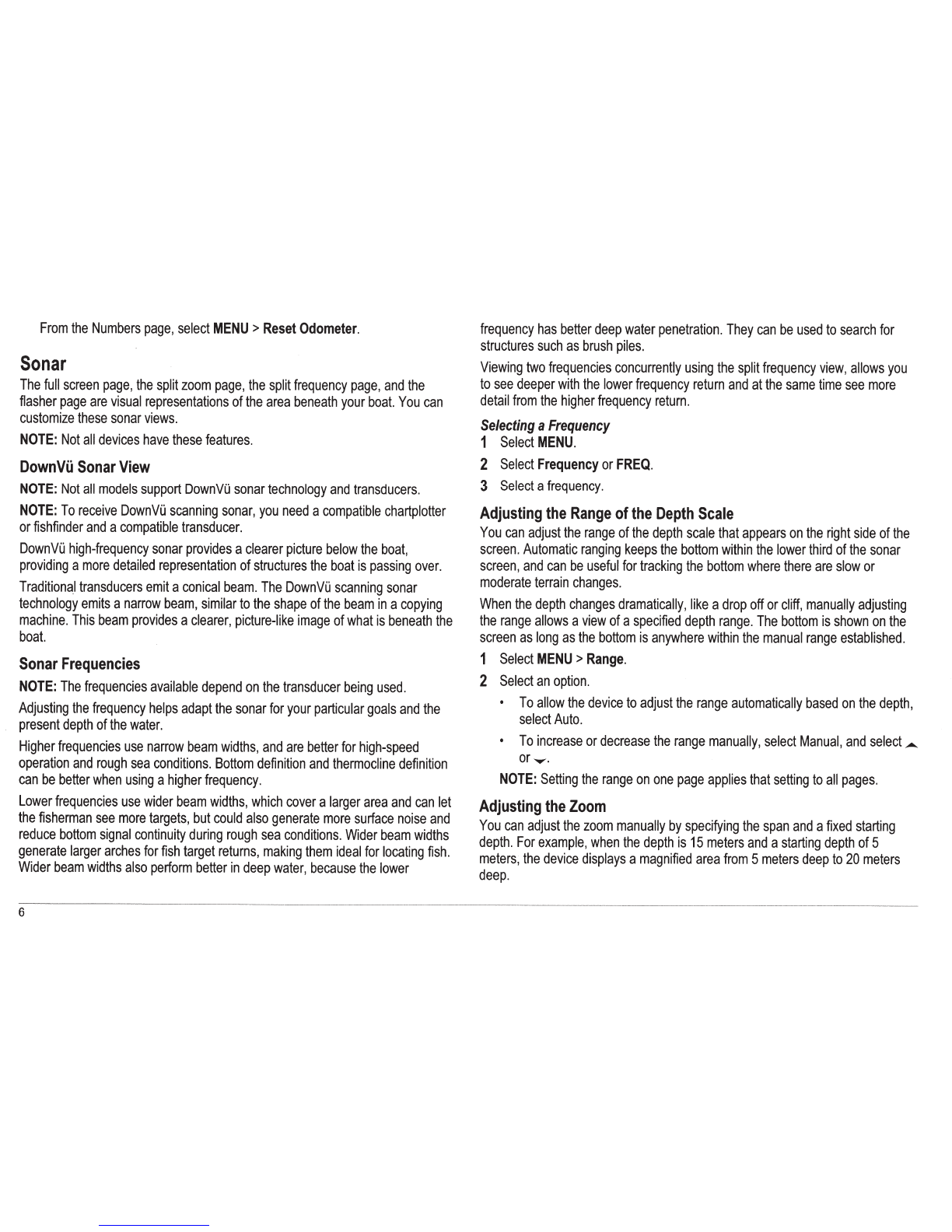

From

the

Numbers

page,

select

MENU

>

Reset

Odometer.

Sonar

The

full

screen

page,

the

split

zoom

page,

the

split

frequency

page,

and

the

flasher

page

are

visual

representations

of

the

area

beneath

your

boat.

You

can

customize

these

sonar

views.

NOTE:

Not

all

devices

have

these

features.

DownVu

Sonar

View

NOTE:

Not

all

models

support

DownVu

sonar

technology

and

transducers.

NOTE:

To

receive

DownVu

scanning

sonar,

you

need

a

compatible

chartplotter

or

fishfinder

and

a

compatible

transducer.

DownVu

high-frequency

sonar

provides

a

clearer


below

the

boat,

providing

a

more

detailed

representation

of

structures

the

boat

is

passing

over.

Traditiona.l

transducers

emit

a

conical

beam.

The

DownVu

scanning

sonar

technology

emits

a

narrow

beam,

similar

to

the

shape

of

the

beam

in

a

copying

machine.

This

beam

provides

a

clearer,

picture-like


of

what

is

beneath

the

boat.

Sonar

Frequencies

NOTE:

The

frequencies

available

depend

on

the

transducer

being

used.

Adjusting

the

frequency

helps

adapt

the

sonar

for

your

particular

goals

and

the

present

depth

of

the

water.

Higher

frequencies

use

narrow

beam

widths,

and

are

better

for

high-speed

operation

and

rough

sea

conditions.

Bottom

definition

and

thermocline

definition

can

be

better

when

using

a

higher

frequency.

Lower

frequencies

use

wider

beam

widths,

which

cover

a

larger

area

and

can

let

the

fisherman

see

more

targets,

but

could

also

generate

more

surface

noise

and

reduce

bottom

signal

continuity

during

rough

sea

conditions.

Wider

beam

widths

generate

larger

arches

for

fish

target

returns,

making

them

ideal

for

locating

fish.

Wider

beam

widths

also

perform

better

in

deep

water,

because

the

lower

6

frequency

has

better

deep

water

penetration.

They

can

be

used

to

search

for

structures

such

as

brush

piles.

Viewing

two

frequencies

concurrently

using

the

split

frequency

view,

allows

you

to

see

deeper

with

the

lower

frequency

return

and

at

the

same

time

see

more

detail

from

the

higher

frequency

return.

Selecting

a

Frequency

1

Select

MENU.

2

Select

Frequency

or

FREQ.

3

Select

a

frequency.

Adjusting

the

Range

of

the

Depth

Scale

You

can

adjust

the

range

of

the

depth

scale

that

appears

on

the

right

side

of

the

screen.

Automatic

ranging

keeps

the

bottom

within

the

lower

third

of

the

sonar

screen,

and

can

be

useful

for

tracking

the

bottom

where

there

are

slow

or

moderate

terrain

changes.

When

the

depth

changes

dramatically,

like

a

drop

off

or

cliff,

manually

adjusting

the

range

allows

a

view

of

a

specified

depth

range.

The

bottom

is

shown

on

the

screen

as

long

as

the

bottom

is

anywhere

within

the

manual

range

established.

1

Select

MENU

>

Range.

2

Select

an

option.

•

To

allow

the

device

to

adjust

the

range

automatically

based

on

the

depth,

select

Auto.

•

To

increase

or

decrease

the

range

manually,

select

Manual,

and

select_._

or

....

NOTE:

Setting

the

range

on

one

page

applies

that

setting

to

all

pages.

Adjusting

the

Zoom

You

can

adjust

the

zoom

manually

by

specifying

the

span

and

a

fixed

starting

depth.

For

example,

when

the

depth

is

15

meters

and

a

starting

depth

of

5

meters,

the

device

displays

a

magnified

area

from

5

meters

deep

to

20

meters

deep.

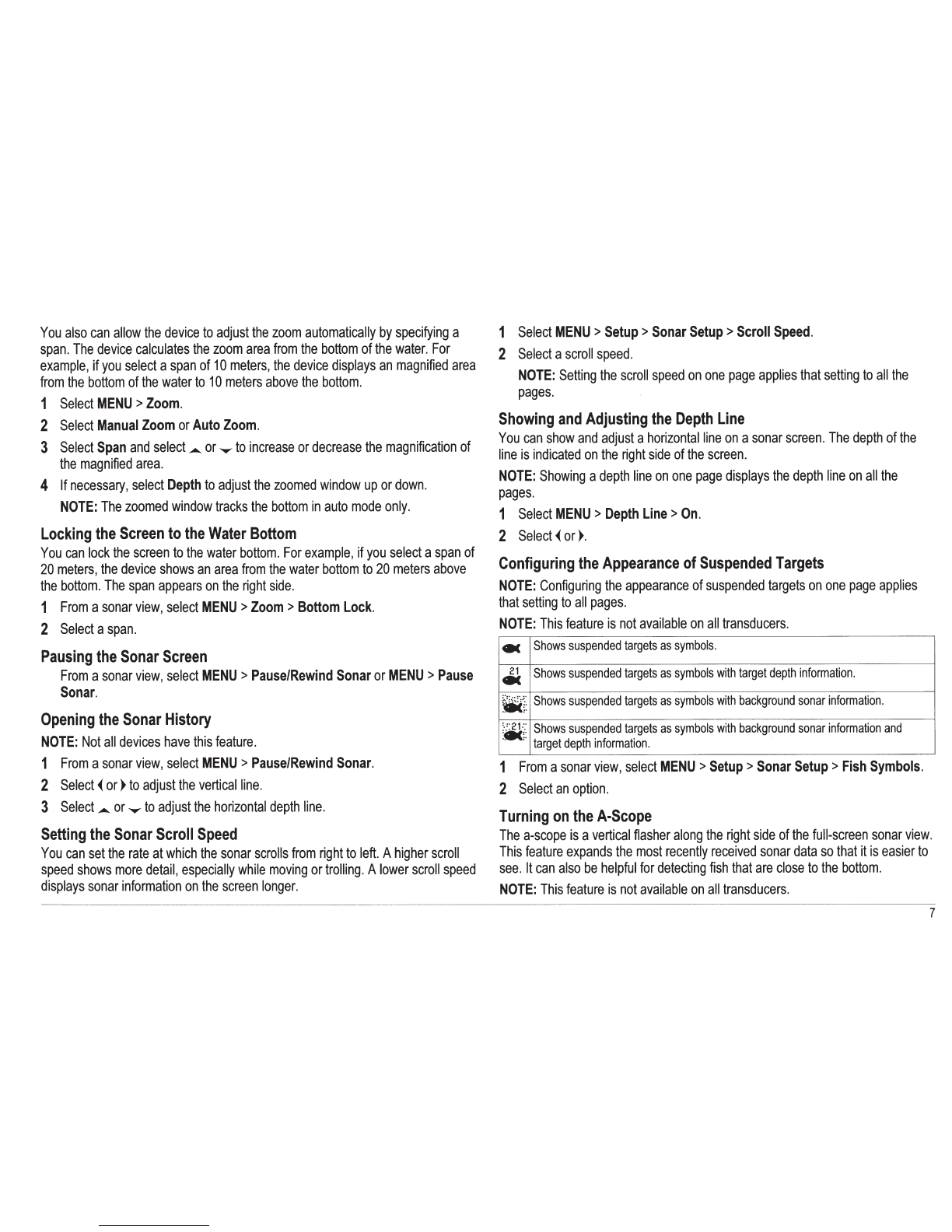

You

also

can

allow

the

device

to

adjust

the

zoom

automatically

by

specifying

a

span.

The

device

calculates

the

zoom

area

from

the

bottom

of

the

water.

For

example,

if

you

select

a

span

of

10

meters,

the

device

displays

an

magnified

area

from

the

bottom

of

the

water

to

10

meters

above

the

bottom.

1

Select

MENU

>

Zoom.

2

Select

Manual

Zoom

or

Auto

Zoom.

3

Select

Span

and

select

_.._

or

.-

to

increase

or

decrease

the

magnification

of

the

magnified

area.

4

If

necessary,

select

Depth

to

adjust

the

zoomed

window

up

or

down.

NOTE:

The

zoomed

window

tracks

the

bottom

in

auto

mode

only.

Locking

the

Screen

to

the

Water

Bottom

You

can

lock

the

screen

to

the

water

bottom.

For

example,

if

you

select

a

span

of

20

meters,

the

device

shows

an

area

from

the

water

bottom

to

20

meters

above

the

bottom.

The

span

appears

on

the

right

side.

1

From

a

sonar

view,

select

MENU

>

Zoom

>

Bottom

Lock.

2

Select

a

span.

Pausing

the

Sonar

Screen

From

a

sonar

view,

select

MENU

>

Pause/Rewind

Sonar

or

MENU

>

Pause

Sonar.

Opening

the

Sonar

History

NOTE:

Not

all

devices

have

this

feature.

1

From

a

sonar

view,

select

MENU

>

Pause/Rewind

Sonar.

2

Select~

or)

to

adjust

the

vertical

line.

3

Select_.._

or,..

to

adjust

the

horizontal

depth

line.

Setting

the

Sonar

Scroll

Speed

You

can

set

the

rate

at

which

the

sonar

scrolls

from

right

to

left.

A

higher

scroll

speed

shows

more

detail,

especially

while

moving

or

trolling.

A

lower

scroll

speed

displays

sonar

information

on

the

screen

longer.

1

Select

MENU

>

Setup

>

Sonar

Setup

>

Scroll

Speed.

2

Select

a

scroll

speed.

NOTE:

Setting

the

scroll

speed

on

one

page

applies

that

setting

to

all

the

pages.

Showing

and

Adjusting

the

Depth

Line

You

can

show

and

adjust

a

horizontal

line

on

a

sonar

screen.

The

depth

of

the

line

is

indicated

on

the

right

side

of

the

screen.

NOTE:

Showing

a

depth

line

on

one

page

displays

the

depth

line

on

all

the

pages.

1

Select

MENU

>

Depth

Line

>

On.

2

Select~

or).

Configuring

the

Appearance

of

Suspended

Targets

NOTE:

Configuring

the

appearance

of

suspended

targets

on

one

page

applies

that

setting

to

all

pages.

NOTE:

This

feature

is

not

available

on

all

transducers.

-

Shows

suspended

targets

as

symbols.

21

Shows

suspended

targets

as

symbols

with

target

depth

information.

-

~1~

Shows

suspended

targets

as

symbols

with

background

sonar

information.

~~·;·~

Shows

suspended

targets

as

symbols

with

background

sonar

information

and

target

depth

information.

1

From

a

sonar

view,

select

MENU

>

Setup

>

Sonar

Setup

>

Fish

Symbols.

2

Select

an

option.

Turning

on

the

A-Scope

The

a-scope

is

a

vertical

flasher

along

the

right

side

of

the

full-screen

sonar

view.

This

feature

expands

the

most

recently

received

sonar

data

so

that

it

is

easier

to

see.

It

can

also

be

helpful

for

detecting

fish

that

are

close

to

the

bottom.

NOTE:

This

feature

is

not

available

on

all

transducers.

7

From

the

full

screen

page,

select

MENU

>

Setup

>

Sonar

Setup

>

A-Scope

>

On

.

-,

-

.

~\,

_

-

;-r

~

~

~

-::-

....

I

G)

A-Scope

f@

Diameter

of

the

sonar

cone

at

the

present

depth

------

------------~

Sonar

Gain

and

Noise

Settings

You

can

adjust

the

amount

of

gain

and

noise

on

a

sonar

screen

.

The

gain

setting

controls

the

sensitivity

of

the

sonar

receiver

to

compensate

for

water

depth

and

water

cla

r

ity.

Increasing

the

gain

shows

more

detail

,

and

decreasing

the

gain

reduces

screen

clutter.

NOTE

:

Setting

the

gain

on

one page

applies

the

setting

to

a

ll

the

pages

.

Setting

the

Gain

Manually

1

Select

MENU

>

Gain

>

Manual.

2

Select

.......

until

you

begin

to

see

noise

in

the

water

portion

of

the

screen.

3

Select

....,.

to

decrease

the

gain

slightly.

8

Setting

the

Gain

Automatically

NOTE

:To

set

the

gain

on

the

split

frequency

page

,

you

must

set

each

frequency

separately

.

1

Select

MENU

>

Gain

.

2

Select

an

option:

To

display

higher-sensitivity

,

weaker

sonar

returns

with

more

noise

automatically

,

select

Auto-High

.

•

To

display

medium-sensit

i

vity

sonar

returns

with

moderate

noise

automatically

,

select

Auto-Med

.

To

display

lower-sensitivity

sona

r

returns

with

less

noise

automatically

,

select

Auto-Low

.

Setting

Noise

Rejection

You

can

decrease

the

appearance

of

weak

sonar

returns

by

increasing

no

i

se

rejection

.

NOTE:

Setting

noise

rejection

on

one

page

applies

that

setting

to

all

pages.

NOTE

:

To

set

noise

rejection

on

the

split

frequency

page

,

you

must

set

each

frequency

separately.

1

Select

MENU

>

Setup

>

Sonar

Setup

>

Noise

Reject.

2

Set

the

level

of

noise

rejection

.

Hiding

Surface

Noise

You

can

hide

or

display

the

sonar

returns

near

the

surface

of

the

water.

Hiding

surface

noise helps

reduce

screen

clutter.

NOTE:

Setting

the

surface

noise

to

show

or

hide

on

one page

applies

that

setting

to

all

pages

.

Select

MENU

>

Setup

>

Sonar

Setup

>

Surface

Noise

>

Hide

.

Adjusting

the

Contrast

You

can

control

t

he

range

and

intensity

of

colors

by

adjusting

the

brightness

and

contrast

for

DownVO

transducers

.

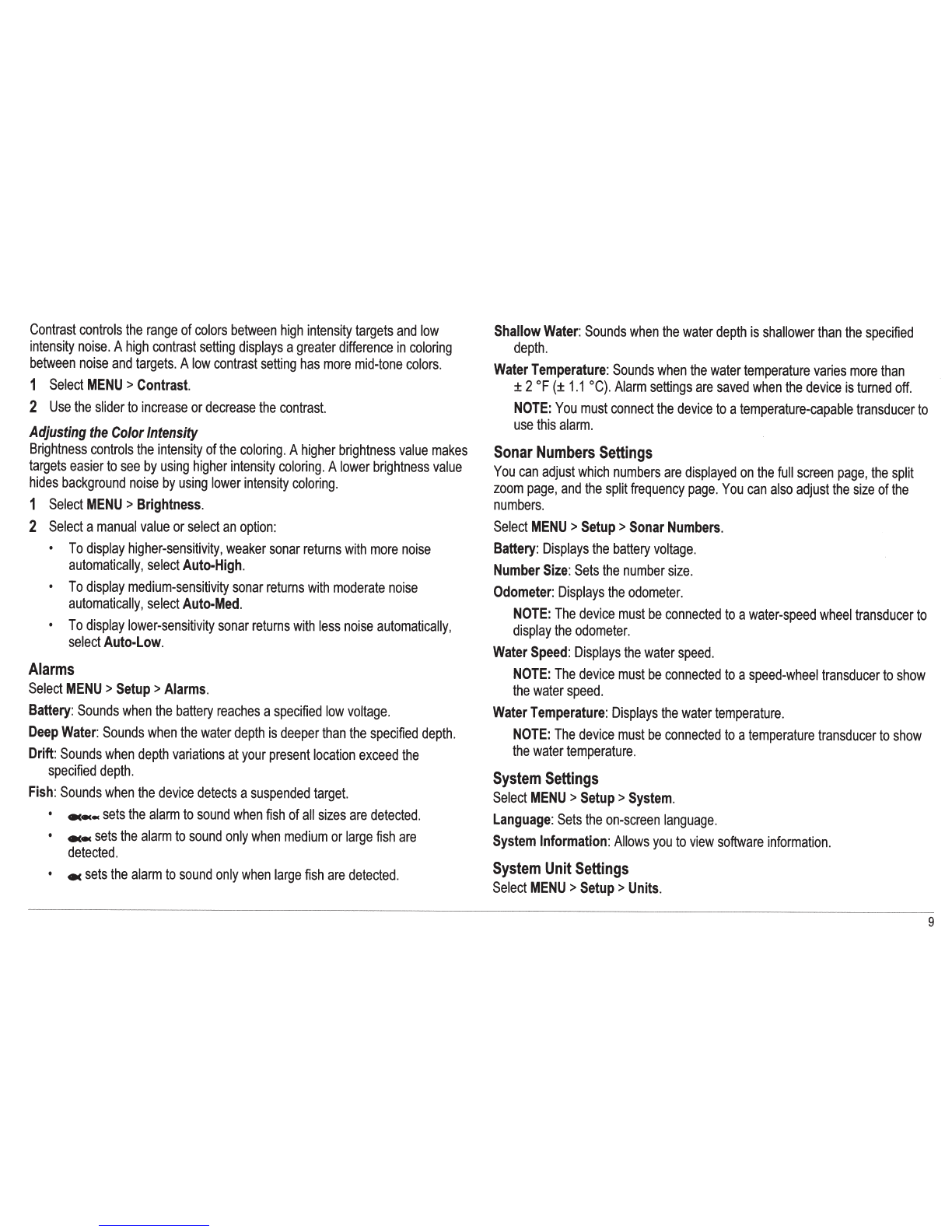

Contrast

controls

the

range

of

colors

between

high

intensity

targets

and

low

intensity

noise.

A

high

contrast

setting

displays

a

greater

difference

in

coloring

between

noise

and

targets.

A

low

contrast

setting

has

more

mid-tone

colors.

1

Select

MENU

>

Contrast.

2

Use

the

slider

to

increase

or

decrease

the

contrast.

Adjusting

the

Color

Intensity

Brightness

controls

the

intensity

of

the

coloring.

A

higher

brightness

value

makes

targets

easier

to

see

by

using

higher

intensity

coloring.

A

lower

brightness

value

hides

background

noise

by

using

lower

intensity

coloring.

1

Select

MENU

>

Brightness.

2

Select

a

manual

value

or

select

an

option:

•

To

display

higher-sensitivity,

weaker

sonar

returns

with

more

noise

automatically,

select

Auto-High.

•

To

display

medium-sensitivity

sonar

returns

with

moderate

noise

automatically,

select

Auto-Med.

•

To

display

lower-sensitivity

sonar

returns

with

less

noise

automatically,

select

Auto-Low.

Alarms

Select

MENU>

Setup>

Alarms.

Battery:

Sounds

when

the

battery

reaches

a

specified

low

voltage.

Deep

Water:

Sounds

when

the

water

depth

is

deeper

than

the

specified

depth.

Drift:

Sounds

when

depth

variations

at

your

present

location

exceed

the

specified

depth.

Fish:

Sounds

when

the

device

detects

a

suspended

target.

•

••·

sets

the

alarm

to

sound

when

fish

of

all

sizes

are

detected.

•

••

sets

the

alarm

to

sound

only

when

medium

or

large

fish

are

detected.

• ec

sets

the

alarm

to

sound

only

when

large

fish

are

detected.

Shallow

Water:

Sounds

when

the

water

depth

is

shallower

than

the

specified

depth.

Water

Temperature:

Sounds

when

the

water

temperature

varies

more

than

±

2

OF

(±

1.1

oc).

Alarm

settings

are

saved

when

the

device

is

turned

off.

NOTE:

You

must

connect

the

device

to

a

temperature-capable

transducer

to

use

this

alarm.

Sonar

Numbers

Settings

You

can

adjust

which

numbers

are

displayed

on

the

full

screen

page,

the

split

zoom

page,

and

the

split

frequency

page.

You

can

also

adjust

the

size

of

the

numbers.

Select

MENU

>

Setup

>

Sonar

Numbers.

Battery:

Displays

the

battery

voltage.

Number

Size:

Sets

the

number

size.

Odometer:

Displays

the

odometer.

NOTE:

The

device

must

be

connected

to

a

water-speed

wheel

transducer

to

display

the

odometer.

Water

Speed:

Displays

the

water

speed.

NOTE:

The

device

must

be

connected

to

a

speed-wheel

transducer

to

show

the

water

speed.

Water

Temperature:

Displays

the

water

temperature.

NOTE:

The

device

must

be

connected

to

a

temperature

transducer

to

show

the

water

temperature.

System

Settings

Select

MENU

>

Setup

>

System.

Language:

Sets

the

on-screen

language.

System

Information:

Allows

you

to

view

software

information.

System

Unit

Settings

Select

MENU

>

Setup

>

Units.

9

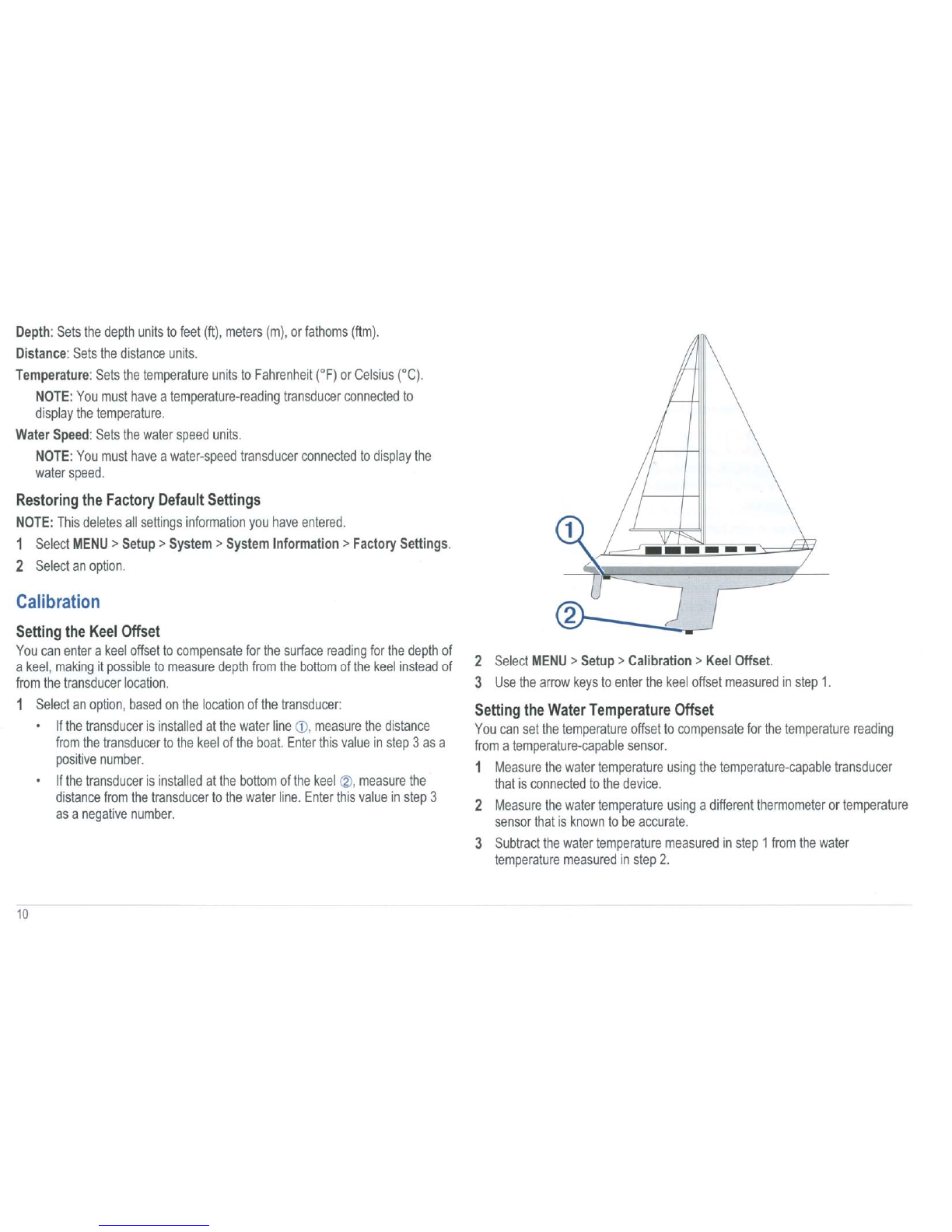

Depth

:

Sets

the

depth

units

to

feet

(ft)

,

meters

(m),

or

fathoms

(ftm).

Distance

:

Sets

the

distance

units.

Temperature

:

Sets

the

temperature

units

to

Fahrenheit

(°F)

or

Celsius

(0

C).

NOTE:

You

must

have

a

temperature-

r

eading

transducer

connected

to

display

the

temperature

.

Water

Speed

:

Sets

the

water

speed

units

.

NOTE:

You

must

have

a

water-speed

transducer

connected

to

display

the

water

speed.

Restoring

the

Factory

Default

Settings

NOTE

:

This

deletes

all

settings

information

you

have

entered.

1

Select

MENU

>

Setup

>

System

>

System

Information

>

Factory

Settings

.

2

Select

an

option

.

Calibration

Setting

the

Keel

Offset

You

can

enter

a

keel

offset

to

compensate

for

the

surface

reading

f

or

the

depth

of

a

keel

,

making

it

possible

to

measure

depth

from

the

bottom

of

the

keel

instead

of

from

the

transducer

location

.

1

Select

an

option

,

based

on

the

location

of

the

transducer:

10

•

If

the

transducer

is

installed

at

the

water

line

CD

,

measure

the

distance

from

the

transducer

to

the

keel

of

the

boat.

Enter

this

value

in

step

3

as

a

positive

number

.

•

If

t

he

transduce

r

is

installed

at

the

bottom

of

the

keel

@,

measure

the

distance

from

the

transducer

to

the

water

line.

Enter

this

value

in

step

3

as

a

negative

number.

2

Select

MENU

>

Setup

>

Calibration

>

Keel

Offset.

3

Use

the

arrow

keys

to

enter

the

keel

offset

measured

in

step

1.

Setting

the

Water

Temperature

Offset

You

can

set

the

temperature

offset

to

compensate

for

the

temperature

reading

from

a

temperature-capable

sensor.

1

Measure

the

water

temperature

using

the

temperature-capable

transducer

that

is

connected

to

the

device.

2

Measure

the

wate

r

temperature

using

a

different

thermometer

or

temperature

sensor

t

hat

is

known

to

be

accurate.

3

Subtract

the

water

temperature

measured

in

step

1

from

the

water

temperature

measured

in

step

2.
