Ganz ZN-PTZ550VP(N)E Manuel utilisateur
GANZZN‐PTZ500VP(N)EInstallationGuide
2010.5‐1 03A.02 2
INFORMATIONTOUSER
CAUTION
RISKOFELECTRICSHOCK,
DONOTOPEN
!
CAUTION:TOREDUCETHERISKOFELECTRICSHOCK,
DONOTREMOVECOVER(ORBACK).
NOUSERSERVICEABLEPARTSINSIDE.
REFERSERVICINGTOQUALIFIEDSEERIVCEPERSONEL.
Thissymbolisintendedtoalerttheusertothepresenceofun‐insulated
“dangerousvoltage”withintheproduct’senclosurethatmaybeofsufficient
magnitudetoconstituteariskofelectricshocktopersons.
!
Thissymbolisintendedtoalerttheusertothepresenceofimportant
operatingandmaintenance(servicing)instructionsintheliterature
accompanyingtheappliance.
GANZZN‐PTZ500VP(N)EInstallationGuide
2010.5‐1 03A.02 3
TableofContents
1.FEATURES ...............................................................................................................4
2.PACKAGECONTENTS .............................................................................................. 5
3.PARTNAMES ..........................................................................................................6
4.INSTALLATION ........................................................................................................8
4.1.InstallationTemplate ......................................................................................................... 9
4.2.SettingtheImageAttribute .............................................................................................. 10
4.3.OperatingtheOSDMenu.................................................................................................. 10
5.CONNECTIONS ...................................................................................................... 11
5.1.Connectors ........................................................................................................................ 11
6.CONFIGURATION .................................................................................................. 15
6.1.Setupnetworkenvironment ............................................................................................ 15
6.2.Viewvideoonwebpage .................................................................................................. 15
6.2.1.ViewvideousingZNS‐GITIPAdminTool .................................................................. 15
6.2.2.ViewvideousingIPaddress ...................................................................................... 18
6.3.Reset................................................................................................................................. 18
6.4.FactoryDefault................................................................................................................. 18
APPENDIX(A):SPECIFICATIONS ................................................................................ 19
Summary ................................................................................................................................. 19
ElectricalCharacteristics ......................................................................................................... 20
EnvironmentCondition ........................................................................................................... 20
VCA(VideoContentAnalysis) ................................................................................................. 21
APPENDIX(B):DIMENSIONS..................................................................................... 22
APPENDIX(D):TROUBLESHOOTING......................................................................... 23
CheckingyourFirmware ......................................................................................................... 23
Support.................................................................................................................................... 23
GANZZN‐PTZ500VP(N)EInstallationGuide
2010.5‐1 03A.02 4
1.FEATURES
Camera
•Indoor/OutdoorPTZDomeIPCamera(VandalProof)
•Sony1/4”SuperHADCCD,410KPixel
•x10OpticalZoom,x10DigitalZoom(Maxx100)
•TrueDay&Night(IRCutFilter,DSS)
•Max360°/shighspeedPan/Tiltmotion
•Improvementofcolorrollingsuppression
Streaming
•Dualstreamingmode(suchasdifferentcodec/resolution/bitrateandsoon.)
•De‐interlacingonDSP
•Burnt‐intextsupported
•Unicast/Multicastsupported
Video/Audio
•Videocompression:H.264/MPEG/MJPEG,25/30FPS@D1(PAL/NTSC)
•Audiocompression:G.711(µLaw,aLaw)/PCM
•Analogvideooutforexternalmonitors
•VideoMotionDetectionsupported
•2‐waymonoaudiosupported
Network
•RTSP/HTTPprotocolsupported
•10/100Base‐TEthernet
AdditionalFeatures
•RS‐485supported
•MicroSDcardsocketforexternalstorage
•OSDsupported
•SDK(SoftwareDevelopmentKit)provided
VCA(VideoContentAnalysis)
•VCAPresence(Includedasbasic)
•VCASurveillance(Optional)
GANZZN‐PTZ500VP(N)EInstallationGuide
2010.5‐1 03A.02 5

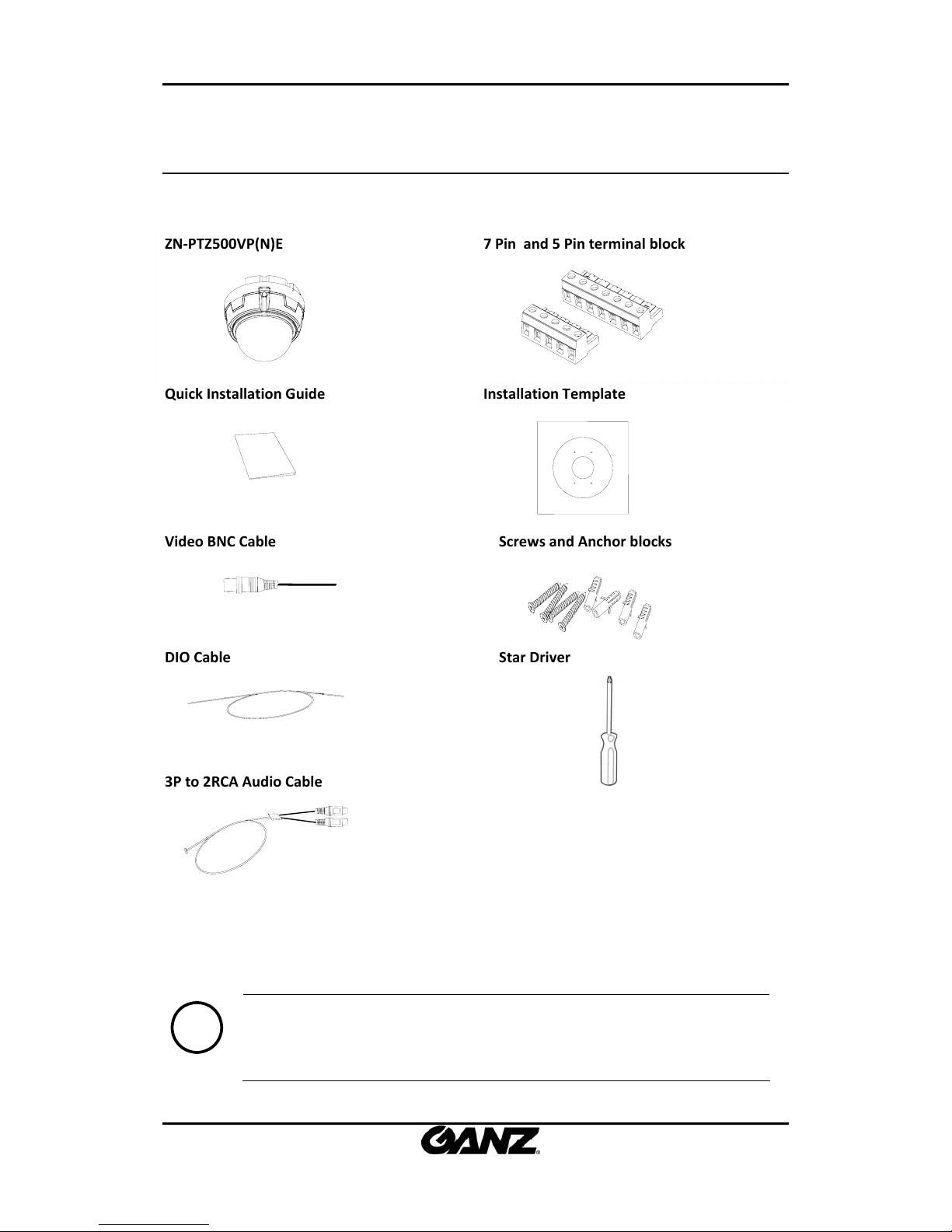

2.PACKAGECONTENTS
Unpackcarefullyandhandletheequipmentwithcare.Thepackagingcontains:
ZN‐PTZ500VP(N)E7Pinand5Pinterminalblock
QuickInstallationGuideInstallationTemplate
VideoBNCCableScrewsandAnchorblocks
DIOCableStarDriver
3Pto2RCAAudioCable
Note
i
Theabovecontentsaresubjecttochangewithoutpriornotice.
GANZZN‐PTZ500VP(N)EInstallationGuide
2010.5‐1 03A.02 6
3.PARTNAMES
①
②
③
④
⑤
⑥
⑧
⑨
⑦
*Modelshereinandtheirappearance
aresubjecttochangewithoutanyprior
notice.
○
10
GANZZN‐PTZ500VP(N)EInstallationGuide
2010.5‐1 03A.02 7
①LANConnector(Ethernet)
ThisisaRJ45LANconnectorfor10/100Base‐TEthernet.
②MicroSDCardSocket
Itisamemorycardslotforexternalstorage.
③Reset
ResetswitchisusedforrestartingZN‐PTZ500VP(N)EorresettingZN‐PTZ500VP(N)EtoFactory
Default(FD).Refertothesection“6.3.Reset”formorespecificinformation.
④StatusIndicateLED
Itindicatesthenetworkanddevicestatus.
⑤7pinterminalblockforpower,RS‐485,andexternalvideooutput
Refertothesection“5.1.Connectors”formorespecificinformation.
⑥DIPSwitch
Notused
⑦3pinconnectorforAudioInputandOutput
ZN‐PTZ500VP(N)Ehaveamonoaudioinputandamonoaudiooutput.
⑧4pinConnectorforUSB
ZN‐PTZ500VP(N)EprovideUSBconnectorwhichisusedforexternalstorageorwirelessLAN.
(OnlyRalinkRT73chipsetsbasedwirelessdevicesareavailable.)
⑨4pinconnectorforD/IandD/O
ZN‐PTZ500VP(N)EprovidesonechannelD/IandonechannelD/O
⑩5pinTerminalBlock
Notused
GANZZN‐PTZ500VP(N)EInstallationGuide
2010.5‐1 03A.02 8
4.INSTALLATION
Note
i
WhenassemblingthemainbodyoftheZN‐PTZ500VP(N)Eanditsdomecover,
makesuretheyfiteachotherintoplace.
1)ConnecttheLANcable,powersupply
cable,andthevideoloopoutcablewiththe
ZN‐PTZ500VP(N)E.
2)Placetheinstallationtemplateonthe
ceiling.
3)Drillfourholesonthetemplateandinsert
anchorblocksintotheholes.Fastenthe
surfacemountbracketwithscrews.
4)Putthemainbodyonthesurfacemount
bracketoftheZN‐PTZ500VP(N)E.Makesure
thebracketandthemainbodyfiteachother
intoplace.
5)Fastenthemainbodywithscrews.
GANZZN‐PTZ500VP(N)EInstallationGuide
2010.5‐1 03A.02 9
Caution
!
TheZN‐PTZ500VP(N)Emayfallofftheceilingevenaftertheproperinstallation
andmounting.Topreventanyaccident,makesuretheceilingisfirmand
stableenoughtosupporttheZN‐PTZ500VP(N)E.Ifanyreinforcementis
needed,consultwithyoursafetypersonnelandproceedwiththeinstallation.

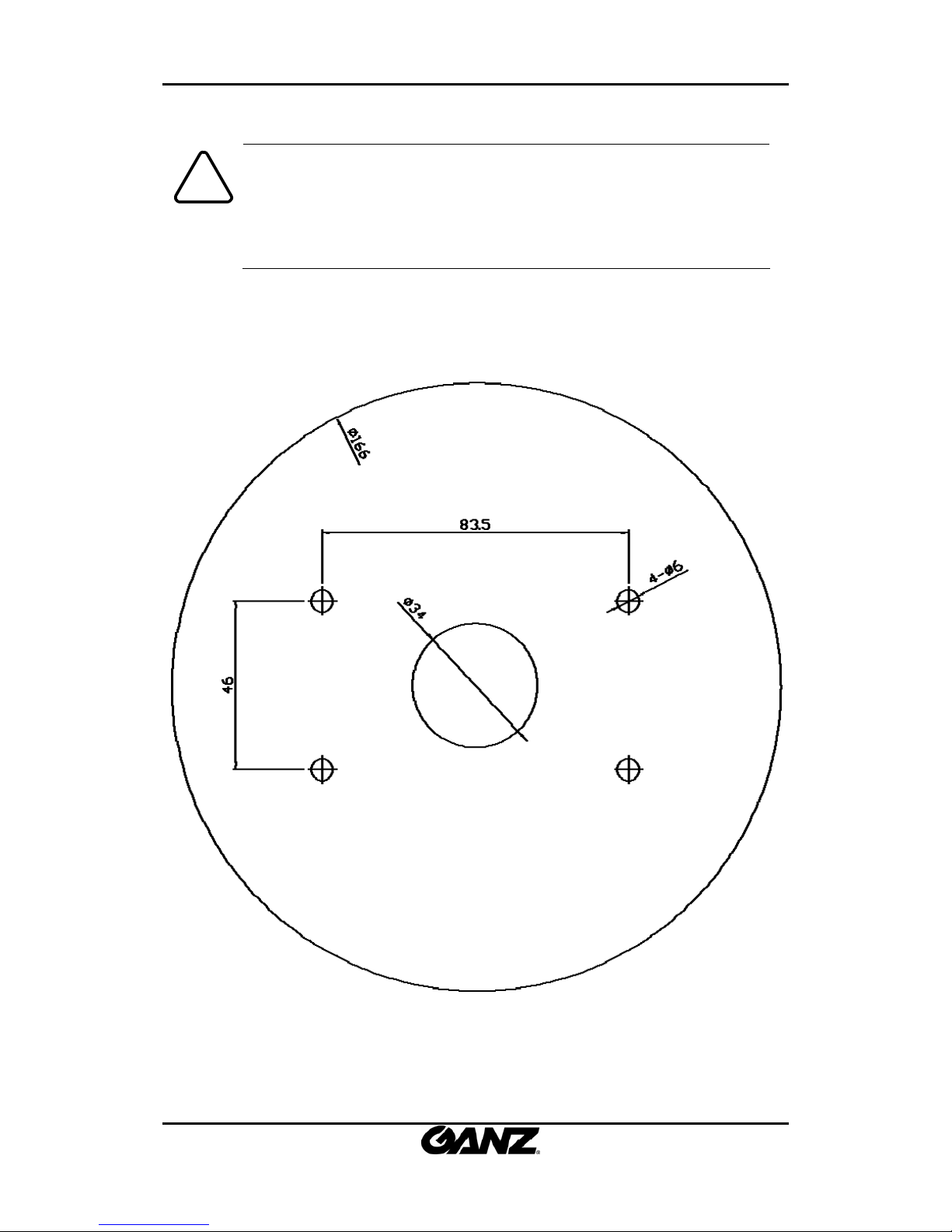

4.1.InstallationTemplate
GANZZN‐PTZ500VP(N)EInstallationGuide
2010.5‐1 03A.02 10
4.2.SettingtheImageAttribute
Youcansettheimageattributeofcamerathroughthewebpage.
ThemenuofimageattributecanbeseenunderSetup>Video&Audio>Video‐in>Attribute
Setting.Brightness,contrast,hue,saturationandsharpnesscanbeadjusted.
4.3.OperatingtheOSDMenu
TooperatetheOSDofcamera,refertothe”OSDMenuControlManual”intheSDK.
