Ganz ZN-D2024 Manuel utilisateur

Warnings Before Installation

Contact your distributor when such

cases happen.

Power off the IP Camera as

soon as it is found smoking or

smelt unusual.

Do not place the IP Camera

around the heat sources, such

as television or oven.

Keep the IP Camera away

from direct sunlight.

Keep the IP Camera away

from water. If the IP

Camera is wet, power off

immediately.

Refer to your user's

manual for the operating

temperature.

Do not place the IP Camera

in high humid environments.

Contact your distributor when such

cases happen.

Do not place the IP Camera on

unsteady surfaces.

Do not disassemble the IP

Camera.

Do not insert any object

into the IP Camera, such as

needles.

Do not touch the IP Camera

when it's lightening.

Do not drop the IP Camera.

ZN-D2024 Power Adapter

Warranty Card Quick Installation Guide

Software CD Alignment Sticker

Screws and I/O Connector

Package Contents

Physical Description

Keep a note of the MAC address

before installing the camera.

001CB8600052

RoHS

Pat.6,930,709

Indoor IP Dome Camera

Model No:ZN-D2024-A

Drill holes

Dome cover

Lens

Tilt screw

Built-in MIC

Power cord socket

Ethernet 10/100 RJ45 socket

Indented reset button

Audio Out Mic. In Ext. Int.

1 2 3 4

Focus controller

Zoom controller

General I/O terminal block

Audio out

MIC in External/Internal MIC switch

Pan screw

Image adjustment screw

Status LED

First, use the supplied screwdriver to detach the dome cover from the camera base. Then,

follow the steps below to install the camera; either to a ceiling or to a wall.

Hardware Installation

When mounting to a ceiling

Through the two holes on each side of the camera base, insert the supplied two screws

to corresponding holes and secure them with a screwdriver.

When mounting to a wall

1. Attach the alignment sticker to the wall.

2. Through the two circles on the sticker, drill two pilot holes into the wall.

3. Hammer the supplied plastic anchors into the holes.

4. Align the two holes on each side of the camera base with the two plastic anchors on

the wall, insert the supplied screws to corresponding holes and secure them with a

screwdriver.

Alignment sticker

General Connection (without PoE)

1. Connect the camera to a switch via a Ethernet cable.

2. Connect the supplied power cable from the camera to a power outlet.

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

Ethernet switch

Network Deployment

Power over Ethernet (PoE)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE switch

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

non-PoE switch

PoE power injector

(optional)

When using a PoE-enabled switch

The camera is PoE-compliant, allowing transmission of power and data via single

Ethernet cable. See the following illustration to connect the camera to a PoE-enabled

switch via Ethernet cable.

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the camera and a non-PoE

switch.

This serial number is the same as Ethernet address,

for example: 001CB8600052=00-1C-B8-60-00-52

GANZ

Installation Tool

3. From the "GANZ Installation Tool" window, click on the MAC that matches the one you

just noted from the product label of your device to connect the Internet Explorer to the

IP Camera.

00-1C-B8-60-00-52

00-1C-B8-60-00-52 192.168.5.134 ZN-D2024

001CB8600052

RoHS

Pat. 6,930,709

Indoor IP Dome Camera

Model No:ZN-D2024-A

Assigning IP Address

1. Install the "GANZ Installation Tool" under the Software Utility directory from software CD.

2. Run the "GANZ Installation Tool" program.

For further setup, please check the user's manual on the software CD.

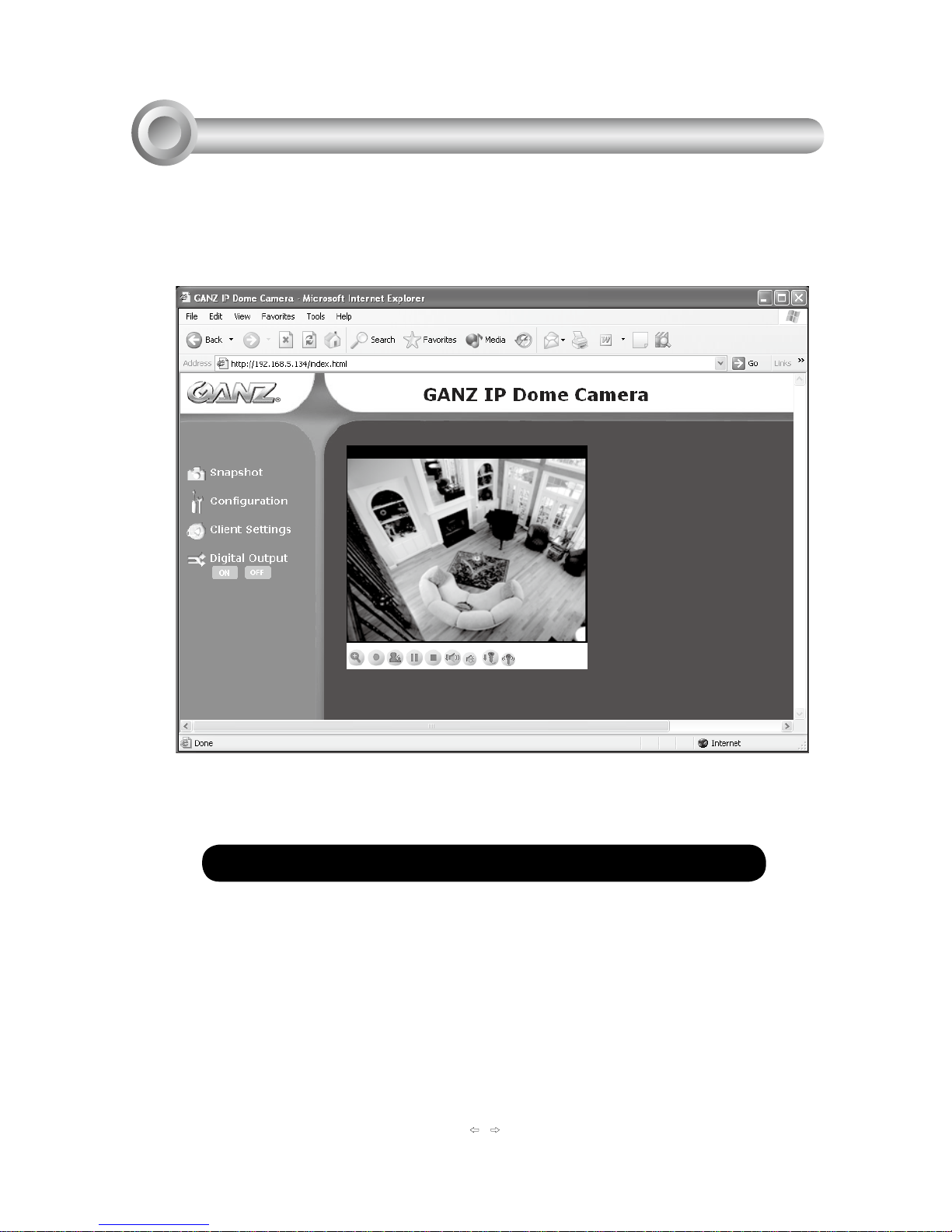

The Internet Explorer Connects to the IP Camera
