Galvin Engineering 49920 Manuel utilisateur

Product Installation Guidelines

Document No.: 001.00.30.22

Version 1, 7 October 2022, Page 1of 4

Washing Machine Taps

PRODUCT CODES:

- 49920 (Vandal Resistant)

- 49924 (Vandal Resistant)

- 49820 (Vandal Resistant)

- 48785 (Stirling)

SPECIFICATIONS

−Vandal resistant handle featuring a locking ring to secure the handle to the spindle which may only be

removed using the key provided. (Vandal Resistant)

−Chrome plate finish for easy cleaning and added durability.

−Handle and button not included, have to be ordered separately. (Stirling)

IMPORTANT: All taps are tested in accordance with AS/NZS 3718 and leave our premises in

good working order.

TECHNICAL DATA

Inlet

½” BSP - Female

Outlet

¾” BSP - Male

Headwork

Jumper Valve

Working Pressure Range (kPa)

Min

Max

500

Working Temperature Range (°C)

Min

Max

Nominal Flow Rate (LPM)

N/A

Finish

Chrome

NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without

notice.

TOOLS REQUIRED

−Power drill

−Spanner

−Hex key

−Thread tape

Product Installation Guidelines

Version 1, 7 October 2022, Page 2of 4

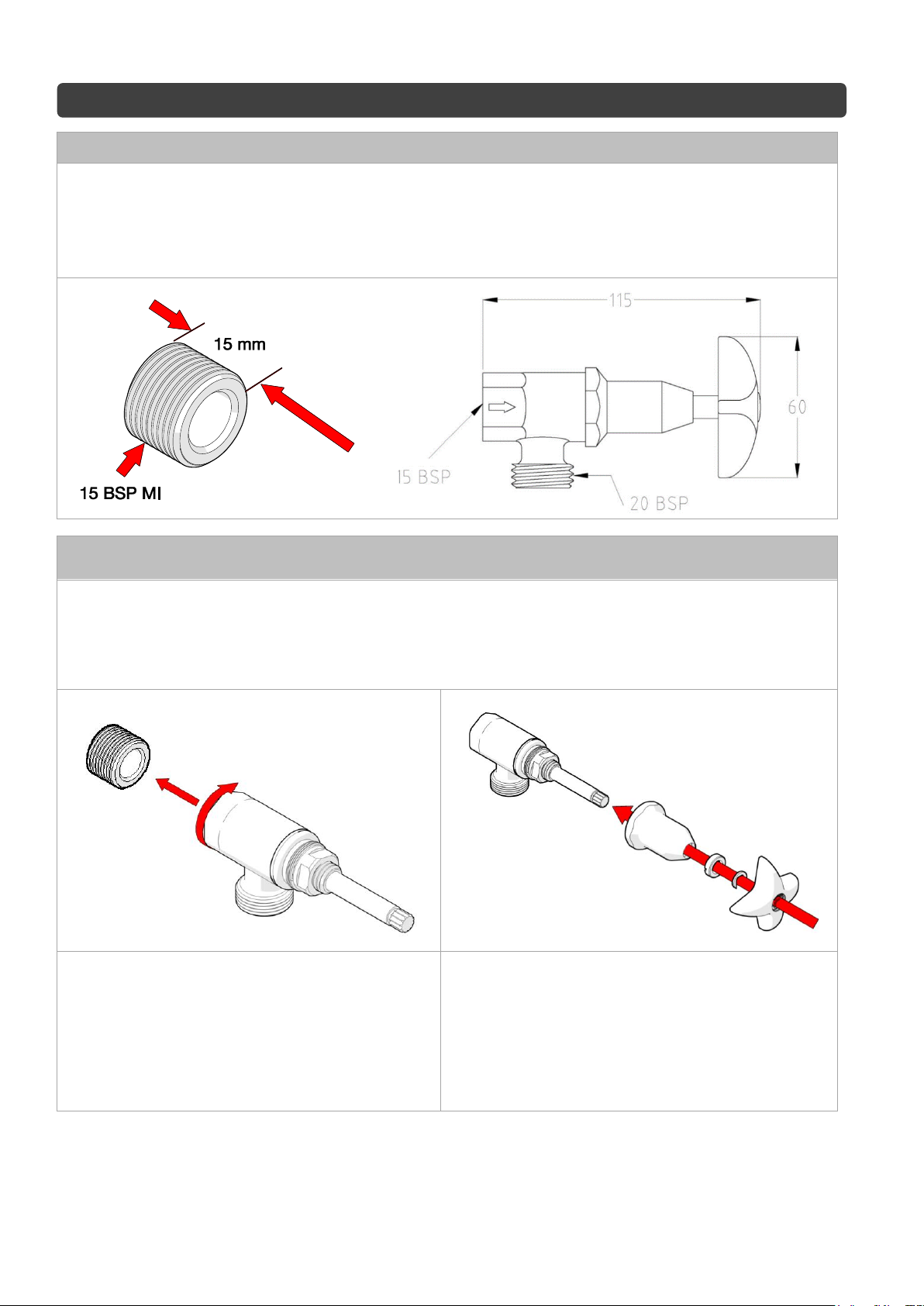

PRE-INSTALLATION - MOUNTING DETAILS

Wall Spud

−Wall spuds must be 15BSP MI and protrude from the finished wall by no more than 15mm

Note: In some situations a male thread connection on the tap may be more suited. If so, please

contact Galvin Specialised on 1300 514 074.

INSTALLATION

IMPORTANT: Galvin Specialised products must be installed in accordance with these installation

instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water

and/or electrical supply conditions must also comply to the applicable national and/or state standards.

Failing to comply with these provisions shall void the product warranty and may affect the performance of

the product.

1. Fit washing machine body

−Fit the washing machine body assembly to the

spud and fasten with a spanner.

−We recommend using thread tape or

equivalent to ensure the connection does not

leak.

−DO NOT tighten the body by using the top

assembly.

2. Fit handle

−Ensure the spindle is in the closed position

then fit bonnet and handle

−Secure the handle using the “C” circlip and

locking ring.

Product Installation Guidelines

Version 1, 7 October 2022, Page 3of 4

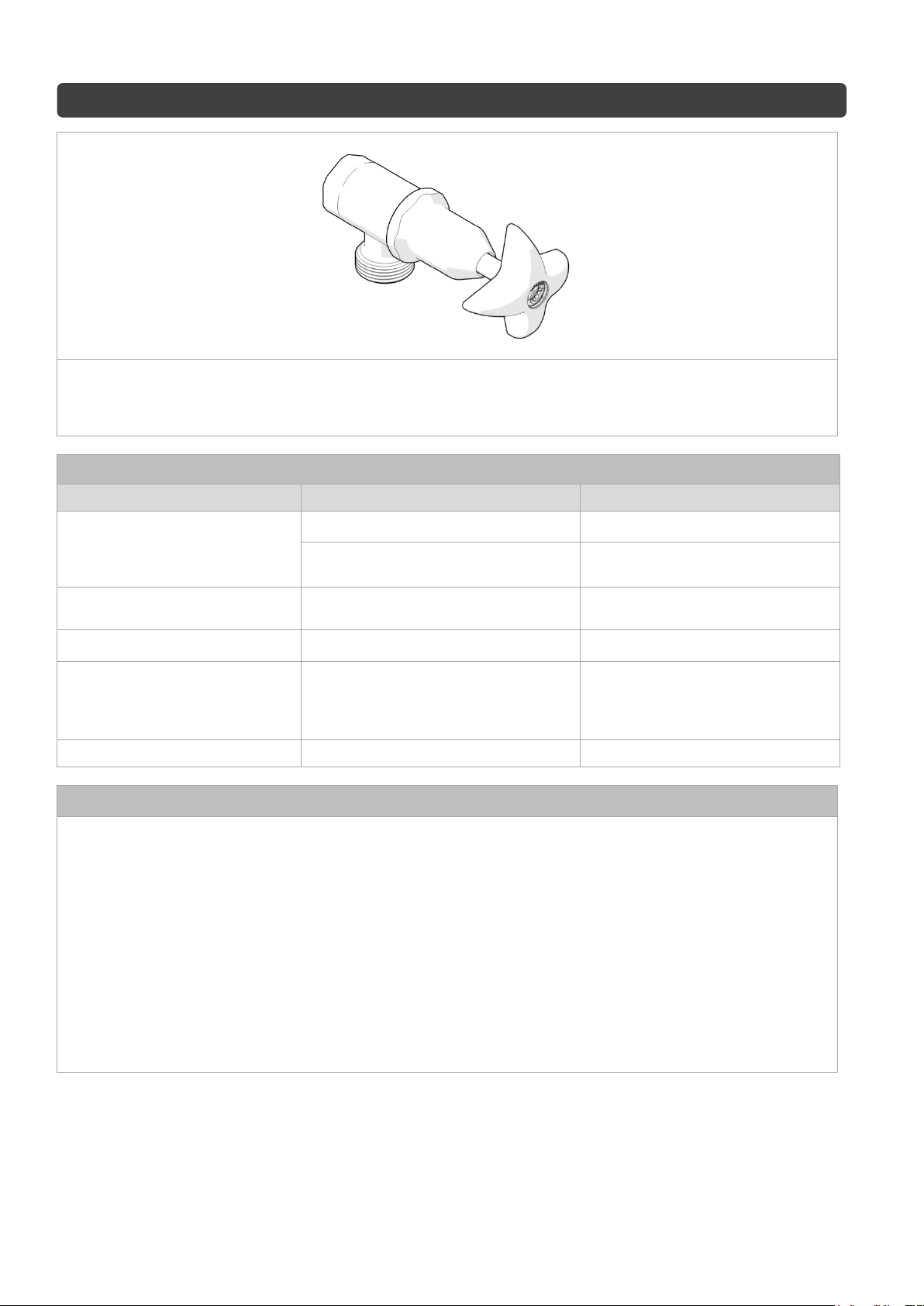

3.Testing

−Once temperature indicator is fitted, check the operation of the unit and inspect for any leaks.

TROUBLESHOOTING

PROBLEM

CAUSE

RECTIFICATION

Taps are dripping water

Jumper valves are worn or damaged

Replace jumper valve

Tap seat is damaged

Refurbish tap seat using a

reseating tool.

Water is leaking from spindle

O-ring on jumper valve spindle is

damaged or worn

Replace o-ring

Water is not flowing from tap

Water is turned off

Turn water on

Spindle is difficult to turn

Build up of scale on spindle, spindle

worn or o-ring has been damaged

Remove jumper valve, clean and

regrease. Replace o-ring.

Complete SBA may need to be

replaced.

Handle is loose

Screw has come loose

Tighten locking ring

SERVICE AND MAINTENANCE

1. Turn off the water supply and turn on the tap handle to drain water from the bodies.

2. Remove the temperature indicator from the handle.

3. Remove the handle from the tap.

4. Unscrew the top assembly from the body.

5. Check the o-ring on the spindle and the

jumper valve for wear and damage.

Replace if required.

6. Clean the spindle and body of debris.

7. Place a new o-ring (if required) onto the spindle and re-grease with potable water approved grease.

8. Re-assemble top assembly. Follow the product installation guidelines for the relevant product to re-

assembly method.

Product Installation Guidelines

Version 1, 7 October 2022, Page 4of 4

WARRANTY

The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty

Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied.

Galvin Engineering Pty. Ltd. hereby specifically disclaims all other warranties, express or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose.

Galvin Engineering Pty Ltd products are covered under our manufacturer’s warranty available for download

from www.galvinengineering.com.au Galvin Engineering Pty Ltd expressly warrants that the product is free

from operational defects in workmanship and materials for the warranty period as shown on the schedule in the

manufacturer’s warranty. During the warranty period, Galvin Engineering will replace or repair any defective

products manufactured by Galvin Engineering without charge, so long as the terms of the Manufacturer’s

warranty are complied with.

The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for

breach of warranty, and Galvin Engineering Pty Ltd shall not be responsible for any incidental, special or

consequential damages, including without limitation, lost profits or the cost of repairing or replacing other

property which is damaged if this product does not work properly, other costs resulting from labour charges,

delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions,

chemical, electrical or any other circumstances over which Galvin Engineering has no control. This warranty

shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or

alteration of the product.
