Galvin Engineering Ezy-Push CP-BS Lead Safe Manuel utilisateur

Product Installation Guidelines

Version 1.1, 13 May 2021, Page 1of 4

Ezy-Push®CP-BS Lead Safe™ Timeflow Push Button

Replacement Cartridge –Adjustable

(Suit 173.61.55.00 and TP08045PA)

PRODUCT CODES:

- 173.92.55.00

SPECIFICATIONS

−The Ezy-Push®time flow cartridge has a unique self-closing operation.

−Smooth round designs to facilitate easy clean and help reduce dirt and bacteria growth.

−Water saving, easy to operate and low maintenance.

−Adjustable time flow.

IMPORTANT: All Ezy-Push®Push Button taps are tested in accordance with AS/NZS 3718 and leave our

premises in good working order.

Note: Run time is based on 500kPa, 5 litres per minute @ 22 degrees Celsius. Time will vary plus or minus

30% based on water temperatures, pressures, flow rates and water quality.

As ‘lead free’ is not currently defined by low in Australia and New Zealand, we have based our definition of Lead Safe™ on the requirements of s1417 of the USA’s Safe Drinking Water Act

(SDWA) and the relevant US standards NSF61 / NSF372. The SDWA defines ‘lead free’ as “not more than a weighted average of 0.25% lead when used with respect to the wetted surface of

pipes, pipe fittings, plumbing fittings and fixtures”.

TECHNICAL DATA

Inlet

M26 x 19 TPI - Male

Outlet

N/A

Headwork

Time Flow Cartridge

Working Pressure Range (kPa)

Min

100

Max

500

Working Temperature Range (°C)

Min

Max

Nominal Flow Rate (LPM)

N/A

Construction

Brass

Finish

Chrome

Time (s)

0 –30 Adjustable

NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice.

Product Installation Guidelines

Version 1.1, 13 May 2021, Page 2of 4

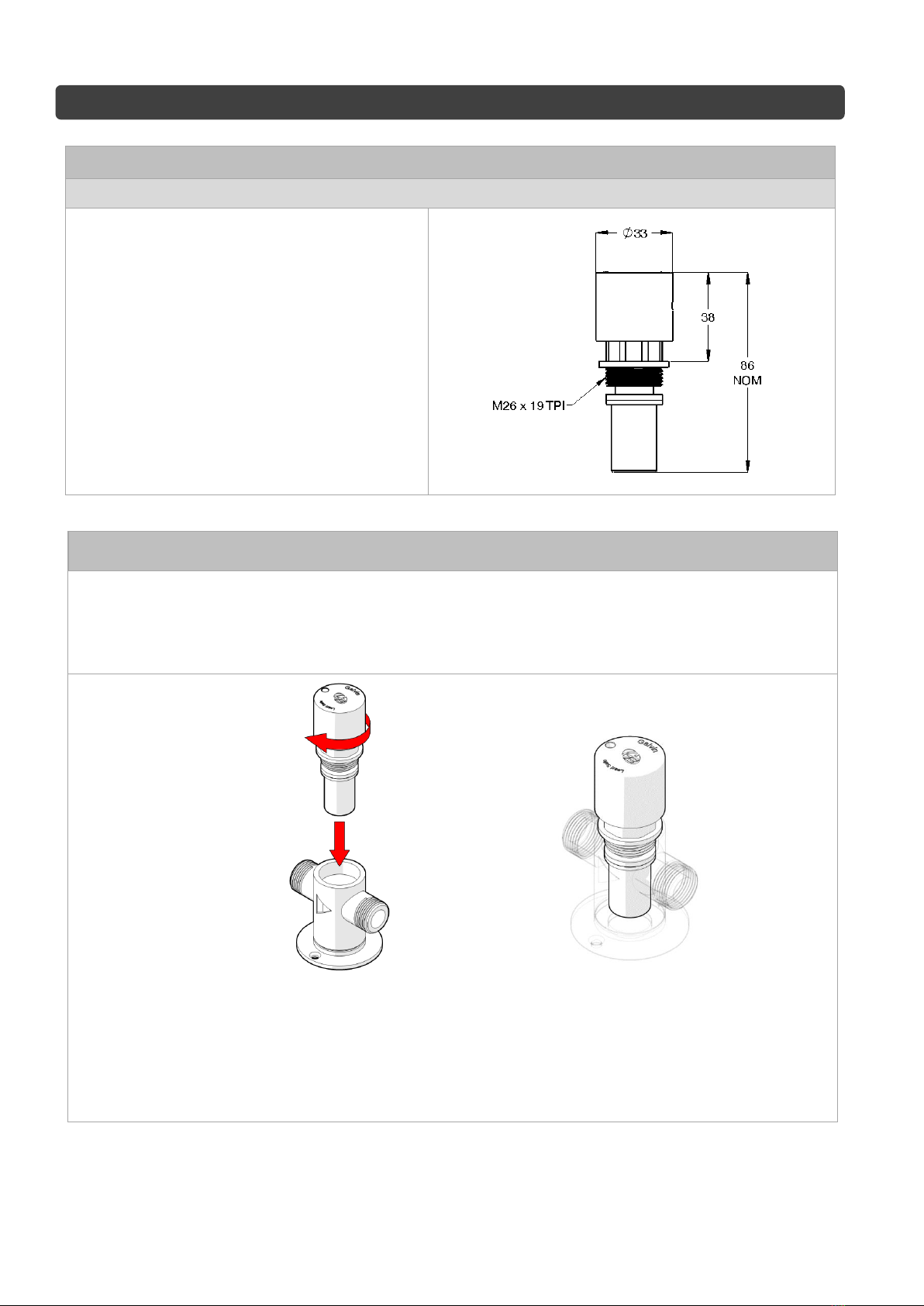

PRE-INSTALLATION

MOUNTING DETAILS

Note: Before installation, all lines must be

flushed. We recommend that a line strainer be

installed prior to taps to eliminate any foreign

material.

INSTALLATION

IMPORTANT: Galvin Specialised products must be installed in accordance with these installation

instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water

and/or electrical supply conditions must also comply to the applicable national and/or state standards. Failing

to comply with these provisions shall void the product warranty and may affect the performance of the

product.

Fit cartridge assembly

−Fit the cartridge into the body (supplied separately) as shown.

−Tighten the cartridge assembly down firmly. Do not over tighten as this could restrict or stop the flow.

If this occurs loosen the cartridge by ¼ of a turn.

−Connect the water lines & turn on water.

Check for leaks and correct operation.

Product Installation Guidelines

Version 1.1, 13 May 2021, Page 3of 4

ADJUSTING TIME FLOW

1. Disassemble

−Dismount the button head

−Remove the grub screw with a 1.5 mm

allen-key (not supplied)

2. Adjust stop-ring

−Turn the stop-ring clockwise to increase flow

time or anti-clockwise to reduce it.

3. Fix position

−Orientate the stop ring to allow the refitting

of the grub screw

4. Reassemble

−Reassemble completely paying attention to

align the hole in the spindle with the grub screw

Product Installation Guidelines

Version 1.1, 13 May 2021, Page 4of 4

TROUBLESHOOTING

PROBLEM

CAUSE

RECTIFICATION

Water is not flowing or

inconsistent flow.

Blocked flow restrictor/dirt in the

cartridge/water supply not on.

Remove flow regulator from the inlet and

remove debris. Install an inline strainer to

stop further blockages. Ensure water

supply is turned on.

Continous flow of

water.

Top assembly cartridge loose or

internally obstructed or damaged.

Remove cartridge, clean with water and

re-grease spindle if required.

Rate of flow

inadequate.

The flow restrictor may not be

satisfactory due to inadequate supply

pressure.

Remove flow restrictor and replace with a

flow restrictor of different capacity to suit

(available from Galvin Specialised).

Button hard to activate.

Mains pressure may be too high.

Reduce mains pressure to below 500kPa

(70 PSI).

No time flow –water

shuts off upon release.

Small spring at the bottom of the

cartridge piston dislodged.

Relocate spring, regrease spindle if

required.

WARRANTY

The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty

Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied.

Galvin Engineering Pty. Ltd. hereby specifically disclaims all other warranties, express or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose.

Galvin Engineering Pty Ltd products are covered under our manufacturer’s warranty available for download

from www.galvinengineering.com.au Galvin Engineering Pty Ltd expressly warrants that the product is free

from operational defects in workmanship and materials for the warranty period as shown on the schedule in

the manufacturer’s warranty. During the warranty period, Galvin Engineering will replace or repair any

defective products manufactured by Galvin Engineering without charge, so long as the terms of the

Manufacturer’s warranty are complied with.

The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for

breach of warranty, and Galvin Engineering Pty Ltd shall not be responsible for any incidental, special or

consequential damages, including without limitation, lost profits or the cost of repairing or replacing other

property which is damaged if this product does not work properly, other costs resulting from labour charges,

delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions,

chemical, electrical or any other circumstances over which Galvin Engineering has no control. This warranty

shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or

alteration of the product.
