GABOR MD-BSL15W Manuel utilisateur
MD-BSL15W /SPRING-LOADED
TWIN-ARM
MONITOR MOuNT
For 15″–27″(38.1–68.6 cm) LCD desktop computer
User Manual
2 Welcome
The Gabor MD-BSL15W mounts two 15″–27″ (38.1–68.6 cm) LCD computer monitors side
by side. It attaches to the edge of your desk via a built-in clamp, freeing up valuable desk
space and enabling personalized monitor placement for improved safety and comfort over
conventional monitor stands. The MD-BSL15W’s arms incorporate an internal mechanical
spring system, which is safer than the gas springs found in similar products. These spring-
loaded arms function as a counterbalance to support your monitors in any position. Multiple
points of articulation provide a full range of motion, making it easy to adjust your monitors’
height, tilt, swivel, and roll.
Thank you for
choosing Gabor.
3Welcome

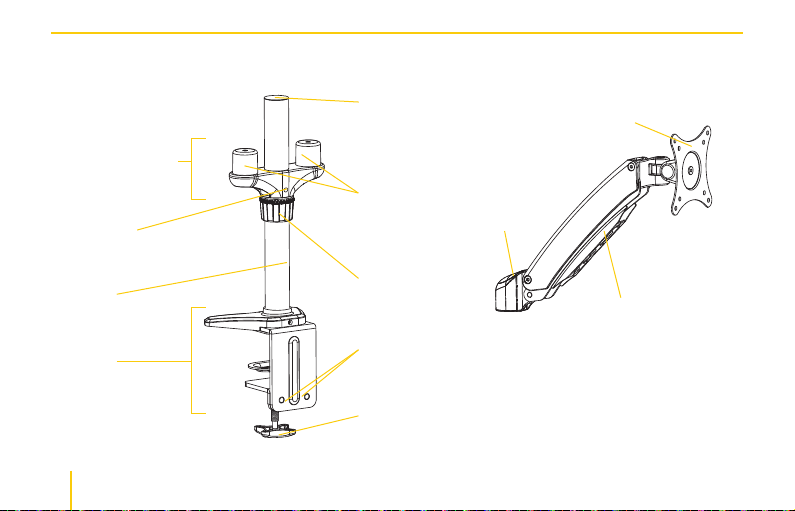

4 Overview
Overview Mounting Arm (x2)
M4x12 (x8) M4x30 (x8)
M6x25 (x2)
13X5.5X16.5 (x8)
(x1)
S=3mm (x1)
S=5mm
A
B
(x2)
(x1)
M4x12 (x8) M4x30 (x8)
M6x25 (x2)
13X5.5X16.5 (x8)
(x1)
S=3mm (x1)
S=5mm
A
B
(x2)
(x1)
Tools Required For
Installation
• Phillips screwdriver
VESA mount
Locking
collar
Support bracket
Set screw
Shaft
Mounting
socket
Cable guides
Clamp
Clamp screws
Clamp locking
knob
Mounting
pegs
Shaft cap
5Overview
M4 M6 Hex Keys Spacers/
Cable clip Protective Caps
Ax8 Cx2
Bx8
Dx1
Ex1
Gx1
Hx2
Ix1
Fx8
M4x12 (x8) M4x30 (x8)
M6x25 (x2)
13X5.5X16.5 (x8)
(x1)
S=3mm (x1)
S=5mm
A
B
(x2)
(x1)
M4x12 (x8) M4x30 (x8)
M6x25 (x2)
13X5.5X16.5 (x8)
(x1)
S=3mm (x1)
S=5mm
A
B
(x2)
(x1)
M4x12 (x8) M4x30 (x8)
M6x25 (x2)
13X5.5X16.5 (x8)
(x1)
S=3mm (x1)
S=5mm
A
B
(x2)
(x1)
M4x12 (x8) M4x30 (x8)
M6x25 (x2)
13X5.5X16.5 (x8)
(x1)
S=3mm (x1)
S=5mm
A
B
(x2)
(x1)
M4x12 (x8) M4x30 (x8)
M6x25 (x2)
13X5.5X16.5 (x8)
(x1)
S=3mm (x1)
S=5mm
A
B
(x2)
(x1)
M4x12 (x8) M4x30 (x8)
M6x25 (x2)
13X5.5X16.5 (x8)
(x1)
S=3mm (x1)
S=5mm
A
B
(x2)
(x1)
A(8) M4×12 screws
B(8) M4×30 screws
C(2) M6×25 screws
D3 mm hex key
E5 mm hex key
F(8) Spacers
GCable clip
H(2) Protective caps
IShaft cap
JUser manual
Supplied Parts & Hardware
Also Included
(Installed in shaft)
6
8
Max. 28.7” (73 cm)
90°
85°
180°
360°
0-13.8” (0-35 cm)
12.2” (31c m)
90°
85°
180°
360° 180° 180°
+/-45°
+/-45°
B
M6x25
A
S=5mm
Product Specifications
• Monitor display size:
15″—27″(38.1–68.6 cm)
• Maximum load capacity (per arm):
17 lb. (7.8 kg)
• VESA standards: 75×75, 100 × 100
• Tilt: -90°/+85°
• Swivel: 180°
• Roll: 360°
• Installation: Clamp fits desk edges up to
2.6″(6.5 cm) thick
• Arm width (extended): 28.7″(73 cm)
• Arm pivot: 180°
• Arm height adjustment
Angle: ±45°
Range: 0″–13.8″(0–35 cm)
• Shaft height: 12.2″(31 cm)
• Weight: 8.25 lb. (3.7 kg)
Specifications
7
Safety Warnings
Please read and follow these instructions
and keep this manual in a safe place.
Clean this product with only a soft, dry cloth.
Keep this product away from children.
Make sure everything is secure before
proceeding.
Make sure that this product is intact and
that there are no missing parts.
To avoid damage to this product, be careful
not to overtighten or improperly thread any
of the threaded fittings.
Do not exceed the maximum load capacity.
Do not install this product on an unsteady
structure or one that is prone to vibration,
has a chance of being impacted, or is
susceptible to other movements. Reinforce
the structure as necessary before installing
this product.
Mounting surfaces should be sturdy and flat.
Do not install this product on a weak, uneven
surface.
All photos are for illustrative purposes only.
17
2
8
9
10
3
4
5
6
Safety Warnings
8
Getting Started
Decide where you want to
place your monitors. When
using a dual-monitor setup
like this one, position your
primary monitor directly
in front of you, and your
secondary monitor to the
side. You shouldn’t need to
turn your head to look at
your primary monitor. Both
monitors should be at eye
level, approximately at an
arm’s length away. If you
have to strain to look at
either monitor, readjust
its position.
Available separately are two dedicated accessories for this
mounting system, the MWD-E8W extension arm and the
MW-C wall mount. The MWD-E8W extension arm adds 10″
(25.4 cm) of length and an additional point of articulation to
provide greater freedom for positioning your monitor. The
MW-C wall mount offers an alternative mounting option for
your MD-BSL15W dual-monitor setup.
Getting Started
MWD-E8W
MW-C
9Installation Instructions
Attaching the Shaft
• The MD-BSL15W easily
attaches to most desk
edges up to 2.6″(6.5 cm)
thick, even if your desk
is nearly flush against a
wall. Before attaching
the shaft to your desk,
determine whether
you have enough room
to fit the entire clamp
behind your desk. If you
have enough clearance
to attach the clamp
without removing the
bottom part of it, skip to
Clearance on this page.
• If your desk is close to
a wall or you don’t have
enough clearance to fit
the entire clamp behind
your desk, you can
remove the bottom part
of the clamp. If this is
the case, skip to Limited
Clearance on page 10.
Clearance
1. Loosen the clamp locking
knob until you can fit the
clamp over the edge of
your desk.
2. Fit the clamp over the
edge of your desk, and
tighten the clamp locking
knob until the shaft is
securely mounted to
your desk.
• Continue with Adjusting
the Support Bracket on
page 11.
10
Limited Clearance
1. Use the included 5 mm
hex key to remove the
clamp screws.
2. Fit the top part of the
clamp behind your desk.
3. Underneath your desk,
align the screw holes in
the top and bottom parts
of the clamp.
Note: It may help to unscrew
the clamp locking knob first.
4. Reinsert the clamp
screws and use the
included 5 mm hex key
to fasten them until fully
tightened.
5. Tighten the clamp locking
knob until the shaft is
securely mounted to your
desk.
• Continue with Adjusting
the Support Bracket on
page 11 .
Installation Instructions
A
M4x12
A
M4x12
