USER’S MANUAL
FDC-250
GB TABLE OF CONTENTS
1. INTRODUCTION...........................................................................................................3
2. INTENDED USE ...........................................................................................................3
3. PACKAGING CONTENTS............................................................................................3
4. INSTALLATION ............................................................................................................4
4.1 Charger .........................................................................................................................4
4.2 Indoor unit .....................................................................................................................4
4.3 Outdoor unit ..................................................................................................................5
Batteries .....................................................................................................5
Power adaptor ............................................................................................5
Mounting.....................................................................................................6
5. OVERVIEW...................................................................................................................7
5.1 Indoor unit .....................................................................................................................7
5.2 Outdoor unit ..................................................................................................................7
6. OPERATION.................................................................................................................8
6.1 To switch on/off .............................................................................................................8
6.2 When the doorbell rings ................................................................................................8
6.3 Monitor (looking outside yourself) .................................................................................9
7. SETUP ........................................................................................................................10
7.1 Volume ........................................................................................................................10
7.2 Brightness ...................................................................................................................10
7.3 Time and date ............................................................................................................. 11
7.4 Key tone...................................................................................................................... 11
7.5 Automatic snapshot .................................................................................................... 11
7.6 To view photos ............................................................................................................12
7.7 Reset to factory settings .............................................................................................12
8. EXPANDING WITH MULTIPLE OUTDOOR UNITS...................................................13
8.1 Introduction .................................................................................................................13
8.2 To register additional outdoor units.............................................................................13
8.3 To de-register ..............................................................................................................14
9. INCREASING THE RANGE USING THE EXTERNAL ANTENNA............................14
10. PHOTOS.....................................................................................................................15
10.1 Introduction .................................................................................................................15
10.2 To view and delete ......................................................................................................15
11. DOOR OPENER .........................................................................................................15
11.1 Introduction .................................................................................................................15
11.2 Operating the door lock...............................................................................................16
11.3 Door lock connection ..................................................................................................16
11.4 Door lock switch duration setup ..................................................................................17
12. SYSTEM ERROR .......................................................................................................17
13. TECHNICAL SPECIFICATIONS ................................................................................17
13.1 Indoor-unit...................................................................................................................17
13.2 Outdoor-unit ................................................................................................................18
-3-
1. INTRODUCTION
The FDC-250 is a wireless video door telephone system. It allows you to see who’s
at the door and to ask what the purpose of the visit is before you open the door.
Additionally, a photo is taken of each visitor ringing your doorbell, including the date
en time, which is saved in the memory of the indoor post. The indoor post has a
memory capacity for 50 of these photos.
2. INTENDED USE
The Fysic FDC-250 allows you to wirelessly see who’s at the door and to commu-
nicate with this person. The Fysic FDC-250 is only suitable for household use and
can in no way prevent undesired visitors.
3. PACKAGING CONTENTS
outdoor unit with built-in camera and microphone /
speaker, suspension bracket, optionally with battery com-
partment (extra large suspension bracket)
indoor unit with built-in display and microphone / speaker and
rechargeable battery pack and belt clip
charger with adaptor
screwdriver with screws for installation and mounting
-4-
4. INSTALLATION
4.1 Charger:
1. Insert the small plug of the adaptor cable into the
bottom of the adaptor and plug the adaptor into a 230V wall
socket.
2. You may choose to place the charger into a table or to use the
2 screws for wall-mounting.
The adaptor for the charger is included.
4.2 Indoor unit:
1. Slide the battery cover at the rear of the indoor unit down and off the indoor unit.
2. Install the supplied battery pack in the indoor unit, connecting the plug to the bat-
tery input.
3. Slide the battery cover back onto the indoor
unit.
4. You may also place the belt clip.
5. Place the indoor unit into the charger and
leave it there for 10-15 hours to properly
charge the battery pack.
The charge indicator will remain lit while charging
(attention: this indicator will NOT switch off when
the battery pack is charged).
4.3 Outdoor unit:
You may choose to have the outdoor unit run on batteries or power it via a power
adaptor. When powered by batteries, the monitor function will be unavailable. Batter-
ies or a power adaptor for the outdoor unit are NOT included. You may also choose
to use the standard doorbell transformer; the current doorbell and bell pusher will
then be excluded.
10 to
15 hours
-5-
Batteries: (size AA, penlite LR-6, 1.5V, 4x, excluded)
1.Removetheprotectivecoverbyippingoffthe
cover using a screwdriver underneath the clip.
2. Remove the battery cover by unscrewing the
4 small screws.
3. Install the batteries, paying attention to the +
and -. Preferably, use Alkaline batteries.
4. Replace the battery cover onto the outdoor
unit, fasten it with the 4 small screws and
replace the protective cover.
5. Click the battery compartment into the bottom
of the outdoor unit.
Power adaptor: (8~12V AC or DC, 1000mA, excluded)
1. Remove the seal cover by unscrewing the 4 small screws.
2. Connect the 8-12V adaptor according to the illustration below.
3. Fasten the seal cover back onto the outdoor unit.
First, strip the insulation approximately 1cm.
You may ignore the (+) and (-) connection.
Pushinthewireandxit.
You may hide the connection for the battery compartment with the supplied rubber
panel with bonding strip. Remove the protective layer of the rubber panel en stick it
onto the bottom covering the connections.
1 2 3 4 5
DC Power
AC 8V
AC 8V
Lock
AC Power
Lock
8-12V~
8-12V
of
DC Power
AC 8V
AC 8V
Lock
AC Power
Lock
8-12V~
8-12V
of
-6-
Mounting:
1. Determine the installation height for the outdoor unit.
2. Hold the suspension bracket against the wall at the desired height and draw the
drill holes.
3. Drill the holes, insert the plugs and mount the suspension bracket. You can
suspend the bracket exactly straight using the built-in spirit level. When using an
external power source, lead the wires through the hole in the rear of the suspen-
sion bracket and connect them to the connection strip.
4.Nowrstslidethetopoftheoutdoorunitintothesuspensionbracketandthen
push the bottom into the bracket, according to the illustration below.
5. Now fasten the outdoor unit into the bracket using the supplied screw.
Ifthecameramustbeaimedatanangletotheleftorright,rstmountthewall
bracket at an angle to the wall and then place the straight wall bracket onto it.
-7-
5. OVERVIEW
5.1 Indoor unit:
1. Display
2. Left soft-button
3. Talk button, to answer calls
4. Charge LED indication
5. Manual snapshot, camera selection button
6. Direction buttons
7. Built-in microphone
8. Power button, Stop button, to end calls
9. Right soft-button, to show images, to unlock
10. Switch for clicking the external antenna outward for
improved range
11. External antenna
12. Built-in speaker
13. Battery compartment
14. Charger
15. Adaptor cable input
5.2 Outdoor unit:
16. Built-in speaker
17. Night light
18. Built-in camera
19. Photo cell
20. Bell pusher with built-in lighting
21. Built-in microphone
22. Separate battery compartment
1
2
3
9
8
14
16
17
18
20
22
5 6
11
47
10
12
13
15
19
21
-8-
6. OPERATION
6.1 To switch on/off:
Outdoor unit:
As soon as the batteries are installed or the adaptor is connected, the outdoor unit
will be enabled. The outdoor unit cannot be switched off.
Indoor unit:
Press and hold the button for 2 seconds to switch on the indoor unit.
Press and hold the button again for 4 seconds to switch off the indoor unit.
Attention: the indoor unit is NOT switched off automatically when placed
into the charger.
6.2 When the doorbell rings:
Upon pressing the push button, the push button will illuminate. A “ding dong” sound
will be emitted and the face of the visitor will be shown on the display of the indoor
unit.
• when the surrounding light is inadequate, the object lighting of the outdoor unit is
enabled
• a photo of the visitor is taken automatically and is stored in the memory of the
indoor unit (see also chapter 9)
- when you do nothing, the call is ended automatically after ± 20 seconds
- if you want to ignore this visit, press the button; the image of the visitor will
disappear from the display
- if you’d like to talk to your visitor, you may press the button to accept the call
After accepting the call:
• You may talk to your visitor through the built-in microphone and speaker in the
indoor unit and in the outdoor unit; please keep in mind NOT to hold the indoor
unit against your ear like a regular telephone
receiver. Leave the indoor unit in the charger
while talking to your visitor or keep the indoor
unit in your hand at approx. 30cm from your
mouth and speak at a normal voice volume
level.
• the volume of the speaker of the indoor unit may be adjusted using the and
buttons(thevolumeofthespeakeroftheoutdoorunitisxedandcannotbe
changed).
• use the and buttons to set the screen brightness.
>30cm
-9-
• a photo was already taken upon ringing the doorbell, but you may choose to take
another picture of your visitor during your conversation by pressing the button.
• press the button to disconnect the call (or wait for 2 minutes until the call is
disconnected automatically)
When multiple outdoor units are registered:
When multiple outdoor units are registered and somebody presses the doorbell,
the camera number X# in the upper part of the screen will indicate at which outdoor
unit your visitor is calling.
6.3 Monitor: (looking outside yourself)
Also when there’s nobody pressing the doorbell, you may still enable the camera
and take a picture.
• brieypressthe button to switch on the indoor unit from its sleep mode
• press and hold the soft-button for 1 second to switch on the monitor function;
the display will be enabled to show the area in front of the camera
• you may listen via the speaker (talking back is only possible after pressing the
button)
• press the button to take a picture
• press the button to disconnect or wait for 5 minutes until the connection is
disconnected automatically
When multiple outdoor units are registered:
When multiple outdoor units are registered and you press and hold the but-
tonfor1second,youmustrstusethe and buttons to select the desired
outdoor unit and then press the buttontoconrm.
Attention: if the outdoor unit is powered by batteries, the monitor function
is NOT available.
-10-
7. SETUP

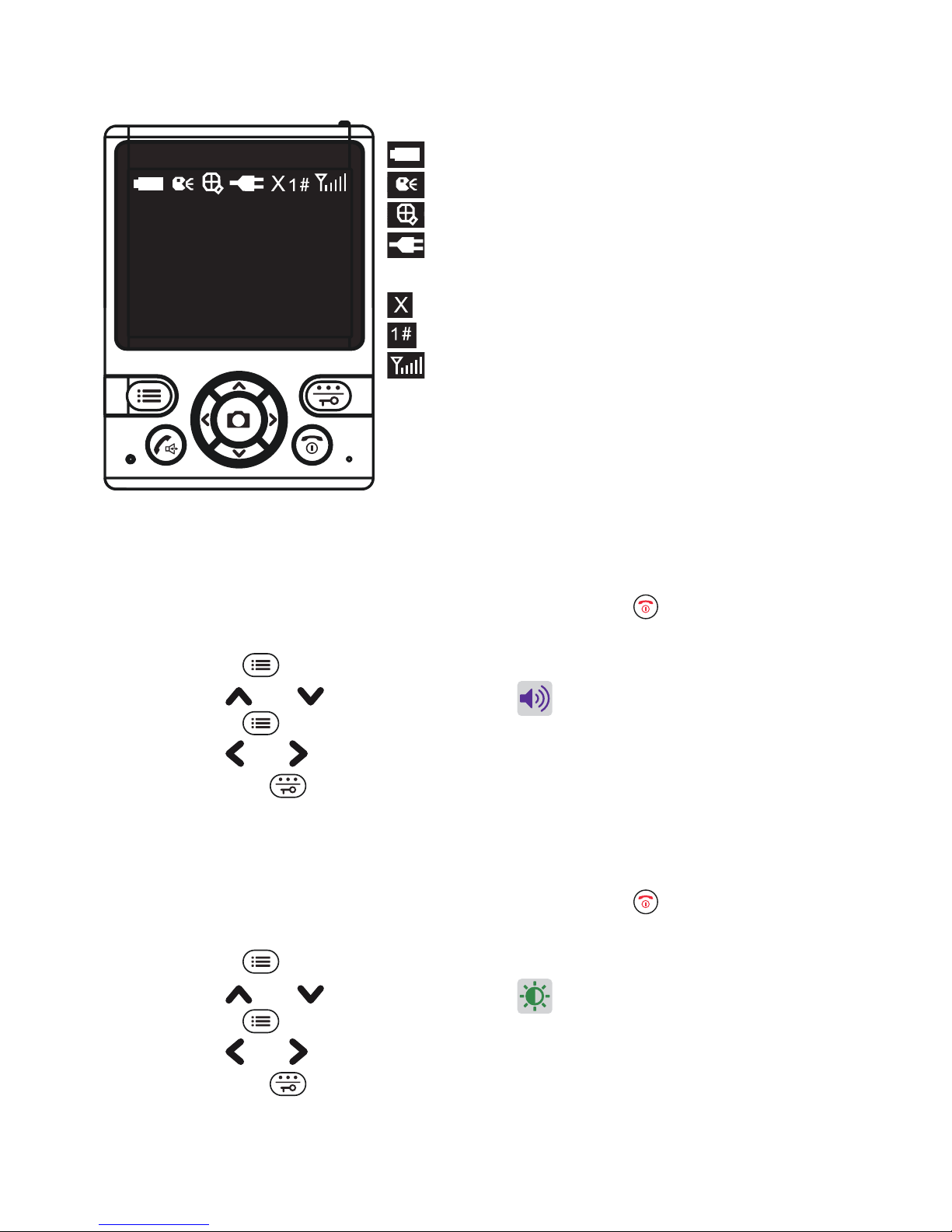

Via the menu function of the indoor unit, you may manage the various settings of
the video door phone.
Menu Replay
Battery capacity indication
Menu Replay
Talk-back indication
Menu Replay
Indication while zooming
Menu Replay
Power indication, the intercom is connected to
xedpower
Menu Replay
Call signal disconnected
Menu Replay
Active camera
Menu Replay
RF signal strength
7.1 Volume:
Except for when in use, you may adjust the volume in the menu:
1.withtheindoorunitonstand-by,rstbrieypressthe button to wake up the
indoor unit
2. press the MENU soft-button
3. use the and buttons to select the Volume function
4. press the Select soft-button
5. use the and buttons to set the volume
6. press 2x the BACK soft-button to save your settings and to leave the menu
7.2 Brightness:
Except for when in use, you may adjust the Brightness in the menu:
1.withtheindoorunitonstand-by,rstbrieypressthe button to wake up the
indoor unit
2. press the MENU soft-button
3. use the and buttons to select the Brightness function
4. press the Select soft-button
5. use the and buttons to set the Brightness
6. press 2x the BACK soft-button to save your settings and to leave the menu
Menu Replay
Autres manuels pour FDC-250
1
Table des matières
Autres manuels Fysic Système d'interphone
