FUTABA R6014FS Manuel utilisateur



TM14-2.4G/R6014FS/R608FS

Radio Control

Instruction Manual

INTRODUCTION

Thank you for purchasing a FutabaR digital proportional R/C system. In order for you to

make the best use of your system and to use it safely, please read this manual carefully. If

you have any difficulties while using your system, please consult the manual, our online

Frequently Asked Questions (on the web pages referenced below), your hobby dealer, or the

Futaba Service Center.

Owner’s Manual and Additional Technical Help

This manual has been carefully written to be as helpful to you, the new owner, as possible.

There are many pages of setup procedures and examples. However, it need not be your sole

resource of setup guidelines. For example, the back cover includes a quick-start set of

instructions and the Frequently Asked Questions web page referenced below includes this

type of step-by-step setup instructions for a variety of other model types.

Due to potential unforeseen changes in production procedures, the information contained in

this manual is subject to change without notice. No part of this manual may be reproduced in

any form, at any time, without prior permission.

Support and Service: It is recommended to have your Futaba equipment serviced annually

during your hobby’s “off season” to ensure safe operation.

IN NORTH AMERICA

Please feel free to contact the Futaba Service Center for assistance in operation,

use and programming. Please be sure to regularly visit the Frequently Asked

Questions web site referenced below. This page includes extensive programming,

use, set up and safety information on your radio system and is updated regularly.

Any technical updates and US manual corrections will be available on this web page.

If you do not find the answers to your questions there, please see the end of our

F.A.Q. area for information on contacting us via email for the most rapid and

convenient response.

Futaba Service Center

3002 N. Apollo Drive Suite 1

Champaign, IL 61822

TEL(217)398-8970, FAX(217)398-7721

HOW TO ACCESS to FAQ:

http://www.futaba-rc.com/

OUTSIDE NORTH AMERICA

Please contact your Futaba importer in your region of the world to assist you with

any questions, problems or service needs.

Please recognize that all information in this manual, and all support availability, is

based upon the systems sold in North America only. Products purchased elsewhere

may vary. Always contact your region’s support center for assistance.

The product is subject to regulations of the FCC and is restricted

under United States law to such purposes.

(See end of this manual for detail)

Physical Description

TM14-2.4G (Transmitter)

PIN ASSIGNMENT

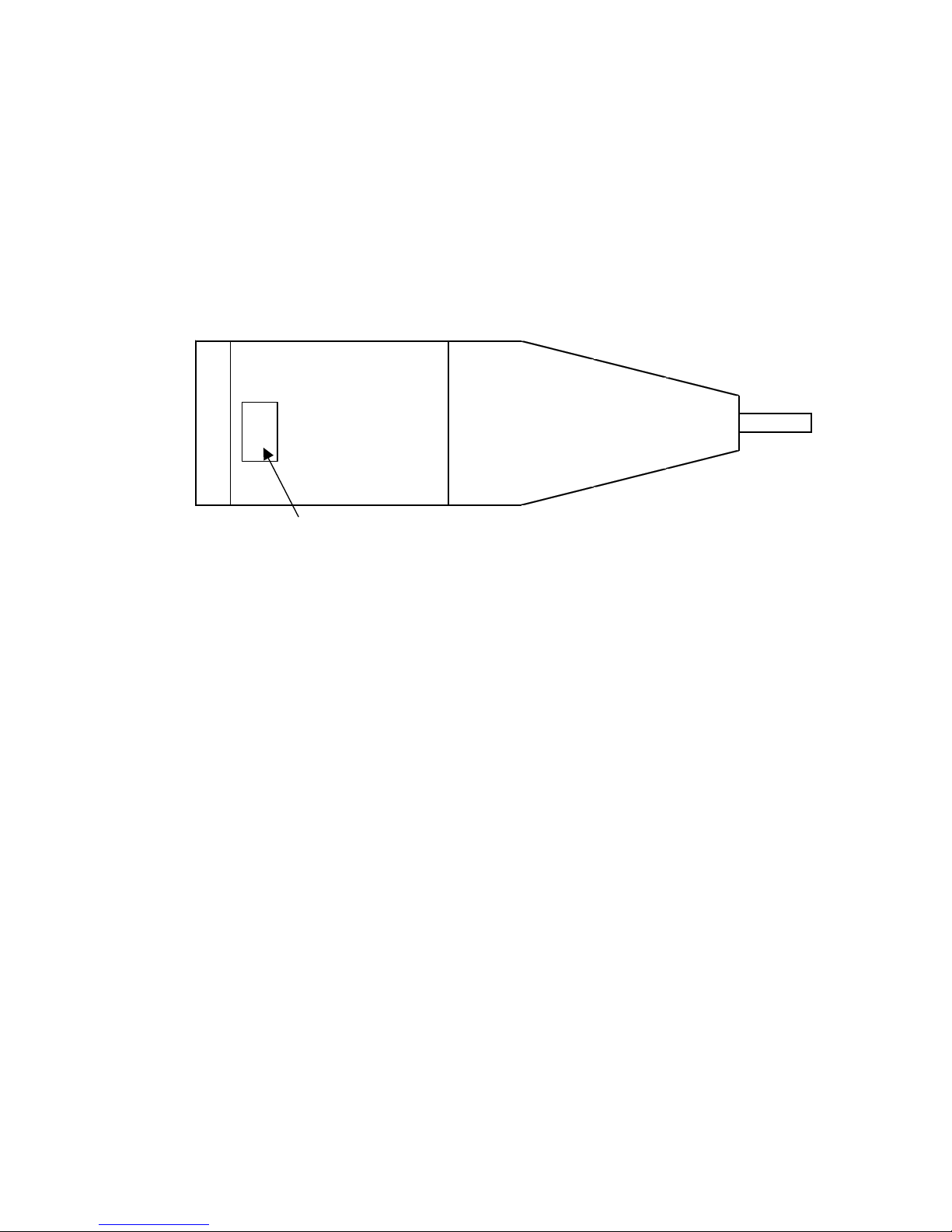

BacksideoftheTM14

Ant.

10-pinconnectorforI/Ftotransmitter

Fig.1 TM14 communication port location



1.PlugtheTM14-2.4GintoyourT12FGtransmitter.

2.TurntheT12FGonandpleasechecktheLEDontheTM14becomesolidgreen

whenitʼsnormallyoperated.

3.Neverpointtheanntenatothemodelwhenflying.



R6014FS/R608FS(Receiver)

Powerrequirement:4.8Vor6.0V

FailSafefunctionandBatteryFailSafefunction.

 

Preparatinforoperaion:

SetfrequencySW １ｓｅｃ ＰＵＳＨ forID-matchwiththeTM14tobelinked.

TheLEDonthereceiverturnstosolidgreen,thentheR6014FS/R608FSisOKforuse

withtheTM14-2.4G.Oncethelinkprocedureisdonenotneedtore-link.

Frequency Allocation

TheTM14-2.4G/R6014FS/R608FScanoperateon36availablefrequenciesbetween

2405.376MHzand2479.104MHzwith2.048MHzseparationbetweeneachfrequency.

Seethetablebelowfortheexactfrequencyassignments.

Table 1 ：Frequency Channel

Channel

№ Frequency

(MHz)Channel

№ Frequency

(MHz)

0２ ２４０５．３７６ ３８ ２４４２．２４０

0４ ２４０７．４２４ ４０ ２４４４．２８８

0６ ２４０９．４７２ ４２ ２４４６．３３６

0８ ２４１１．５２０ ４４ ２４４８．３８４

１０ ２４１３．５６８ ４６ ２４５０．４３２

１２ ２４１５．６１６ ４８ ２４５２．４８０

１４ ２４１７．６６４ ５０ ２４５４．５２８

１６ ２４１９．７１２ ５２ ２４５６．５７６

１８ ２４２１．７６０ ５４ ２４５８．６２４

２０ ２４２３．８０８ ５６ ２４６０．６７２

２２ ２４２５．８５６ ５８ ２４６２．７２０

２４ ２４２７．９０４ ６０ ２４６４．７６８

２６ ２４２９．９５２ ６２ ２４６６．８１６

２８ ２４３２．０００ ６４ ２４６８．８６４

３０ ２４３４．０４８ ６６ ２４７０．９１２

３２ ２４３６．０９６ ６８ ２４７２．９６０

３４ ２４３８．１４４ ７０ ２４７５．００８

３６ ２４４０．１９２ ７２ ２４７７．０５６

  ７４ ２４７９．１０４

Specification

TM14-2.4G SPECIFICATIONS

1 Radio Characteristics

RF power output 100mW EIRP

Modulation Direct-Sequence Spread-Spectrum

Frequency band 2405.376MHz - 2479.104MHz

Channel 36

Antenna 1/2λ Pencil type antenna 1.6dBi

2 Radio communication control

Error checking CRC-CCITT

3 Terminal interface

Physical interface 10 pins

4 Power Supplying

Supply voltage 7.4V/3.3VDC

Current consumption 150 mA(Approx.)

5 Environmental

Operating temperature -10 to +60 ℃

Storage temperature -20 to +70 ℃

6 Miscellaneous

Indicator 2 color LED

R6014FS/R608FS SPECIFICATIONS

1 Radio Characteristics

Frequency band 2405.376MHz - 2479.104MHz

2 Radio communication control

Error checking CRC-CCITT

3 Power Requirement

Supply voltage 4.8 or 6.0VDC

Current consumption 80 mA

5 Environmental

Operating temperature -10 to +60 ℃

Storage temperature -20 to +70 ℃

6 Miscellaneous

Indicator 2 color LED

Case Plastic

INSTRUCTIONS MANUAL

FEDERAL COMMUNICATIONS COMMISSION

INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used according to the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which it found by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet other than the receiver’s

-- Consult the dealer or an experienced radio/TV technician for assistance.

CAUTION:

To assure continued FCC compliance:

(1) Any changes or modifications not expressly approved by the grantee of this device

could void the user's authority to operate the equipment.

FCC Label Compliance Statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

Exposure to Radio Frequency Radiation

To comply with FCC RF exposure compliance requirements, a separation distance of at

least 20cm must be maintained between the antenna of this device and all persons. This

device must not be co-located or operating in conjunction with any other antenna or

transmitter.
