Furuno Multi Instrument FI-504 Manuel utilisateur

www.furuno.co.jp

FI-504 MULTI

Instrument

The paper used in this manual

is elemental chlorine free.

・FURUNO Authorized Distributor/Dealer

9-52 Ashihara-cho,

Nishinomiya, 662-8580, JAPAN

Telephone : +81-(0)798-65-2111

Fax

+81-(0)798-65-4200

A : OCT 2007

Printed in Japan

A1 : OCT . 17, 2007

Pub. No. OME-72690-A1

*00016733410**00016733410*

(DAMI ) FI-504

00016733410

* 0 0 0 1 6 7 3 3 4 1 0 *

IMPORTANT NOTICES

• The descriptions in this manual are intended for readers with a solid knowledge

of English.

• No part of this manual may be copied or reproduced without written permission.

• If this manual is lost or worn, contact your dealer about replacement.

• The contents of this manual and equipment specifications are subject to change

without notice.

• The example screens (or illustrations) shown in this manual may not match the

screens you see on your display. The screen you see depends on your system

configuration and equipment settings.

• Store this manual in a convenient place for future reference.

• FURUNO will assume no responsibility for the damage caused by improper use

or modification of the equipment (including software) by an unauthorized agent

or a third party.

• When it is time to discard this product it must be done according to local regula-

tions for disposal of industrial waste. For disposal in the USA, refer to the Elec-

tronics Industries Alliance (http://www.eiae.org/).

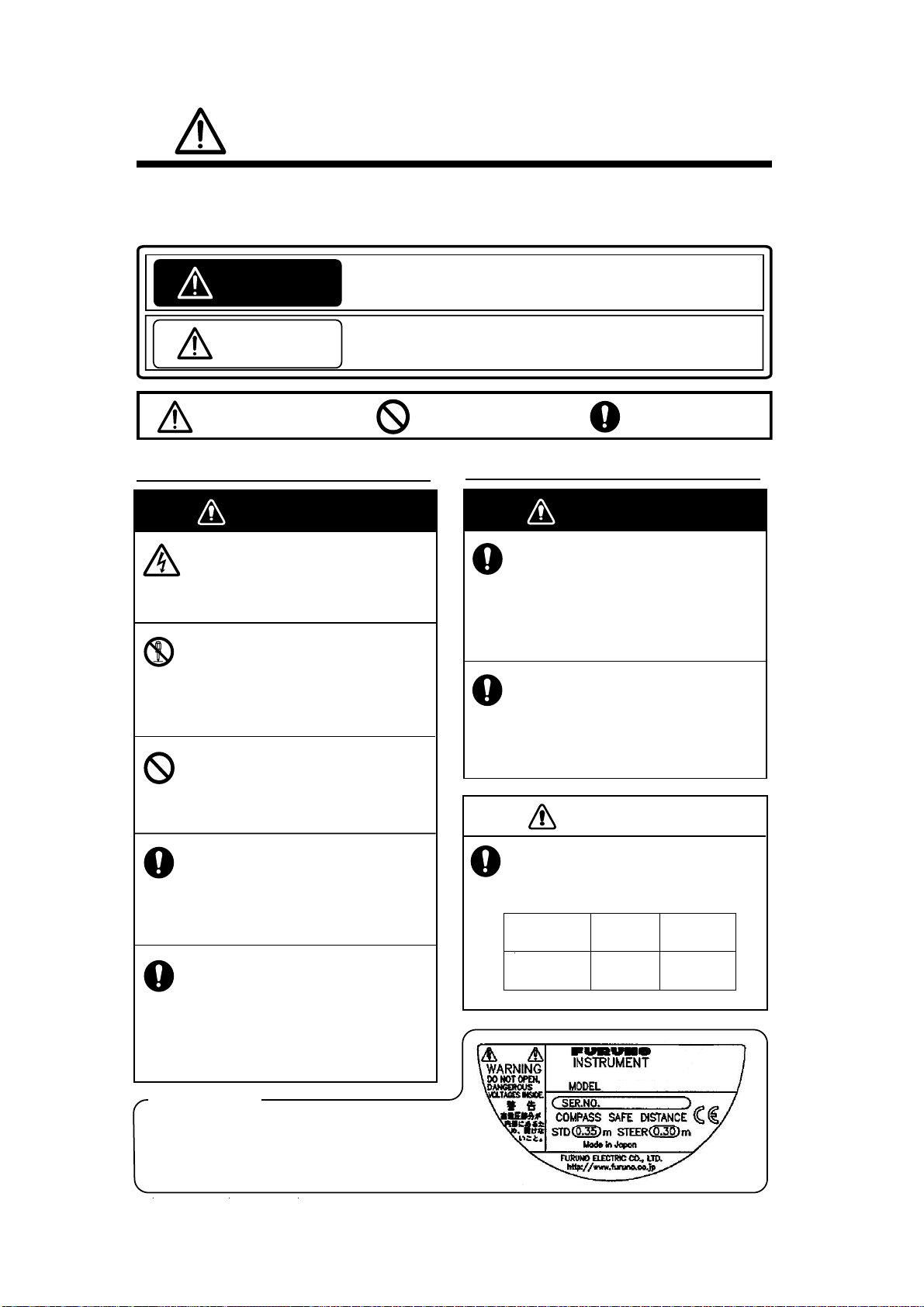

SAFETY INSTRUCTIONS

WARNING

Indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury.

Warning, Caution Mandatory Action

Prohibitive Action

SAFETY INSTRUCTIONS

The operator of this equipment must read these safety instructions before attempting to

operate the equipment.

WARNING

Do not open the equipment.

Only qualified personnel should

work inside the equipment.

Do not disassemble or modify

the equipment.

Fire or electrical shock can result if

the equipment is modified.

Do not operate the equipment

with wet hands.

Electrical shock can result.

Safety instructions for the operator

Make sure no rain or water

splash leaks into the equipment.

Fire or electrical shock can result

if water leaks into the equipment.

Immediately turn off the power

at the switchboard if water leaks

into the equipment.

Continued use of the equipment

can cause fire or electrical shock.

Safety instructions for the installer

WARNING

Turn off the power at the switch-

board before beginning the

installation.

Turn off the power to prevent

electrical shock.

Make sure the installation site is

not subject to water spray.

Fire or electrical shock can result if

water leaks into the equipment.

CAUTION

Observe the following compass

safe distances to prevent interfer-

ence to the instruments:

Standard

compass Steering

compass

0.35 m 0.30 m

FI-50 series

Instruments

Warning Label

A warning label is attached to the equipment. Do not

remove the label. If the label is missing or damaged,

contact a FURUNO agent or dealer about replacement.

iii

TABLE OF CONTENTS

FOREWORD.............................................................................................. iv

SYSTEM CONFIGURATION.......................................................................v

1.OPERATION.............................................................................................1

1.1 Operating Controls, Display Layout......................................................................1

1.2 Turning the Power On/Off ....................................................................................2

1.3 Adjusting Brilliance and Contrast.........................................................................2

1.4 Selecting a Display...............................................................................................3

1.5 Selecting Apparent or True Wind Angle, Wind Speed..........................................8

1.6 Resetting Counters and Indications .....................................................................8

1.7 Alarms..................................................................................................................9

1.8 Timers ................................................................................................................11

2. MAINTENANCE, TROUBLESHOOTING..............................................13

2.1 Preventive Maintenance.....................................................................................13

2.2 Troubleshooting..................................................................................................14

3. INSTALLATION.....................................................................................15

3.1 Equipment Lists..................................................................................................15

3.2 Mounting.............................................................................................................16

3.3 Wiring.................................................................................................................18

3.4 Setting Up...........................................................................................................21

SPECIFICATIONS.................................................................................SP-1

PACKING LIST........................................................................................ A-1

OUTLINE DRAWINGS.............................................................................D-1

INTERCONNECTION DIAGRAM............................................................ S-1

FOREWORD

A Word to the Owner of the FI-504

Congratulations on your choice of the FURUNO FI-504 Multi Display, a

member of the FI-50 series of marine instruments. We are confident you

will see why the FURUNO name has become synonymous with quality

and reliability.

For over 50 years FURUNO Electric Company has enjoyed an enviable

reputation for quality marine electronics equipment. This dedication to

excellence is furthered by our extensive global network of agents and

dealers.

This equipment is designed and constructed to meet the rigorous de-

mands of the marine environment. However, no machine can perform its

intended function unless operated and maintained properly. Please care-

fully read and follow the recommended procedures for operation and

maintenance.

Thank you for considering and purchasing FURUNO equipment.

Features

The FI-504 Multi Display provides heading, environment, autopilot, en-

gine, depth, speed, and wind information, all on a high quality, backlit

LCD. The sturdy weather-proof case is built to stand up to even the

harshest of environments.

The main features are

• Eight varieties of displays: heading, environment, autopilot, engine,

depth, speed, timer, and wind.

• Four levels of backlighting including off.

• Timers: Stopwatch and count-down

• Depth alarms: Shallow alarm, Deep alarm

• Anchor alarms: Shallow alarm, Deep alarm

• Voltage alarm monitors power source voltage

• Wind alarms: High apparent wind angle, Low apparent wind angle,

Max. true wind speed, Low true wind speed

• Speed indications: Max. STW, Average STW, SOG, Max. SOG, Aver-

age SOG, Wind speed, Max. true wind speed

• Log indication from 0 to 99,999 nm

• Resettable trip counter, from 0 to 999 nm

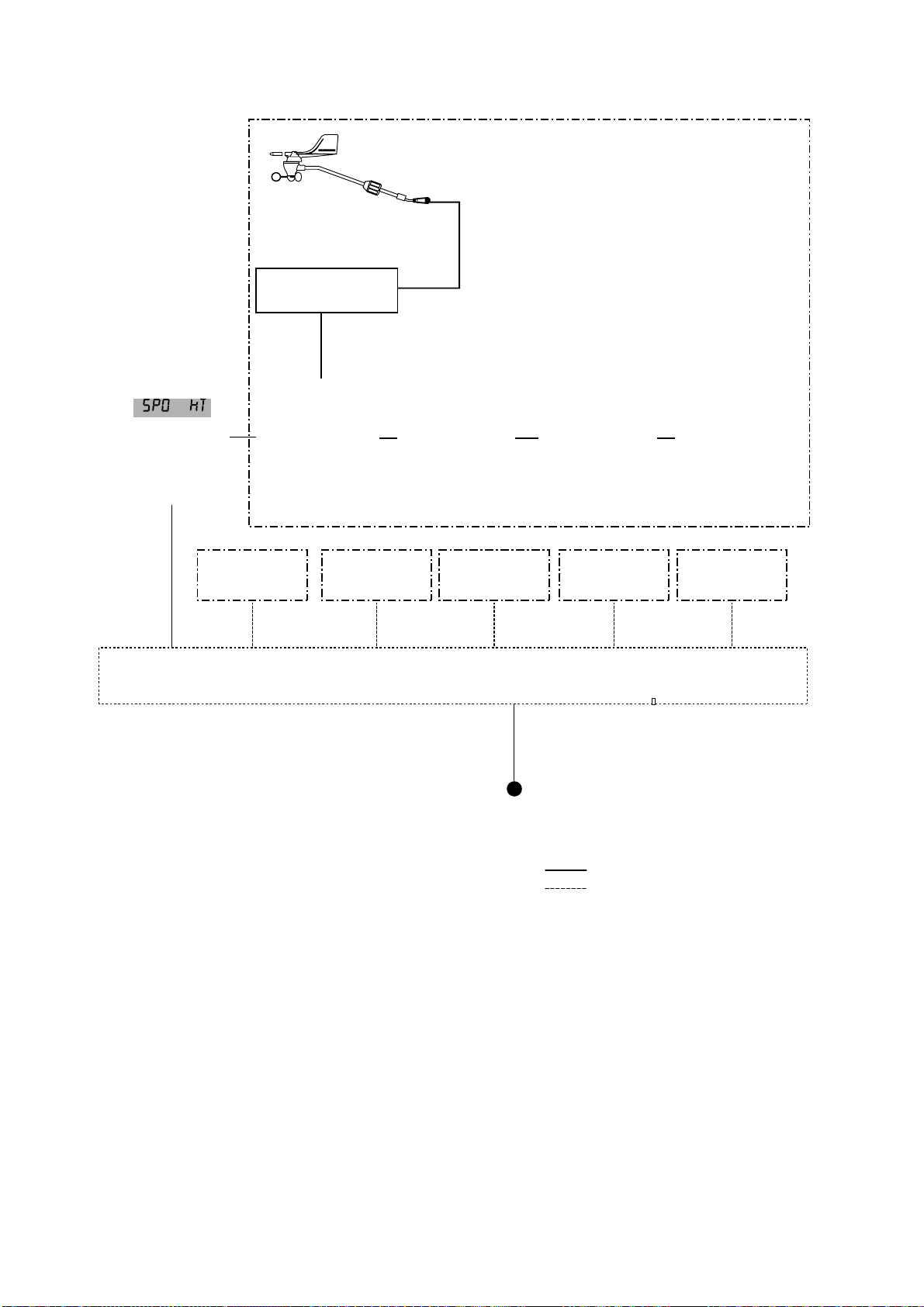

SYSTEM CONFIGURATION

Standalone configuration

NOTICE:Turnontheterminalresistorintheinstrumentwhenconnecting

an NMEA 2000 sensor. For the procedure, see the section on setting up,

in the installation chapter.

: Standard Supply

: Optional Supply

: Local Supply

12 VDC

NMEA 2000 Sensor

(ex. Smart Sensor)

SYSTEM CONFIGURATION

NMEA 2000 network

NOTICE: Turn on the terminal resistor in the terminator of the NMEA

2000 network.

FI-501*

and/or

FI-502

FI-5001

WIND

TRANSDUCER

TERMINAL BOX

(where necessary)

FI-503

DIGITAL

FI-504

MULTI FI-505

COURSE PILOT FI-506

RUDDER

: Standard Supply

: Optional Supply

: Local Supply

*FI-501 Wind Angle

FI-502 Close Hauled Wind Angle

JUNCTION BOX

FI-5002

* NMEA 2000 SENSORS

- Boat speed

- Depth

- Heading

- Navigation

- Environment

- Autopilot

- Engine

12 VDC

(not necessary if powered

by NMEA 2000 network)

NMEA 2000

SENSOR*

NMEA 2000

SENSOR* NMEA 2000

SENSOR*

1. OPERATION

Provided applicable sensors are connected, the FI-504 provides the fol-

lowing information, all on a backlit LCD:

•Depth

• Speed

• Heading

• Environment data

• Autopilot (rudder)

•Engine

•Wind

•Timers

• Navigation data

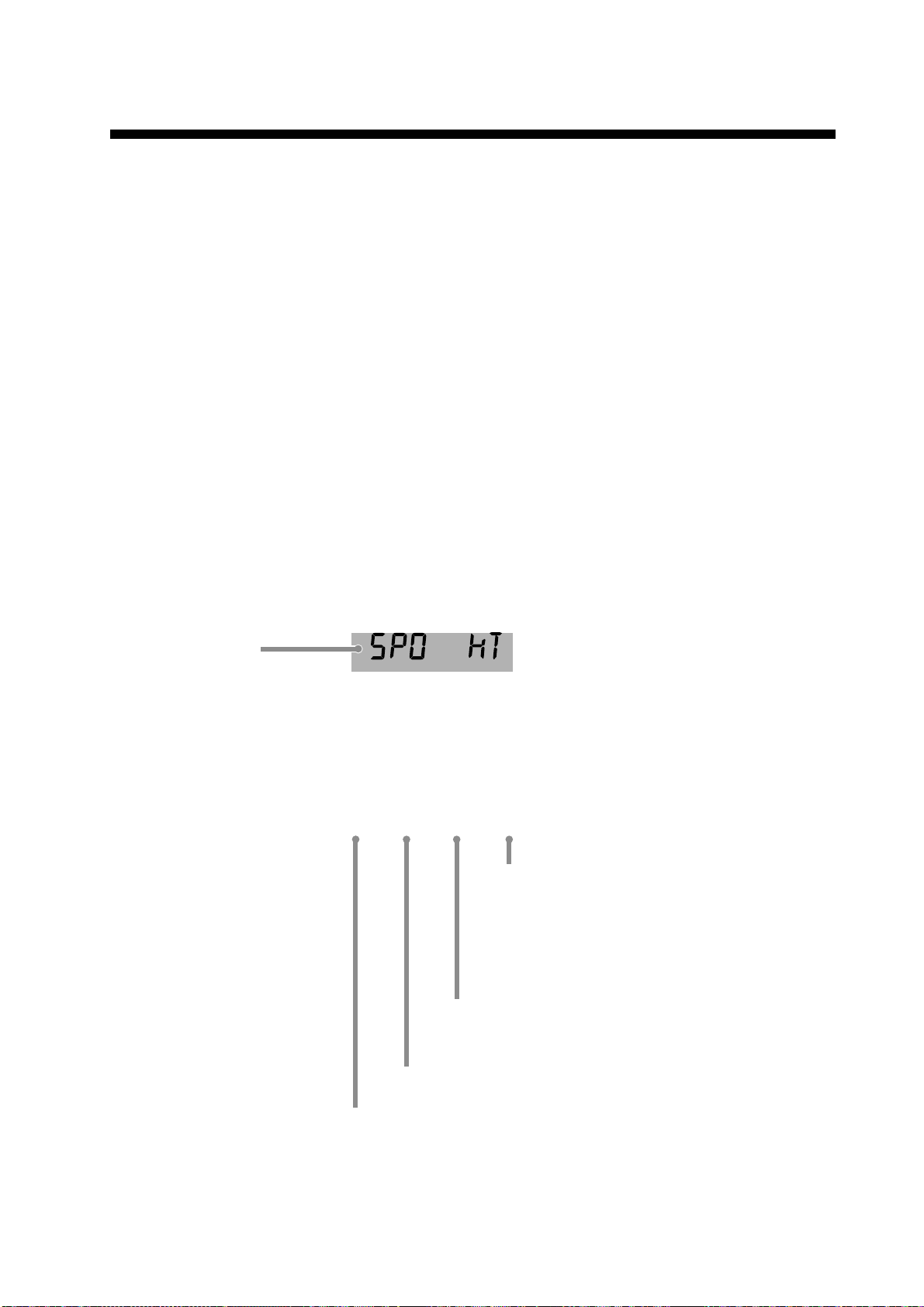

1.1 Operating Controls, Display Layout

SELECT/CLEAR

- Select menu option.

- Silence alarm.

- Clear data.

- Reset counters and indcations.

- Increment value.

APP/TRUE

- Select apparent or true (wind) alternate

ly.

- Decrement value.

MODE

Select a display.

DISP

- Turn on power.

- Select a display category.

ode name

(

Ex. SPD=Speed)

1. OPERATION

1.2 Turning the Power On/Off

To power the instrument, press the DISP key. All LCD segments go on

and off and then the last-used display appears.

To power off the instrument, press the DISP and MODE keys together

(about 7-10 seconds). The timer appears and counts down from three

seconds to one second, and then the power goes off.

Power OFF sequence

1.3 Adjusting Brilliance and Contrast

1. Press the DISP and MODE keys together. The display for adjustment

of brilliance appears, with current brilliance setting flashing.

2. Within seven seconds of completing step 1, press the APP/TRUE key

to lower the brilliance, or the SELECT/CLEAR key to raise it.

3. Press the DISP and MODE keys together. The display for adjustment

of contrast appears, with current contrast setting flashing.

4. Within seven seconds of completing step 3, press the APP/TRUE key

to lower the contrast, or the SELECT/CLEAR key to raise it.

5. Press the DISP and MODE keys together to save the settings and

restore normal operation.

The brilliance and contrast will be the same on all units which are syn-

chronized. (For how to synchronize units, see page 26.)

POWE

OFF

Press DISP

and MODE

eys together

POWER

2 1

POWERPOWER

Brilliance setting (flashing)

BRILL

Contrast setting (flashing)

CONT
