Installation Manual
Multi Function Display
Model MFDBB
SAFETY INSTRUCTIONS ............................................................................ i
SYSTEM CONFIGURATION ....................................................................... ii
EQUIPMENT LISTS.................................................................................... iii
1. MOUNTING............................................................................................ 1
1.1 Mounting the Control Unit.............................................................................................1
1.2 Mounting the Processor Unit ........................................................................................7
2. WIRING .................................................................................................. 9
2.1 Processor Unit Wiring...................................................................................................9
2.2 Control Unit Wiring .....................................................................................................14
3. SETTING UP THE EQUIPMENT ......................................................... 15
3.1 Setup for Single MFD in the Network .........................................................................16
3.2 Setup for Multiple MFDs in the Network .....................................................................30
PACKING LISTS...................................................................................... A-1
OUTLINE DRAWINGS............................................................................. D-1
INTERCONNECTION DIAGRAM ............................................................ S-1
www.furuno.com
A
ll brand and product names are trademarks, registered trademarks or their respective holder
s.
i
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
Warning, Caution
Mandatory Action
Prohibitive Action
SAFETY INSTRUCTIONS
The user and installer must read the appropriate safety instructions before attempting to install
or operate the equipment.
WARNING CAUTION
Ground the equipment to prevent
electrical shock and mutual interference.
Observe the following compass safe distances
to prevent interference to a magnetic compass:
ELECTRICAL SHOCK HAZARD
Do not open the equipment unless
totally familiar with electrical circuits.
Only qualified personnel should work
inside the equipment.
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Be sure that the power supply is
compatible with the voltage rating of the
equipment.
Connection of an incorrect power supply
can cause fire or damage the equipment.
Standard
compass Steering
compass
MPU-001 1.45 m 0.90 m
MCU-001 0.55 m 0.40 m
DCU12 0.70 m 0.45 m
Use the proper fuse.
Use of an incorrect fuse may damage the equipment.
ii

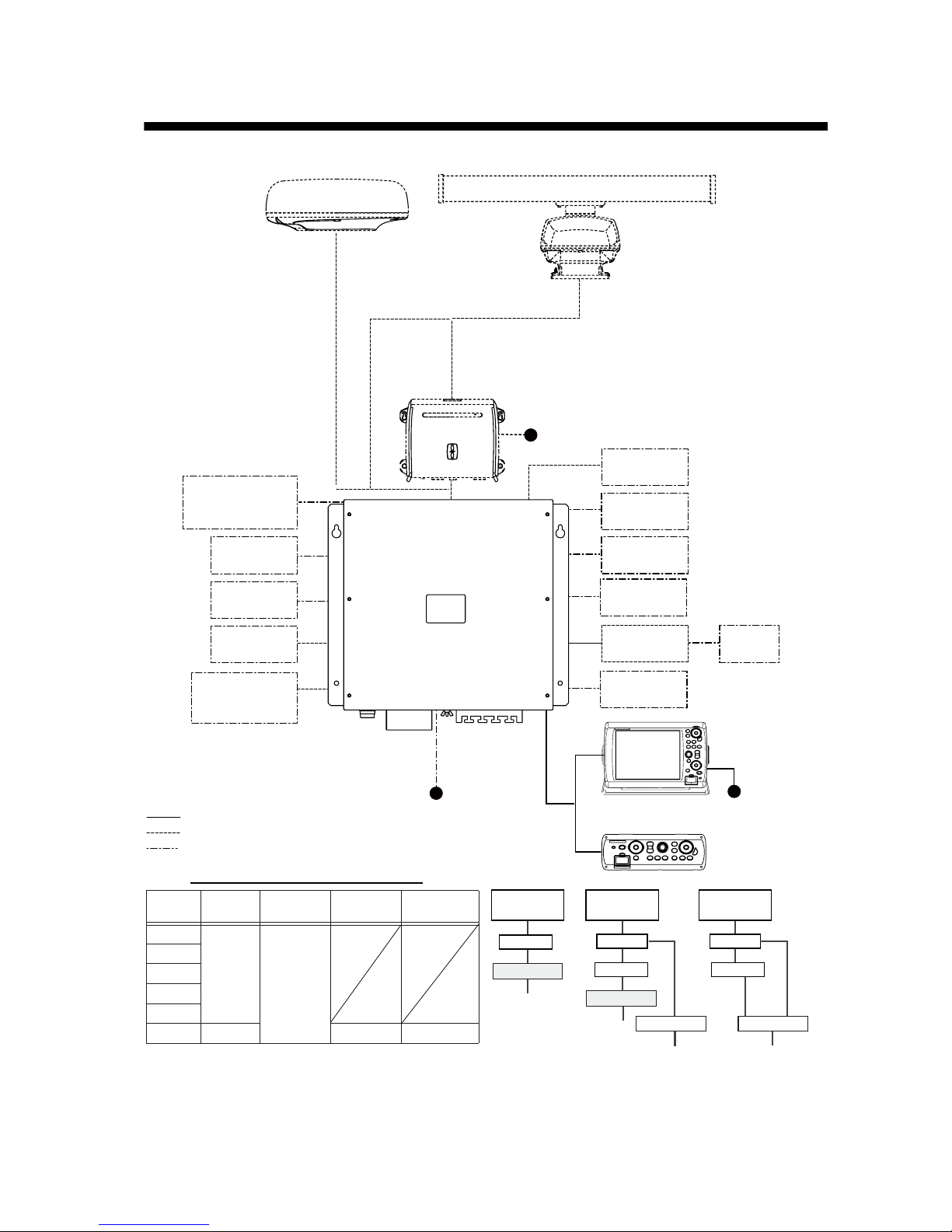

SYSTEM CONFIGURATION
MONITOR
MU-155C/170C, etc.
VIDEO IN (CCD
CAMERA, MAX. 4)
LINE OUT
(SPKR, ETC.)
12-24 VDC*2
DISPLAY CONTRO
L
UNIT DCU12
CONTROL UNIT
MCU-001
AND/OR*3
HUB-101
GPS NAVIGATOR
GP-330B
AIS RECEIVER,
HEADING SENSOR or
EXTERNAL BUZZER
USB DEVICE
(MOUSE, KYBD)
NMEA 2000
(GP-330B, ETC.)
POWER SUPPLY UNIT
PSU-013*1
: Standard Supply
: Optional Supply
: Local Supply
*1 Required with DRS25A
*2 See the table and figure below for
configurations for the PSU and rectifiers.
*3 Max. two units total
PROCESSOR UNIT
MPU-001
RADAR SENSOR
DRS4A/DRS6A/DRS12A/DRS25A
OR
RADAR SENSOR
DRS2D/DRS4D
FISH FINDER
(DFF series, ETR-6/10N,
ETR-30N, FCV-1150)
Matrix for radar model, PSU and rectifiers
DRS2D/4D/
4A/6A/12A
MPU-001
RU-1746B-2
DRS25A
PSU-013
DRS25A
PSU-013
Radar
Model PSU Rectifier for
MFDBB Rectifier for
PSU Rectifier for
MFDBB+PSU
DRS2D Not
required RU-1746B-2
DRS4D
DRS4A
DRS6A
DRS12A
DRS25A PSU-013* RU-1746B-2 RU-3424
* Standard supply with DRS25A.
12-24 VDC*2
RU-1746B-2
12-24 VDC2
LINE IN (MIC,
for future use)
DRS25A
DRS4A
DRS6A
DRS12A
RU-1746B-2 RU-3424
JUNCTION
BOX FI-5002
MPU-001 MPU-001
FAX-30
FA-50
iii
EQUIPMENT LISTS
Standard supply
*See the lists at the back of this manual.
Optional supply
Name Type Code No. Qty Remarks
Processor Unit MPU-001 - 1
Control Unit MCU-001 - 1 Choose one.
Display Control Unit DCU12 - 1
Installation Materials CP19-00600 000-011-664 1 set For MPU-001, Cable, CP19-
00601*
CP19-00700 000-011-663 1 set For MCU-001,
cable, CP19-
00701*
Choose one.
CP19-00800 000-011-662 For DCU12,
cables, CP19-
00801*
Spare Parts SP19-00501 001-023-090 1 set For MPU-001, fuses
SP19-00601 001-023-040 1 set For DCU-001, fuses
Accessories FP19-01201 001-033-760 1 For MCU-001, panel remover
FP19-01101 001-023-060 For DCU12, panel remover
Name Types Code No. Remarks
DVI-D Cable DVI-D/D SINGLELINK 000-149-054-10 5 m
DVI-D/D S-LINK 000-150-200-10 10 m
External Buzzer OP03-136 000-086-443
Rectifier RU-1746B-2 -
Network Hub HUB-101 -
Joint Box TL-CAT-012 000-167-140-10 For LAN cable extension
Junction Box FI-5002 000-010-765 For NMEA 2000
Control Unit MCU-001 -
Display Control
Unit DCU12 -
iv
Cable Assy MJ-A7SPF0007-050C 000-154-028-10 5 m, NMEA0183, w/7P
connector
MJ-A6SPF0016-005C 000-159-689-11 For FAX-30, ETR6N/10N
connection
MOD-Z072-020+ 000-167-175-10 2 m, LAN
MOD-Z072-050+ 000-167-176-10 5 m, LAN
MOD-Z072-100+ 000-167-177-10 10 m, LAN
MOD-Z073-030+ 000-167-171-10 3 m, for PC connection
M12-05BM+05BF-010 000-167-962-10 φ6, 1 m, NMEA 2000
M12-05BM+05BF-020 000-167-963-10 φ6, 2 m, NMEA 2000
M12-05BM+05BF-060 000-167-964-10 φ6, 6 m, NMEA 2000
M12-05BFFM-010 000-167-965-10 φ6, 1 m, NMEA 2000
M12-05BFFM-020 000-167-966-10 φ6, 2 m, NMEA 2000
M12-05BFFM-060 000-167-967-10 φ6, 6 m, NMEA 2000
CB-05PM+05BF-010 000-167-968-10 φ10, 1 m, NMEA 2000
CB-05PM+05BF-020 000-167-969-10 φ10, 2 m, NMEA 2000
CB-05PM+05BF-060 000-167-970-10 φ10, 6 m, NMEA 2000
CB-05BFFM-010 000-167-971-10 φ10, 1 m, NMEA 2000
CB-05BFFM-020 000-167-972-10 φ10, 2 m, NMEA 2000
CB-05BFFM-060 000-167-973-10 φ10, 6 m, NMEA 2000
NMEA connector LTWSS-050505-FMF-
TS001 000-168-603-10 NMEA 2000 distributor
(micro style)
LTWMC-05BMMT-
SL8001 000-168-604-10 NMEA 2000 terminator,
male (micro style)
LTWMC-05BFFT-
SL8001 000-168-605-10 NMEA 2000 terminator,
female (micro style)
LTWNC050505FMF-
TS001 000-160-507-10 NMEA 2000 distributor
(mini style)
LTWMN-05AMMT-
SL8001 000-160-508-10 NMEA 2000 terminator,
male (mini style)
LTWMN-05AFFT-
SL8001 000-160-509-10 NMEA 2000 terminator,
female (mini style)
In-line Terminator FRU-0505-FF-IS 000-172-037-10 NMEA 2000 connector
w/terminator, micro style
Operator’s Manual OME-44460 000-167-217
NMEA 2000 Inter-
face Unit IF-NMEA2K1 -
Name Types Code No. Remarks
1
1. MOUNTING
1.1 Mounting the Control Unit

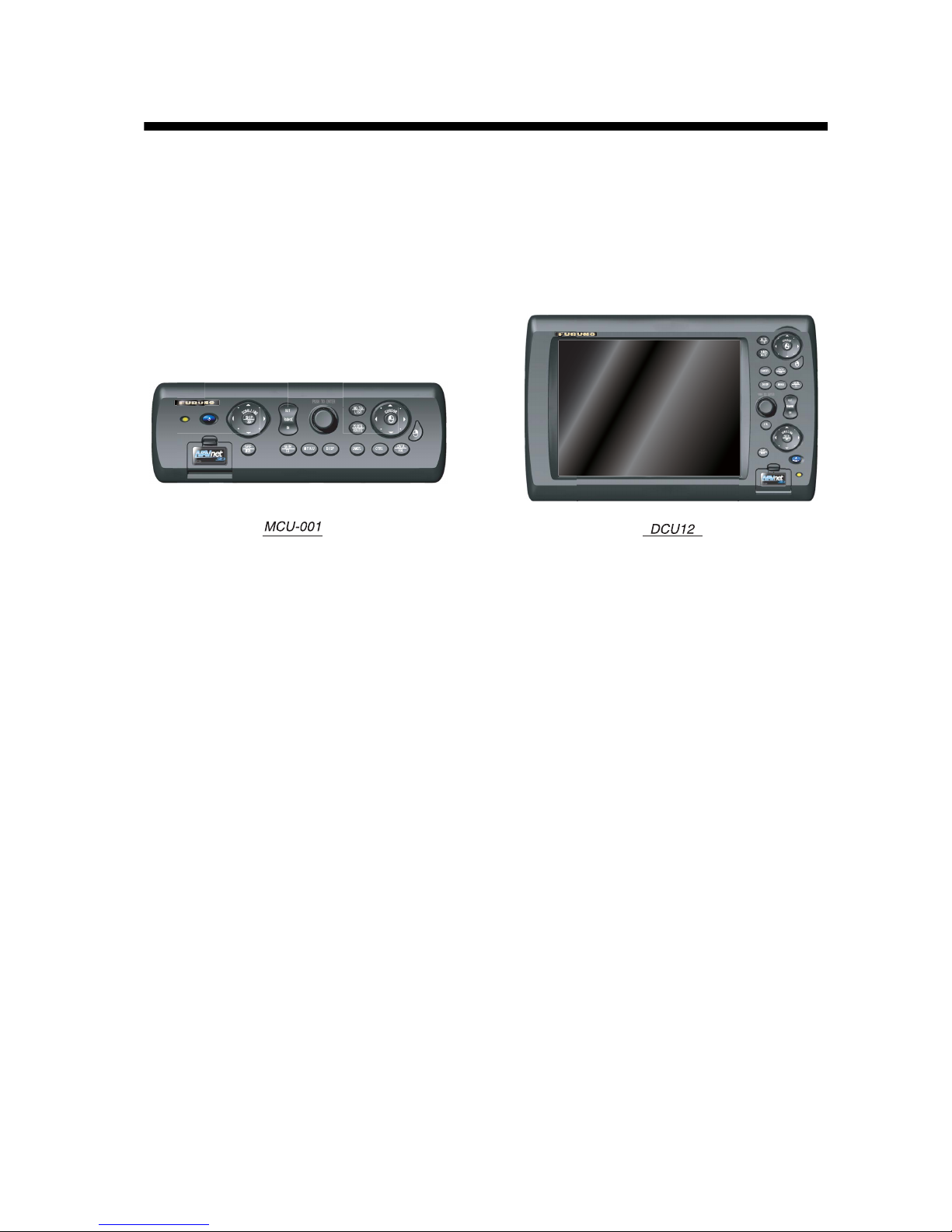

There are two types of control units: Control Unit MCU-001 and Display Control Unit DCU12. The
former is the keyboard type, and the latter has an LCD display and keyboard.
When selecting a mounting location for the control unit, keep the following in mind:
• The temperature and humidity at the mounting location should be moderate and stable.
• Locate the unit away from exhaust pipes and ventilators.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field generating equipment such as motors and gen-
erators.
• For maintenance and checking purposes, leave sufficient space at the sides and rear of the unit
and leave slack in cables. Minimum recommended space is shown on the outline drawing for
the control units.
• Do not mount the DCU12 on the overhead.
• A magnetic compass will be affected if the control unit is placed too close to it. Observe the
compass safe distances shown in the SAFETY INSTRUCTIONS to prevent disturbance to the
magnetic compass.
•For the flush mount, make sure the mounting location is flat.
2
1.1.1 Mounting procedure for control unit MCU-001
The control unit MCU-001 is designed to be flush mounted in a console or panel.
1. Prepare a cutout in the mounting location using the template sheet (supplied) for the MCU-
001.
2. Remove the front panel from the MCU-001 by unfastening the catches at the rear of the panel,
in the order as shown in the figure below.
Note: Detach the panel carefully to prevent breakage of the panel.
3. Attach the mounting sponge to the MCU-001.
4. Fix the MCU-001 by using four self-tapping screws (supplied).
5. Attach the front panel to the MCU-001.
How to detach the front panel from the mounting place
To detach the front panel after mounting the unit, use the remover (supplied) as below. Do not
attempt to remove it by any other method, to prevent damage to the unit.
1. Set the remover to the left-side notch at the bottom of the unit.
Mounting
sponge
MCU-001
Cutout
Self-tapping screws
(4 pcs.)
Front panel
1
2
3
4
5
6
MCU-001, rear view
(Location of catches and order to unfasten them)
3
2. Pull the remover to raise the panel slightly.
3. Similarly use the remover to raise the panel at the right-side notch.
4. Insert the remover to the space at the one end of the unit, and pull it to raise the panel slightly.
Repeat this procedure for the opposite side.
5. Use the remover to raise the panel at the two notches on the upper side of the unit.
6. Use your hands to detach the front panel at both sides of it.
4
1.1.2 Mounting procedure for display control unit DCU12
The Display Control Unit DCU12 can be flush mounted in a console or panel, or mounted on a
desktop or the overhead.
Flush mounting
1. Prepare a cutout in the mounting location using the template sheet (supplied) for the DCU12.
2. Remove the front panel from the DCU12 by unfastening the catches at the rear of he panel, in
the order as shown in the figure below.
Note: Detach the panel carefully to prevent breakage of the panel.
3. Attach the mounting sponge to the DCU12.
4. Fix the DCU12 by using four self-tapping screws (supplied).
5. Attach the front panel to the DCU12.
How to detach the front panel from the mounting place
To detach the front panel after mounting the unit, use the remover (supplied) as below. Note that
the front cover may be damaged if you do not follow the methods below.
1. Set the remover to a notch on the lower side of the unit.
Mounting
sponge
Front panel
Cutout
Display unit
(ex. MFD12)
Self-tapping screws
(4 pcs.)
MFD, rear view
(Location of catches and
order to unfasten them)
1
2
3
4
5
6
7
1
8
Autres manuels pour MFDBB
2
Table des matières
Autres manuels Furuno Équipement marin
Furuno
Furuno GS-100 Manuel utilisateur
Furuno
Furuno VR-7000 Manuel utilisateur
Furuno
Furuno FELCOM250 Manuel utilisateur
Furuno
Furuno NAVNET 3D MFDBB Instructions de montage
Furuno
Furuno IF-1002 Manuel utilisateur
Furuno
Furuno DS-85 Manuel utilisateur
Furuno
Furuno GP-1650WF Guide de maintenance et de service
Furuno
Furuno Navigational Echo Sounder FE851S Manuel utilisateur
Furuno
Furuno BBWX4 SiriusXM Guide d'installation
Furuno
Furuno FCV-620 Manuel
Furuno
Furuno NAVpilot-700 Manuel utilisateur
Furuno
Furuno CN-24 Manuel utilisateur
Furuno
Furuno AUTOPILOT FAP-300 Manuel utilisateur
Furuno
Furuno MD-550 Manuel utilisateur
Furuno
Furuno FS-1562 Manuel utilisateur
Furuno
Furuno FCV-668 Manuel utilisateur
Furuno
Furuno FE-606 Manuel utilisateur
Furuno
Furuno FCV-295 Manuel utilisateur
Furuno
Furuno FI-30 Manuel utilisateur
Furuno
Furuno F-851SD Manuel utilisateur
Manuels Équipement marin populaires d'autres marques
Raymarine
Raymarine Maxiview ST80 Guide de l'utilisateur
GUIDANCE MARINE
GUIDANCE MARINE 20- Series Instructions de montage
Raymarine
Raymarine ST60 Tridata Guide de l'utilisateur
olympia electronics
olympia electronics ΒS-531/1/MAR Manuel utilisateur
Sonic
Sonic 2024 Manuel utilisateur
Quicksilver
Quicksilver 88688A25 Manuel
