Installation Manual

COLOR LCD SOUNDER

Model FCV-295

SAFETY INSTRUCTIONS ............................................................................ i

SYSTEM CONFIGURATION ...................................................................... iii

EQUIPMENT LISTS.................................................................................... iv

1. MOUNTING............................................................................................ 1

1.1 Display Unit ..................................................................................................................1

1.2 Transducer ...................................................................................................................2

1.3 Water Temperature/Speed Sensor ..............................................................................2

2. WIRING .................................................................................................. 3

2.1 Interconnection .............................................................................................................3

2.2 Cable Fabrication .........................................................................................................4

2.3 Input/Output Sentences................................................................................................6

3. INITIAL SETTING .................................................................................. 7

3.1 Language Setting .........................................................................................................7

3.2 Transducer Data...........................................................................................................8

3.3 Speed/Water Temperature Sensor Calibration ..........................................................14

3.4 NMEA Port Setting .....................................................................................................15

APPENDIX1 TRANSDUCER 82B-35R .................................................AP-1

APPENDIX2 INSTALLATION OF TEMPERATURE SENSORS...........AP-3

PACKING LIST........................................................................................ A-1

OUTLINE DRAWINGS............................................................................. D-1

INTERCONNECTION DIAGRAM ............................................................ S-1

WARNING

Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided,

can result in minor or moderate injury.

Warning, Caution Mandatory Action

Prohibitive Action

SAFETY INSTRUCTIONS

The installer must read the applicable safety instructions before attempting to install the

equipment.

WARNING

Be sure that the power supply is

compatible with the voltage rating

of the equipment.

Connection of an incorrect power

supply can cause fire or damage the

equipment. The voltage rating of the

equipment appears on the label

above the power connector.

Install the transducer according to

the installation instructions.

Failure to install the transducer

correctly may result in water leakage

and damage to the ship's hull.

For wooden or FRP vessel using a

steel tank, attach a zinc plate to the

hull to prevent electrolytic corrosion.

Electrolytic corrosion can, in the worst

case, result in loss of the transducer.

Do not disassemble or modify the

equipment.

Fire, electrical shock or serious injury

can result.

Turn off the power at the switchboard

before beginning the installation.

Connect to a dedicated breaker in

the power distributor.

Fire or electrical shock can result if the

power is left on.

Do not install the equipment where it

may get wet from rain or water splash.

Water in the equipment can result in fire,

electrical shock or damage the

equipment.

Be sure no water leaks in at the trans-

ducer mounting location.

Water leakage can sink the vessel.

Also, confirm that the transducer will not

loosen by ship's vibration. The installer

of the equipment is solely responsible for

the proper installation of the equipment.

FURUNO will assume no responsibility

for any damage associated with improper

installation.

Use the proper cable and fuse.

Use of an incorrect cable and fuse can

damage the equipment and can cause

fire.

CAUTION

Observe the following compass safe

distances to prevent interference to a

magnetic compass:

Ground the equipment to

prevent mutual interference.

Do not allow warm water or any other

liquid other than seawater or

freshwater to contact the transducer.

The transducer may become damaged.

Do not turn on the power when the

transducer is in air.

The transducer may become damaged.

Do not install the transducer where

noise or air bubbles is present.

Performance will be affected.

CAUTION

The transducer cable must be

handled carefully, following the

guidelines below.

•Keep fuels and oils away from the

cable.

•Locate the cable where it will not be

damaged.

•The cable sheath is made of chloro-

phrene or polychloride vinyl, which

are easily by damaged plastic

solvents such as toulene. Locate the

cable well away from plastic

solvents.

Standard

compass

Steering

compass

CV-295

0.80 m 0.50 m

iii

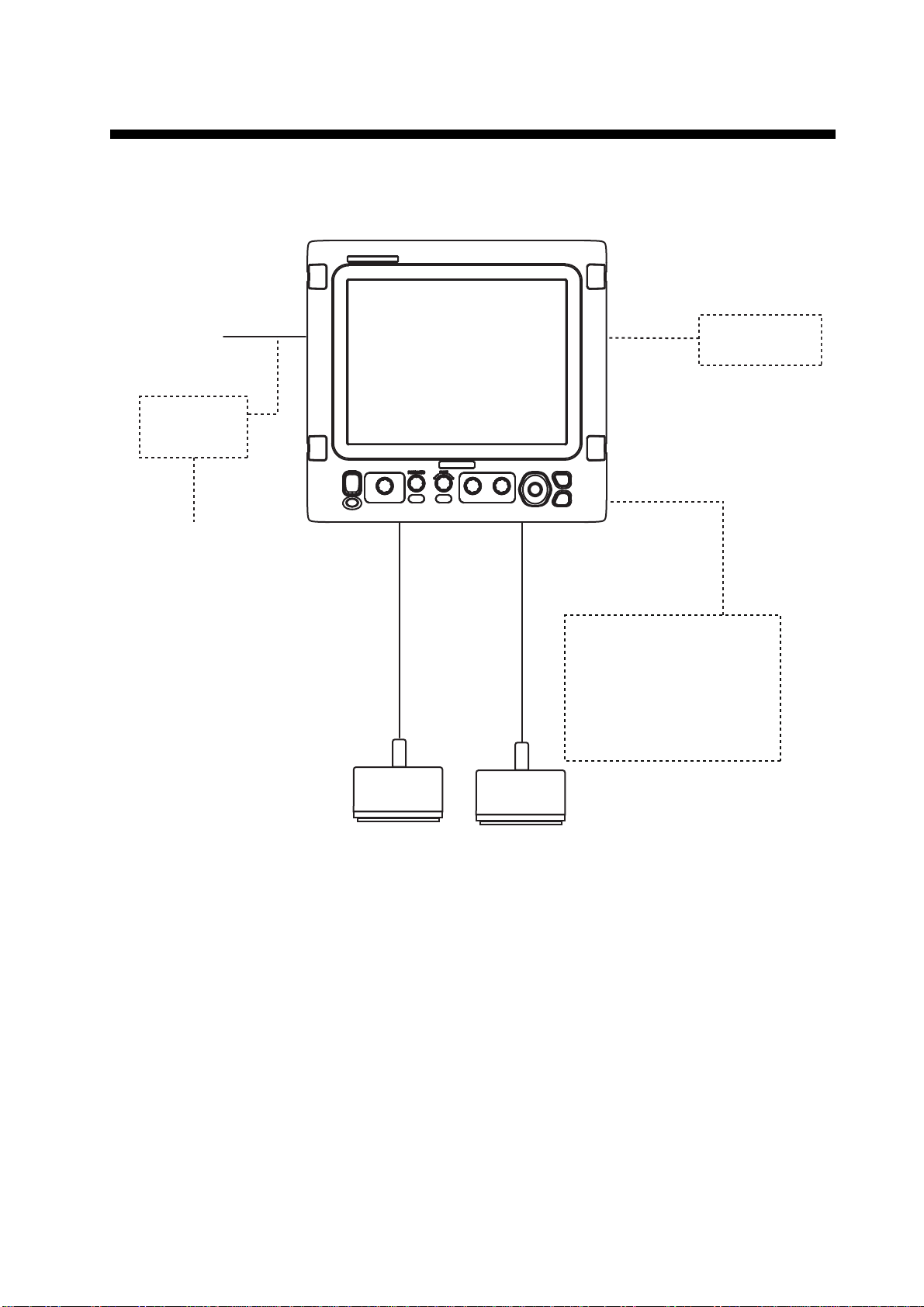

SYSTEM CONFIGURATION

Basic configuration is shown with solid line.

High Freq. Low Freq.

Transducer

Navigator

Display unit

CV-295

12-24 VDC

Rectifier

PR-62

100/110/115/

220/230 VAC

1㱢, 50/60 Hz

Water Temperature Sensor

T-04MSB, T-04MTB

Water Temp.+Speed

Sensor

ST-02MSB, ST-02PSB

EQUIPMENT LISTS

Standard supply

Option

Name Type Code No. Qty Remarks

Display Unit CV-295 - 1

Spare Parts SP02-05501 001-032-740 1 set

See packing list at back of this

manual.

Accessories FP02-05700 000-011-976 1 set

Installation Materials CP02-08401 001-032-750 1 set

Name Type Code No. Remarks

Transducer

See next several

pages.

Thru-hull pipe -

Tan k -

Cable MJ-A6SPF0003-050C 000-154-054-10 one end 6 pin, 5 m, for navigator

CO-SPEVV-SBC

2Px0.2SQ LF

000-111-680-10 5 m

000-120-792-10 10 m

000-120-793-10 15 m

Water temperature

sensor

T-04MSB 000-026-893 Thru-hull mount

T-04MTB 000-026-894 Transom mount

Speed/Tempera-

ture sensor

ST-02MSB 000-137-986-01 Thru-hull type

ST-02PSB 000-137-987-01 Thru-hull type

Rectifier PR-62 000-013-484 100 V AC

000-013-485 110 V AC

000-013-486 220 V AC

000-013-487 230 V AC

Combination of transducer, thru-hull pipe and tank

Output

(W)

Frequency

(kHz) Ship type Transducer Thru-hull pipe Tank

1k/1k 28/50 Steel 28F-8

50B-9B

TWB-6000(2) T-656

FRP --

28/88 Steel 28F-8

88B-8

TWB-6000(2) T-657

FRP - -

50/88 Steel 50B-9B

88B-8

TWB-6000(2) T-658

FRP - -

50/200 Steel 50/200-1T

50/200-1ST

TFB-5000(1) T-603

FRP - T-603F

Steel 50/200-12M - -

FRP - -

1k/2k 28/200 Steel 28F-8

200B-8/8B

TWB-6000(2) T-657

FRP - -

50/200 Steel 50B-9B

200B-8/8B

TWB-6000(2) T-658

FRP - -

88/200 Steel 88B-8

200B-8/8B

TWB-6000(2) T-659

FRP - -

2k/2k 28/200 Steel 28BL-6HR

200B-8/8B

TFB-7000(2) T-693

FRP TRB-1100(2) T-693-F

38/200 Steel 38BL-9HR

200B-8/8B

TFB-7000(2) T-693

FRP TRB-1100(2) T-693-F

50/200 Steel 50BL-12HR

200B-8/8B

TFB-7000(2) T-693

FRP TRB-1100(2) T-693-F

82/200 Steel 82B-35R

200B-8/8B

TFB-7000(2) T-649

FRP TRB-1100(2) T-649-F

88/200 Steel 88B-10

200B-8/8B

TFB-7000(2) T-649

FRP TRB-1100(2) T-649-F

3k/2k 68/200 Steel 68F-30H

200B-8/8B

TFB-7000(2) T-647

FRP TRB-1100(2) T-647-F

107/200 Steel 100B-10R

200B-8/8B

TFB-7000(2) T-649

FRP TRB-1100(2) T-649-F

3k/3k 28/38 Steel 28BL-12HR

38BL-15HR

TFB-7000(2) T-681

FRP TRB-1100(2) T-681-F

28/50 Steel 28BL-12HR

50BL-24HR

TFB-7000(2) T-681

FRP TRB-1100(2) T-681-F

28/88 Steel 28BL-12HR

88F-126H

TFB-7000(2) T-682

FRP TRB-1100(2) T-682-F

28/150 Steel 28BL-12HR

150B-12H

TFB-7000(2) T-683

FRP TRB-1100(2) T-683-F

28/200 Steel 28BL-12HR

200B-12H

TFB-7000(2) T-683

FRP TRB-1100(2) T-683-F

38/50 Steel 38BL-15HR

50BL-24HR

TFB-7000(2) T-681

FRP TRB-1100(2) T-681-F

3k/3k 38/88 Steel 38BL-15HR

88F-126H

TFB-7000(2) T-682

FRP TRB-1100(2) T-682-F

38/150 Steel 38BL-15HR

150B-12H

TFB-7000(2) T-683

FRP TRB-1100(2) T-683-F

38/200 Steel 38BL-15HR

200B-12H

TFB-7000(2) T-683

FRP TRB-1100(2) T-683-F

50/88 Steel 50BL-24HR

88F-126H

TFB-7000(2) T-682

FRP TRB-1100(2) T-682-F

50/150 Steel 50BL-24HR

150B-12H

TFB-7000(2) T-683

FRP TRB-1100(2) T-683-F

50/200 Steel 50BL-24HR

200B-12H

TFB-7000(2) T-683

FRP TRB-1100(2) T-683-F

68/150 Steel 68F-30H

150B-12H

TFB-7000(2) T-646

FRP TRB-1100(2) T-646-F

68/200 Steel 68F-30H

200B-12H

TFB-7000(2) T-646

FRP TRB-1100(2) T-646-F

88/150 Steel 88F-126H

150B-12H

TFB-7000(2) T-685

FRP TRB-1100(2) T-685-F

88/200 Steel 88F-126H

200B-12H

TFB-7000(2) T-685

FRP TRB-1100(2) T-685-F

1k 28 Steel 28F-8 TFB-5000(1) T-604

FRP TRB-1000(1) T-604-F

50 Steel 50B-6/6B TFB-5000(1) T-605

FRP TRB-1000(1) T-605-F

Steel 50B-9B TFB-5000(1) T-603

FRP TRB-1000(1) T-603-F

68 Steel 68F-8H TFB-5000(1) T-621

FRP TRB-1000(1) T-621-F

88 Steel 88B-8 TFB-5000(1) T-606

FRP TRB-1000(1) T-606-F

200 Steel 200B-5S TFB-5000(1) T-605

FRP TRB-1000(1) T-605-F

2k 28 Steel 28BL-6HR TFB-5000(1) T-702

FRP TRB-1000(1) T-702-F

38 Steel 38BL-9HR TFB-5000(1) T-702

FRP TRB-1000(1) T-702-F

50 Steel 50BL-12HR TFB-5000(1) T-702

FRP TRB-1000(1) T-702-F

82 Steel 82B-35R TFB-5000(1) T-609

FRP TRB-1000(1) T-609-F

88 Steel 88B-10 TFB-5000(1) T-609

FRP TRB-1000(1) T-609-F

200 Steel 200B-8/8B TFB-5000(1) T-608

FRP TRB-1000(1) T-608-F

Output

(W)

Frequency

(kHz) Ship type Transducer Thru-hull pipe Tank

vii

3k 28 Steel 28BL-12HR TFB-4000(1) T-616

FRP TRB-1000(1) T-616-F

38 Steel 38BL-15HR TFB-4000(1) T-616

FRP TRB-1000(1) T-616-F

50 Steel 50BL-24HR TFB-4000(1) T-616

FRP TRB-1000(1) T-616-F

68 Steel 68F-30H TFB-5000(1) T-614

FRP TRB-1000(1) T-614-F

88 Steel 88F-126H TFB-4000(1) T-618

FRP TRB-1000(1) T-618-F

107 Steel 100B-10R TFB-5000(1) T-609

FRP TRB-1000(1) T-609-F

150 Steel 150B-12H TFB-5000(1) T-615

FRP TRB-1000(1) T-615-F

200 Steel 200B-12H TFB-5000(1) T-615

FRP TRB-1000(1) T-615-F

Output

(W)

Frequency

(kHz) Ship type Transducer Thru-hull pipe Tank

1. MOUNTING

1.1 Display Unit

Mounting considerations

• Locate the unit out of direct sunlight.

• Select a location where the display screen can be easily observed while operating the control

panel.

• Leave sufficient space around the unit for maintenance and servicing. Recommended mainte-

nance space appears in the outline drawings at the back of this manual.

• Observe the compass safe distances on page ii to prevent deviation of a magnetic compass.

The display unit can be mounted on the tabletop or on the panel (flush mounting). Mount the unit,

referring to the outline drawings at the back of this manual.

The power cable is connected to the terminal board in the display unit. Therefore the power cable

can not be disconnected easily like a connector. So connect the cable to a dedicated breaker in

the power distributor in the ship.

NOTICE

Do not apply paint, anti-corrosive sealant

or contact spray to coating or plastic

parts of the equipment.

Those items contain organic solvents that

can damage coating and plastic parts,

especially plastic connectors.

WARNING

Turn off the power at the switchboard

before beginning the installation.

Connect to a dedicated breaker in

the power distributor.

Fire or electrical shock can result if

the power is left on.

Autres manuels pour FCV-295

Table des matières

Autres manuels Furuno Équipement marin

Furuno

Furuno Felcom 50 Manuel utilisateur

Furuno

Furuno TZT2BB Manuel utilisateur

Furuno

Furuno FCV-1200L Manuel utilisateur

Furuno

Furuno MFDBB Manuel utilisateur

Furuno

Furuno FCV-582L Manuel utilisateur

Furuno

Furuno FCV-662 Manuel utilisateur

Furuno

Furuno FCV-581 Manuel utilisateur

Furuno

Furuno FE-400 Operators Manuel utilisateur

Furuno

Furuno FMD3100 Manuel

Furuno

Furuno LH-3000 Manuel utilisateur

Furuno

Furuno FA-30 Manuel utilisateur

Furuno

Furuno MU-192HD Manuel utilisateur

Furuno

Furuno GP-1650WF Guide de maintenance et de service

Furuno

Furuno FI-303 Manuel utilisateur

Furuno

Furuno SCX-21 Guide d'installation

Furuno

Furuno FCV-30 Manuel utilisateur

Furuno

Furuno FELCOM251 Manuel utilisateur

Furuno

Furuno RD-33 Manuel utilisateur

Furuno

Furuno FELCOM 82A Series Manuel utilisateur

Furuno

Furuno FE-800 Manuel utilisateur

Furuno

Furuno 1824C-BB Manuel utilisateur

Furuno

Furuno TZTL15F Manuel

Furuno

Furuno MU-270W Instructions d'utilisation

Furuno

Furuno FE-880T Manuel utilisateur

Manuels Équipement marin populaires d'autres marques

Clarion

Clarion CMS2 Manuel de réparation

EBS

EBS M7000 Manuel utilisateur

Kongsberg

Kongsberg M3 Bathy Manuel utilisateur

NPK

NPK SCS-1002 Manuel utilisateur

Harken

Harken 1561 Manuel utilisateur

Simrad

Simrad DD15 Manuel utilisateur

Notifier

Notifier FS-BSO Manuel utilisateur

Raymarine

Raymarine ST40 Manuel utilisateur

E2S

E2S E2XS112UL Manuel utilisateur

R2Sonic

R2Sonic 2026 Manuel utilisateur

COBHAM

COBHAM SAILOR 6000 Manuel utilisateur

Clarion

Clarion GR10BT Manuel de réparation

Raymarine

Raymarine Maxiview ST80 Guide de l'utilisateur

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Instructions de montage

Raymarine

Raymarine ST60 Tridata Guide de l'utilisateur

olympia electronics

olympia electronics ΒS-531/1/MAR Manuel utilisateur

Sonic

Sonic 2024 Manuel utilisateur

Quicksilver

Quicksilver 88688A25 Manuel
