Installation Manual

NAVIGATIONAL ECHO SOUNDER

FE-700

IMPORTANT NOTICE......................................................................................................i

SAFETY INSTRUCTIONS...............................................................................................ii

EQUIPMENT LISTS.......................................................................................................iii

SYSTEM CONFIGURATION..........................................................................................iv

1. MOUNTING.................................................................................................................1

1.1 Category of Equipment ...........................................................................................................................1

1.2 Display Unit.............................................................................................................................................1

1.3 Transducer..............................................................................................................................................4

1.4 Distribution Box.......................................................................................................................................6

1.5 Matching Box ..........................................................................................................................................7

1.6 Digital Depth Indicator FE-720 (option)...................................................................................................7

1.7 Transducer Switch Box EX-8 (option).....................................................................................................9

1.8 Gate Valve GV-50B-6B, GV-200B-8B (option)........................................................................................9

2. WIRING .....................................................................................................................11

3. CHANGING POWER SPECIFICATIONS..................................................................20

4. ADJUSTMENTS........................................................................................................22

4.1 Transducer Setting................................................................................................................................22

4.2 Setting the Time....................................................................................................................................24

PACKING LISTS………………………………………………… .......................…………A-1

OUTLINE DRAWINGS…………………………………………… ...................…………..D-1

INTERCONNECTION DIAGRAMS……………………………................... …………….S-1

www.furuno.co.jp

All brand and product names are trademarks, registered trademarks or service marks of their respective holders.

Thepaperusedinthismanual

iselementalchlorinefree.

・FURUNOAuthorizedDistributor/Dealer

9‑52Ashihara‑cho,

Nishinomiya,662‑8580,JAPAN

Telephone: +81‑(0)798‑65‑2111

Fax:

+81‑(0)798‑65‑4200

JAN

2000

PrintedinJapan

Allrightsreserved.

JUL

24,2009

Pub.No.

IME‑23660‑Q

*00080891011**00080891011*

(

DAMI

)

FE‑700

00080891011

*00080891011*

WARNING

Turn off the power at the switchboard

before beginning the installation.

Fire or electrical shock can result if the

power is left on.

Do not install the equipment where it

may get wet from rain or water splash.

Water in the equipment can result in fire,

electrical shock or equipment damage.

Be sure no water leaks in at the trans-

ducer mounting location.

Water leakage can sink the vessel. Also

confirm that the transducer will not loosen

by ship’s vibration. The installer of the

equipment is solely responsible for the

proper installation of the equipment.

FURUNO will assume no responsibility for

any damage associated with improper

installation.

Be sure that the power supply is

compatible with the voltage rating of

the equipment.

Connection of an incorrect power supply

can cause fire or equipment damage. The

voltage rating of the equipment appears

on the label above the power connector.

ELECTRICAL SHOCK HAZARD

Do not open the equipment

unless totally familiar with

electrical circuits and

service manual.

Only qualified personnel

should work inside the

equipment.

CAUTION

Observe the following compass safe

distances to prevent deviation of a

magnetic compass:

Display

unit

Standard Steering

compass compass

0.50 m 0.40 m

SAFETY INSTRUCTIONS

Distribution

Box 1.90 m 1.15 m

Digital depth

indicator (option) 0.50 m 0.40 m

When handling the transducer cable,

keep in mind following points.

Keep the cable away from oil and

fuel.

Keep the cable away from the

place where it may be damaged

during the installation.

Do not paint the cable.

The sheath of the transducer cable is

made of chlorophrene rubber (or vinyl

chloride). Therefore, do not paint the

sheath with organic liquid (such as

toluene) since it may harm the sheath.

Matching Box 0.50 m 0.40 m

Transducer

Switch Box

(option) 1.00 m 0.60 m

Junction Box

(option) 0.30 m 0.30 m

Distribution box

(option) 0.30 m 0.30 m

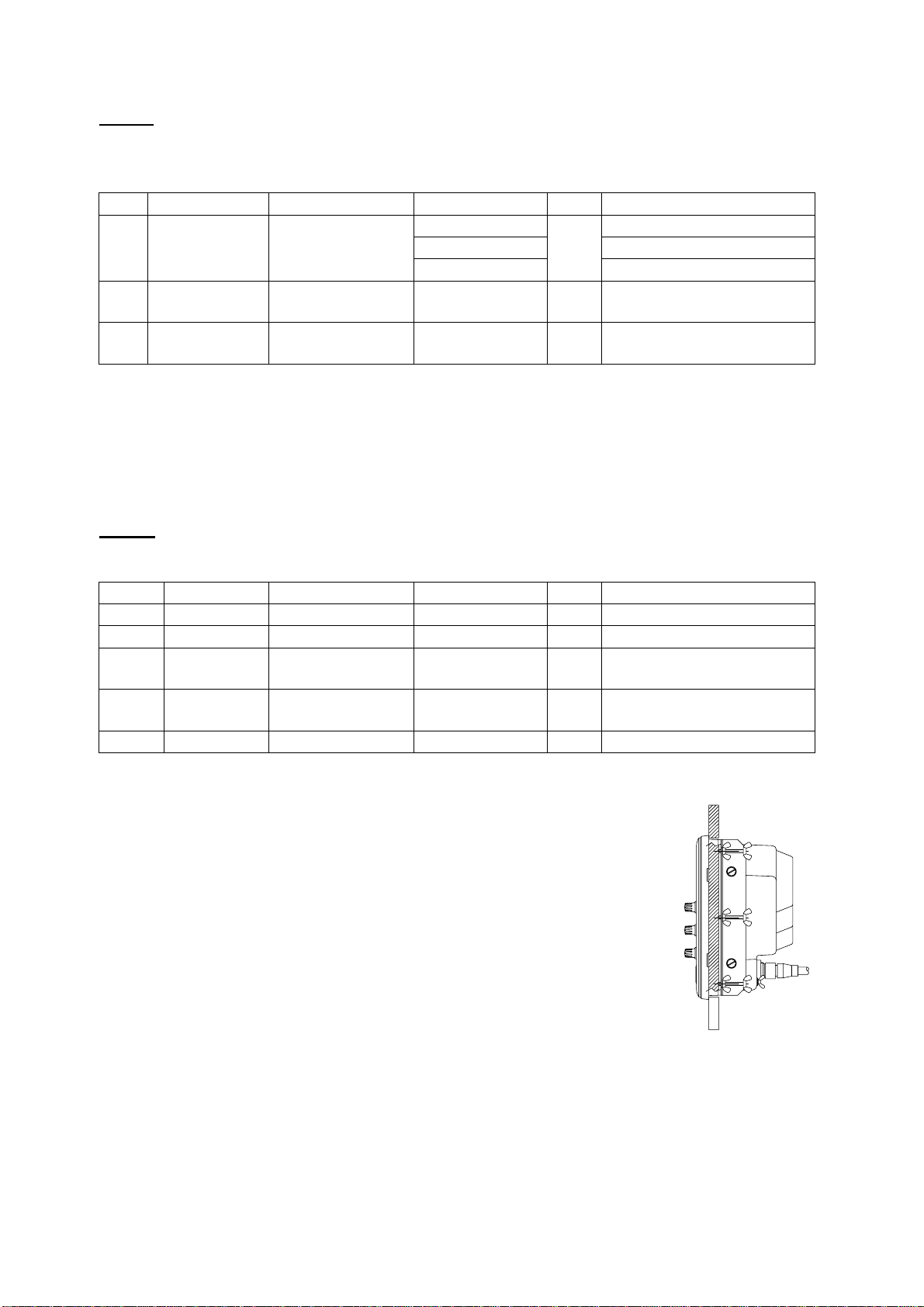

EQUIPMENT LISTS

Standard Supply

Name Type Code no. Qty Remarks

Display Unit FE-701 - 1

w/Installation Materials

CP02-06400 (000-015-872)

and Accessories FP02-04800

(000-015-469)

Distribution Box FE-702 - 1

MB-502 000-013-602 For 50B-6B

Matching Box MB-504 000-013-604

1 For 200B-8B

50B-6B - w/15 m or 30 m cable

Transducer 200B-8B -

1 w/15 m, 30 m or 50 m cable

TTF-5600 000-015-586 For 50B-6B

Transducer Tank TTF-2000 000-015-587 1 For 200B-8B

Spare Parts SP02-04101 001-228-890 1 set For distribution box

Installation Materials CP02-06301 001-228-950 1 set For distribution box

Optional Supply

Name Type Code no. Qty Remarks

000-012-179 Flush mount, color specified

000-012-176 Bulkhead mount, color

specified

000-012-183 7.5BG7/2, Flush mount

000-012-182 7.5BG7/2, Bulkhead mount

000-012-180 N.G, Flush mount

Transducer Switch

Box EX-8

000-012-181

N.G, Bulkhead mount

Cable Assy. FM-C6FPS003-

020 000-143-821 1 2 m cable w/ a 6P connector

For EX-8

JUNCTION Box JIS F8821-1MO

0-20A3P 000-804-877 1

TTF-5001 000-015-877 For 50B-6B

TTF-2001 000-015-878 For 200B-8B

TTF-5002 000-015-885 For 50B-6B (w/Flange)

Transducer Tank

TTF-2002 000-015-887

For 200B-8B (w/Flange)

OP02-78-1 001-229-270 2.5GY5/1.5

Bulkhead Kit OP02-78-2 001-229-280

1 7.5BG7/2

OP02-79-1 001-229-290 N3.0

OP02-79-2 001-229-300 2.5GY5/1.5

Flush Mount Kit (F) OP02-79-3 001-229-310

1 7.5BG7/2

Flush Mount Kit (S) OP02-80 001-229-320 1

Data Recording

Software for PC 02-522-990 001-229-090 1 For Windows 95/98/NT4.0

Digital Depth

Indicator FE-720 000-029-025 1 set

w/Installation Materials

CP02-06700 (000-029-068)

Spare Parts

SP65-00601 (002-889-730)

Accessories

FP65-00400 (000-029-067)

iii

Name Type Code no. Qty Remarks

MF-22L-1-100V 000-069-401 100 VAC-120 VAC,

Flush mount type

MF-22L-1-200V 000-069-403 200 VAC-240 VAC,

Flush mount type

MF-22L-2-100V 000-069-402 100 VAC-120 VAC,

Bulk head type

Dimmer

MF-22L-2-200V 000-069-404

200 VAC-240 VAC,

Bulk head type

Terminal Box DS-802 000-029-064 1 set With Installation Materials

CP65-00903 (000-029-064)

EGC Printer PP-505-FE 000-055-892 1 set

GV-50B-6B 000-015-265

Gate Valve GV-200B-8B 000-015-273

1 With Installation Materials

CP02-07601 (002-891-620)

Alarm Unit AU-12 - 1

Distribution Box MB-1200 000-016-185 1 set

For connection of

transducer 50B-6B,

200B-8B, instructions

included.

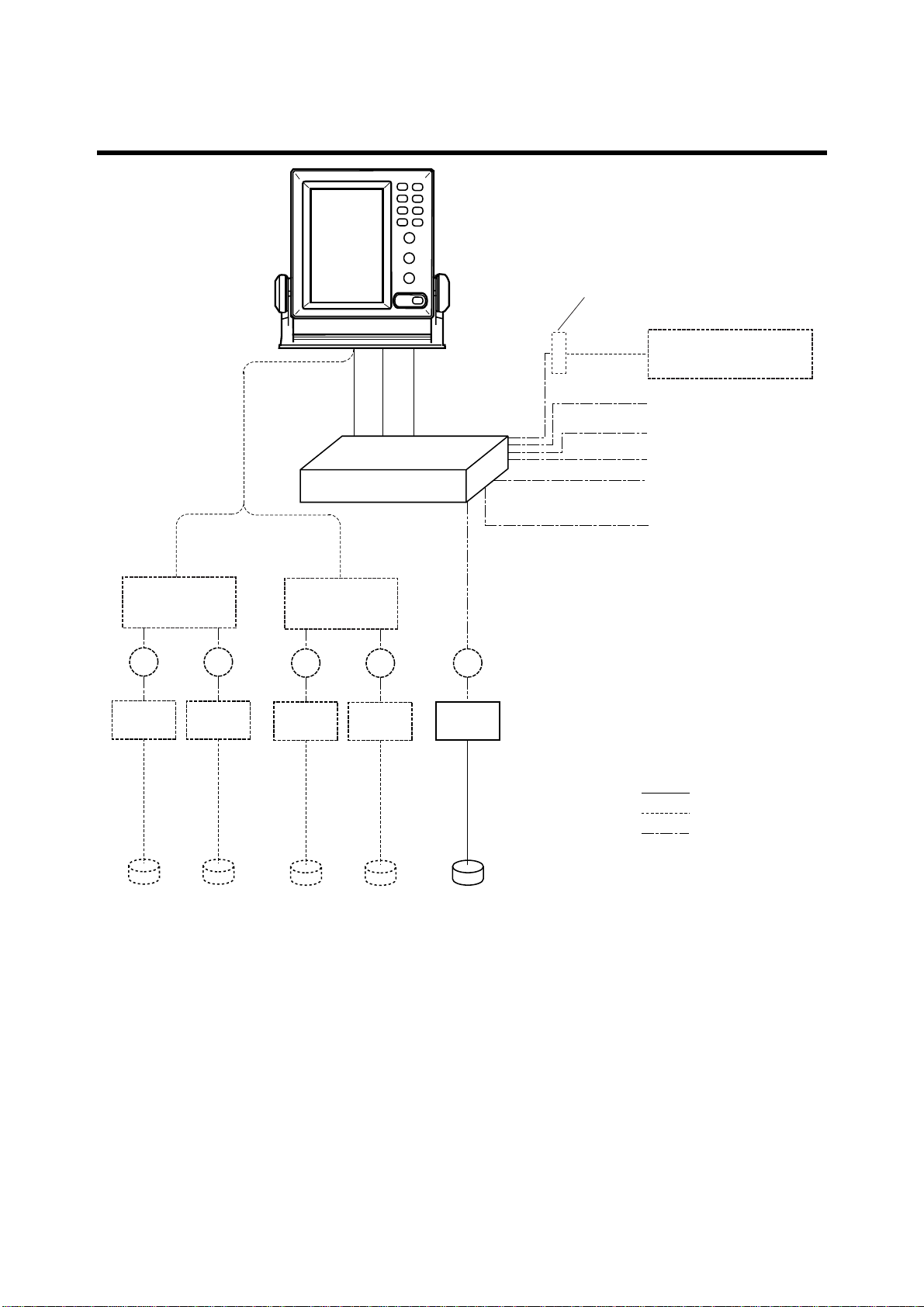

SYSTEM CONFIGURATION

DISTRIBUTION

BOX FE-702

DISPLAY UNIT

FE-701

Navigation Device

Personal Computer

: Standard Supply

: Optional Supply

: Local Supply

Alarm Unit AU-12

Matching Box

MB-502 (For 50B-6B)

MB-504 (For 200B-8B)

Contact signal

100/110-115/

200/220-230 VAC

and

DC24 V

Terminal Box DS-802

Navigation Device

JUNCTION BOX

JISF8821-1M0 0-20A3P

IEC 61162-1

EIA-232C

IEC 61162-1

DIGITAL DEPTH INDICATOR

FE-720

TRANSDUCER

50B-6B,

200B-8B

SWITCH BOX

EX-8

DISTRIBUTION

BOX

MB-1200

1. MOUNTING

NOTICE

Do not apply paint, anti-corrosive sealant

or contact spray to coating or plastic

parts of the equipment.

Those items contain organic solvents that

can damage coating and plastic parts,

especially plastic connectors.

1.1 Category of Equipment

Equipment for protected area

• Display Unit

• Distribution Box

• Matching Box

• Transducer Switch Box (option)

• Digital Depth Indicator (option)

Equipment to be submerged

• Transducer

1.2 Display Unit

1.2.1 Mounting consideration

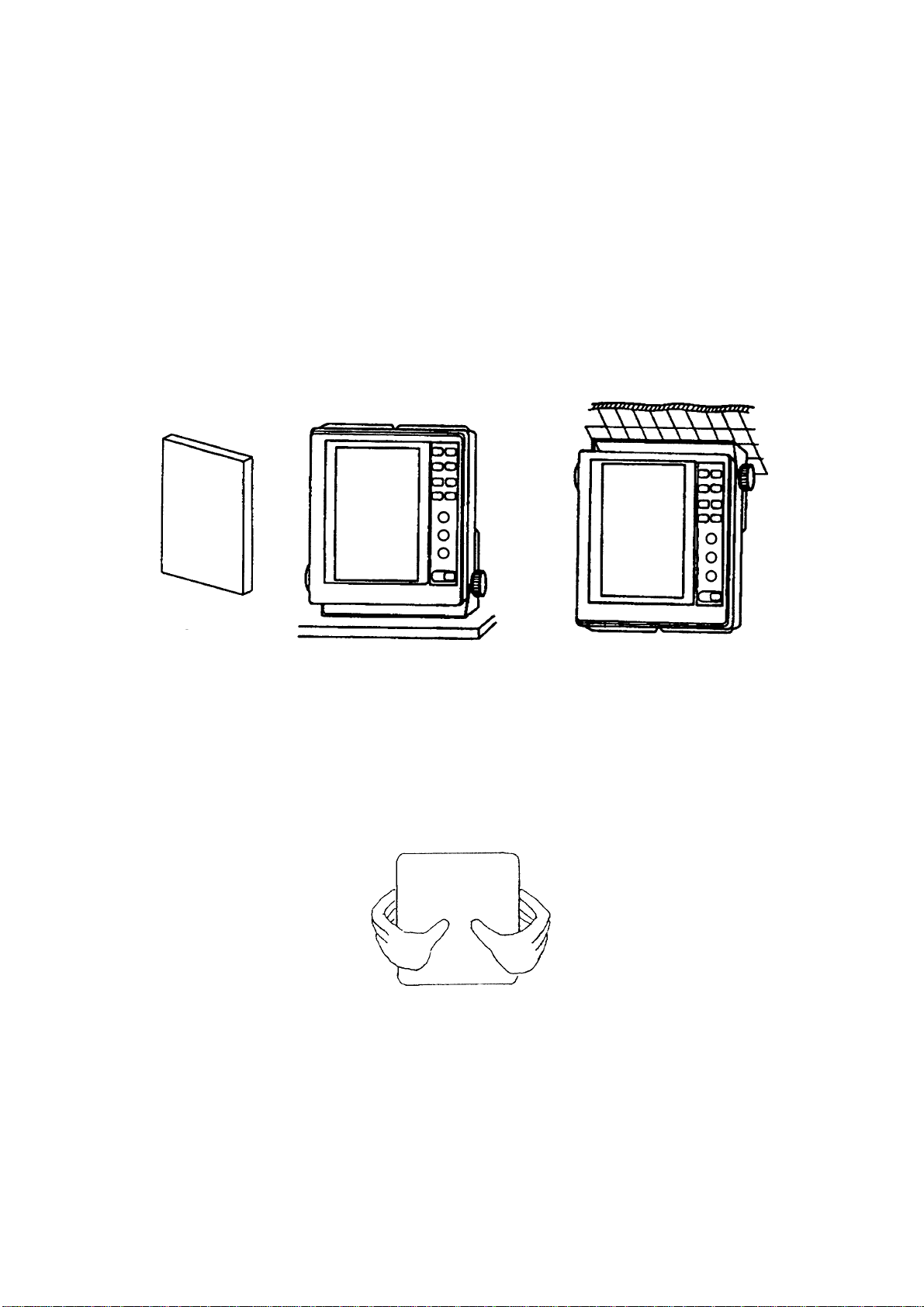

The display unit can be installed on a tabletop, on the overhead, on the bulkhead or flush

mounted in a console or panel.

When selecting a mounting location for the display unit keep the following in mind.

• Keep the display unit out of direct sunlight.

• The temperature and humidity should be moderate and stable.

• Locate the unit away from exhaust pipes and vents.

• The mounting location should be well ventilated.

• Mount the unit where shock and vibration are minimal.

• Keep the unit away from electromagnetic field-generating equipment such as motors and

generators.

• For maintenance and checking purposes, leave sufficient space at the sides and rear of the

unit and leave slack in cables.

• A magnetic compass will be affected if placed too close to the display unit. Observe the

following compass safe distances to prevent disturbance to the magnetic compass.

Standard compass: 0.50 meters

Steering compass: 0.40 meters

Cover

Desktop Overhead

1.2.2 Removing the cover

While pressing the center of the cover with your thumbs as illustrated, pull the cover towards

you to remove it.

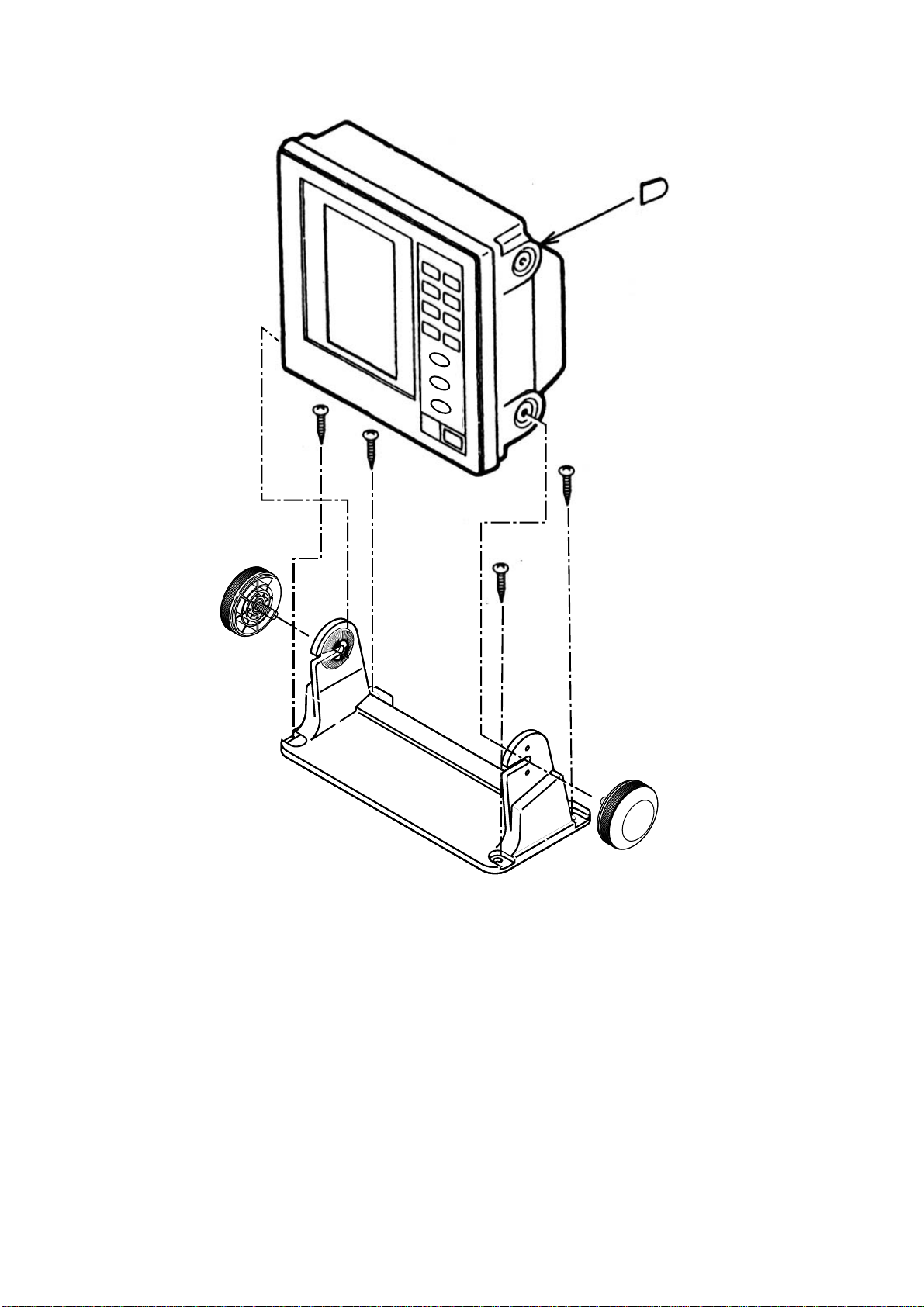

1.2.3 Desktop mounting

1. Fix the hanger with four tapping screws (5x20).

2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts.

3. Attach the dummy covers to the unused holes.

Dummy cover

5x20 tapping screws

1.2.4 Flush mounting

There are two types of flush mount kits, F type and S type. For details, see the outline diagrams

at the back of this manual.

F type

Flush Mount Kit (F): OP02-79-1 (001-229-290)

OP02-79-2 (001-229-300)

OP02-79-3 (001-229-310)

No. Name Type Code no. Qty Remarks

100-279-270 OP02-79-1:N3.0

100-279-280 OP02-79-2:2.5GY5/1.5

1 Cosmetic

panel 02-129-1041-0 100-279-290 1 OP02-79-3:7.5GY7/2

2 Hex bolt M6x12 000-162-897-1

0 4

3 Spring

washer M6 000-158-855-1

0 4

1. Prepare a cutout in the mounting location whose dimensions are 210 (W) x 194 (H) mm.

2. Attach the cosmetic panel (02-129-1041-0) to the display unit with four hex bolts (M6x12)

and four spring washers (M6).

3. Fix the display unit to the mounting location with four tapping screws (5x20).

S type

Flush Mount Kit (S): OP02-80 (001-229-320)

No. Name Type Code no. Qty Remarks

1 Fixing plate 02-129-1045-0 100-279-300 2

2 Wing bolt M4x30 000-804-799 6

3 Hex bolt M6x12 000-162-897-1

0 4

4 Spring

washer M6 000-158-855-1

0 4

5 Wing nut M4 000-863-306 6

1. Prepare a cutout in the mounting location whose dimensions are 194 x 194 mm.

2. Insert the display unit to the cutout.

3. Attach two fixing plates (02-129-1045-0) to the display unit with four

hex bolts (M6x12) and spring four washers (M6).

4. Screw six wing bolts (M4x30) to wing nuts (M4).

5. Fasten the display unit with six wing bolts and nuts.

1.3 Transducer

The installation of the transducer and the tank should be accomplished by a dockyard referring

to the installation drawings at the back of this manual. An example of transducer installation

method is also shown in paragraph 1.3.2.

Note: Discussions should take place and agreement reached with the dockyard for sufficient

reinforcement and watertightness of the hull to comply with the regulations concerned.

Autres manuels pour FE-700

Table des matières

Autres manuels Furuno Équipement marin

Furuno

Furuno FCV-1200L Manuel utilisateur

Furuno

Furuno FE-700 Manuel utilisateur

Furuno

Furuno FM-8900S Manuel utilisateur

Furuno

Furuno FE-800 Manuel utilisateur

Furuno

Furuno FCV30BB Manuel utilisateur

Furuno

Furuno FCV-1150 Manuel utilisateur

Furuno

Furuno Black Box Video Sounder FCV-1200BB Manuel utilisateur

Furuno

Furuno FCV-1000 Manuel utilisateur

Furuno

Furuno FMD-3200 Manuel utilisateur

Furuno

Furuno FELCOM18 Manuel utilisateur

Furuno

Furuno FS-1562 Manuel utilisateur

Furuno

Furuno FI70DSW Manuel utilisateur

Furuno

Furuno NX-700A/B Operators Manuel utilisateur

Furuno

Furuno FCV-1200L Manuel utilisateur

Furuno

Furuno FA-150 Manuel

Furuno

Furuno FCV-581 Manuel utilisateur

Furuno

Furuno FCV-585 Manuel utilisateur

Furuno

Furuno FI-304 Manuel utilisateur

Furuno

Furuno FCV-30 Manuel utilisateur

Furuno

Furuno FMV-603 Manuel utilisateur

Furuno

Furuno SC-33 Manuel utilisateur

Furuno

Furuno VR-5020 Manuel utilisateur

Furuno

Furuno GP-1650WF Guide de maintenance et de service

Furuno

Furuno FE-881 II Manuel utilisateur

Manuels Équipement marin populaires d'autres marques

Clarion

Clarion CMS2 Manuel de réparation

EBS

EBS M7000 Manuel utilisateur

Kongsberg

Kongsberg M3 Bathy Manuel utilisateur

NPK

NPK SCS-1002 Manuel utilisateur

Harken

Harken 1561 Manuel utilisateur

Simrad

Simrad DD15 Manuel utilisateur

Notifier

Notifier FS-BSO Manuel utilisateur

Raymarine

Raymarine ST40 Manuel utilisateur

E2S

E2S E2XS112UL Manuel utilisateur

R2Sonic

R2Sonic 2026 Manuel utilisateur

COBHAM

COBHAM SAILOR 6000 Manuel utilisateur

Clarion

Clarion GR10BT Manuel de réparation

Raymarine

Raymarine Maxiview ST80 Guide de l'utilisateur

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Instructions de montage

Raymarine

Raymarine ST60 Tridata Guide de l'utilisateur

olympia electronics

olympia electronics ΒS-531/1/MAR Manuel utilisateur

Sonic

Sonic 2024 Manuel utilisateur

Quicksilver

Quicksilver 88688A25 Manuel
