IMPORTANT NOTICES

• The descriptions in this manual are intended for readers with a solid knowledge of English.

• No part of this manual may be copied or reproduced without written permission.

• If this manual is lost or worn, contact your dealer about replacement.

• The contents of this manual and equipment specifications are subject to change without notice.

• The example screens (or illustrations) shown in this manual may not match the screens you

see on your display. The screen you see depends on your system configuration and equipment

settings.

• Store this manual in a convenient place for future reference.

• FURUNO will assume no responsibility for the damage caused by improper use or modification

of the equipment (including software) by an unauthorized agent or a third party.

• When it is time to discard this product it must be done according to local regulations for dis-

posal of industrial waste. For disposal in the USA, refer to the Electronics Industries Alliance

(http://www.eiae.org/).

WARNING

Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided,

can result in minor or moderate injury.

Warning, Caution

Mandatory Action

Prohibitive Action

SAFETY INSTRUCTIONS

The operator and installer must read the applicable safety instructions before attempting to

install or operate the equipment.

WARNING

Do not open the equipment.

Only qualified personnel should work

inside the equipment.

Do not disassemble or modify the

equipment.

Fire, electrical shock or serious injury can

result.

Immediately turn off the power at the

power source if



water leaks into the equipment



something is dropped into the

equipment



the equipment is emitting smoke or

is on fire



the equipment is emitting strange

noises

Continued use of the equipment can

cause fire or electrical shock. Contact a

FURUNO dealer or agent for service.

Do not operate the equipment with wet

hands.

Electrical shock can result.

Use the proper fuse.

Use of the wrong fuse can cause fire

or electrical shock.

WARNING

Do not place liquid-filled containers on

the top of the equipment.

Fire or electrical shock can result if a

liquid spills into the equipment.

Make sure no rain or water splash

leaks into the equipment.

Fire or electrical shock can result if water

leaks into the equipment.

WARNING

To avoid electrical shock,

do not remove cover. No

user-serviceable parts

Name: Warning Label (1)

Type: 86-003-1011-1

Code No.: 100-236-231

WARNING

To avoid electrical shock,

do not remove cover.

No user-serviceable parts

inside.

Name: Warning Label (2)

Type: 86-129-1001-1

Code No.: 100-236-741

Warning labels are attached to the equipment.

Do not remove these labels. If a label is missing

or illegible, contact a FURUNO agent or dealer

about replacement.

Safety instructions for the operator

iii

CAUTION

Observe the following compass safe

distances to prevent interference to a

magnetic compass:

Turn off the power at the switchboard

before beginning the installation.

Fire or electrical shock can result if the

power is left on.

Do not install the equipment where it

may get wet from rain or water splash.

Water in the equipment can result in fire,

electrical shock or damage to the equipment.

Be sure that the power supply is

compatible with the voltage rating of the

equipment.

Connecting an incompatible power supply

can cause fire or damage the equipment.

The voltage rating appears on the inlet

of power.

Standard

compass Steering

compass

0.30 m 0.30 m

FA-30

WARNING

Safety instructions for the installer

TABLE OF CONTENTS

FOREWORD .........................................................................................................v

SYSTEM CONFIGURATION................................................................................vi

1. INSTALLATION ................................................................................................1

1.1 Equipment Lists ..................................................................................................................1

1.2 AIS Receiver FA-30............................................................................................................2

1.3 Whip Antenna ..................................................................................................................... 3

1.4 Wiring .................................................................................................................................4

2. WEB SOFTWARE SETUP, DATA DISPLAYS .................................................6

2.1 AIS Receiver FA-30............................................................................................................ 6

2.2 COM Port Setup, Network Setup........................................................................................7

2.3 Own Vessel Data Display, Channel Selection..................................................................10

2.4 Sensor Status ...................................................................................................................12

3. MAINTENANCE, TROUBLESHOOTING........................................................13

3.1 Maintenance .....................................................................................................................13

3.2 Replacing the Fuse...........................................................................................................14

3.3 Troubleshooting................................................................................................................14

3.4 Diagnostics .......................................................................................................................15

VHF CHANNEL LIST ......................................................................................AP-1

SPECIFICATIONS...........................................................................................SP-1

OUTLINE DRAWINGS ...................................................................................... D-1

INTERCONNECTION DIAGRAM...................................................................... S-1

FOREWORD

A Word to the Owner of the FA-30

Congratulations on your choice of the FURUNO FA-30 AIS Receiver. We are confi-

dent you will see why the FURUNO name has become synonymous with quality and

reliability.

For over 50 years FURUNO Electric Company has enjoyed an enviable reputation for

quality marine electronics equipment. This dedication to excellence is furthered by our

extensive global network of agents and dealers.

This equipment is designed and constructed to meet the rigorous demands of the ma-

rine environment. However, no machine can perform its intended function unless op-

erated and maintained properly. Please carefully read and follow the recommended

procedures for operation and maintenance.

Thank you for considering and purchasing FURUNO equipment.

Features

The FA-30 is a compact and cost effective AIS Receiver that is designed specifically

for small commercial, leisure and fishing boats.

Connected to a VHF antenna it receives AIS data from AIS-equipped vessels, shore

stations and navigational aids (AIS-equipped buoys, etc.). Vessel movement is plotted

on a display connected to the LAN port. Data includes identity (name, call sign and

MMSI), position, speed, heading, etc. of AIS-equipped vessels within VHF range.

Program Version

Item Program No. Version No. Date

FA-30 AIS Receiver Main Program 0550227 01.02 May 2007

SYSTEM CONFIGURATION

AIS RECEIVER

FA-30

HUB

WHIP ANTENNA

SENSOR

12-24 VDC IF-1500AIS

FR-8xx2 SERIES

GPS

SPEED LOG

GYROCOMPASS

SATELLITE COMPASS

NAVNET

RADAR

CHART PLOTTER

ECDIS

PILOT PLUG

w/FAISPC MX

EXTERNAL

DISPLAY

: Standard supply

: Optional supply

: Local supply

NAVNET

EXTERNAL

DISPLAY

1. INSTALLATION

1.1 Equipment Lists

Standard supply

Optional supply

Name Type Code No. Qty Remarks

AIS Receiver FA-30 - 1

Installation Materials CP05-11101 001-014-160 1 set Tapping screw

(4x20, 4 pcs.)

AIS Viewer FP05-05910 000-010-938 1 set FAISPC-MX for PC

Spare Parts SP05-05701 001-014-150 1 set 2A fuse, 2 pcs.

Name Type Code No. Qty Remarks

VHF Antenna 150M-W2VN 000-113-498 1

LAN Cable P5E-4PTX-BL 000-164-634-10 1 L=2 m

P5E-4PTX-BL 000-164-637-10 L=10 m

1.2 AIS Receiver FA-30

Mounting considerations, mounting

The FA-30 can be mounted on a desktop, deck or on a bulkhead. When selecting a

mounting location, keep the following points in mind:

• The temperature and humidity should be moderate and stable.

• Locate the unit away from exhaust pipes and vents.

• The mounting location should be well ventilated.

• Mount the unit where shock and vibration are minimal.

• Keep the unit away from electromagnetic field-generating equipment such as

motors and generators.

• A magnetic compass will be affected if the FA-30 is placed too close to it. Observe

the compass safe distances noted in the safety instructions to prevent disturbance

to the magnetic compass.

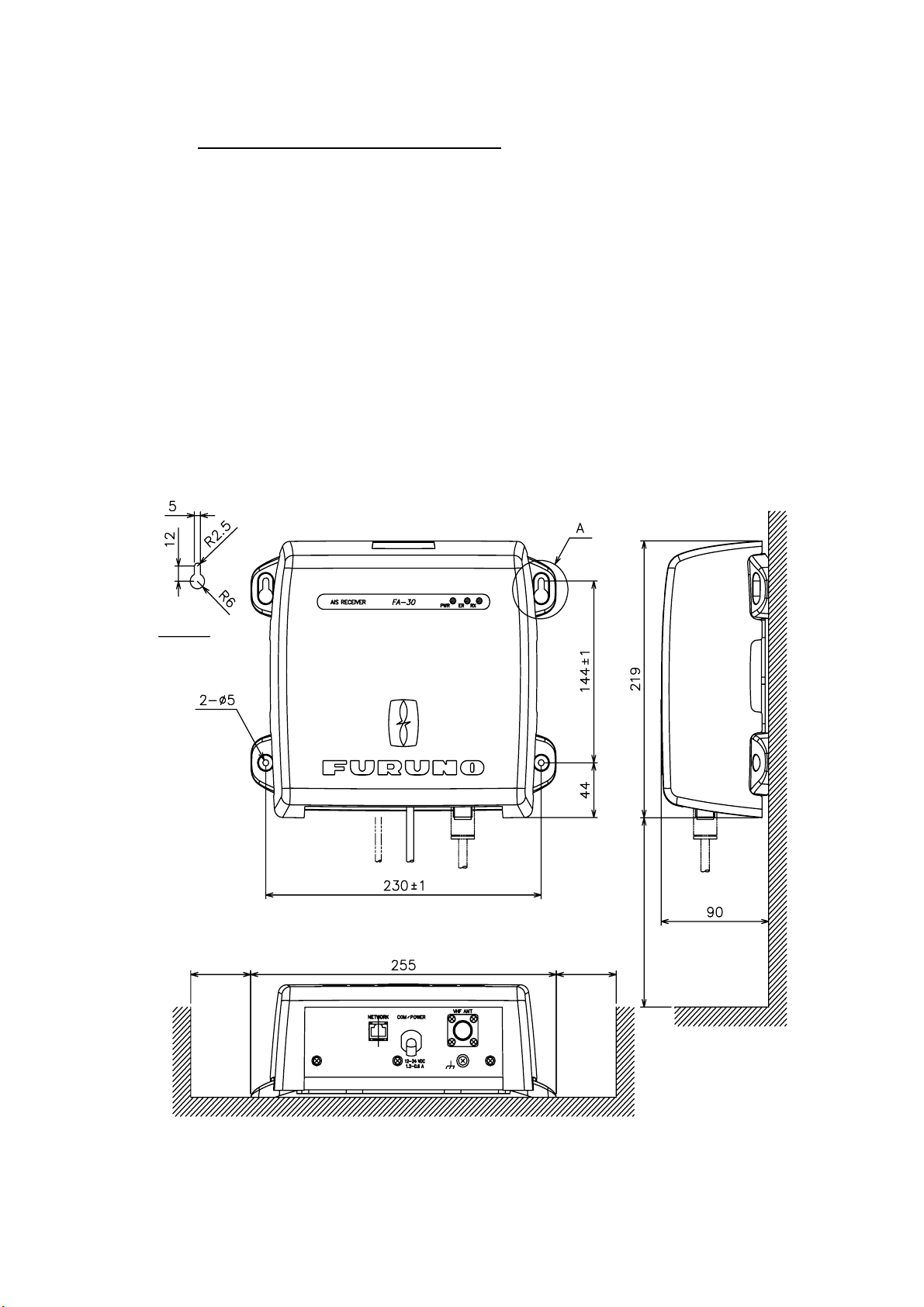

• Fix the unit to the mounting location with 4x20 self-tapping screws (supplied).

MORE THAN

"A" DETAIL

MORE THAN

All dimensions

in millimeters.

MORE THAN 150
