Furuno GP-39 Manuel utilisateur

Mod

el:

GP-39

Using the GP39 as an SCX-21

(NMEA0183) Display and Setting

Device

1. Navigation Display for SCX-21

2. Setting Menus for SCX-21

3. Interconnection and Settings

3.1. Interconnection

3.2. Setting – Operation Mode

3.3. Update Guidance

INDEX

Model:

GP-39

with

Model:

SCX-21

GP-39 version 03.01 software and

above includes a function, which allows

the GP39 to be used as a data display as

well as an initial setting device of the

SCX-21 SATELLITE COMPASS. This

document describes the displays and

setting options, as well as interconnection

and setup instructions.

1. Navigation Displays for SCX-21

The following display pages are added to the GP-39 with v3.01 software and above to

show data from an SCX-21.

Display

Example

Remarks

Satellite Monitor

In addition to the conventional page,

GNSS satellite display, 4-antenna

display, and masking area display are

also supported.

Heading

The heading data from SCX-21 is

displayed in the same graphical image

as the RD-33, SC-70/130, etc.

3-Axis Speed

3-axis speed is indicated numerically

with arrows to indicate the transverse

speed at the bow and stern.

ROT

he ROT meter as well as heading and

SOG helps to see how own ship is

turning.

Attitude –

Roll/Heave/Pitch

The Altitude page shows how own

ship is rolling, pitching, and heaving

graphically and numerically.

2. Setting Menus for SCX-21

In addition to the conventional GP-39 settings, the following items are added.

 Prohibited GNSS satellite (QZSS, GPS, GLONASS, Galileo)

 Offset (Heading, Pitch, Roll, SOG/3-Axis SPD, Air Pressure, Air Temperature)

 Smoothing (SOG/COG, 3-Axis Speed, ROT)

 DR time

 Ship size, antenna location, 3-axis speed position

 I/O Setup (Data2, Data3) (Data 2 is output only)

 While the SCX-21 has three (3) output ports, Data 1 is used to connect to the GP-

39 and NMEA0183 data is output from Data 2 and 3.

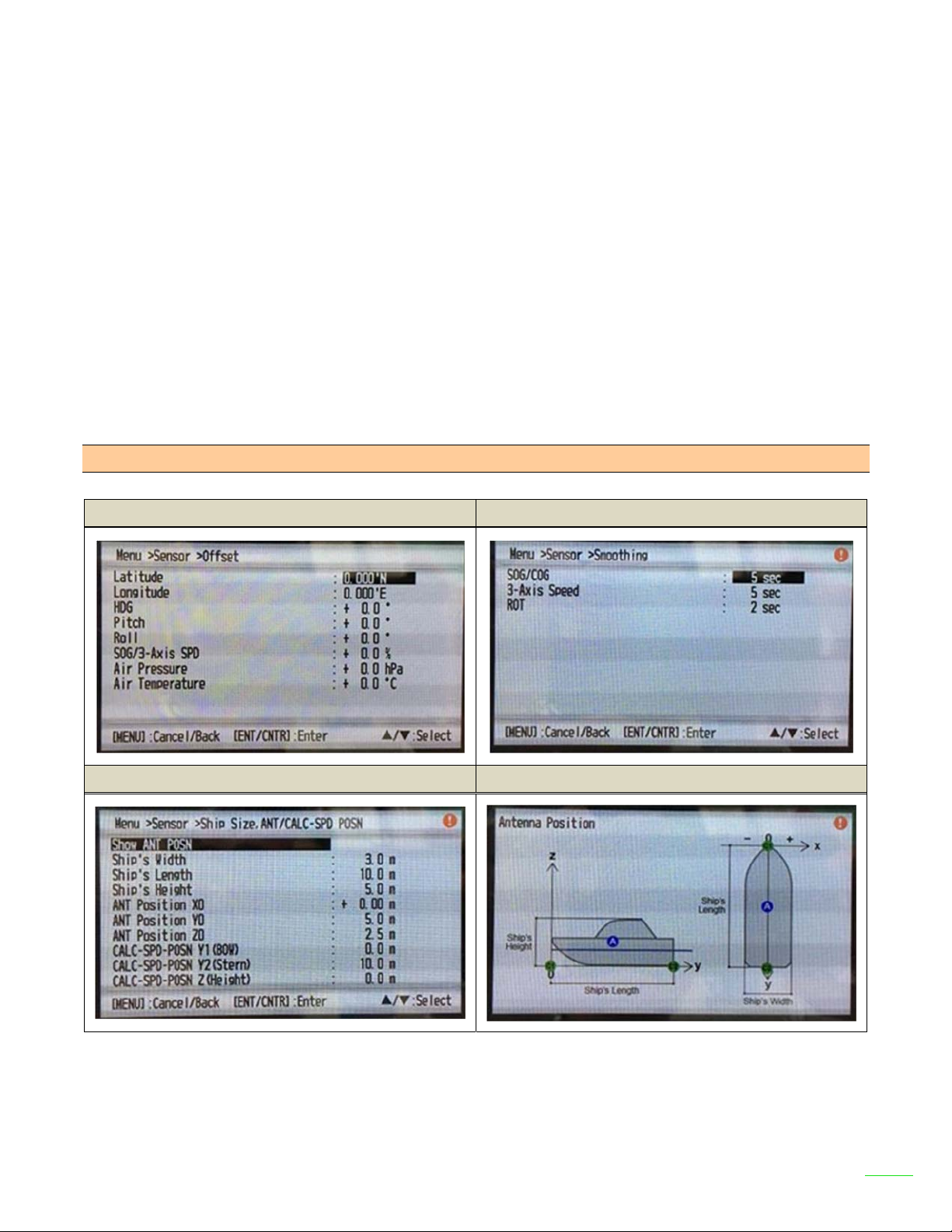

Sample Screens

Offset

Smoothing

Ship Size, ANT/CALC-SPD POSN

Antenna Position in Illustration

3. Interconnection and Settings

3.1. Interconnection

Notes:

(1)

When the SCX-21 is connected to the GP-

39, the original antenna GPA-017 or

GPA-C01 CANNOT be used.

(2) In the configuration of an SCX-21 with a GP-39, the GP-39 NMEA0183 output port is occupied

by the SCX-21. In order to output/input data from/to the SCX-21, utilize Data 2 and

Data 3 ports of SCX-21. (Data 2 is output only)

3.2. Setting – Operation Mode

Change the operation mode of the GP39 to make the GP-39 work as an SCX-21 display.

Option 1 – When turning the power on for the

first time…

When the SCX-21 is turned on for the first time,

the Installation menu will launch: Access

[Operation Mode] and select [SCX-21].

(Default: [GP-39]) After changing the mode,

the GP-39 will restart.

Make sure to connect the GP-39 to the SCX-21 – Data 1 port.

Option 2 – If the GP-39 has been turned on

before…

In [Menu] – [System] – [Operation Mode],

select [SCX-21]. (Default) [GP-39]) After

changing the mode, the GP-39 will restart.

3.3. Update Guidance

For a GP-39 with v02.01 or earlier, update to v03.01 or higher to connect to the SCX-

21.

If the GP-39 is already loaded with v3.01 or higher, change the operation mode to

[SCX-21] to use the GP39 with the SCX-21. Set the mode to [GP-39] as default to use

it as a GP-39 with a GPA-017 or GPA-C01 GPS antenna.

--- END ---

- SATELLITE COMPASS is trademarks of FURUNO.

- All brand and product names are registered trademarks, trademarks or service marks of their respective holders.
