Fujitsu 9373329060 Manuel utilisateur

P/N9373329060

KEEP THIS MANUAL FOR FUTURE REFERENCE

BEWAHREN SIE DIESES HANDBUCH ZUM SPÄTEREN NACHSCHLAGEN AUF

CONSERVEZ CE MANUEL POUR RÉFÉRENCE ULTÉRIEURE

CONSERVE ESTE MANUAL PARA SU FUTURA CONSULTA

CONSERVARE IL PRESENTE MANUALE PER FUTURE CONSULTAZIONI

ΦΥΛΑΞΤΕ ΤΟ ΕΓΧΕΙΡΙ∆ΙΟ ΓΙΑ ΜΕΛΛΟΝΤΙΚΗ ΑΝΑΦΟΡΑ

СОХРАНИТЕ ДАННОЕ РУКОВОДСТВО ДЛЯ СПРАВОК В БУДУЩЕМ

GUARDE ESTE MANUAL PARA REFERÊNCIA FUTURA

OPERATING MANUAL

BEDIENUNGSANLEITUNG

MODE D’EMPLOI

MANUAL DE FUNCIONAMIENTO

MANUALE DI ISTRUZIONI

ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ

РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

MANUAL DE INSTRUÇÕES

English

Deutsch

Français

Español

Italiano

EλληvIkά

Русский

Português

En-1

SAFETY PRECAUTIONS

●Before using the appliance, read these “SAFETY PRECAUTIONS” thoroughly and operate in the correct way.

●The instructions in this section all relate to safety; be sure to maintain safe operating conditions.

●“DANGER”, “WARNING” and “CAUTION” have the following meanings in these instructions:

CONTENTS

SAFETY PRECAUTIONS................................................ 1

NAME OF PARTS ........................................................... 2

PREPARATORY OPERATION ......................................... 3

OPERATION ................................................................... 4

TIMER FUNCTIONS ....................................................... 6

ON/OFF TIMER ............................................................... 6

WEEKLY TIMER ............................................................. 7

TEMPERATURE SET BACK TIMER ............................... 9

OPERATING TIPS ......................................................... 10

ADJUSTING THE DIRECTION OF AIR CIRCULATION .........

FILTER LAMP RESET ................................................... 11

SELF-DIAGNOSIS ........................................................ 11

TROUBLESHOOTING .................................................. 12

WARNING!

●Do not attempt to install this controller by yourself.

●This controller contains no user-serviceable parts. Always consult authorized service personnel for repairs.

●When moving, consult authorized service personnel for disconnection and installation of the controller.

●If a problem (burning smell, etc.) occurs, turn off the electrical breaker immediately to stop operation, and

then consult authorized service personnel.

CAUTION!

●Do not expose the controller directly to water.

●Do not operate the controller with wet hands.

●Do not touch the switches with sharp objects.

●Always turn off the electrical breaker whenever cleaning the air conditioner or changing the air filter.

●Check the condition of the installation stand for damage.

●Ensure that any electronic equipment is at least one metre away from the controller.

●Avoid installing the controller near a fireplace or other heating apparatus.

●When installing the controller, take precautions to prevent access by infants.

●Do not use inflammable gases near the controller.

WARNING!

CAUTION!

This mark indicates procedures which, if improperly performed, could lead to the death

or serious injury of the user.

This mark indicates procedures which, if improperly performed, might possibly result

in personal harm to the user, or damage to property.

En-2

NAME OF PARTS

Remote controller

1Start/Stop Button

2Set Temperature Button

3Master Control Button

4Fan Control Button

5Economy Button

6Timer Mode (CLOCK ADJUST)

Button

7DAY (DAY OFF) Button

8SET BACK Button

9Set Time Button

0DELETE Button

ASET Button

BVertical Airflow Direction and

Swing Button

CHorizontal Airflow Direction

and Swing Button

DFilter Button

EOperation Lamp

FTimer and Clock Display

GOperation Mode Display

HFan Speed Display

IOperation Lock Display

JTemperature Display

KFunction Display

Defrost Display

Thermo Sensor Display

Economy Display

Vertical Swing Display

Horizontal Swing Display

Filter Display

En-3

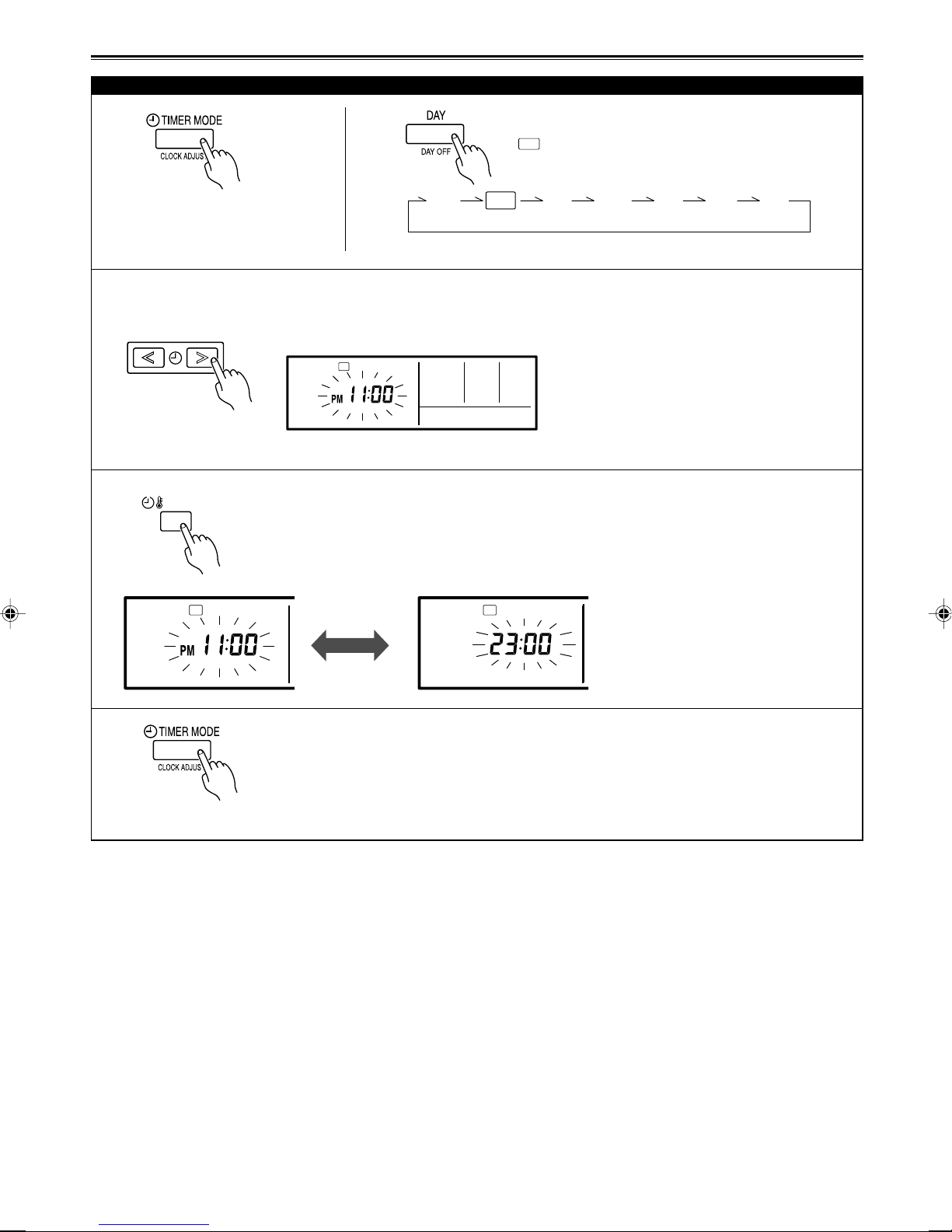

PREPARATORY OPERATION

Press the timer mode (CLOCK

ADJUST) button for 2 seconds

or more. The time display on

the remote controller will flash.

SU MO TU WE TH FR SA

Press the DAY button and select the current day.

A appears around the selected day.

Press the set time buttons to set the current time.

Press repeatedly to adjust the current time in 1-

minute increments. Press and hold to adjust the

current time in 10-minute increments.

ex. Monday PM11:00

Press again to end.

TH FR

Set the current day and time

Press the SET BACK button to switch between the

12- and 24-hour time displays.

TH FR

SET BACK

En-4

To set the operation mode

● Operation mode setting

● Room temperature setting

● Fan speed setting

OPERATION

Instructions relating to heating are applicable only to “HEAT & COOL MODEL”(Reverse Cycle).

To start/stop operation

AUTO COOL DRY HEATFAN

AUTO MEDHIGH LOW QUIET

Temperature setting range

AUTO ............................................... 18 to 30 °C

COOL/DRY ....................................... 18 to 30 °C

HEAT ................................................ 16 to 30 °C

Lower Rise

Operation lamp

Air conditioner ON: Lit brightly

Air conditioner OFF: Not lit

Press the start/stop button.

Press the master control button to set the operation mode.

If DRY is selected, the fan speed will be set to AUTO.

Press the set temperature buttons to set the room temperature.

Press the fan control button to set the fan speed.

Press the ECONOMY button to start or stop ECONOMY OPERA-

TION.

For details on the function, refer to page 10.

ECONOMY OPERATION

En-5

OPERATION

Child lock function

Press the DAY (DAY OFF) button and SET button simulta-

neously for 2 seconds or more to activate the child lock

function and lock all buttons on the remote controller.

Press the buttons again for 2 seconds or more to deacti-

vate the child lock function.

When the child lock function is activated, the mark

appears. If any button is pressed during the child lock,

the

display and flash.

Room temperature sensor selection

Press the ECONOMY button for more than 2 seconds to

select whether the room temperature is detected at the in-

door unit (remote sensor) or the remote controller.

When the thermo sensor display appears, the room

temperature is detected at the remote controller.

NOTES

•This function is locked at the factory. In order to detect the room temperature correctly, consult authorized service

personnel when using this function.

•If this function is locked, the location where the room temperature is detected cannot be changed and the

mark flashes when the ECONOMY button is pushed for 2 seconds or more.

Indoor unit

En-6

TIMER FUNCTIONS

OFF timer (See page 6.)

Use this timer function to stop air conditioner operation. The timer operates and air conditioner operation stops

after the set time has passed. The timer can be set up to 24 hours in advance.

ON timer (See page 6.)

Use this timer function to start air conditioner operation. The timer operates and air condition operation starts

after the set time has passed. The timer can be set up to 24 hours in advance.

WEEKLY timer (See page 7.)

Use this timer function to set operating times for each day of the week.

Use the DAY OFF setting to switch off timed operation for a selected day in the coming week.

Because all days can be set together, the weekly timer can be used to repeat the timer settings for all of the days.

Temperature SET BACK timer (See page 9.)

Use this timer function to change the set temperature in the operation times set for each day of the week.

This can be used together with other timer settings.

ON/OFF TIMER

Press the timer mode button to se-

lect the ON timer or OFF timer.

•Press the DELETE button to cancel the timer mode.

•The timer mode can also be canceled by changing the timer mode using the timer mode button.

NON

STOP

OFF

TIMER

WEEKLY

TIMER

No display

TH FR

Press the set time buttons to set the time.

After the time is set, the timer will start automatically.

The amount of time until the OFF timer operates that is dis-

played on the timer display decreases as time passes.

From 1 to 24 hours ex. OFF timer set for 6 hours

● To cancel

To set the ON/OFF timer

En-7

TH FR

369

12 15 18 21

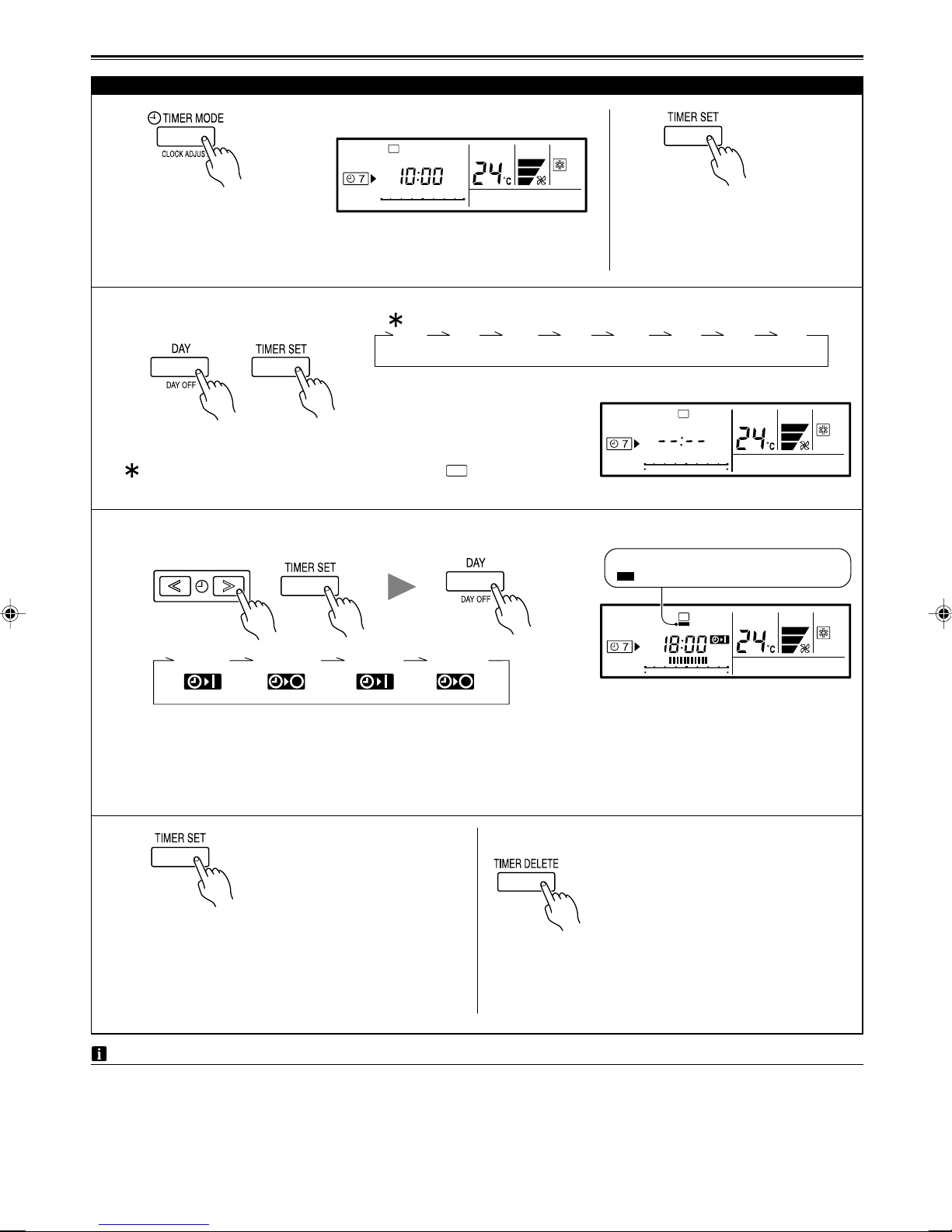

WEEKLY TIMER

Press the timer mode button to select the weekly timer.

Press the SET button for 2 sec-

onds or more.

TH FR

369

12 15 18 21

● Day of the week setting

Press the DAY button to select the day of the week, and then press the

SET button to confirm the setting.

For ALL, all of the days can be set together when a appears around

each day.

ALL SU MO TU WE TH FR SA

TH FR

369

12 15 18 21

4● Time setting

Press the set time buttons to set the time, and then press the SET button

to confirm the setting and proceed to the next ON or OFF time setting.

Up to two ON and OFF times can be set per day.

Press the DAY button to complete the time setting and return to the day

of the week setting.

When the operating time is set, the

mark appears.

Repeat steps 3and 4.

To complete the weekly timer settings, press the SET

button for 2 seconds or more.

● To delete the operating time

If the DELETE button is pressed during

steps 3or 4, the operating time for the

selected day will be deleted.

If all the days are selected, the operating

times for all of the days will be deleted.

NOTES

•The operating time can be set in 30-minute increments only.

•The OFF time can be carried over to the next day.

•The ON timer and the OFF timer functions cannot be set using the weekly timer. Both an ON and OFF time must be set.

Weekly timer setting

ON-1 OFF-1 ON-2 OFF-2

ex. The timer is set for 7:00-18:00.

123

En-8

TH FR

369

12 15 18 21

TH FR

369

12 15 18 21

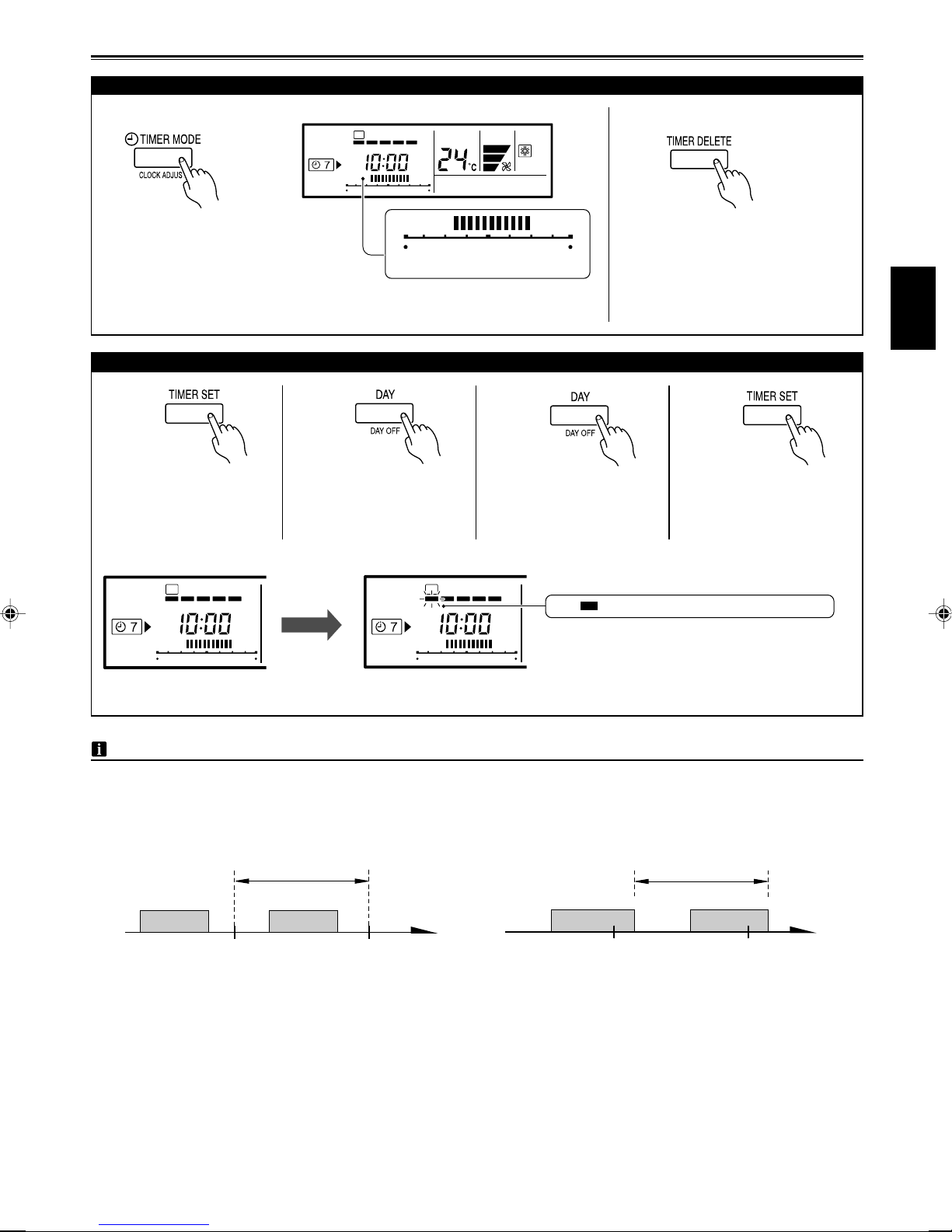

WEEKLY TIMER

● To start

When the weekly timer is selected, the

timer starts automatically.

The operating time for the current

day is displayed.

● To cancel

•Press the DELETE button to cancel

the timer mode.

•The timer mode can also be

canceled by changing the timer

mode using the timer mode button.

To set the DAY OFF (for a holiday)

During the weekly timer,

press the SET button for 2

seconds or more to set the

day.

Select the day to set the DAY

OFF.

Press the DAY (DAY OFF)

button for 2 seconds or

more to set the DAY OFF.

Press the SET button for 2

seconds or more to com-

plete the DAY OFF setting.

243

●To cancel

Follow the same procedures as

those for setup.

ex. The DAY OFF is set for Monday.

NOTES

•The DAY OFF setting is only available for days for which weekly settings already exist.

•If the operating time carries over to the next day (during a next day setting), the effective DAY OFF range will be set as

shown below.

● Normal ● Next day setting

Setting dayPreceding day Next day Setting dayPreceding day Next day

•The DAY OFF setting can only be set one time. The DAY OFF setting is cancelled automatically after the set day has

passed.

The mark flashes under a day of the week.

ON OFF ON OFF

DAY OFF

WEEKLY WEEKLY

WEEKLY

ON OFF ON OFF

DAY OFF

WEEKLY timer operation

TH FR

369

12 15 18 21

369

12 15 18 21

ex. Operating time 7:00-18:00

En-9

TEMPERATURE SET BACK TIMER

Press the SET BACK button to change to the SET BACK con-

firmation display.

The SET BACK operating time and the set temperature will

be displayed.

Press the SET button for 2

seconds or more.

3● Day setting ● Operating time setting

Follow the same procedures to set the operating time as those for the weekly timer. The DELETE button is also used

as described in the procedures for the weekly timer.

NOTES

•The SET BACK timer only changes the set temperature, it cannot be used to start or stop air conditioner operation.

•The SET BACK timer can be set to operate up to two times per day but only one temperature setting can be used.

•The SET BACK timer can be used together with the ON, OFF, and weekly timer functions.

•The SET BACK operating time is displayed only in the SET BACK confirmation display. (Refer to step 1 for the SET BACK

confirmation display.)

SET BACK

TH FR

369

12 15 18 21

TH FR

369

12 15 18 21

ex. When setting all days together

● Temperature setting Press the set temperature buttons to set

the temperature. (The temperature setting

range is the same as the range for the

operation mode.)

ex. Operating time 15:00–22:00

Repeat steps 3and 4.

Press the SET button for 2 sec-

onds or more to complete the

temperature SET BACK timer

settings.

ON OFF

24°C24°C

28°C

SET BACK temperature

Normal temperature

Temperature SET BACK timer operation

● To start

SET BACK

Press the SET BACK button. The SET BACK confirmation display appears

for 5 seconds, and then the timer starts automatically.

ex. Display during SET BACK timer operation

(The operating time will not be displayed.)

● To cancel

Press the SET BACK button, and then

press the DELETE button while the

SET BACK confirmation display is dis-

played. Even if the SET BACK button

is pressed again, the SET BACK timer

will be cancelled.

Temperature SET BACK timer setting

TH FR

369

12 15 18 21

If there is no existing

SET BACK tempera-

ture setting, “- -”will

be displayed for the

temperature.

TH FR

Table des matières

Autres manuels Fujitsu Télécommande

Fujitsu

Fujitsu UTY-RHRYT Manuel utilisateur

Fujitsu

Fujitsu UTY-RNRYZ1 Manuel utilisateur

Fujitsu

Fujitsu Inverter Halcyon ASU12RMLQ Manuel utilisateur

Fujitsu

Fujitsu ASU9RLF1 Manuel

Fujitsu

Fujitsu UTB-YDB Manuel utilisateur

Fujitsu

Fujitsu UTY-RCRYZ1 Manuel utilisateur

Fujitsu

Fujitsu UTY-LNHUM Manuel utilisateur

Fujitsu

Fujitsu Airstage UTB- LB Series Manuel utilisateur

Fujitsu

Fujitsu UTY-RNRYZ2 Manuel utilisateur

Fujitsu

Fujitsu UTY-LNHUM Manuel utilisateur

Fujitsu

Fujitsu UTY-RHRY Manuel utilisateur

Fujitsu

Fujitsu ASU12RLF Manuel utilisateur

Fujitsu

Fujitsu UTY-RNRGZ5 Manuel utilisateur

Fujitsu

Fujitsu UTY-LBTUC Manuel utilisateur

Fujitsu

Fujitsu UTY-DMMYM Manuel utilisateur

Fujitsu

Fujitsu UTY-RVRY UTY-RVRG UTY-RVRX Manuel utilisateur

Fujitsu

Fujitsu UTY-RCRYZ1 Manuel utilisateur

Fujitsu

Fujitsu Airstage UTY-DCGYZ1 Manuel utilisateur

Fujitsu

Fujitsu Inverter Halcyon ASU12RMLQ Manuel utilisateur

Fujitsu

Fujitsu Remote Control Manuel utilisateur

Fujitsu

Fujitsu A6110 - LifeBook - Core 2 Duo 2.2 GHz Manuel utilisateur

Fujitsu

Fujitsu 9373329428 Manuel utilisateur

Fujitsu

Fujitsu UTY-RSRY Manuel utilisateur

Fujitsu

Fujitsu UTY-RNRT Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
