Fujitsu ScanSnap S500 Guide de configuration

BEFORE CLEANING

Open the ADF while pulling the cover open lever

Paper

Chute

Cover

ADF Cover

Cover Open

Lever

2

3

4

1Pad Assy

Wipe downwards. When cleaning take care to prevent the cloth from catching on the metal parts.

ADF Glass Surfaces x 2

Located on the ADF cover and opposite side. Clean lightly.

Clean lightly taking care not to scratch the surface.

Pick Roller

Plastic Rollers x 4

Turn the Scanner OFF while cleaning the following locations

Using cleaning paper moistened with F1 Cleaner

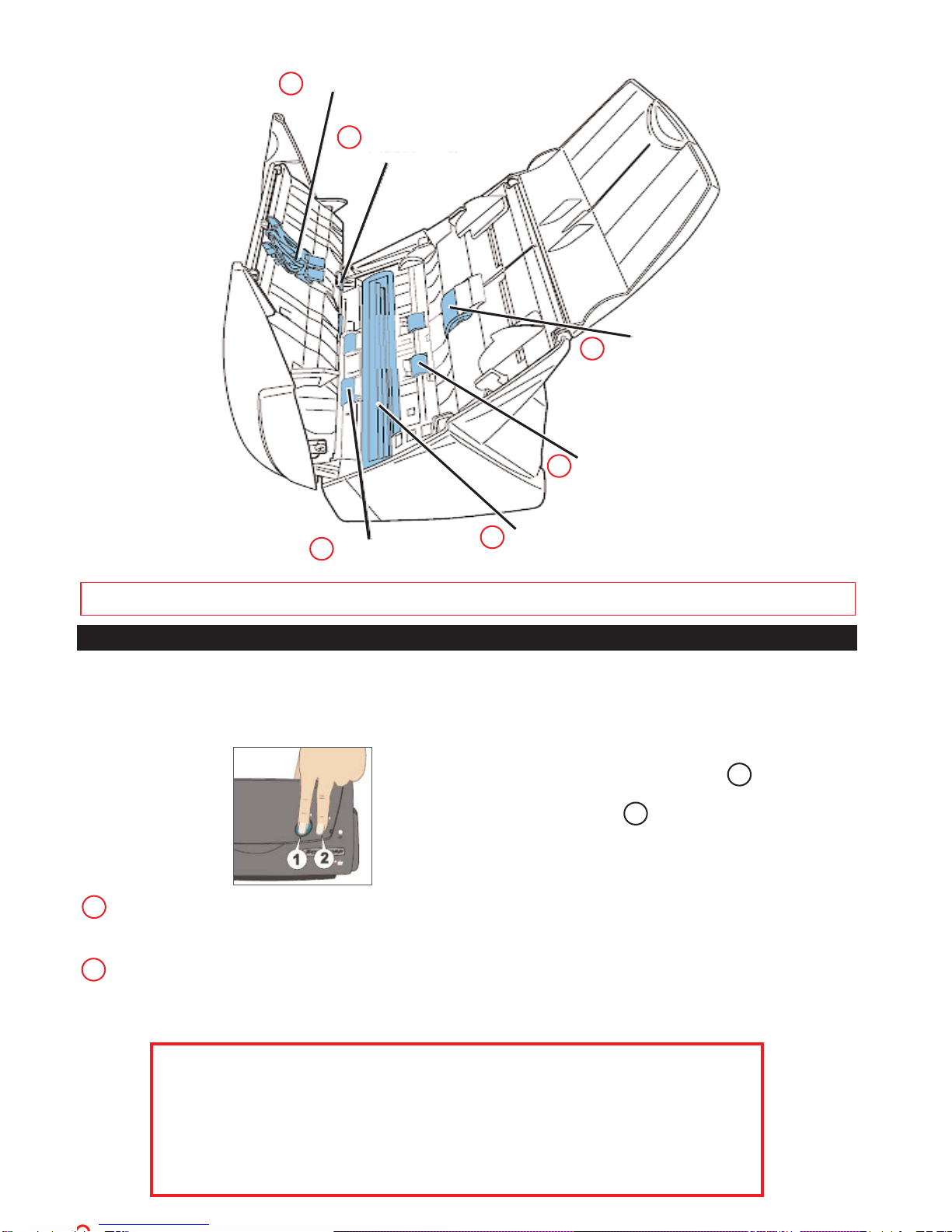

Cleaning Instructions for

ScanSnap S500

62

3

4

1

5

Pad Assy

Plastic

Rollers

Pick Roller

Feed Rollers

Glass

Eject Rollers

Parts Part Number

Consumables

Pad PA03360-0002

Pick Roller PA03360-0001

Cleaning Kit SC-CLE-KIT1

It is recommended that these items be

cleaned EVERY 1,000 SCANS

While holding down the SCAN button

Press the POWER button

Rollers will rotate

To rotate the Feed and Eject Rollers, press the POWER button while holding down the

SCAN button.

As a guideline, six presses of the POWER button make the rollers rotate one full turn.

6

5Clean lightly taking care not to roughen the surface.

Feed Rollers x 2

Turn the Scanner ON while cleaning the following locations

Clean lightly taking care not to roughen the surface.

Eject Rollers x 2

1

2

Using cleaning paper moistened with F1 Cleaner

For further information please refer to the

ScanSnap S500 Image Scanner Operators Guide

which can be found on our Website:

www.fel.fujitsu.com/scanner

Cleaning Instructions for ScanSnap S500Fujitsu Europe LImited

62

3

4

1

5

Pad Assy

Plastic

Rollers

Pick Roller

Feed Rollers

Glass

Eject Rollers
