fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

fi-4530C & fi-5530C CONSUMABLE REPLACEMENT

AND CLEANING INSTRUCTIONS

CG00000-718301RevisionC

fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

Cotton Swabs

Qty 1 100/pack

F1 Cleaner

IsopropylAlcohol Qty 1

Cleaning Paper

Qty 1 10/pack

Lint Free

Cleaning Cloths

Qty 2 20/pack

PadAssembly Qty 5

Pick Roller Qty 2

KIT CONTENTS

Note: Kit Contents may Vary

fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

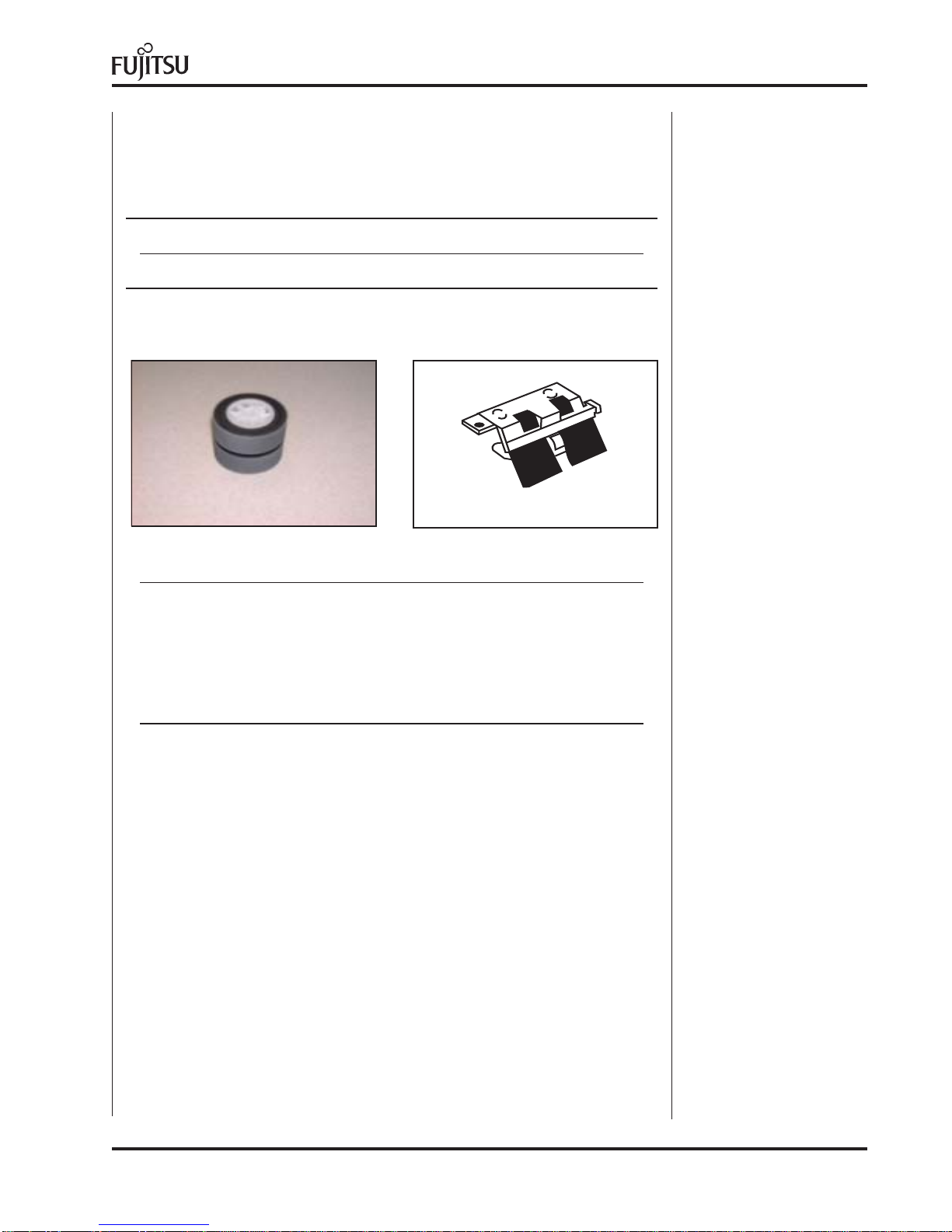

CONSUMABLES LIST

Description Qty Life Fujitsu P/N

Pick Roller 1 200,000 PA03334-0001

Pad Assembly 1 100,000 PA03334-0002

Note:

Replacement Cycles are estimated guidelines established by testing

with A4/Letter sized woodfree and wood based 17 lb paper. NCR or

Carbonless paper has chemical composition which damages the

Pad, and the Pick Roller. Cleaning of the consumables will be

required more frequently to avoid feed problems. Consumable life

will be reduced if NCR or Carbonless paper is scanned.

Pad AssemblyPick Roller

fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE PAD ASSEMBLY

• Remove all documents from

the ADF Paper Chute. Open

the ADF by pressing the

ADF button.

• Remove the Pad Assembly

by pressing on the top of the

pad assembly and sliding it

to the left to remove.

• Attach the new Pad

Assembly by inserting the

claws in the holes on the

ADF, pressing on the top of

the pad assembly and

sliding it to the right to lock it

in place.

A defective or improperly installed Pad Assembly can cause misspicks,

skew, or double fed documents. To replace the Pad Assembly perform

the following steps.

Note:

After replacement of any consumable reset the counter for that

consumable by following the instructions in your Operator’s Guide.

These instructions can be found under the “Replacing

Consumables” section of the Operator’s Guide.

OpenADF

to Front

ADF button

Claws

fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE PICK ROLLER

• Remove all documents from

the ADF paper chute and

take it off of the scanner.

• Open the ADF using the

ADF button.

• Pinch the knobs on the sheet

guide and lift to remove it from

the scanner. Be careful not to

let the ADF close while your

fingers are in side.

• Rotate the Pick Roller

Bushings on each end of the

Pick Roller Shaft in the

direction of the arrow so

each bushing is pointing up

don’t break the plastic tabs

that hold each bushing in

place.

• Lift the Pick Roller shaft up

being careful not to let the

ADF fall closed while your

fingers are inside the ADF.

The bushing is fixed to the

shaft on the end shown. On

the opposite end of the shaft

the bushing is loose and will

fall off. Use caution so you

don’t loose this bushing.

ADF Paper Chute

Front of

Scanner

ADF Button

PickRollerBushing

(one on each end

of this shaft)

fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

• Lift the Pick Roller Shaft out

of the scanner in the

direction of the arrow. The

bushing is fixed to the shaft

on the end shown. On the

opposite end of the shaft the

bushing is loose and will fall

off. Use caution so you

don’t loose this bushing.

• Remove the loose bushing

from the end of the Pick

Roller Shaft. Lift up slightly

on the Tab shown and slide

the Pick Roller off of the

shaft while the assembly is

out of the scanner.

• Attach the new Pick Roller

by sliding it on to the shaft.

Rotate the Pick Roller to

align the screw on the shaft

with the slot on the Pick

Roller. Be sure the Pick

Roller tab clicks and the Pick

Roller is locked in place on

the shaft.

REPLACING THE PICK ROLLER (CONT.)

Slot on Pick

Roller

Screw On

Shaft

Tab

Pick

Roller

Shaft

fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

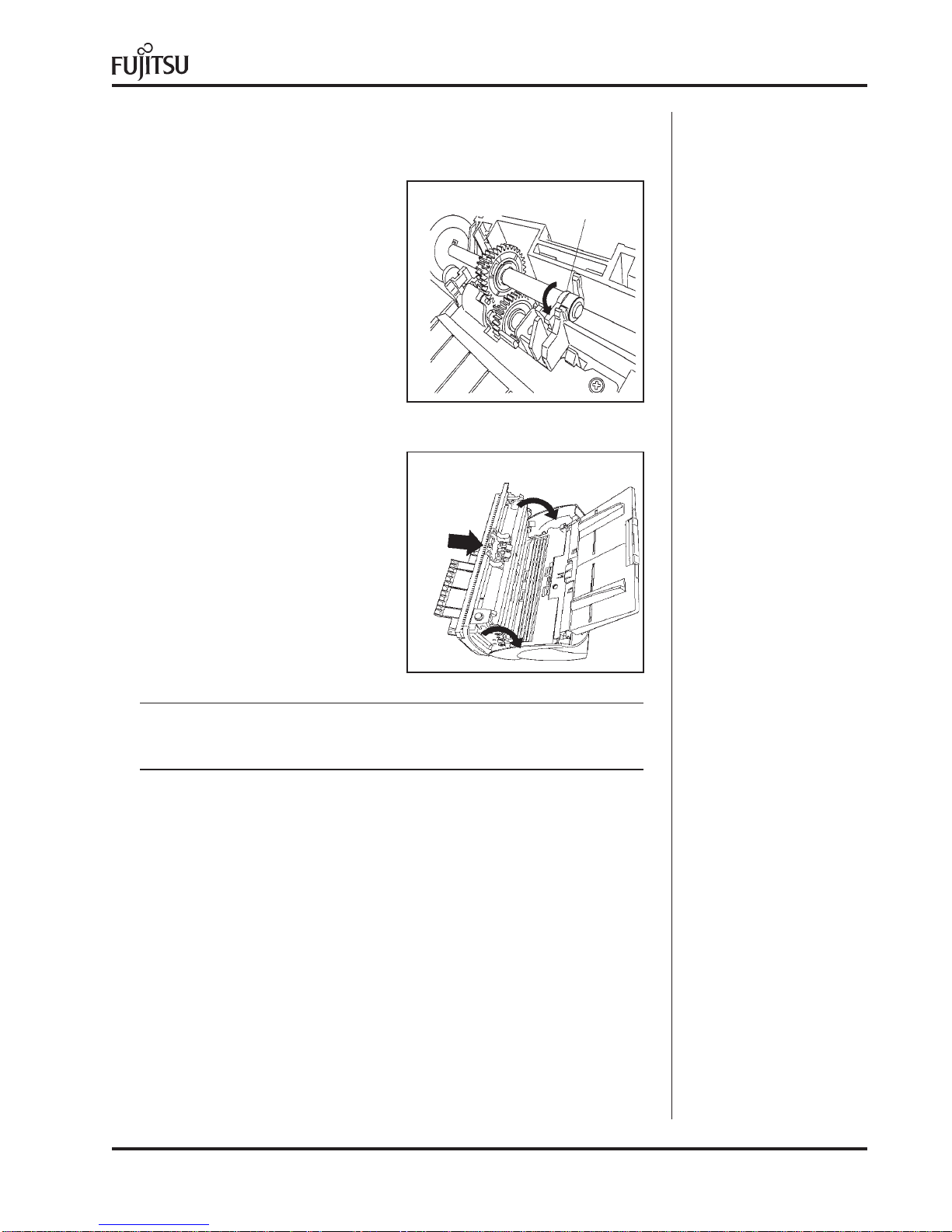

• Reinstall the Pick Roller

Shaft with the new Pick

Roller installed in reverse

order used to remove the

Pick Roller Shaft.

• Be sure to lock the bushings

in place on both ends of the

shaft. Replace the sheet

guide by pressing in the

center until the guide snaps

in place and is locked.

REPLACING THE PICK ROLLER (CONT.)

Note:

Be sure to reset the Pick Counter as shown in the Operator’s Guide

under Replacing Consumables section for replacing the Pick Roller.

Press the

Center of the

Sheet Guide

PickRoller

Bushing

fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

CLEANING LOCATIONS AND FREQUENCIES

Note:

The scanner will need to be cleaned every day (or possibly more than

once a day) if the following paper is scanned.

• Paper with special coating such as carbonless paper.

• Paper with large amount of printing. (Heavy toner or ink)

• Documents with toner that is not fused properly.

CLEANING MATERIALS

Location Tools Frequency

Cleaning Sheets Every 1,000 Sheets

Cloth With F1 Cleaner Every 5,000 Sheets

Plastic Feed Rollers Cloth With F1 Cleaner Every 5,000 Sheets

Sheet Guides Cloth With F1 Cleaner Every 5,000 Sheets

Eject Rollers Cloth With F1 Cleaner Every 5,000 Sheets

Feed Rollers Cloth With F1 Cleaner Every 5,000 Sheets

Glass Surfaces Cloth With F1 Cleaner Every 5,000 Sheets

Ultra Sonic Sensors Cloth With F1 Cleaner Every 5,000 Sheets

Pick Roller and Pad

Cotton

Swabs

F1 Cleaner

Isopropyl Alcohol

Cleaning Paper

Lint Free

Cleaning Cloths

fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

CLEANING THE ROLLERS WITH THE CLEANING SHEET

• Set the Hopper Guides to

the widest width possible.

The cleaning sheets are designed to remove only loose paper dust and

ink from the rollers. Use the sheet approximately every 1,000 sheets

scanned. They are to be used in between the thorough cleanings of the

scanner. Using the cleaning paper does not take the place of the

more complete cleanings described later in this section

• Spray theCleaning Paperlightly withF1Cleaner andplace theCleaning

paperagainst the rightedge ofthe HopperGuide. Using theScanning

Application scan the cleaning paper. Do Not Save These Images. This

operationisused onlyto passthecleaning paperthrough thepaperfeed

path. Check the path to see if it needs further cleaning, if you find debris

inthe paperpathperformthiscleaningor theCLEANING THE ADF WITH

LINT-FREE CLOTHS inthe followingsteps.

• Placethe CleaningPaper againsttheLeftHopperGuide andperform the

previousstep.

Hopper Guides

fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

• Turn Scanner power off.

• Open the ADF cover by

pressing the ADF button.

Disconnect the AC power

plug. Let the scanner cool

for at least 15 minutes after

operation. This is to prevent

burns to your skin as the

lamps will heat the surface

of the glass in the feed path.

• Use F1 Cleaner (90% or

higher Isopropyl Alcohol) on

a lint free cloth and clean the

areas shown in the drawing

to the right. (See following

steps to clean properly)

• Clean the Pad Assembly

using a downward stroke

with the lint free cloth

mostened lightly with F1

Cleaner (90% or higher

Isopropyl Alcohol).

CLEANING THE ADF WITH LINT-FREE CLOTHS

Note:

The glass surface inside the fi-4530C ADF becomes hot during

scanner operation. Before performing this cleaning disconnect the

AC adapter from the power outlet and wait at least 15 minutes for

the scanner to cool.

CLEANING THE PAD ASSEMBLY.

Front of

Scanner

ADF button

Pad

Assy

Ultra Sonic

Sensors (2)

Feed Rollers (2)

Eject Rollers (2)

Glass (2) Plastic

Rollers (4)

Pick

Roller

Sheet Guide

Clean the Rubber Portion

in Direction of Arrows
