Fujitsu X178 Manuel utilisateur

Display Unit

Fujitsu x178

User’s Guide

Brugervejledning

Käyttäjän käsikirja

Manuel d’utilisation

Benutzerhandbuch

Manual do utilizador

Guía de usuario

Användarhandbok

Fujitsu 8/16/92 5:16 PM Page 2

Display Unit Fujitsu x178

User’s Guide

First Edition Document Number:

August 1999

This document was produced by Fujitsu Computers Oy in Espoo, Finland.

If you have comments or suggestions, we’d like to hear from you!

Mail: Internet:

Fujitsu Computers Oy [email protected]

User Documentation

PO Box 10 X.400:

FIN-02611 Espoo G=user S=documentation

Finland O=fujitsu OU1=fin1703

P=fujitsu A=elisa C=fi

Fujitsu Computers Ltd (hereinafter Fujitsu) endeavours to ensure that the information

in this document is correct, but accepts no liability for any error or omission in the

same.

Any procedures described in this document for operating Fujitsu products should be

read and understood by the operator before such products are used. To ensure that

Fujitsu products function without risk to safety or health, such procedures should be

strictly observed by the operator.

The development of Fujitsu products and services is continuous and published

information may not be up to date. Any particular issue of a product may contain part

only of the facilities described in this document or may contain facilities not described

herein. It is important to check the current position with Fujitsu.

Specifications and statements as to performance in this document are Fujitsu estimates

intended for general guidance. They may require adjustment in particular

circumstances and should therefore not be taken as formal offers or commitments.

Statements in this document are not part of a contract or program product licence

save insofar as they are incorporated into a contract or licence by express written

reference. Issue of this document does not entitle the recipient to access to or use of

the products described, and such access or use may be subject to separate contracts or

licences.

Microsoft, Windows, Windows NT and the Windows logo are registered trademarks

of Microsoft Corporation in the United States and other countries. Other products

mentioned may be trademarks or registered trademarks of their respective owners.

ENERGY STAR is a U.S. registered trademark.

©Copyright Fujitsu Computers Ltd 1998

Fujitsu 8/16/92 5:16 PM Page 3

Contents

Your new display unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Selecting a suitable location . . . . . . . . . . . . . . . . . . . . . . . 5

Installing your display unit . . . . . . . . . . . . . . . . . . . . . . . . 6

Display power management . . . . . . . . . . . . . . . . . . . . . . . . 8

Adjusting the picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cleaning your display unit . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Technical fact sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Contents

Fujitsu 8/16/92 5:16 PM Page 4

English

Your new display unit

Your new display unit is a highly ergonomic colour display unit

■supporting high screen refresh rates and full scan flicker-free

picture quality

■allowing easy setup through Plug-and-Play

■with On Screen Display menus for user control

■complying with MPR90 and TCO92 recommendations for low

electromagnetic fields

■meeting TCO’99 environmental specifications

■with power management features that allow the unit to enter a

low power consumption state after a period of inactivity.

When you unpack the display unit, check to make sure that you have

the items below. A power cable is included in your system unit

package.

Fujitsu 8/16/92 5:16 PM Page 6

English

When you set up and use your display unit, follow the safety

instructions below.

Do not use a continental European type power cable in the

United Kingdom and Denmark. Use a 3-prong plug to ensure

an earthed connection.

This equipment must be connected to an earthed outlet which

is close to the display unit and accessible in case you need to

disconnect the display.

Do not connect an extension cord.

If you need to replace your cords, contact your Fujitsu sales

representative.

Do not under any circumstances open the display unit cabinet.

Slots in the cabinet are provided for ventilation. Do not block

the ventilation slots in the display unit cabinet.

■

Safety information

Fujitsu 8/16/92 5:16 PM Page 7

English

Place the display unit at least 30 cm from other electrical or

heat-emitting equipment and allow at least 10 cm on each side

for ventilatiion.

Place the display unit in a position where no light shines

directly onto or is reflected on the screen.

To reduce eye strain, avoid installing the display unit against a

bright background such as a window.

Place your display unit at a comfortable viewing height and

distance: most people prefer the top line of the text to be at or

just below eye level and the display within arm’s length (a

distance of 45 to 90 cm) when you are comfortably seated. You

can tilt and swivel the display unit to get a good viewing angle.

This display unit has an anti-glare antistatic screen. The use of

an additional anti-glare screen is not recommended as it will

impair picture quality.

■

Selecting a suitable location

Fujitsu 8/16/92 5:16 PM Page 8

English

WARNING!

Before you start cabling your display unit, check that the

power is off on all units. To avoid any possibility of electric

shock, always connect your equipment to properly earthed

outlets.

The base of the display is already installed; do not use the

monitor withour it. Place the display unit on a level and sturdy

surface.

Connect the display unit’s signal cable (a)to the system unit

and scure it with the two screws. The connector pins may be

protected against damage by a plastic cover which needs to

be removed first.

Plug the display unit’s power cable (b)first to the back of the

display unit, as shown below.

Then plug the power cable (b)to a 100V-240V earthed

electrical outlet or to the system unit, if it has an outlet for the

display power cable, as shown below.

Installing your display unit

Fujitsu 8/16/92 5:16 PM Page 9

English

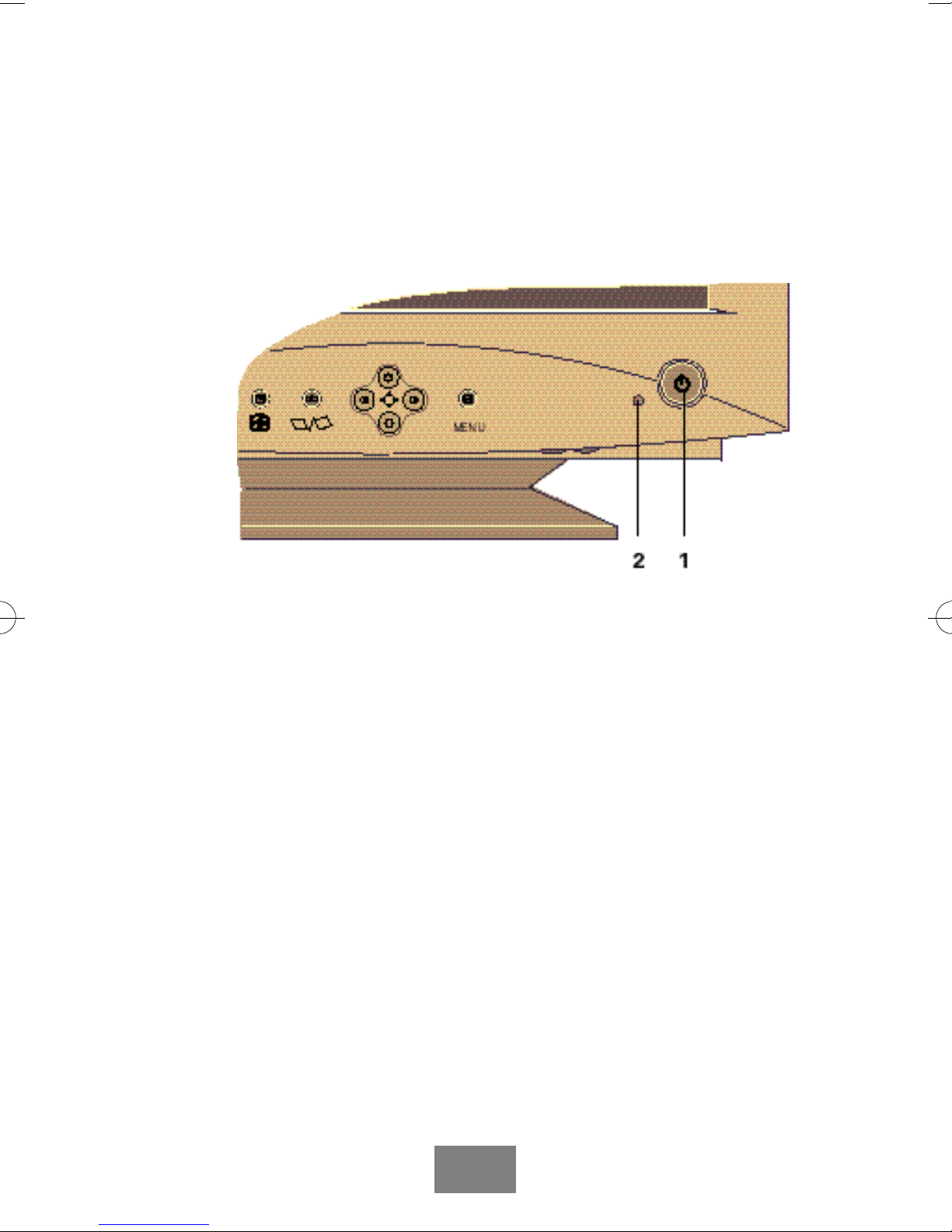

Turn on the display unit using the power switch (1)and check

to make sure that the power LED (2)is on, as shown below. If

not, repeat steps 2,3 and 4 or refer to the Troubleshooting

section of this guide.

Turn on the power to the computer. The picture will appear

within about 15 seconds. During its start-up the computer

recognizes the display automatically provided that the display

unit has been turned on. Adjust the picture to obtain optimum

picture quality. See the Adjusting the picture section in this

guide for more information.

Fujitsu 8/16/92 5:16 PM Page 10

NOTE!

The power button does not disconnect the display unit from

the mains. The only way to isolate the display unit com-

pletely from the mains supply is to unplug the mains cable.

There is no need to turn your display unit on and off

If the power management function of your computer is enabled,

your display unit turns on and off automatically. You control power

management from your computer. See your computers’EasyGuide

for more information.

Reducing power consumption

Once you have set the timeout periods through the power

management function in your computer, the computer will enter

power savings modes automatically after periods of inactivity.

NOTE!

The sereensaver function (where the screen image is

replaced by a pattern) does not affect power consumption.

The purpose of the sereensaver is to extend the usable life

of the display.

English

Display power management

MODE

Operating

Standby

Suspend

Power-off

Unplugged

LED

green

amber

amber/green blinking

amber blinking

not illuminated

POWER

CONSUMPTION

≤120 W

≤70 W

≤15 W

≤3 W

0 W

Fujitsu 8/16/92 5:16 PM Page 11

English

You can adjust the screen display using the buttons and controls

located below the screen.

Adjusting the picture
