Fujitsu TE988G Color Monitor

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and if

not installed and used in accordance with the instruction manual may cause harmful

interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following

measures:

(1). Reorient the receiving antenna.

(2). Increase the separation between the equipment and receiver.

(3). Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

(4). Consult the dealer or an experienced radio TV technician for help.

Notice:

(1) The changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

(2) Shielded interference cables must be used in order to comply with the emission

limits.

Energy Declaration

This monitor is equipped with a function for saving of energy which supports the VESA

Display Power Management Signaling ( DPMS ) standard. This means that the monitor must

be connected to a computer which supports VESA DPMS to fulfill the requirement in the

NUTEK specification. Time settings are adjusted from the system unit by software. From

indicated inactivity to Power Saving Position A2 the total time must not be set to more than

70 minutes.

NUTEK VESA State LED Indicator Power Consumption

Normal operation ON Green 120W (Max.)

Power Saving Position A1 SUSPEND Orange 15W (Max.)

Power Saving Position A2 OFF Orange-flash 5W (Max.)

We recommend you to switch off the monitor when it is not in use for quite a long time.

Fujitsu TE988G Color Monitor

Important Safeguards

1. Follow all warnings and instructions marked on the video monitor.

2. Do not use attachments which is not recommended by the video monitor manufacturer

they may cause hazards.

3. Do not expose the monitor to rain, water, moisture or direct sunlight.

4. Do not place near or over a radiator or other heat-generating equipment.

5. Do not place this video monitor on an unstable cart, stand or table. The video monitor

may fall and cause serious injury to child or adult.

6. Do not block or cover ventilation opening with any material. The openings & slots on

the

cabinet provide necessary air flow for heat dissipation. The unit should never be

enclosed

or built upon unless adequate ventilation is provided.

7. Do not insert any objects into the video monitor cabinet's slots as they may touch

dangers

voltage points or short out parts that could result in a fire or electric shock.

8. This video monitor is equipped with a 3-wire grounding type plug. This plug will only

fit

into a grounding-type power outlet. This is a safety feature. If you are unable to insert

the

plug into the outlet, contact your electrician to replace your obsolete. Do not defeat the

safety purpose of the grounding type plug.

9. Do not overload wall outlets & extension cords as this can result in fire or electric

shock.

10. Do not attempt to service this unit yourself as opening or removing covers may expose

you to dangerous voltage or other hazards.

11. When the video monitor unused for a long time, please unplug it from the wall outlet.

12. Unplug this video monitor from the wall outlet and refer servicing under following

conditions:

a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the video monitor.

c. If the video monitor does not operate normally according to operating instructions.

d. If the video monitor has been dropped or the cabinet has been damaged.

NOTE:

This user’s manual for TE988G series contains graphics and information which is subject to

Fujitsu TE988G Color Monitor

change without notice.

Fujitsu TE988G Color Monitor

Installation

Tilt Swivel & Base

1. Turn the monitor upside down.

2. Turn the base upside down. Insert its four hooks into the four slots on the bottom of the

monitor. (Point the hooks on the base toward the front of the monitor)

Figure 1

3. Push the tilt swivel and base in the direction of arrow (!) as indicated in Figure 2 to

lock the hooks.

Figure 2

Fujitsu TE988G Color Monitor

Monitor Connection

To attach the monitor to your system, follow the steps as described below:

1. Turn off the monitor and computer.

2. Connect one end of the power cable to your monitor and the other end to the power outlet.

3. Connect the 15-pin D-Sub signal cable to the video adapter output on your personal computer.

4. Turn on the monitor and the computer. Wait about 30 seconds to adjust the picture with

the adjustment controls to obtain optimum picture.

5. If the signal cable is not connected to the PC, then the screen will display the Color Bar Pattern.

Figure 3 :Connecting the monitor

Pin Assignment

Pin Signal Pin Signal

1 R 9 NoPin

2 G 10 Digital Ground

3 B 11 D-Sub Test

4 Ground 12 SDA

5 D-Sub Test 13 H-Sync

6 Video Return 14 V-Sync

7 Video Return 15 SCL

8 VideoReturn

Fujitsu TE988G Color Monitor

Operation and User Adjustment

Control Panel

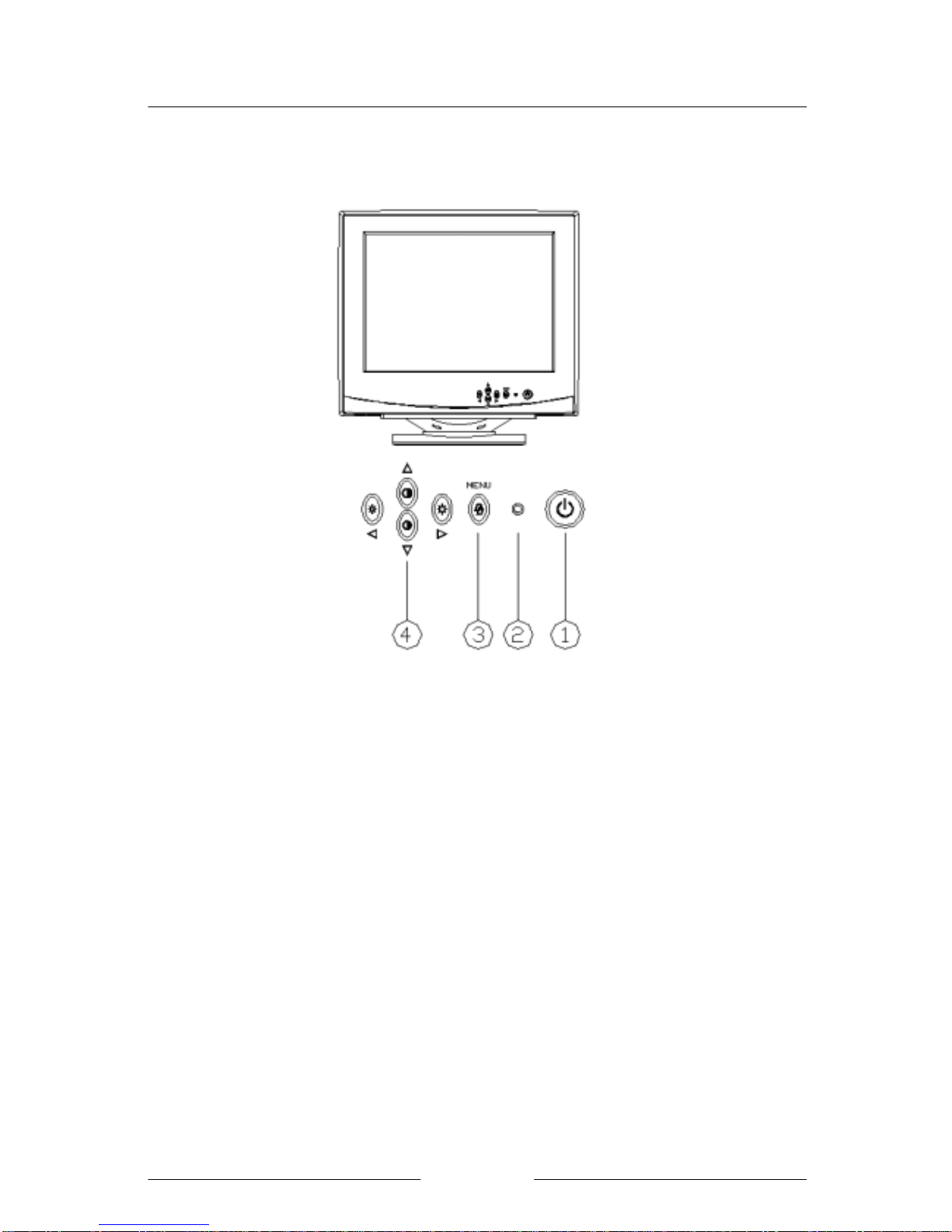

Figure 4 shows the position of following operating units:

1. Power ON / OFF Switch

2. Power LED

3. Menu – Displays OSD menu & Scrolls through OSD menu

4. Function Control Key – Adjust level of selected items

Fujitsu TE988G Color Monitor

On-Screen Display Guide

1.Contrast&Brightness

(1).Press either 5or 6

6to activate and make the contrast adjustment shown by the OSD

parameter. The parameter moves rightward indicating contrast increase and leftward

indicating contrast decrease.

Figure5 Contrast Adjustment Parameter

(2). Press either3or4to activate and make the brightness adjustment shown by the OSD

parameter. The parameter moves rightward indicating brightness increase and leftward

indicating brightness decrease.

Figure6 Brightness Adjustment Parameter

2. OSD Function Menu

(1). Press “Menu” key to enter the OSD menu containing 10 functions as shown

in figure 7

(2). Select adjustment function

Please scroll the preferred function from left-right sequence by pressing Menu

key. You may return to the previous item by keeping pressing the Menu key.

(3). Adjustment Operation

Make the adjustment using the four function control keys. Please refer to the

Figure 7 for advanced operation.

Fujitsu TE988G Color Monitor

Figure 7 Function Menu

A. OSD contains 10 icons representing the following function adjustments:

H-Phase/V-Center, H-Size/V-Size, Pincushion/Trapezoid, Pin Balance/Corner,

Parallel/Tilt, RGB-Gain, OSD Position, Language, Tool and Exit.

B. Hand-shaped pointer indicates the current function selected.

C. There are four adjustments for each function selected. The icon being selected will turn

into a different color.

D. The setting value will appear during adjustment.

E. Displaying the message of current function selected.

F. The number in the right corner indicates how long the OSD will last for displaying.

H-Phase/V-Center

Fujitsu TE988G Color Monitor

( 1 ). H-Phase & V-Center function window

Press3or 4key to reposition the picture leftward or rightward.

Press5or 6key to reposition the picture upward or downward.

( Please refer to the figure 7 )

( 2 ). H-size & V-size function window

Press 3key to reduce the H-size and press 4key to enlarge the H-size.

Press 5to enlarge the V-size and press 6key to reduce the V-size.

( 3 ). Pincushion & Trapezoid function window

Press key 3and 4on the control panel to alter pincushion and barrel

Press key 5and 6on the control panel to alter trapezoid

H-Size/V-Size

Pincushion/Trapezoid
