Fujitsu STYLISTIC Q7310 Manuel utilisateur

Page 1 of 64

System expansions and repairs 2

Information on the installation and removal of components 3

Screws 4

Tools 5

Removing / fitting the keyboard 6

Removing / fitting the cradle 7

Removing / fitting the SIM tray 8

Removing / fitting the pen 9

Mandatory Support Bulletins for Disassembly 10

Removing the LCD back cover assy 11

Remove battery 14

Remove M.2 module 15

Removing the docking connector 17

Remove pen garage 19

Remove the application button sub board 21

Remove buttons, holder for button set, cover for button section 22

Removing the WWAN antennas 24

Remove LTE module 26

Remove the camera module 28

Removing the rear camera 30

Removing the camera sub board 31

Removing the front camera 32

Remove SAR antennas 33

Removing the WLAN antennas 35

Remove CMOS battery 37

Removing the USB / audio sub board 38

Removing the fingerprint sensor 40

Remove corner rubbers 41

Remove fan 42

Removing the DC-in connector 43

Removing the SmartCard reader 44

Remove mainboard 46

Remove the various covers 48

Removing the inner support plate including the speaker 50

Remove LCD module 52

Spare parts and exploaded-view drawings STYLISTIC Q7310 54

Disposal informations for recycling companies 63

System expansions and repairs

STYLISTIC Q7310

Version date

29.06.2020

Category

System expansions and repairs

Contents

Page 2 of 64

System expansions and repairs

We recommend printing out the relevant sections of this chapter prior to installation

as the device for installing/removing hardware components needs to be switched off.

The following illustrations may differ from your device, depending on its configuration and features.

If you have received any further documents with your device, you should read these through carefully.

Please note the following instructions before installing/removing system components:

■The device must be switched off when installing/removing components and it must

not be in power-saving mode.

■Disconnect the mains plug before opening the device.

■After unplugging the mains plug, discharge the remaining voltage by pressing the

activation button.

■Remove all externally connected cables.

■Take care not to pinch any cables when installing/removing components.

■Please ensure that the installed components that might heat up intensely during

operation do not exceed the permitted operating temperature.

During a system expansion or a hardware upgrade, it is possible that the BIOS must

be updated. You can find more information in the technical information provided for

your device.

Page 3 of 64

Information on the installation and removal of components

Please pay attention to the locking mechanism (indentations and centring pins) when installing hardware components.

Note that some components on the mainboard may be very hot if the device was in use shortly before the case was removed.

Utmost care is required during installation and removal to avoid damaging components.

Never use items with sharp edges (screwdrivers) to lever them out.

Parts with Electrostatic Sensitive Devices (ESD) can be identified by a corresponding label.

When dealing with boards with ESDs, the following points must always be observed:

■Always ensure there is a static discharge (e.g. by touching a grounded object) prior to commencing

with the work.

■The devices and tools being used must not be statically charged.

■Only touch the components along the edges or on the areas marked in green (contact points).

■Contacts and electronic components must not touch when handling components equipped with ESD

protection.

Page 4 of 64

Screws

Screw: M2.5XL3 (D4.5)

Screwdriver: Phillips PH00

Screw: M2.5XL4

Screwdriver: Phillips PH00

Screw: M2.5XL6 (D4.5)

Screwdriver: Phillips PH00

Screw: M2XL2.5

Screwdriver: Phillips PH00

Screw: M3XL3.5-1

Screwdriver: Phillips PH00

Return to Table of Contents

Page 5 of 64

Tools

Screwdriver: Phillips, size PH00

Plastic tool

Return to Table of Contents

Page 6 of 64

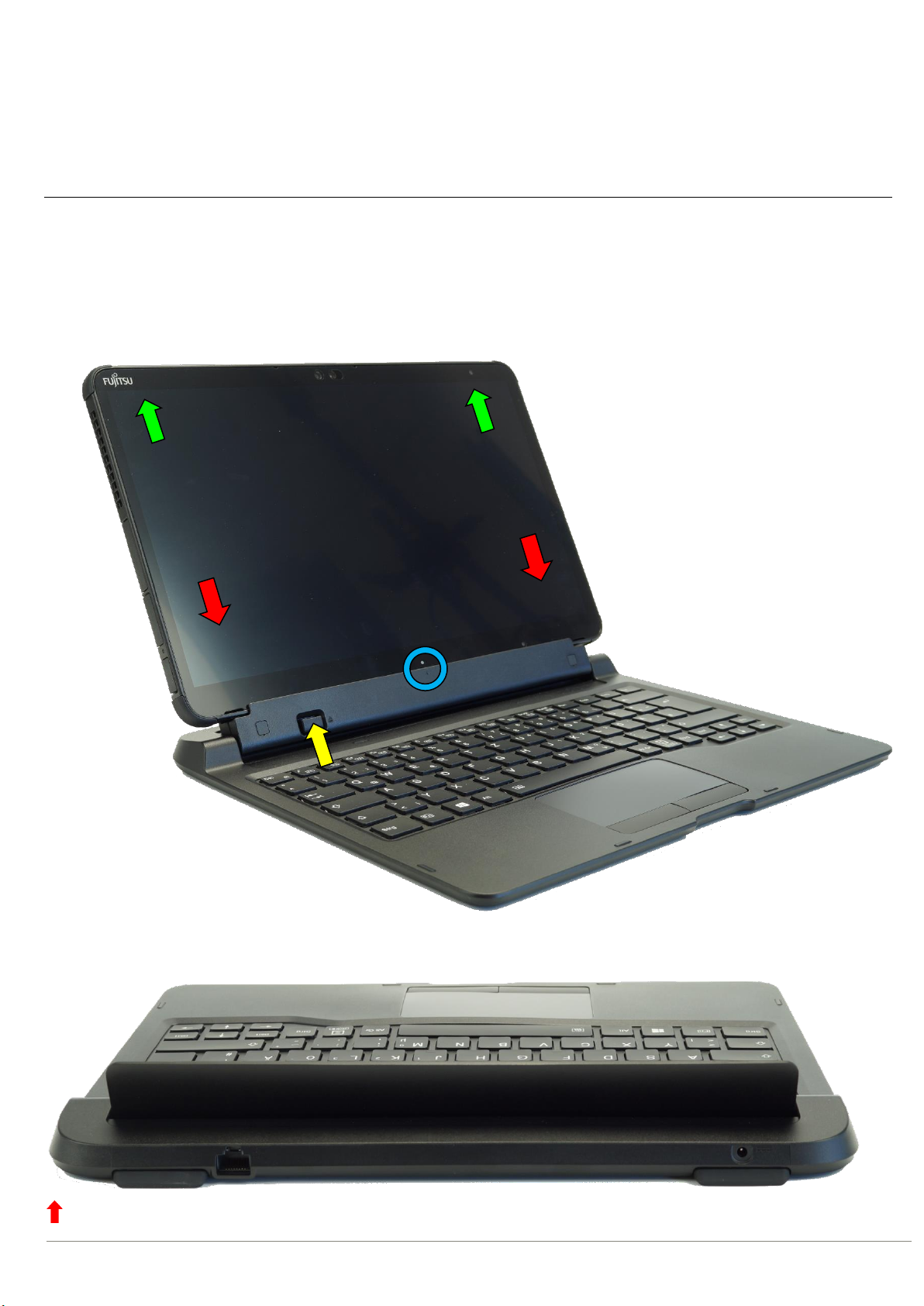

Removing / fitting the keyboard

►Disconnect the mains plug from the mains outlet.

►Remove all cables connected to the STYLISTIC Q7310 and its keyboard.

►Disconnect the STYLISTIC Q7310 tablet from its keyboard by pressing the release button (yellow arrow) and pulling the

STYLISTIC Q7310 upwards (green arrows).

►To reconnect the STYLISTIC Q7310 to its keyboard, gently refit the tablet on it (red arrows). The guidance indicator (blue circle) on the

tablet and keyboard will support you to find the correct position.

►The keyboard of the STYLISTIC Q7310 can be ordered as a module.

Return to Table of Contents

Page 7 of 64

Removing / fitting the cradle

►Disconnect the mains plug from the mains outlet.

►Remove all cables connected to the STYLISTIC Q7310 and its cradle.

►Disconnect the STYLISTIC Q7310 tablet from its cradle by pressing the release button (yellow arrow) and pulling the STYLISTIC Q7310

upwards (green arrows).

►To reconnect the STYLISTIC Q7310 to its cradle, gently refit the tablet on it (red arrows). The guidance indicator (blue circle) on the

tablet and cradle will support you to find the correct position.

►The cradle of the STYLISTIC Q7310 can be ordered as a module.

Return to Table of Contents

Page 8 of 64

Removing / fitting the SIM tray

Required work steps:

■Remove keyboard

►The SIM and SD card cover is on the bottom right next to the keyboard connector. Open it (green arrow) and remove the SIM card

holder (yellow arrow).

►Pull out the SIM card holder in the yellow arrow direction.

Please note!

■ To ensure proper positioning, the SIM tray must be inserted horizontally into the SIM card slot (see figure above).

Return to Table of Contents

Page 9 of 64

Removing / fitting the pen

►Pull the pen straight out of the pen garage (green arrow).

The pen can be attached with a ribbon running through the eyelet (red rectangle) under the pen garage. Undo it to be able to

replace the pen.

Return to Table of Contents

Page 10 of 64

Mandatory Support Bulletins for Disassembly

SB-M-10030

Minimum requirements to properly finalise hardware repairs on mobile systems

SB-M-15007

WIN8x & WIN10 - Spare product key

for repaired devices

For any information about ESD, please refer to the web-based training course “ESD in

electronics“

Service Partner only (login required)
