Fujitsu Rugged Tablet Case Manuel utilisateur
These instructions provide details on using the rugged
tablet case with your Fujitsu LifeBook notebook when
it is in tablet mode. The case provides added protec-
tion when transporting, using, or storing the note-
book.
We recommend that you read these instructions prior
to using the case with your computer.
Package Contents
Included in the package are the following items:
■Rugged tablet case
■Full-size pen (designed to fit in the pen holder on
the front of the case. This pen will not fit in the pen
holder that is built into the system.)
■Pen tether
■Hand strap (2 pieces)
■Case handle
■Shoulder strap
INSTRUCTIONS
Rugged Tablet Case
User’s Guide
Fujitsu Computer Systems Corporation
Rugged Case - Chalice .fm Page 1 Monday, March 19, 2007 10:09 AM
2

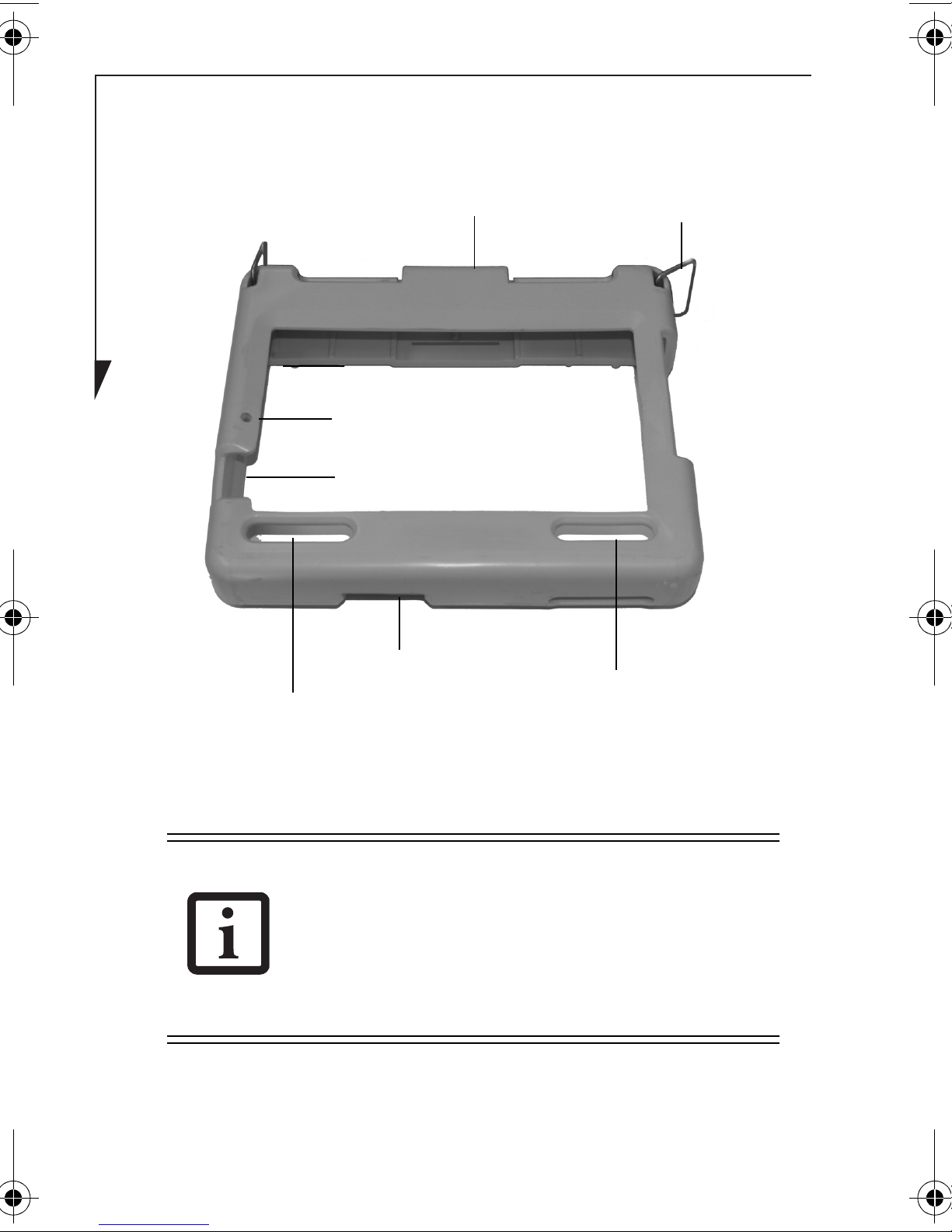

Figure 1. Rugged tablet case - Front
* Use the pen which came with the case in the pen holder. See note
above.
The pen which came with the system is too
small to fit snugly in the pen slot, so a full-size
pen is included with the case. The pen holder
on the top front of the case should be used to
store the pen. When the system is in the case,
the system pen slot is not accessible. (Figure 1)
Pen Holder*
Port/slot access
Application
Fingerprint sensor access
button access
System status/
power/suspend/
resume button access
D-rings
(2 places}
Built-in microphone access
Rugged Case - Chalice .fm Page 2 Monday, March 19, 2007 10:09 AM
3
Figure 2. Rugged tablet case - back
Installing the hand strap
The hand strap is designed to let you hold your system
securely when it is installed in the case. Use of the hand strap
is highly recommended.
The hand strap consists of two parts, each of which has a
Velcro strip on one end and a retaining bar at the other. Note
that the longer of the two strips (with the “fuzzy” Velcro)
should be positioned in the top slot, while the shorter strip
(with the “hooks” Velcro) should be inserted in the bottom
slot. To install the hand strap, perform the following proce-
dure:
1. Position the case so that it is face down and the hand
strap slots are facing up. (Figure 2)
Case handle
Hand strap slots
PC Card
access
Rugged Case - Chalice .fm Page 3 Monday, March 19, 2007 10:09 AM
4
2. Insert the shorter of the two pieces of the hand strap
into the bottom slots with the Velcro “hooks” strip fac-
ing up. (Figure 3) Pull it through until the retaining bar
is snug against the case.
Figure 3. Inserting hand strap halves
3. Insert the longer piece of the hand strap into the top
slot with the “fuzzy” Velcro strip facing down
(Figure 3). Pull it through until the retaining bar is
snug against the case.
Retaining bar
Shorter Velcro strip
(“hooks” facing up)
Longer Velcro
strip (“fuzzy”
side facing
down)
Retaining bar
Rugged Case - Chalice .fm Page 4 Monday, March 19, 2007 10:09 AM
5
Installing the system
To install your system into the rugged tablet case, perform
the following steps:
1. Position the case face down (the same orientation as
when you installed the hand strap).
2. Position the system in tablet mode with the display fac-
ing down, and hold it by the edge opposite the battery.
Figure 4. Inserting the system in the case
3. Insert the battery edge of the system into the wide, rigid
edge of the case (the side with the D-rings). Push it in
until it is flush with the edge of the case. (Figure 4)
4. Lift the flexible edge of the case sufficiently to allow the
system to lie in the case, then release the flexible edge.
5. Overlap the two halves of the hand strap so that they
attach to each other.
Battery
Rigid edge
Rugged Case - Chalice .fm Page 5 Monday, March 19, 2007 10:09 AM
6
Figure 5. Enclosing the system
Figure 6. System in case
Flexible edge
Rugged Case - Chalice .fm Page 6 Monday, March 19, 2007 10:09 AM
7
Using the hand strap
When you want to hold the case using the elastic hand strap,
first separate the two halves. Place your hand in a comfort-
able position on the bottom of the system and re-secure the
strap against the back of your hand.
When not using the hand strap, attach it snugly against the
back of the computer.
Installing the handle
To install the handle, perform the following steps:
1. Insert one end of the handle into the D-ring, with the
buckle facing outwards (Figure 7).
Figure 7. Inserting handle strap
2. Bend the end of the handle strap towards the buckle
and tuck it under the edge of the buckle (Figure 8).
3. Pull the strap taut, then insert the end through the sec-
ond edge of the buckle (Figure 9).
4. Pull the end of the strap until it is taut (Figure 10).
D-ring
Buckle
Handle strap
Rugged Case - Chalice .fm Page 7 Monday, March 19, 2007 10:09 AM
8
5. Repeat the procedure above with the other end of the
handle.
Figure 8. Inserting strap into buckle.
Figure 9. Pulling strap through buckle
Rugged Case - Chalice .fm Page 8 Monday, March 19, 2007 10:09 AM
9
Figure 10. Tightening the strap
Installing the shoulder strap
To install the shoulder strap, open the spring-loaded clips on
both ends and attach one to each of the D-rings (Figure 11).
Figure 11. Installing the shoulder strap
Rugged Case - Chalice .fm Page 9 Monday, March 19, 2007 10:09 AM
10
Installing the pen tether
To install the pen tether, insert one end into one of the D-
rings, then feed it through the loop on the other end. Pull it
snug against the D-ring.
Feed the loose end of the tether through the hole on the end
of the pen, slide the loop over the tip of the pen, then down
the barrel. Pull it snugly to tighten the loop.
Caring for the rugged tablet case
The case is made of rugged materials, and is designed to
withstand daily use. Treat the case as you would a briefcase
or purse. Occasionally, the case may become soiled. To clean
it, remove the system from the case if it is installed, then use
a clean cloth and warm soapy water to wash the soiled area.
Rugged Case - Chalice .fm Page 10 Monday, March 19, 2007 10:09 AM
