COOLING MODEL

AMY13F

REVERSE

CYCLE MODEL

AMY12U

OPERATING MANUAL

ROOM AIR CONDITIONER

WINDOW TYPE

OPERATING MANUAL

BEDIENUNGSANLEITUNG

MODE D’EMPLOI

MANUAL DE FUNCIONAMIENTO

MANUALE DI ISTRUZIONI

ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ

MANUAL DE INSTRUÇÕES

KEEP THIS OPERATION MANUAL

FOR FUTURE REFERENCE

FUJITSU GENERAL LIMITED

En-2

CONTENTS

Safety Symbols

The triangular symbol indicates WARNING and CAUTION items.

This symbol indicates prohibited operations. The prohibited action is indicated both within the symbol,

and in nearby explanations.

●This symbol indicates instructions regarding operations which are to be performed by the user.

DANGER

Do not attempt to install this air conditioner by yourself.

●Consult authorized service personnel for all installations.

Consult authorized service personnel for any repairs.

●Do not attempt to remove parts, or service the unit yourself, since you may be

exposed to dangerous electrical shock. This appliance contains no user-serviceable

parts.

When moving, consult authorized service personnel for

disconnection and installation of the unit.

PRECAUTIONS ......................................................... 2

NAME AND FUNCTION OF PARTS ......................... 6

AIR CONDITIONER OPERATION ............................. 7

AIR DIRECTION ADJUSTMENT ............................ 10

CARE AND MAINTENANCE................................... 13

TROUBLESHOOTING ............................................. 14

OPERATION DETAILS ............................................. 15

PRECAUTIONS

●Before using the appliance, read these “PRECAUTIONS” thoroughly and operate in the correct way.

●The instructions in this section all relate to safety; be sure to maintain safe operating conditions.

●“CAUTION” and “WARNING” have the following meanings in these instructions:

WARNING!

CAUTION!

This mark indicates procedures which, if improperly performed, might lead to the death

or serious injury of the user.

This mark indicates procedures which, if improperly performed, might possibly result

in personal harm to the user, or damage to property.

En-3

PRECAUTIONS

DANGER

Do not stay in direct cooling airflow for long periods.

●Excessive direct exposure to chilled air could be bad for your health.

●Be especially careful when going to bed, and in rooms where infants, aged, or sick

people are staying.

Do not insert fingers or objects into the outlet port or intake grilles.

●A fan operates at high speed inside the unit, and personal injury could result.

●Be particularly careful regarding small children.

Do not start and stop air conditioner operation by disconnecting

the power cord and so on.

Take care not to damage the power cord.

●Do not stand heavy items on the power cord, or allow it to be pulled. Such treatment

could damage the insulation, resulting in fire hazard and electrical shock.

WARNING

If the power supply cord of this air conditioner is damaged, it must be replaced

by the manufacturer or its authorized service personnel only in order to avoid

a safety hazard.

In the event of a malfunction (burning smell, etc.), immediately

stop operation, disconnect the power plug, and consult

authorized service personnel.

●Continuing to operate the unit under such conditions could lead to hazard of fire

or electrical shock.

If the power supply cord of this appliance is damaged, it should

only be replaced by the authorized service personnel, since

special purpose tools and specified cord are required.

En-4

PRECAUTIONS

CAUTION

Provide occasional ventilation during use.

●Be careful to provide adequate ventilation particularly

when using the unit in combination with other heating

apparatus. (REVERSE CYCLE MODEL)

●Insufficient ventilation could lead to oxygen starvation.

Do not drink the water drained from the

air conditioner.

Do not expose the air conditioner directly

to water.

●Electrical insulation could be damaged, resulting in

electrical shock.

Do not pull power cord.

●Pulling on the cord to disconnect the plug could damage

the wires inside the cord, resulting in heat or fire.

Turn off power source when not using the

unit for extended periods.

Do not use in applications involving the

storage of foods, plants or animals,

precision equipment, or art works.

●The quality of the stored items may deteriorate.

Do not direct air flow at fireplaces or

heating apparatuses.

●Direct air blowing on fires could result in improper

combustion or fire.

Do not set flower vases or water containers

on top of air conditioners.

●Water leaking inside the unit could damage electrical

insulation, leading to danger of electrical shock.

Do not operate the air conditioner with

wet hands.

●Electrical shock could result.

Always turn off power and disconnect the

power plug whenever cleaning the air con-

ditioner or changing the air filter.

●A fan operates at high speed inside the unit, and

personal injury could result.

Check the condition of the installation for

damage.

●After lengthy use, arrange for visit by authorized

service personnel to check installation condition.

Do not place animals or plants in the direct

path of the air flow.

●Lengthy exposure to direct Heating or Cooling airflow

could have adverse influence on plants or animals.

En-5

CAUTION

Always operate with the air filter installed.

●Operating the unit without the air filter could cause

excessive dirt to collect on internal parts, leading to

malfunction.

Do not block or cover the intake grille and

outlet port.

●Obstructing the ports will reduce operating efficiency,

leading to improper operation and possible damage.

Do not use inflammable gases near the air

conditioner.

Do not touch the heat exchanger radiator

fins.

●Personal injury could result.

●Be particularly careful when cleaning.

●Bending or damage to the fins will affect the efficiency

of the unit.

When installing the air conditioner, take

precautions to prevent access by infants.

●Unexpected accidents could occur.

Avoid installing the air conditioner near a

fireplace or other heating apparatus.

●Exposure to excessive heat could result in deformation

of the outer case.

En-6

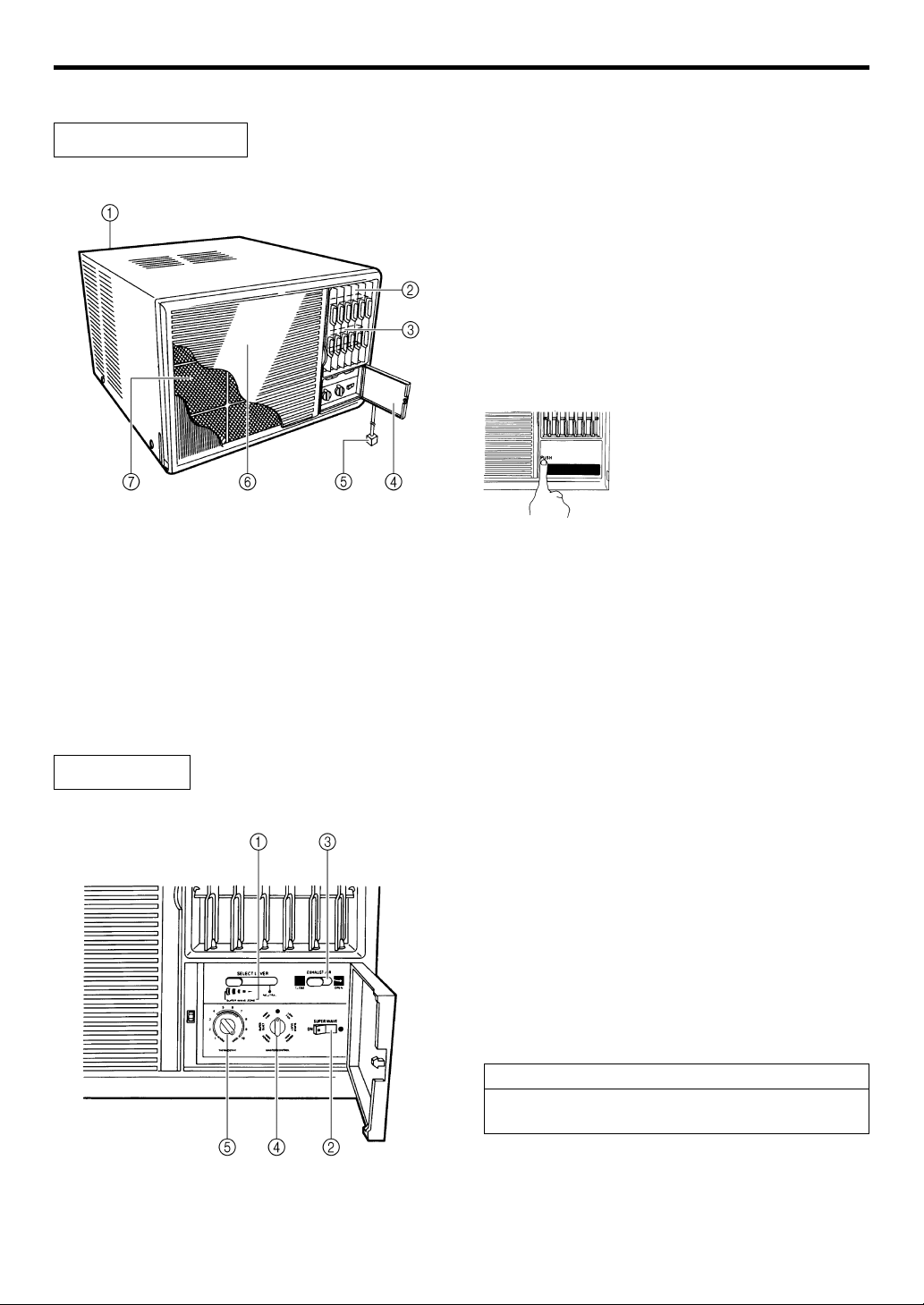

NAME AND FUNCTION OF PARTS

For details of operation, see the pages indicated by the ☞mark.

Air Conditioner Unit

1Drain Boat or Drain Tube

(At the bottom of the back side)

Moisture condensed from the air during Cooling

is drained here.

2Right-Left Airflow-direction Louvres

(☞P. 10)

Control airflow in the horizontal (right-left) direction.

This can also be swept.

3Up-Down Airflow-direction Louvres

(Behind Airflow-direction Louvres)

(☞P. 10)

Control airflow in the vertical (up-down) direction.

4Control Panel Cover

5Power Supply Plug

6Air Intake Grille

Air is taken in here.

7Air Filter (☞P. 13)

Removes all dirt and dust from the air.

Control Panel 1SELECT Lever

NEUTRAL: When changing the airflow by manual ope-

ration.

SUPER WAVE ZONE:

When SUPER WAVE is operated, adjust to

the desired air flow direction (☞P. 11).

2SUPER WAVE Switch

)(OFF): When the air conditioner is operated by one

direction airflow.

ON: When taking out the airflow in the widerange.

3EXHAUST AIR Lever

CLOSE: Ventilation circulates through indoor air,

without being carried out.

OPEN: Cigarette smoke and smell are exhausted to

outside a room.

4MASTER CONTROL Switch (☞P. 7, 8)

5THERMOSTAT Control Switch (☞P. 9 )

When opening and closing the

control panel cover, press the

position of “PUSH” by your finger.

Note:

Cooling effect will be reduced when operating EXHAUST

AIR “OPEN”.

En-7

Power Supply

Connect the Power Supply Plug to an electrical point.

●Connect securely, without looseness.

●In the case of direct line connections, turn on the breaker.

MASTER CONTROL Switch

POSITION FUNCTION

)(OFF) The air conditioner is switched off.

FAN Fan only is operating to provide filtered air without

cooling effect.

SUPER QUIET Fan speed is low and cooling efficiency is intermediate

with low noise level.

NORMAL A cooling effect is obtained by a quieter operation than

“HIGH POWER”.

HIGH POWER Fan speed is at its maximum resulting in maximum

cooling effect.

Cooling

To obtain maximum cooling effect in the hot summer select position HIGH

POWER on the master control. Maximum moisture removal, air circulation and

dust removal are effected at the same time.

Selection of SUPER QUIET reduces operating noise.

Air Circulation

To maintain a comfortable room temperature an important factor is the circulation

of air. Room air can be circulated without cooling by selecting FAN position on

the master control.

Air circulation only without cooling effect may also be achieved with the thermostat

knob turned counterclockwise to “1”position and with the master control knob

at either “cool”position.

AIR CONDITIONER OPERATION

COOLING MODEL

En-8

LOW FAN

POSITION FUNCTION

Fan (High Speed) and compressor operate - Rapid

heating effect at top capacity.

Fan (Low Speed) and compressor operate - Intermediate

heating effect and reduced operating noise.

High fan speed without heating/cooling - Room air is

circulated and cleaned.

)(OFF) The air conditioner is switched off.

Low fan speed without heating/cooling - Room air is

circulated and cleaned.

Fan (Low Speed) and compressor operate - Intermediate

cooling effect and reduced operating noise.

Fan (High Speed) and compressor operate-Rapid

cooling effect at top capacity.

HIGH POWER

(RED)

SUPER QUIET

(RED)

HIGH FAN

SUPER QUIET

(BLUE)

HIGH POWER

(BLUE)

AIR CONDITIONER OPERATION

REVERSE CYCLE MODEL

Air Circulation

To maintain a comfortable room temperature, an important

factor is the circulation of air. Room air can be circulated

without cooling/heating by selecting either HIGH FAN or

LOW FAN position on the master control.

Circulation of air without cooling/heating can be also effected

as follows:

1. When operating with the MASTER CONTROL switched

to HIGH POWER (RED) or SUPER QUIET (RED), turn the

thermostat fully clockwise.

2. When operating with the MASTER CONTROL switched

to HIGH POWER (BLUE) or SUPER QUIET (BLUE), turn

the thermostat fully counterclockwise.

Power Supply

Cooling

To obtain maximum cooling effect in the hot summer

select position HIGH POWER (BLUE) on the MASTER

CONTROL. Maximum moisture removal, air circulation

and dust removal are effected at the same time.

Selection of SUPER QUIET (BLUE) reduces operating

noise.

Heating

To obtain maximum heating effect in severe winter select

position HIGH POWER (RED) on the MASTER CONTROL.

Maximum air circulation is obtained at the same time.

Selection of SUPER QUIET (RED) reduces heating effect

and operating noise. However you may feel a higher

temperature at the air outlet compared to the HIGH

POWER (RED) position, due to the reduced fan speed.

Connect the Power Supply Plug to an electrical point.

●Connect securely, without looseness.

●In the case of direct line connections, turn on the breaker.

MASTER CONTROL Switch

NOTE: After you start driving, it will take approximately

10 minutes for the air from this unit become

warm. This delay is normal.

En-9

THERMOSTAT Control Switch

Once the THERMOSTAT is set to the desired temperature, the room temperature

will be automatically adjusted without excessive or insufficient cooling/heating

and thus a comfortable environment is always maintained.

The thermostat controls the compressor only, and accordingly the fan is constantly

circulating air even during the period when the compressor is off during cooling/

heating operation.

1. When you wish to lower the temperature, turn the THERMOSTAT Control switch

clockwise in the direction of the higher numbers of the dial.

2. When you wish to increase the temperature, turn the THERMOSTAT Control switch

counterclockwise in the direction of the lower numbers.

NOTE:

•When the THERMOSTAT Control switch is set at positions “5”, “6”or “7”

comfortable room temperatures can usually be obtained. Please note that it is

unhealthy for the room temperature to be lower than approximately 22°C.

•When the THERMOSTAT Control switch is set at positioned at “10”, the

room-side fin coil may freeze up and prevent effective cooling. If this happens,

turn the switch to “FAN”, and turn the THERMOSTAT Control switch

counterclockwise.

CAUTION!

When cooling/heating is stopped by means of either the MASTER CONTROL

or THERMOSTAT Control switch do not restart cooling/heating for at least 3

minutes.

•If cooling/heating is restarted within this time, the compressor motor will be

subjected to an over current and a compressor motor safety device will be

actuated. If this occurs, restarting cooling/heating will not be possible for

about 20 minutes.

COOLING MODEL

REVERSE CYCLE MODEL

En-10

AIR DIRECTION ADJUSTMENT

WARNING!

●Do not put fingers or other objects into the air louvres; an internal fan operates at high

speed and could result in personal injury or damage.

●Do not operate the air conditioner with the airflow louvres blocked, since malfunction

could result.

Up-Down Airflow-

direction Louvres

Right-Left Airflow-

direction Louvres

■Vertical Adjustment

The Up-Down Airflow-direction Louvres may be positioned using tabs to dis-

charge the air upward, downward or straight on.

Air Direction Adjustment by manual operation

■Horizontal Adjustment

The Right-Left Airflow-direction Louvres may be positioned using tabs to dis-

charge the air rightward, leftward or straight on.

NOTE:

The THERMOSTAT positions “8”, “9”and “10”can be used when the room

temperature does not become sufficiently low. This condition may occur

when the THERMOSTAT Control switches off automatically because cooled

air, when it passes through the Up-Down Airflow-direction Louvres positioned

downwards and the Right-Left Airflow-direction Louvres positioned to the left,

makes a short circuit and the recirculated air touches the sensor

of the THERMOSTAT.

CAUTION!

Adjust the Right-Left Airflow-direction Louvres after SELECT LEVER is set to the

“NEUTRAL”position.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fujitsu Climatiseur

Fujitsu

Fujitsu AOU18RL Manuel utilisateur

Fujitsu

Fujitsu AIRSTAGE K00250LW Instructions d'installation et d'utilisation

Fujitsu

Fujitsu AIRSTAGE AUXS018GLEH Manuel utilisateur

Fujitsu

Fujitsu AUYG12LVLB Manuel utilisateur

Fujitsu

Fujitsu AW?Z14LBC Manuel utilisateur

Fujitsu

Fujitsu RSG09KMCDN Manuel utilisateur

Fujitsu

Fujitsu ASY9LMACW Manuel utilisateur

Fujitsu

Fujitsu GENERAL AKH7F Manuel utilisateur

Fujitsu

Fujitsu Inverter Halcyon ASU24CL Manuel utilisateur

Fujitsu

Fujitsu AIRSTAGE AJY126LELAH Manuel utilisateur

Fujitsu

Fujitsu ASYG07KGTE Manuel de service

Fujitsu

Fujitsu ASUH18LMAS Manuel de service

Fujitsu

Fujitsu ASTG09KMCB Manuel utilisateur

Fujitsu

Fujitsu AOTR18LCL Manuel utilisateur

Fujitsu

Fujitsu AOYG24KBTB Manuel de service

Fujitsu

Fujitsu ARTG30LHTDP Manuel utilisateur

Fujitsu

Fujitsu AUYG07LVLA Manuel de service

Fujitsu

Fujitsu Inverter Halcyon ASU24CL1 Manuel de service

Fujitsu

Fujitsu AS G07KMTA Series Manuel d'utilisation original

Fujitsu

Fujitsu AIRSTAGE AUXS018GLEH Manuel utilisateur

Fujitsu

Fujitsu Wall Mounted Type Manuel utilisateur

Fujitsu

Fujitsu ASU18RLB Manuel utilisateur

Fujitsu

Fujitsu ASYA09LEC Manuel de service

Fujitsu

Fujitsu ASY9USBCW Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur
