Fujitsu General ASHH30KMTB Manuel utilisateur

AIR CONDITIONER

Wall mounted type

SERVICE MANUAL

INDOOR

ASHH30KMTB

ASHH36KMTB

OUTDOOR

AOHH30KMTB

AOHH36KMTB

SR_AS073EG_02

2022.08.22

Notices:

• Product specifications and design are subject to change without notice for future improvement.

• For further details, please check with our authorized dealer.

Trademarks

FGLair™ is trademark of Fujitsu General Limited in the United States, other countries or both.

Google Play™ is trademark of Google LLC.

App Store® is a service mark of Apple Inc., registered in the U.S. and other countries.

CONTENTS

1. GENERAL INFORMATION

2. TECHNICAL DATA AND PARTS LIST

3. TROUBLESHOOTING

4. CONTROL AND FUNCTIONS

5. FILED WORKING

1. GENERAL INFORMATION

2022.07.19

SR_CH01_AS073EG_02

CONTENTS

1. GENERAL INFORMATION

1. Specifications..............................................................................................01-1

1-1. Indoor unit ......................................................................................................................01-1

1-2. Outdoor unit....................................................................................................................01-3

2. Dimensions..................................................................................................01-4

2-1. Indoor unit ......................................................................................................................01-4

2-2. Outdoor unit....................................................................................................................01-6

1. Specifications

1-1. Indoor unit

Type Wall mounted

Inverter heat pump

Model name ASHH30KMTB ASHH36KMTB

Power supply 230 V~ 50 Hz

Power supply intake Outdoor unit

Available voltage range 198—264 V

Capacity

Cooling

Rated kW 8.0 9.4

Btu/h 27,300 32,100

Min.—Max. kW 2.9—9.0 2.9—10.0

Btu/h 9,900—30,700 9,900—34,100

Heating

Rated kW 8.8 10.1

Btu/h 30,000 34,500

Min.—Max. kW 2.2—11.8 2.7—12.6

Btu/h 7,500—40,200 9,200—42,900

Input power

Cooling Rated

2.33 3.16

Min.—Max. 0.54—3.86 0.54—4.30

Heating Rated 2.20 2.73

Min.—Max. 0.48—4.23 0.48—4.30

Fan

HIGH

62.0

MED 36.5

LOW 21.0

QUIET 11.5

Current Cooling Rated A 10.2 13.9

Heating 9.7 12.0

Energy efficiency class Cooling A++

Heating (Average) A+

Pdesign Cooling kW 8.00 9.40

Heating (Average) 6.50 7.10

SEER Cooling kWh/kWh 6.68 6.10

SCOP Heating (Average) 4.50

Annual energy consumption QCE kWh/a 419 534

QHE (Average) 1,994 2,189

EER Cooling kW/kW 3.43 2.97

COP Heating 4.00 3.70

Sensible capacity Cooling kW 6.15 6.70

Power factor Cooling %99

Heating 99

Moisture removal L/h (pints/h) 2.6 (4.6) 3.8 (6.7)

Maximum operating current*1Cooling A21.0 21.5

Heating 21.0 21.5

Fan

Airflow rate

Cooling

HIGH

m3/h

1,330

MED 1,100

LOW 920

QUIET 720

Heating

HIGH 1,330

MED 1,100

LOW 920

QUIET 720

Type × Q'ty Cross flow fan × 1

Motor output W 61

Sound pressure level*2

Cooling

HIGH

dB (A)

MED 44

LOW 40

QUIET 33

Heating

HIGH 49

MED 44

LOW 39

QUIET 33

Sound power level Cooling HIGH dB (A) 65

Heating 65

Heat exchanger

Dimensions (H × W × D) mm

Main: 448 × 900 × 30

Sub1: 84 × 900 × 13.3

Sub2: 126 × 900 × 13.3

Fin pitch Main: 1.2, Sub: 1.4

Rows × Stages Main: 3 × 28, Sub1: 1 × 4, Sub2: 1 × 6

Pipe type Copper tube

Fin type Aluminum

Enclosure

Material Polystyrene

Color White

Approximate color of Munsell N9.25/

Dimensions

(H × W × D)

Net mm 340 × 1,150 × 280

Gross 405 × 1,270 × 450

Weight Net kg 18.5

Gross 24.5

Connection pipe Size Liquid mm (in) Ø 9.52 (Ø 3/8)

Gas Ø 15.88 (Ø 5/8)

Method Flare

Drain hose Material PVC

Tip diameter mm Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)

Operation range Cooling °C 18 to 32

%RH 80 or less

Heating °C 16 to 30

Remote controller Wireless or Mobile app (FGLair™l*3) (Wired [option])

1-1. Indoor unit - (01-1) - 1. Specifications

GENERAL

INFORMATION

GENERAL

INFORMATION

Type Wall mounted

Inverter heat pump

Model name ASHH30KMTB ASHH36KMTB

NOTES:

• Specifications are based on the following conditions:

– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.

– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.

– Pipe length: 5.0 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)

• Protective function might work when using it outside the operation range.

• *1: Maximum operating current is the total current of the indoor unit and the outdoor unit.

• *2: Sound pressure level:

– Measured values in manufacturer’s anechoic chamber.

– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.

• *3: Available on Google Play store or on App Store. For details, refer to the setting manual.

• This data is based on EN 14511 standard.

1-1. Indoor unit - (01-2) - 1. Specifications

GENERAL

INFORMATION

GENERAL

INFORMATION

1-2. Outdoor unit

Type Inverter heat pump

Model name AOHH30KMTB AOHH36KMTB

Power supply 230 V ~ 50 Hz

Power supply intake Outdoor unit

Available voltage range 198—264 V

Starting current A 10.2 13.9

Fan

Airflow rate Cooling m3/h 3,750

Heating 3,750

Type × Q'ty Propeller × 1

Motor output W 100

Sound pressure level*1Cooling dB (A) 53 55

Heating 55 55

Sound power level Cooling dB (A) 68 70

Heating 69 70

Heat exchanger type

Dimensions

(H × W × D) mm

Main1: 756 × 905 × 18.19

Main2: 756 × 905 × 18.19

Fin pitch 1.45

Rows × Stages 1 × 36

Pipe type Copper

Fin Type (Material) Aluminum

Surface treatment Blue fin

Compressor Type × Q'ty DC Twin rotary × 1

Motor output W 1,500

Refrigerant Type (Global warming potential) R32 (675)

Factory charge g 1,900

Refrigerant oil Type FW68D

Amount cm3600

Enclosure

Material Steel sheet

Color Beige

Approximate color of Munsell 10YR 7.5/1.0

Dimensions

(H × W × D)

Net mm 788 × 940 × 320

Gross 966 × 1,027 × 445

Weight Net kg 52

Gross 62

Connection pipe

Size Liquid mm (in) Ø9.52 (3/8)

Gas Ø15.88 (5/8)

Method Flare

Pre-charge length

Max. length 50

Max. height difference 30

Operation range Cooling °C -15 to 46

Heating -15 to 24

Drain hose Material LDPE

Size mm Ø13.0 (I. D.), Ø16.0 to Ø16.7 (O. D.)

NOTES:

• Specifications are based on the following conditions:

– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.

– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.

– Pipe length: 5.0 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)

• Protective function might work when using it outside the operation range.

• *1: Sound pressure level

– Measured values in manufacturer’s anechoic chamber.

– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.

• This data is based on EN 14511 standard.

1-2. Outdoor unit - (01-3) - 1. Specifications

GENERAL

INFORMATION

GENERAL

INFORMATION

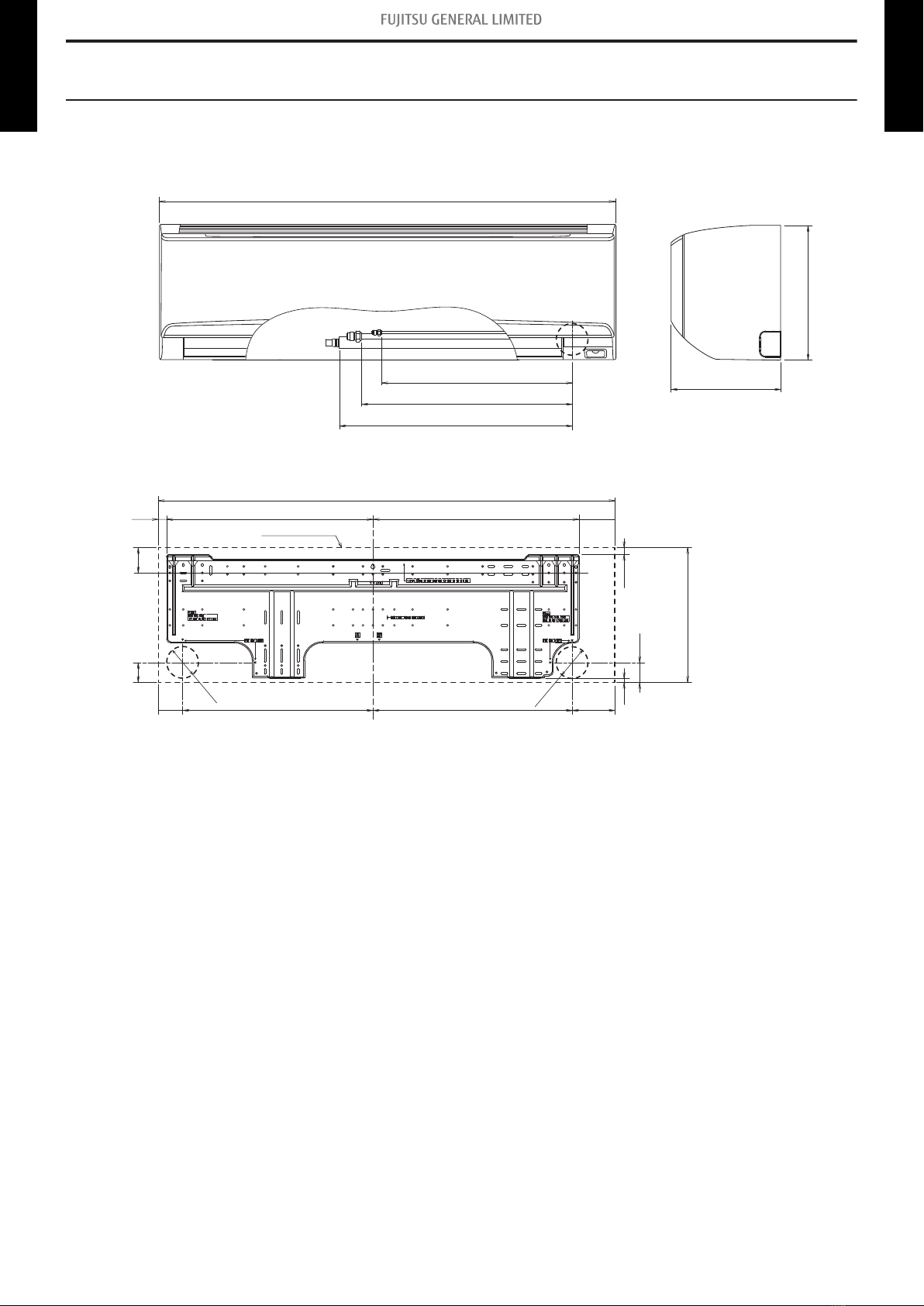

2. Dimensions

2-1. Indoor unit

¢Models: ASHH30KMTB and ASHH36KMTB

Outline of unit

520 90

47961 108502

520

50 50

340

ø80

340

280

1,150

483

544

560

1,150

2-1. Indoor unit - (01-4) - 2. Dimensions

GENERAL

INFORMATION

GENERAL

INFORMATION
