FujiFilm Discovery S1200 Manuel utilisateur
OWNER,S MANUAL
ENGLISH
2
FEATURES ............................................................................... 2
PART NAMES ........................................................................... 3
1. PRELIMINARY STEPS
ATTACHING THE STRAP ........................................................ 7
LOADING THE BATTERY ........................................................ 8
TURNING ON YOUR CAMERA ............................................... 9
CHECKING YOUR BATTERY .................................................. 9
SETTING THE DATE
(YEAR-MONTH-DAY/HOUR-MINUTE).................................. 10
SELECTING THE DATE MODE ............................................. 12
2. USING YOUR CAMERA
LOADING THE CAMERA ....................................................... 14
USING YOUR FINDER ........................................................... 18
USING YOUR CAMERA ......................................................... 20
USING THE AUTO-FOCUS LOCK ........................................ 25
UNLOADING THE FILM OR REMOVING FILM IN MID-ROLL .......
27
3. ADVANCED TECHNIQUES
SELECTING THE EXPOSURE MODE .................................. 30
USING THE SELF-TIMER ...................................................... 36
USING THE REMOTE CONTROLLER .................................. 38
TROUBLE SHOOTING ........................................................... 41
COMMON SENSE CAMERA CARE ...................................... 43
SPECIFICATIONS .................................................................. 44
FEATURES
•Fujinon 38-120mm Auto Focus Zoom Lens (for DISCOVERY
S1200 ZOOM DATE/S1200 ZOOM DATE)
Fujinon 38-105mm Auto Focus Zoom Lens (for DISCOVERY
S1050 ZOOM DATE/S1050 ZOOM DATE)
•Sure-loading System with Automatic Pre-winding
•Automatic Exposure and Flash
•Date/Time Imprinting
•Red Eye Reduction
CONTENTS
The “CE” mark certifies that this product satisfies the
requirements of the EU (European Union) regarding
safety, public health, environment and consumer
protection.(“CE” is the abbreviation of Conformité
Européenne.)
ThisproductisinconformitywithDirective89/336/EEC.
3
PART NAMES
7(→p.10,13)
0(→p.29)
A(→p.23,30)
8(→p.36,38,10)
B(→p.37,39)
C(→p.39)
D
E(→p.9)
1AF (Autofocus) Window
2Liquid Crystal Display
3Shutter Release Button
4AE Light Sensor
5Strap Lug
6Red-eye Reduction Lamp
7DATE Button
8Self-timer/Remote Con-
trol/Date Set Button
9MODE Button
0Mid-Roll Rewind Button
AFlash
BSelf-Timer/Remote Con-
troller Lamp
CRemoteControllerSensor
DViewfinder Window
EFujinon Lens/ Lens Cover
9(→p.30)
2(→p.6)
3(→p.22)
5(→p.7)
6(→p.32)
1
4
4
7(→p.10,13)
0(→p.29)
A(→p.23,30)
8(→p.36,38,10)
B(→p.37,39)
C(→p.39)
D
E(→p.9)
1AF (Autofocus) Window
2Liquid Crystal Display
3Shutter Release Button
4AE Light Sensor
5Strap Lug
6Red-eye Reduction Lamp
7DATE Button
8Self-timer/Remote Con-
trol/Date Set Button
9MODE Button
0Mid-Roll Rewind Button
AFlash
BSelf-Timer/Remote Con-
troller Lamp
CRemoteControllerSensor
DViewfinder Window
EFujinon Lens/ Lens Cover
9(→p.30)
2(→p.6)
3(→p.22)
5(→p.7)
6(→p.32)
1
4
5
N
F(→p.22)
H(→p.14)
I(→p.14,28)
J(→p.9)
K(→p.21)
L(→p.8)
M(→p.14,28)
G(→p.18)
FAF Lamp (green)
GViewfinder Eye-piece
HFilmConfirmationWindow
ICamera Back Lock
JPower Button
KZoom Button
LBattery Compartment
Cover
MCamera Back
NTripod Socket
6
Liquid Crystal Display
W(→p.9)
T(→p.35)
U(→p.36)
S(→p.34)
V(→p.17,36)
O(→p.33,34,22)
R(→p.10,13)
P(→p.32)
Q(→p.38)
OFill-in Flash Mode/
Flash off Mode/
Flash Charging
PRed-eye Reduction Flash
Mode
QRemote-Control Mode
RDate Display
SLandscape Mode
TNight Portrait (Slow Sync)
Mode
USelf-Timer Mode
VExposure Counter/Self-
timer Count
WBattery Status
7
1.
PRELIMINARY STEPS
ATTACHINGTHE STRAP
Slip the thin cord on the carrying strap through the strap lug on the side of the
camera leaving a loop. Slide the thick part of the strap through this loop and pull
tight.Take up any slack to make sure the strap is securely attached to the camera.
Do not use a strap made for cellular phones or similar electronic products. These straps are
usually too light to hold your camera securely.Use straps designed for cameras for safety.
1
2
8

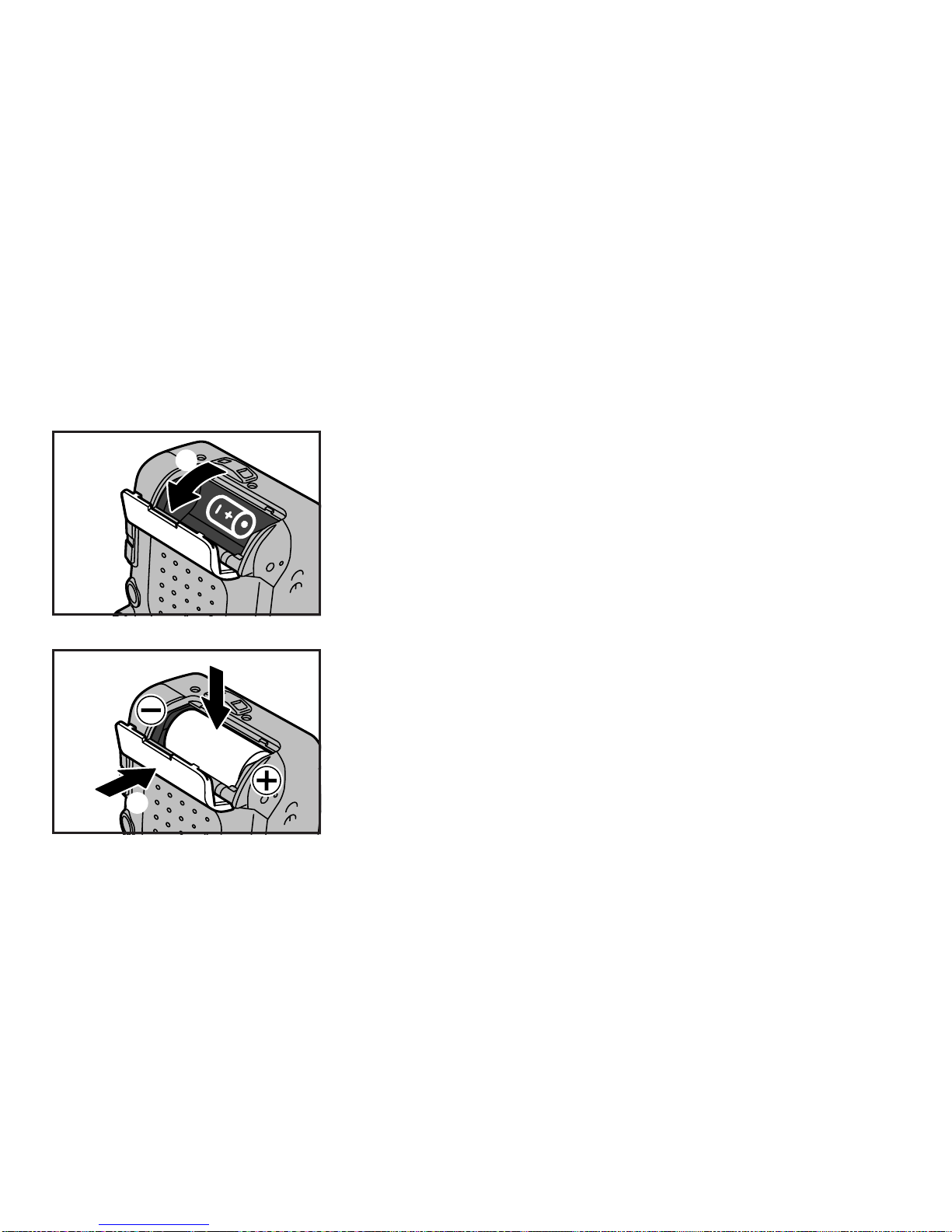

LOADINGTHE BATTERY
Your camera uses one 3V lithium battery
CR123A/DL 123A or the equivalent.
To load the battery.
1Open the battery compartment cover by inserting a small tool into the cover slot.
2Insert the battery following instructions in the diagram on the inside of the battery cover
paying particular attention to the position of the ,and .poles of the battery. The
battery must be inserted the right way or the camera will not operate.
3When battery is inserted properly, close the battery compartment cover snapping it securely.
∗Do not apply excessive force when opening the battery cover.
∗One lithium battery should be sufficient for approximately 200 exposures (based on our
test conditions).
∗When traveling, take extra batteries to provide power for extra exposures, particularly
important if you visit areas where fresh batteries may be difficult to obtain.
∗Check the battery capacity symbol before using your camera. (→p.9)
∗
After changing batteries, reset the date to assure accurate date/time recording.(→p.10)
∗
Do not load film before insertng the battery into the camera.
2
1
3
9

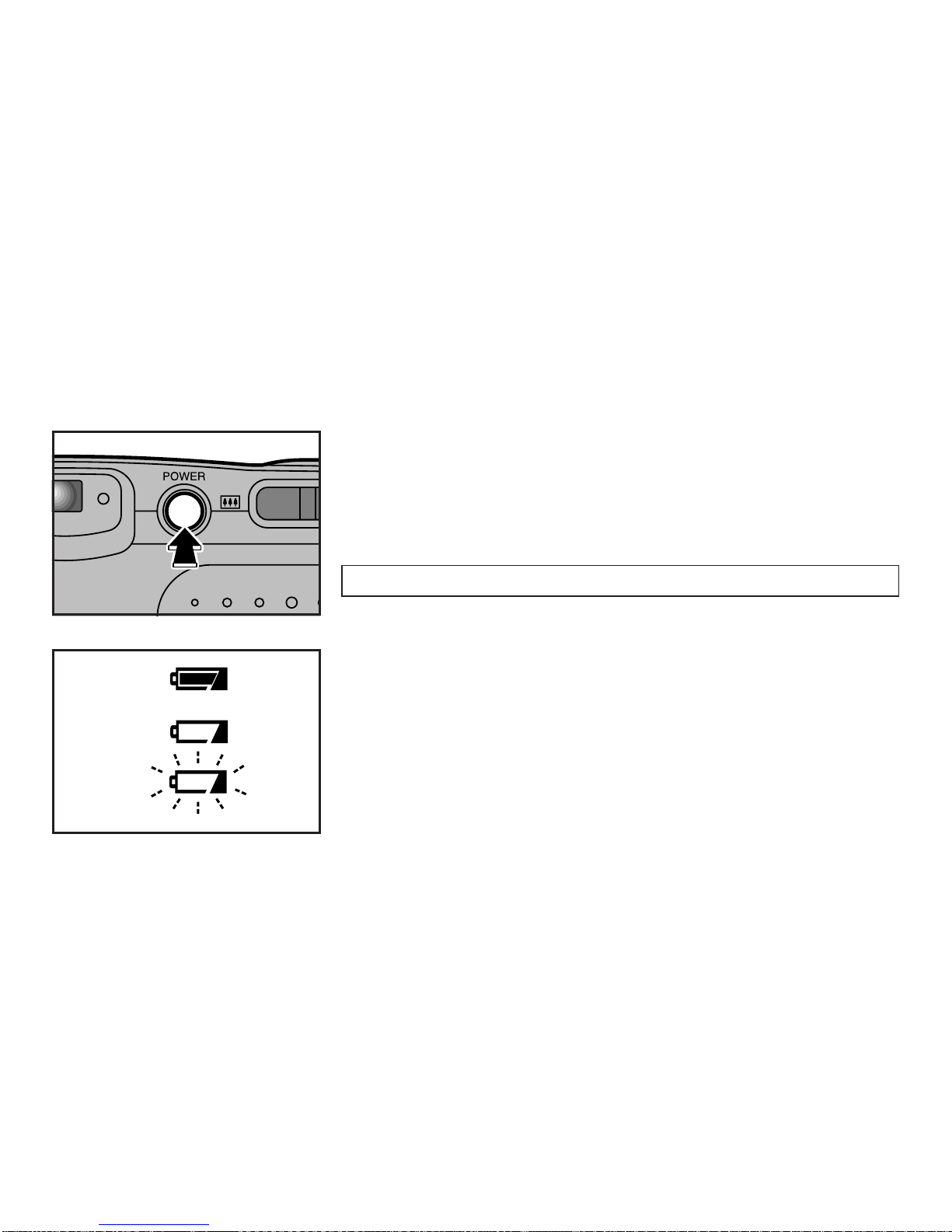

TURNING ONYOUR CAMERA
To prepareto useyourcamera, first press thepowersupply buttonto turn on thepower.
Pressing the button once more turns the power off.
∗When you turn your camera on, the lens cover will open and the initial display will appear in the
LCD.
∗Whenyouarefinished usingyourcamera,turn thepoweroffto conserveyourbattery.Ifthepower
supply is left on for more than seven minutes without the camera being used, the camera will
automatically turn itself off.
Before you turn the camera on, make sure that the lens is not blocked to avoid any interference
with the lens extending into its picture taking position.
CHECKINGYOUR BATTERY
To determine the condition of the battery in your camera, turn it on and check the battery
capacity indicator on the LCD panel.
1on : Battery capacity is OK.
2on : Battery capacity is low. Replace with a new battery.
3blink : Shutter cannot be released because battery is exhausted. Replace with a fresh battery.
∗Check the battery capacity before you start to use your camera.
∗You can replace your battery even if you have film in your camera.
1
2
3
10

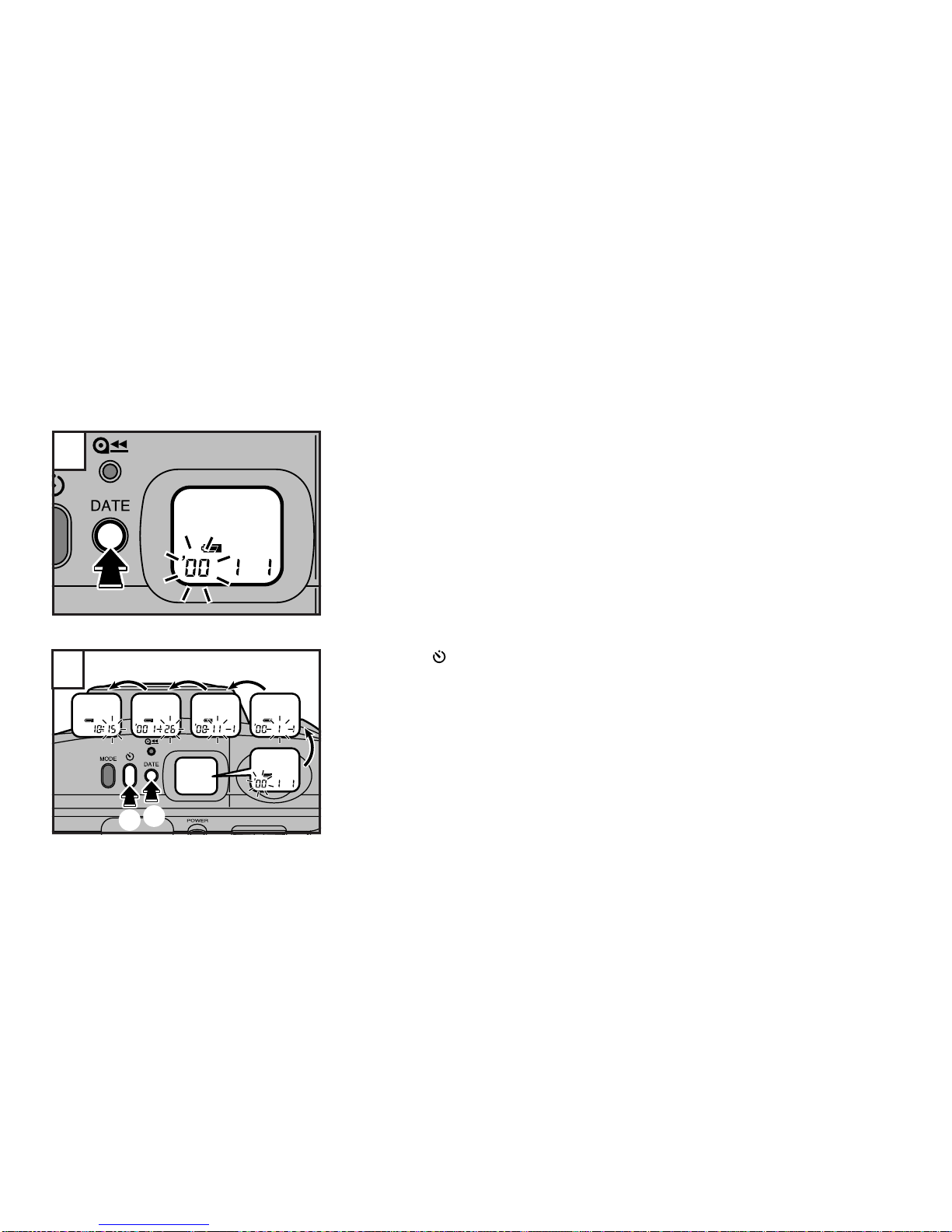

SETTINGTHE DATE
(YEAR-MONTH-DAY/HOUR-MINUTE)
Your camera can imprint the date or the time on your picture when you make your
exposure. To set your camera for imprinting, first turn on the power and then hold
down the DATE button for at least 2 seconds or longer.
☞The year signal will blink and the camera will enter the date/time setting mode.You can set:
Year:’00 to ’30 (2000 to 2030)
Month :1 to 12 Day : 1 to 31
Time : 0 to 23 hours; 00 to 59 minutes
1Press the button to change the blinking setting.
2Press the DATE button to select the next part of the date/time information.
☞Each press of the DATE button selects a different element in the date/time information in the
following order:
Year→Month→Day→Hours→Minutes
1
2
12
