FT Technologies FT702 Manuel utilisateur
TEL: +44 (0) 2089 430 801
FAX: +44 (0) 2089 433 283
WEB: www.fttechnologies.com
E-MAIL: info@fttechnologies.com
October 2019
The FT and Acu-Res logos are registered trademarks of FT Technologies Ltd
FT702 User Manual for Acu-Vis 2.0
V20 & V22 Sensors
FF & PM Mechanical Variants
1 Acu-Vis 2.0 Software
Warning: Users should perform a risk assessment and be suitably trained before attempting to use any
electrical equipment. Personal injury may result from unsuitable working practices. FT are not
responsible for the unsafe configuration and operation of sensors with non-standard settings
Warning: Modifying settings may alter the performance of FT wind sensors, ensure the user understands
the potential risks
FT can provide Acu-Test Evaluation Kits and power supplies to assist users with connection, development and
test of the FT sensors. The kit connects the sensor to a power supply and a Windows PC using virtual COM ports.
The USB test cables convert RS485HD to USB.
FT054 For RS485HD sensors with 5-pin connectors
FT055 For 4-20mA sensors with 8-pin connectors
The Acu-Test FT054 and FT055 cables are not designed for long-term datalogging use. Do not integrate the Acu-
Test cable into long-term datalogging surveys.
Please be aware that FT sensors can have various different software versions and settings available. Some
features may not be available for configuration. The key differences will be listed in the Appendix at the end of
this document.
Figure 1: The FT054 (top) and FT055 (bottom)
The Acu-Test Evaluation Kit includes a USB test cable and a CD containing the Acu-Vis software installation files
and user manuals. An external power supply capable of 6-30VDC and 4A is necessary, the FT062 power supply
may be used where the use of a benchtop electronics power supply is unsuitable.
Note: The FT062 power supply requires a regional C13-style adaptor for mains connection. See Figure 2
Figure 2: FT062 PSU (left) 24VDC 4A Benchtop PSU (right)
The Acu-Test kit allows the user to view and modify configuration settings.
Acu-Vis 2.0 software will work on a PC running Microsoft Windows 7, 8, 8.1 and 10.
Note: RS485 half-duplex sensors running in Continuous Update (CU) mode can be difficult to
communicate with due to the limitations of half-duplex topology. Contact FT Technologies for assistance
or disable CU mode using Acu-Vis 2.0
Caution: Live connection/disconnection of the power and/or sensors during live operation, or miswiring
of the power leads could damage the Acu-Test cable and is not covered by FT’s standard warranty terms
1.1 Software Installation
1. Insert the Acu-Vis 2.0 CD into the PC. Begin the installation by running the setup.exe file, it may be
necessary to contact an IT administrator. Follow the on-screen instructions.
2. Remove the FT702 sensor and USB test cable from their packaging
3. Ensure the power supply is disabled
4. Connect the test cable to the relevant parts
a. Connect the red Acu-Test connector (white cable) to the red (+24VDC) positive connector of the
power supply
b. Connect the black Acu-Test connector (brown cable) to the black (0V) ground connector of the
power supply
c. Connect the USB to a spare USB PC socket and remove any unnecessary USB devices
5. Windows will automatically detect the USB cable and attempt to update the FTDI drivers
Please wait for Windows to install the hardware
Ready for use
Figure 3: Windows Driver Installation Sequence
6. When the user is ready to operate the sensor - enable the power. When using a benchtop PSU ensure
the required voltage is supplied (6-30VDC) and the current output is enabled
7. Once the above sequence is complete, wait approximately 5 seconds and then run Acu-Vis by selecting
the shortcut icon on the desktop
Figure 4: Acu-Vis 2.0 Windows Launch Icon
8. If you need to change the Acu-Test cable it is recommended to press the ‘Disconnect’ button and follow the
exit process, close the Acu-Vis program and then disable the power. Remove the USB cable and replace
with the required cable
In case of technical issues please contact the technical support team at FT Technologies.
1.2 Acu-Vis 2.0 Software Operation: Digital RS485 Sensors
Acu-Vis 2.0 opens on the Connect display window - press the green ‘CONNECT’ button to begin a user session,
the program will detect the wind sensor if it is powered up and operating normally. If the sensor is in Continuous
Update mode Acu-Vis 2.0 will disable it (and provide an option at the end of the session to re-enable it).
Figure 5: The Acu-Vis Home Screen
1. The Acu-Test cable serial number
2. About Window: FT Technologies contact information and software build versions
3. Language selection options: English, French, Chinese, Spanish, Japanese and Korean
Wind Readings Tab
The Wind Readings display includes sensor settings, real-time wind speed and direction data.
The temperature gauge on the right-hand side shows the Heater Setpoint and Internal Temperature.
Figure 6: Acu-Vis 2.0 Live Display
Settings Tab
The Settings tab provides an interactive user interface for changing basic sensor settings with point and click
operation. Consult the user manual for full software command details.
•Heater Settings: On/Off and Heater Setpoint
•Wind Speed & Direction Filter: On/Off and the averaging time period
•Heater Current Limit: Change the maximum current limit used by the sensor
•Wind Direction Datum Offset: Apply a directional offset to the sensor
Please be aware that FT sensors can have different software versions and settings available. Some features may
not be available for configuration. The key differences will be listed in the Appendix at the end of this document.
Figure 7: Acu-Vis 2.0 Settings Display
•The ‘Sensor Warnings and History’ button will provide a history of the connected sensor settings where it
has been connected to the PC
•The ‘Export Sensor Information’ button creates an encrypted file containing current user settings and
diagnostic information. This feature will export a file in .fff format that can be forwarded to the FT
Technologies support teams
•The ‘Unlock Feature’ button is used to unlock advanced features in Acu-Vis 2.0, including the ‘Commands’
and the ‘User Calibration Table’ tabs. Contact FT Technologies for further details
Commands Tab (RS485 Digital Sensors only)
The Command tab allows the user to view and send various software commands:

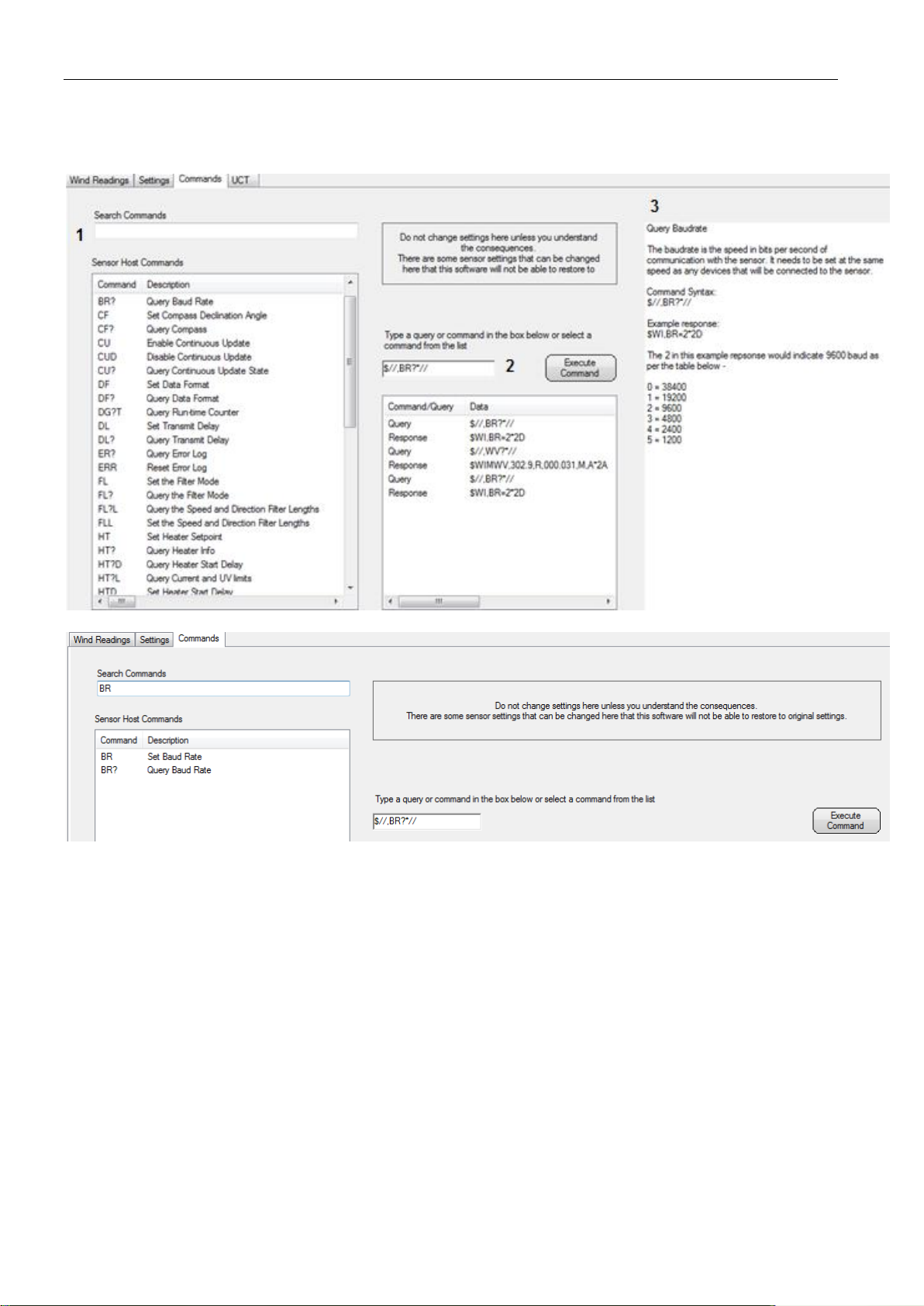

Figure 8: Command Line Terminal Display
•Search for commands (for example: BR) or select them from the ‘Sensor Host Command’menu. Selecting
a query will add the command to the ‘Execute Command’ window, a technical description will be displayed
•This window shows the command structure and allows the user to transmit commands using the ‘Execute
Command’ button. If the command has a response it will be shown below
Some SET commands require the user to add values into the command (for example: $//,DFP*//). The
user will be prompted to enter the missing settings
Note: The command console hides the <cr><lf> end-of-line terminal message and uses a default sensor
ID of $// to communicate with all sensor ID numbers (// is a wildcard value)
•This window provides a description of the selected software command. Please refer to the user manual
software command section for full descriptions
UCT (‘User Calibration Table’) Tab
The UCT window provides the user with a simple method of changing the calibration performance of the sensor.
Refer to the UCT commands detailed in the user manual for further information.
Acu-Vis 2.0 will download any existing UCT settings and display them on the table and graph.
The easiest method of changing the UCT is to use the ‘Standard % Offset” buttons to establish a calibration
change.
When the calibration change has been selected press the orange ‘Save UCT to Sensor’ button and ensure the
‘UCT Status’ is set to Enabled.
Caution: This feature will change the calibration profile of the sensor and may compromise survey data
and/or system performance

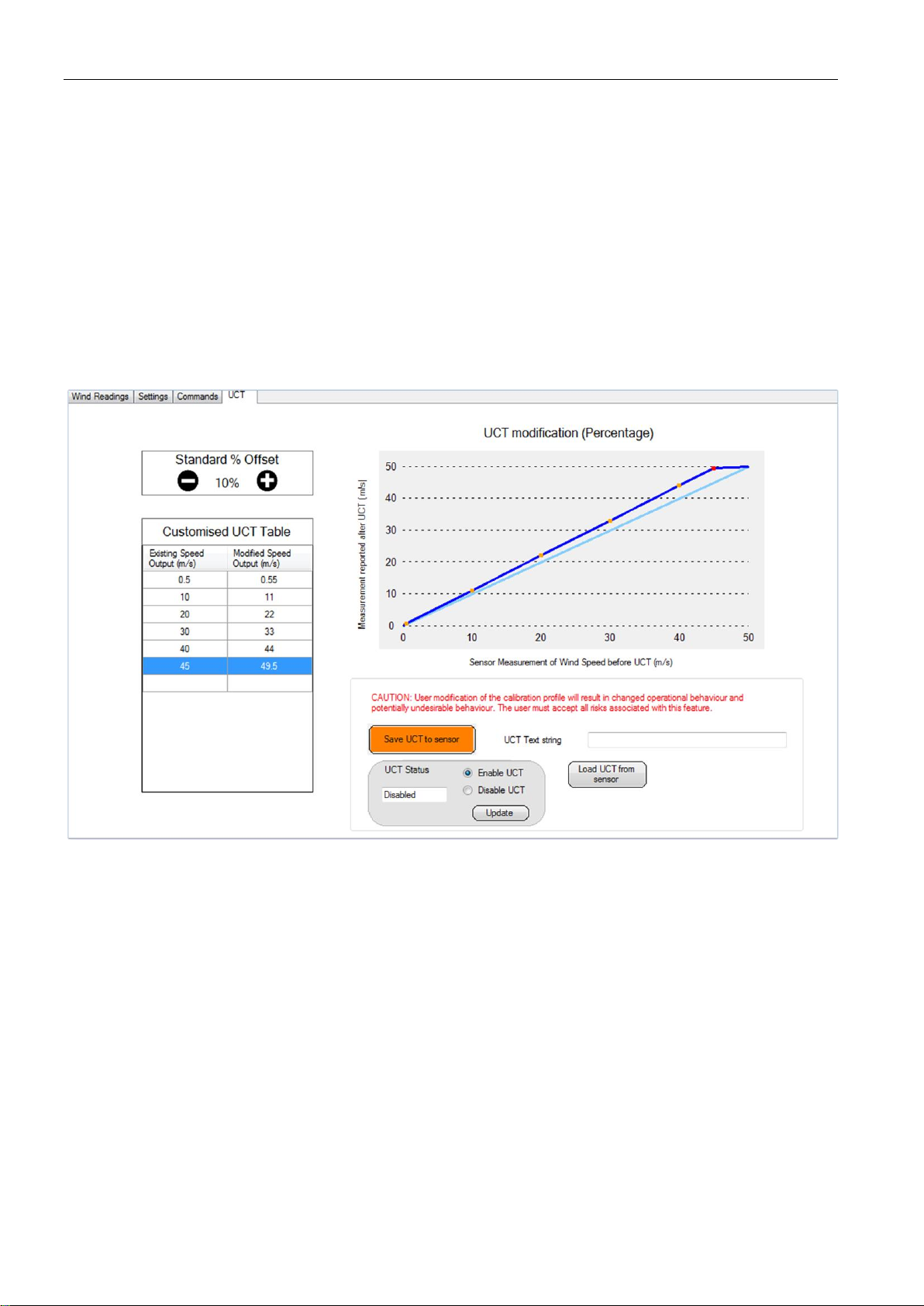

Figure 9: UCT Modification Window
1.3 Acu-Vis 2.0 Software Operation: 4-20mA Analogue Sensors
Acu-Vis 2.0 opens on the Connect display window. Press the green ‘CONNECT’ button to begin a user session,
the program will detect the wind sensor if it is powered up and operating normally.
Figure 10: Acu-Vis 2.0 Connect Display
1. The Acu-Test cable serial number
2. About Window: FT Technologies contact information and software build versions
3. Language selection options: English, French, Chinese, Spanish, Japanese and Korean
