Frossvt Espresso Coffee Machine
User Manual
Item
EM3205
Voltage
120 V
Frequency
60 Hz
Power
1350 W
Water tank
1.8 L
Pump
Pressure
20 Bar
1
Before the First Use （Important）
1. Move the coffee maker from the package, and check the accessories
according to the list；
2. Remove the tank cover and remove the tank, then remove the red silicone
from the water tank before using the coffee maker （Note: If the red silicone
piece is not removed, the machine will be unable to pump water）
3. Clean all the detachable components;
4. Pour water into water tank and the water level should not exceed the "max"
mark. Put back the water tank and close the water cover;
5. Connect power plug, all indicator lamp will light on about 1s, touch Power
button,then coffee lamps are flashing, machine start preheating, preheating will
be finished after 1min, power lamp and coffee indicator lamp will always light on
white, steam indicator lamp light off ;
6. After finished preheat, touch the double cup coffee button, the
electromagnetic pump works, and immediately open the steam knob to the
maximum position counter clockwise until the steam tube has a continuous
outflow of hot water, close the steam knob (the process may be repeated 1-3
times);
7. Rotate counter clockwise to install the portafilter into water outlet of the
machine, press the "double cup coffee switch" to let hot water come out to clean
the coffee filter and cup.
2
How to Make a Good Cup of Coffee
Grinding coffee bean and grinding quality largely determines the quality of
coffee, if the powder is too coarse, coffee extract inadequate, the taste is
light, and color is lighter, the cream also will be very thin, and color is white;
if the powder is too fine, coffee over extraction, it will be too dark, and no
cream. A good cup of coffee should use freshly ground coffee beans (use
burr coffee grinder), and use appropriate amount of coffee beans. Each
time when you making coffee with coffee powder, the freshness of the
beans is very important, long time storage will make coffee bean oil
decomposition.
1. Use the bean grinder to adjust the appropriate grinding thickness, and
then pour the fresh coffee beans into the grinding chamber for grinding. Use
the bean grinder to adjust the appropriate grinding thickness, and then pour
the fresh coffee beans into the grinding chamber for grinding.
2. It is recommended to weigh each time you make coffee to ensure the
amount of coffee powder added single cup: approx. 9-9.5g; double cup:
3
approx. 16-16.5g, and tamp down firmly with a powder press;
3. The surface of pressed coffee powder should be about 3mm away from
the edge of the filter cup (important indicator). Too high or too low will affect
the extraction pressure and effect of coffee, please reduce or increase the
amount of coffee powder;
4. Make coffee liquid: single cup of coffee: approx. 30ml; double cup of
coffee:approx. 60ml, this can be adjusted by the thickness of the ground
coffee.
4

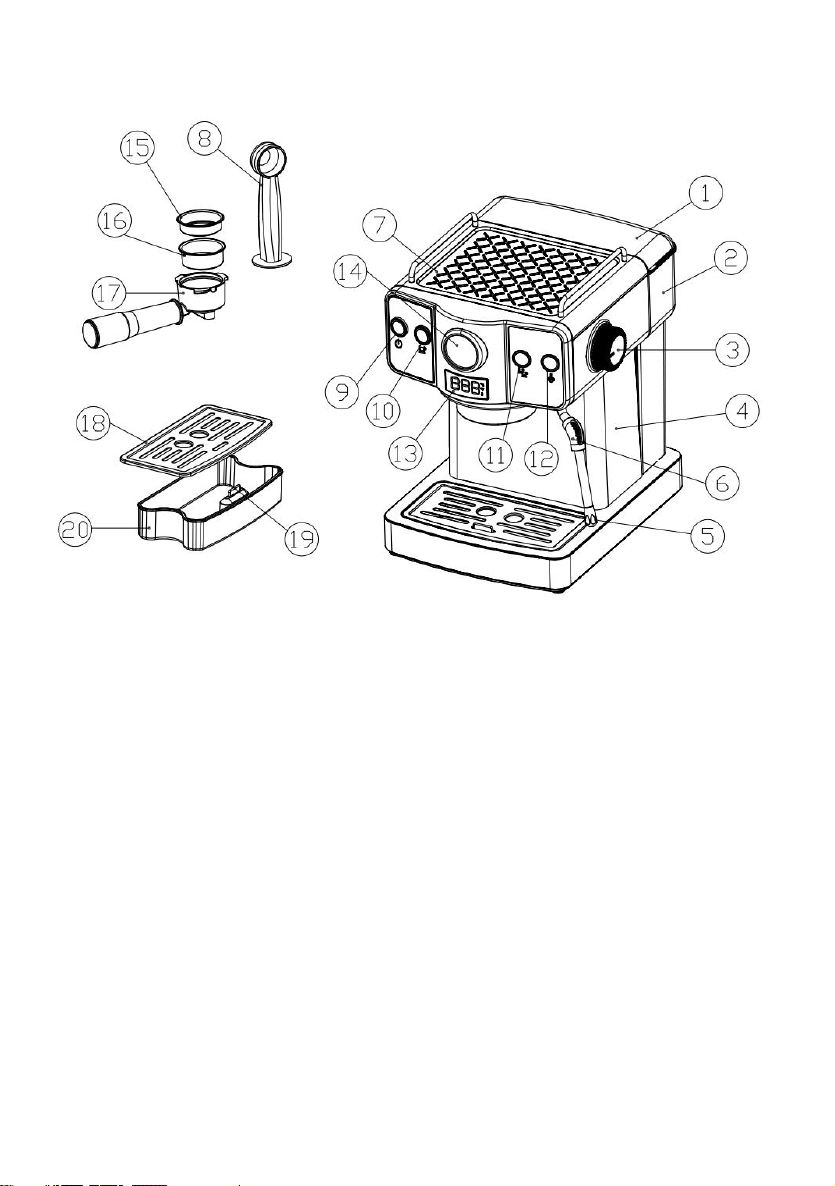

Accessories：
1.Water tank cover 2.Water tank 3.Steam knob
4.Main body 5.Steam pipe and nozzle 6.Steam pipe handle
7.Warm cup board 8.Spoon & Tamper 9.ON/OFF switch/ indicator
10.Single-cup coffee switch / indicator 11.Double-cup coffee switch / indicator
12.Steam warm-up switch / indicator 13.Display screen
14.Piezometer 15.Single-cup coffee filter 16.Double-cup coffee filter
17.Portafilter 18.Drip tray cover 19.Buoy 20. Drip tray
Warning: The machine must use a grinding Coffee powder and just make coffee,
coffee drink(ex: Cappuccino, Latte and so on), heating milk, and other irregular
use may cause danger.
5
Instructions：
“ ”Power button, after the machine is powered on, the indicator light is
steady on, touch the power button once to start preheating---the " "
button indicator light is always on during the preheating process, “ ”
“ ” button indicator is flashing; after preheating, “ ”“ ”“ ”
lights are always on white ,“ ”lights are always on red. Press again to
shut down during the warm-up process or after completion.
“ ” Single cup of coffee function button, touch it to start extracting
coffee after preheating, automatically extract until the machine stops
working or press the button again to stop working during the extraction
process. (During the extraction process, " " breath flashes(white), and
the buzzer beeps when the extraction is over, and the indicator light turns to
steady on white)
“ ” Double cup of coffee function button, touch it to start extracting
Steam/Water knob
6
coffee after preheating, Automatically extract until the machine stops
working or press the button again to stop working during the extraction
process. (During the extraction process, " " breath flashes(white), and
the buzzer beeps when the extraction is over, and the indicator light turns to
steady on white)
“ ”Steam preheat button: touch this button and the indicator blinks in
red to preheat steam. After the preheat is complete, the button （“ ”
“ ”）indicator is steady on white ,the button（“ ”“ ”） indicator
is steady on red.
The steam knob: The steam knob is closed when the knob is pointing
“ ”. There are two working states when the steam knob is turned on.
When the machine is in coffee mode, the knob is turned on and the steam
pipe gives hot water. When the machine is in steam mode, turn the knob,
steam tube steam out.
Note: when the power is turned on, the steam preheating indicator keeps
flashing fast (E-1 on the screen), which means that the steam knob is not
closed, and you can turn the steam knob to the closed position .
7
MAKE ESPRESSO COFFEE（Double-cup
Coffee for example）
1. Open the lid, take out water tank, and fill the water tank with up to 1.8 liters of
cold, preferably filtered water. Do not exceed the MAX capacity;
2. Put back the water tank and close the lid;
3. Plug in the power plug, the machine self-checks, the control panel is all on
and then goes out. Press the power switch, the single-cup coffee indicator,
double-cup coffee indicator flashes , the steam switch indicator is off, and the
machine starts to warm up. After about 1 minute, the single-cup coffee indicator
and double-cup coffee indicator are always light on , and the preheating is
completed;
4. Take out portafilter, pour appropriate coffee powder(16-16.5g) into the coffee
filter with coffee spoon, then tamp down firmly, clean the extra coffee powder
overflow the edge of holder, to avoid damage the seal ring of brew head.
Note: If too much coffee powder remaining in the edge of the filter, will easily
to cause poor sealing and water leakage.
5. Turn handle counter-clockwise (to the right) from position " " to position
" " LOCK. Make sure the portafilter is sealed and locked securely into the
brew head;
8
6. Put cup(s) under coffee outlet;
7. Touch the coffee double-cup coffee switch, the machine starts pumping water,
and coffee flows out of the coffee nozzle;
8. The coffee machine automatically stops working (the light from Flashing to
a constant light), and the coffee is made at this time, then remove the coffee
cup;
Warning: Do not leave the coffee machine unattended during the coffee
making process, as it sometimes requires manual operation.
9. After the coffee is made, turn the handle clockwise (to the left) to UNLOCK.
The portafilter will drop down from the brew head. Clean the coffee grounds
in the filter in time, and rinse it with hot water. Touch the single-cup or
double-cup coffee button, flush the outlet with water, install the clean
high-pressure portafilter assembly on the outlet, and wait for the next use.
10. When making a single cup of coffee, use a single-cup coffee filter, touch the
single-cup coffee switch when making, and the other steps are the same as
double-cup coffee making.
Warning: Do not touch the hot surfaces of the machine with hands to avoid
scald, especially brewing outlet, steam nozzle when use machine. Always run
water through the brew head and purge the steam wand after each use.
