Operating

Instructions

Fronius Smart Meter 63A-1

42,0426,0294,EN 009-28042023

EN Operating Instructions

Contents

Safety rules 4

Explanation of safety notices 4

General 4

Environmental conditions 5

Qualified personnel 5

Data protection 5

General 6

Device description 6

Symbols on the device 6

Positioning 6

Installation 8

Checklist for installation 8

Mounting 8

Protective circuit 8

Cabling 9

Connecting the data communication cable to the inverter 9

Terminating resistors - Explanation of symbols 11

Terminating resistors 11

Multi-meter system - Explanation of symbols 12

Modbus participants - Fronius SnapINverter 13

Multi-meter system - Fronius SnapINverter 14

Modbus participants - Fronius GEN24 15

Multi-meter system - Fronius GEN24 inverter 16

Menu structure 17

Setting the address of the Fronius Smart Meter 17

Reading the Fronius Smart Meter operating parameters 18

Start-up 21

Fronius SnapINverter 23

General 23

Connecting to the Fronius Datamanager 23

Configuring the Fronius Smart Meter as the primary meter 23

Configuring the Fronius Smart Meter as a secondary meter 24

Fronius GEN24 inverter 25

General 25

Installation using the web browser 25

Configuring the Fronius Smart Meter as the primary meter 26

Configuring the Fronius Smart Meter as a secondary meter 26

Technical data 28

Fronius manufacturer's warranty 30

Safety rules

Explanation of

safety notices DANGER!

Indicates immediate danger.

▶If not avoided, death or serious injury will result.

WARNING!

Indicates a potentially hazardous situation.

▶If not avoided, death or serious injury may result.

CAUTION!

Indicates a situation where damage or injury could occur.

▶If not avoided, minor injury and/or damage to property may result.

NOTE!

Indicates a risk of ﬂawed results and possible damage to the equipment.

General The device has been manufactured in line with the state of the art and according

to recognized safety standards. If used incorrectly or misused, however, it can

cause:

-Injury or death to the operator or a third party

-Damage to the device and other material assets belonging to the operating

company.

All personnel involved in commissioning, maintenance, and servicing of the

device must:

-Be suitably qualified

-Have knowledge of and experience in dealing with electrical installations and

-Have fully read and precisely followed these Operating Instructions

The Operating Instructions must always be at hand wherever the device is being

used. In addition to the Operating Instructions, attention must also be paid to

any generally applicable and local regulations regarding accident prevention and

environmental protection.

All safety and danger notices on the device:

-Must be kept in a legible state

-Must not be damaged

-Must not be removed

-Must not be covered, pasted or painted over

The terminals can reach high temperatures.

Only operate the device when all protection devices are fully functional. If the

protection devices are not fully functional, there is a danger of:

-Injury or death to the operator or a third party

-Damage to the device and other material assets belonging to the operating

company

Any safety devices that are not fully functional must be repaired by an author-

ised specialist before the device is switched on.

Never bypass or disable protection devices.

For the location of the safety and danger notices on the device, refer to the sec-

tion headed "General remarks" in the Operating Instructions for the device.

Any equipment malfunctions which might impair safety must be remedied before

the device is turned on.

This is for your personal safety!

Environmental

conditions

Operation or storage of the device outside the stipulated area will be deemed as

not in accordance with the intended purpose. The manufacturer accepts no liab-

ility for any damage resulting from improper use.

Qualified per-

sonnel

The servicing information contained in these operating instructions is intended

only for the use of qualified service engineers. An electric shock can be fatal. Do

not carry out any actions other than those described in the documentation. This

also applies to qualified personnel.

All cables and leads must be secured, undamaged, insulated and adequately di-

mensioned. Loose connections, scorched, damaged or inadequately dimensioned

cables and leads must be immediately repaired by authorised personnel.

Maintenance and repair work must only be carried out by an authorised special-

ist.

It is impossible to guarantee that bought-in parts are designed and manufac-

tured to meet the demands made on them, or that they satisfy safety require-

ments. Use only original spare parts (also applies to standard parts).

Do not carry out any alterations, installations, or modifications to the device

without first obtaining the manufacturer's permission.

Components that are not in perfect condition must be changed immediately.

The text and illustrations are all technically correct at the time of printing. We

reserve the right to make changes. The contents of the operating instructions

shall not provide the basis for any claims whatsoever on the part of the pur-

chaser. If you have any suggestions for improvement, or can point out any mis-

takes that you have found in the instructions, we will be most grateful for your

comments.

Data protection The user is responsible for the safekeeping of any changes made to the factory

settings. The manufacturer accepts no liability for any deleted personal settings.

General

Device descrip-

tion

The Fronius Smart Meter is a bidirectional electricity meter which optimises self-

consumption and records the household's load curve. In conjunction with the

Fronius inverter, Fronius Datamanager and Fronius data interface, the Fronius

Smart Meter provides a clear overview of a user's own power consumption.

The meter measures the power ﬂow to the loads or to the grid and forwards the

information via the Modbus RTU/RS485 communication to the Fronius inverter.

CAUTION!

Observe and follow safety instructions!

Failure to observe the safety instructions will result in damage to personnel and

equipment.

▶Switch off the power supply before establishing a mains connection.

▶Observe the safety instructions.

Symbols on the

device

Technical data, markings and safety symbols are located on the Fronius Smart

Meter. These must not be removed nor painted over. The notices and symbols

warn of incorrect operation that could result in serious injury and damage to

property.

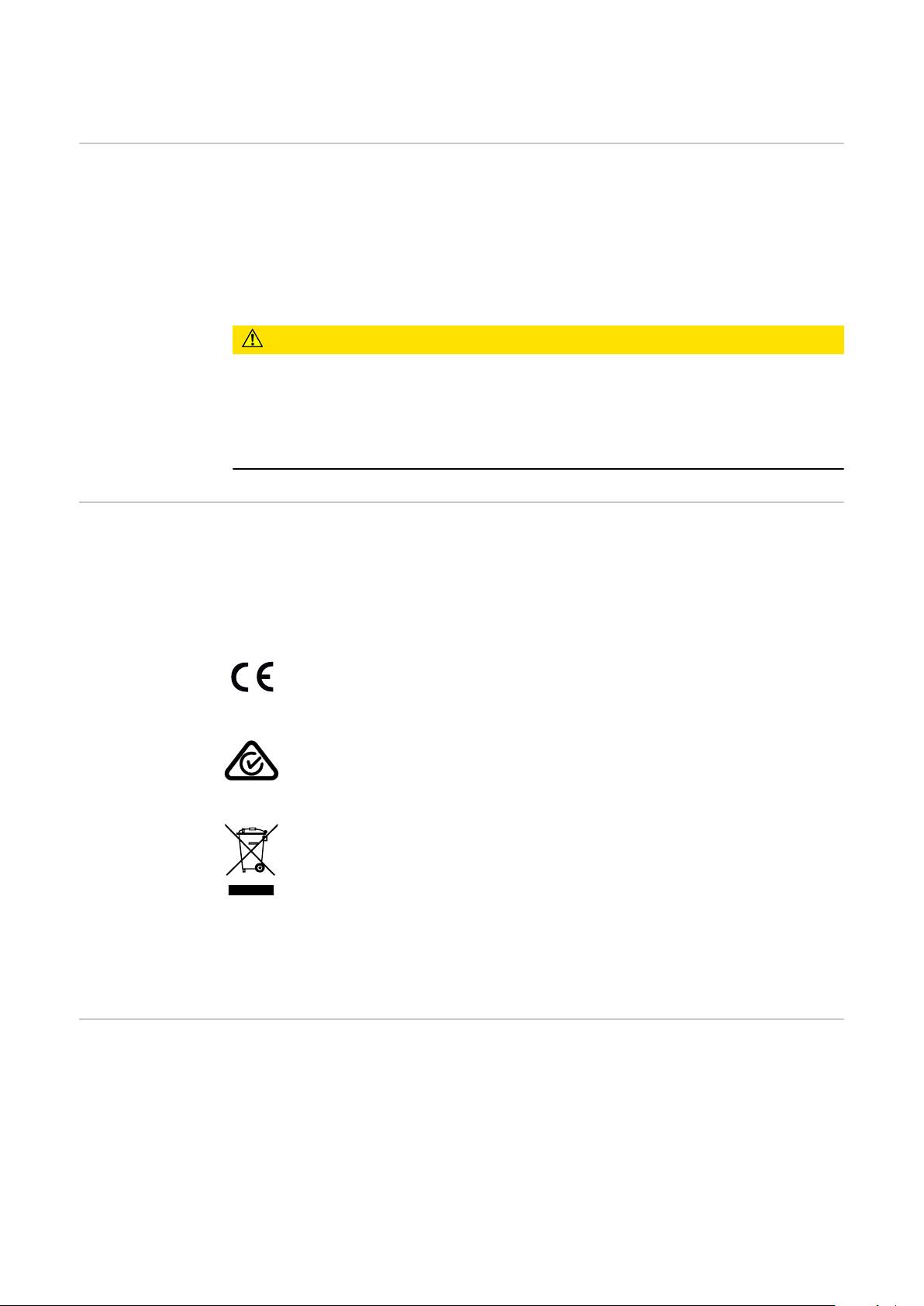

Symbols on the rating plate:

CE mark

The devices conform to all the requisite and relevant standards and

guidelines that form part of the relevant EU directive, and are therefore

permitted to display the CE mark.

Regulatory Compliance Mark (RCM)

Complies with all applicable regulatory requirements in Australia and

New Zealand regarding safety and electromagnetic compatibility, as

well as specific requirements for radio equipment.

WEEE mark

In accordance with European Directive 2012/19/EU on waste electrical

and electronic equipment and its implementation in national law, used

electrical devices must be collected separately and recycled in an envir-

onmentally responsible manner. Ensure that you return your used

device to your dealer or obtain information regarding a local, authorised

collection and disposal system. Failure to comply with this EU Directive

may result in a negative impact on the environment and your health!

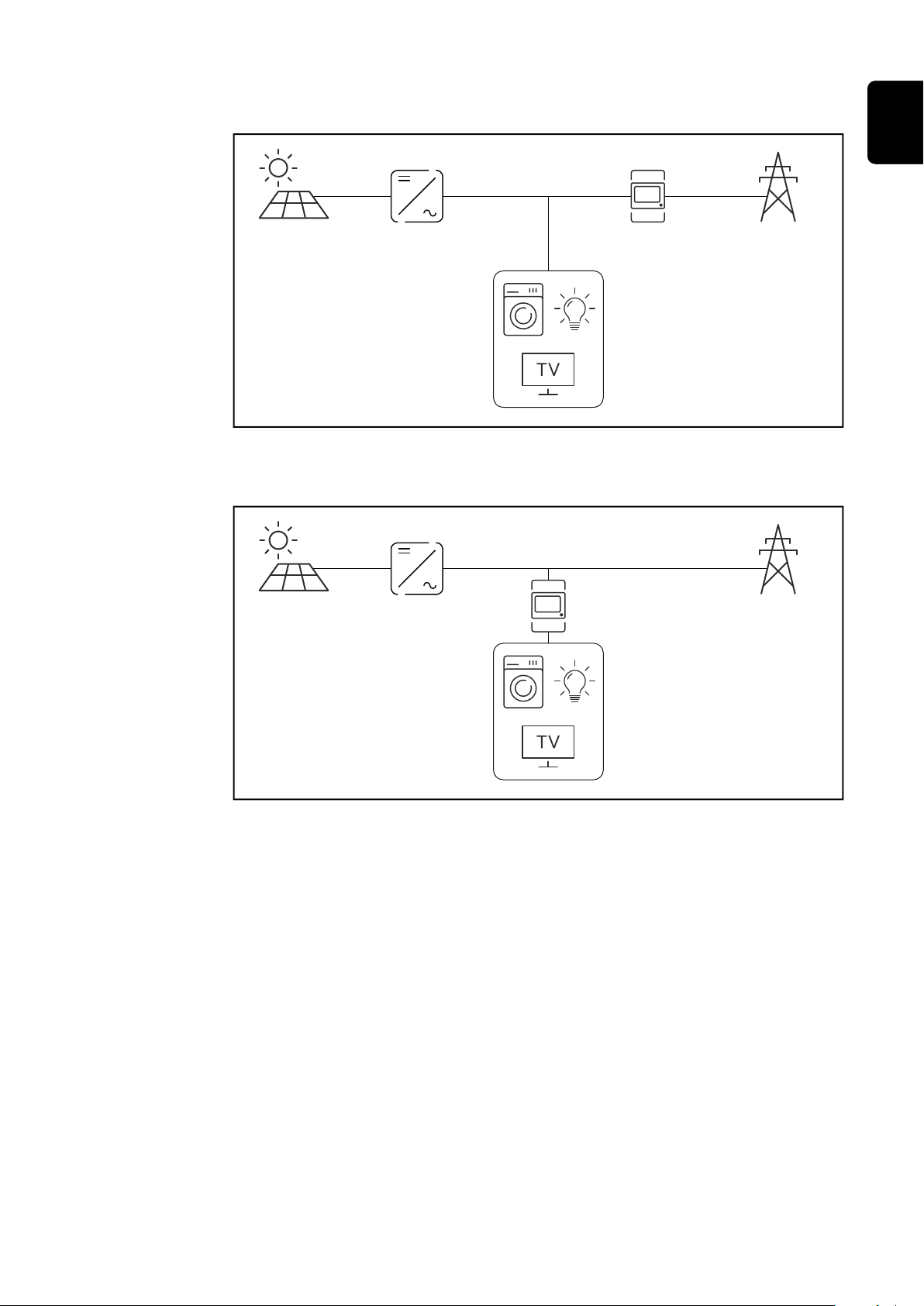

Positioning The Fronius Smart Meter can be installed at two possible locations in the system:

at the feed-in point and at the consumption point.

Placement at the feed-in point

Fronius Smart Meter located at the feed-in point.

Placement at the consumption point

Fronius Smart Meter located at the consumption load.

Installation

Checklist for in-

stallation

For installation information, see the following chapters:

1Switch off the power supply before establishing a mains connection.

2Mount the Fronius Smart Meter (see Mounting on page 8).

3Connect automatic circuit breakers or automatic circuit breakers and discon-

nectors (see Protective circuit on page 8).

4Connect the mains cable to the Fronius Smart Meter (see Cabling on page

9).

5Connect the output terminals of the Fronius Smart Meter to the Fronius in-

verter (see Connecting the data communication cable to the inverter on

page 9).

6If necessary, set terminating resistors (see Terminating resistors on page

11).

7Tug on each wire and plug to make sure that they are securely connected to

the terminal blocks.

8Switch on the power supply to the Fronius Smart Meter.

9Check the firmware version of the Fronius inverter. To ensure compatibility

between the inverter and the Fronius Smart Meter, the software must always

be kept up to date. The update can be started via the inverter web page or

using Solar.web.

10 If several Fronius Smart Meters are installed in the system, set the address

(see "Setting the address" under Setting the address of the Fronius Smart

Meter on page 17).

11 Configure and commission the meter (see Start-up on page 21).

Mounting The Fronius Smart Meter can be mounted on a 35 mm DIN rail. The housing

comprises 2 modules according to DIN 43880

Protective cir-

cuit

The Fronius Smart Meter is a hard-wired device and requires a disconnecting

device (circuit breaker, switch or disconnector) and overcurrent protection (auto-

matic circuit breaker).

The Fronius Smart Meter consumes just 10-30 mA, so that the nominal capacity

of all switches, disconnectors, fuses and/or automatic circuit breakers is determ-

ined by the wire gauge, mains voltage and required breaking capacity.

-Switches, disconnectors and circuit breakers must be within sight and loc-

ated as close as possible to the Fronius Smart Meter; they must also be easy

to use.

-Use automatic circuit breakers that are rated for max. 63 A.

-To monitor more than one mains voltage, use connected automatic circuit

breakers.

-The automatic circuit breakers must protect the mains terminal, which is

marked L1. In rare cases where the neutral conductor has overcurrent pro-

tection, the overcurrent protection device must interrupt both neutral and

non-earthed cables concurrently.

-The circuit protection/disconnecting device must satisfy the requirements of

IEC 60947-1 and IEC 60947-3, as well as all national and local regulations

for electrical systems.

Cabling WARNING!

Danger from mains voltage.

An electric shock can be fatal.

▶Switch off the power supply before connecting the mains voltage inputs to

the Fronius Smart Meter.

IMPORTANT!

Do not install more than one cable per screw terminal. If necessary, use terminal

blocks.

Current path connection cross-section:

-Wire (rigid): min. 1 mm² / max. 16 mm²

-Wire (ﬂexible): min. 1 mm² / max. 10 mm²

-Recommended torque: 1.2 Nm / max. 1.4 Nm

Data communication and neutral conductor connection cross-section:

-Wire (rigid): min. 0.05 mm² / max. 4 mm²

-Wire (ﬂexible): min. 0.05 mm² / max. 2.5 mm²

-Recommended torque: 0.5 Nm / max. 0.8 Nm

Connect each voltage cable to the terminal strip as shown in the graphic below.

Connecting the

data communic-

ation cable to

the inverter

Fronius SnapINverter:

Connect the data communication connections of the Fronius Smart Meter to the

Fronius system monitoring in the inverter. Several Smart Meters can be installed

in the system, see chapter Multi-meter system - Fronius SnapINverter on page

14.

1Connect 35 to -.

2Connect 34 to D-.

3Connect 33 to D+.

Fronius GEN24 inverter:

Connect the data communication connections of the Fronius Smart Meter to the

Modbus interface of the Fronius GEN24 inverter. Several Smart Meters can be

installed in the system, see chapter Multi-meter system - Fronius GEN24 invert-

er on page 16.

1Connect 35 to GND.

2Connect 34 to M1-.

3Connect 33 to M1+.

IMPORTANT!

More information on successful commissioning.

Note the following information about connecting the data communication cable

to the inverter.

▶Use cables of type CAT5 or higher.

▶Use a mutual twisted cable pair for data lines that belong together (D+, D-

and M1+, M1-).

▶If the output cables are close to the mains cabling, use wires or cables that

are designed for 300 V to 600 V (never less than the operating voltage).

▶Use double-insulated or sheathed output cables when they are close to bare

conductors.

▶Use shielded twisted pair cables to avoid faults.

▶The outputs of the Fronius Smart Meter are electrically isolated from haz-

ardous voltages.

Autres manuels pour 63A-1

Table des matières

Autres manuels FRONIUS Instrument de mesure

FRONIUS

FRONIUS TS 5kA-3 Manuel utilisateur

FRONIUS

FRONIUS LaserHybrid WF 25i Manuel utilisateur

FRONIUS

FRONIUS DC Box 60/12 MET Manuel utilisateur

FRONIUS

FRONIUS Smart Meter IP Manuel utilisateur

FRONIUS

FRONIUS TS 5kA-3 Manuel utilisateur

FRONIUS

FRONIUS 63A-1 Manuel utilisateur

FRONIUS

FRONIUS 250/30 DCD DF Manuel utilisateur

FRONIUS

FRONIUS Datamanager Galvo Manuel utilisateur

FRONIUS

FRONIUS Datamanager 2.0 Manuel utilisateur

FRONIUS

FRONIUS Smart Meter TS Series Manuel utilisateur

FRONIUS

FRONIUS WR Manuel utilisateur

FRONIUS

FRONIUS 63A-3 Manuel utilisateur

FRONIUS

FRONIUS 63A-1 Manuel utilisateur

FRONIUS

FRONIUS 63A-3 Manuel utilisateur

FRONIUS

FRONIUS TS 65A-3 Manuel utilisateur

FRONIUS

FRONIUS Smart Meter 240-3 UL Manuel utilisateur

FRONIUS

FRONIUS Smart Meter TS 100A-1 Manuel utilisateur

FRONIUS

FRONIUS Smart Meter TS 5kA-3 Manuel utilisateur

FRONIUS

FRONIUS TS 5kA-3 Manuel utilisateur

FRONIUS

FRONIUS RI FB PRO/i Manuel utilisateur

FRONIUS

FRONIUS Smart Meter TS 65A-3 Manuel utilisateur

FRONIUS

FRONIUS Smart Meter 50kA-3 Manuel utilisateur

FRONIUS

FRONIUS 63A-1 Manuel utilisateur

FRONIUS

FRONIUS Smart Meter 50kA-3 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur

FRO­NIUS 63A-1 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

FRONIUS 63A-1 Manuel utilisateur
