Frigidaire GLTF1570E Manuel utilisateur

Product No. GLTF1570ES0

Series Frigidaire

Market North America

Color white

Volts 120

Wiring Diagram 134511300

Owner's Guide 134031900

Energy Guide 134488100

Installation Instructions 134127900

Operating Instructions 134488300

P12l0037.eps P12C0330.eps P12V0062.eps P12T0083.eps 134511300-1.eps

134511300-2.eps

ELECTROLUX MAJOR APPLIANCES

NORTH & LATIN AMERICA

P.O. Box 212378

Augusta, GA 30917 Publication No.

5995430831

05/03/07

(EN/SERVICE/KC)

361

FRONT-LOAD

WASHING MACHINE

Model No.

GLTF1570E

Publication No: 5995430831 GLTF1570ES0

03/05 2

CONTROL PANEL

GLTF1570ES0 Publication No: 5995430831

# Functional Parts 3 03/05

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 131272100 Cover, bleach

2 131272000 Cover, softener

3 131271910 Drawer, dispenser

6 131374500 Latch, disp drawer hdl

7 131427500 Spring

8 131373800 Magnet

9 131691248 Handle, disp drawer, w/trim & tape

12 # 131505902 Switch, reed

13 # 134401700 Switch, temp selector, 7 position

15 # 134126800 Switch, temp/buz/xrinse, 2 position

17 # 134381100 Switch, pressure

18 # 134014700 Timer, 4-off

19 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

21 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

26 131823400 Screw, 8-18 x 2.00

27 131887220 Console, frame/trim assy

29 134042700 Knob, rotary, white

30 134042400 Knob, timer, white

31 131853900 Pointer, timer, white, gray indicator

32 131786100 Hose, dispenser

33 131306216 Clamp

36 # 131974700 Valve, dispenser, w/seal

37 131271600 Hose, tub

38 131803710 Dispenser Assy, detergent

39 131863300 Siphon

39* 131307900 Clamp, siphon/bellows

40 # 134040800 Switch, on/off, white, round

42 131168200 Screw, pan head, 8-18B x 0.31

43 131749200 Gasket, seal

44 # 131899800 Thermistor, w/hose & clamp

45 5303321107 Bushing, idler

46 134191412 Panel, control mtg., wing bend

* # 134073300 Wiring Harness

* 131931201 Dampener, vibration, 3.5 x 2 x 2 in., foam

54 5308015493 Spacer, timer shaft

63 # 134175600 Switch, 3 posn rotary

69 # 131908000 Wiring Harness, dispenser valve

73 # 131963800 Beeper, signal switch

75 # 131949010 Lamp, status ind., with bracket

76 131974500 Screw, pan head, 6-20AB x 0.750, #8 comb head

Publication No: 5995430831 GLTF1570ES0

03/05 4

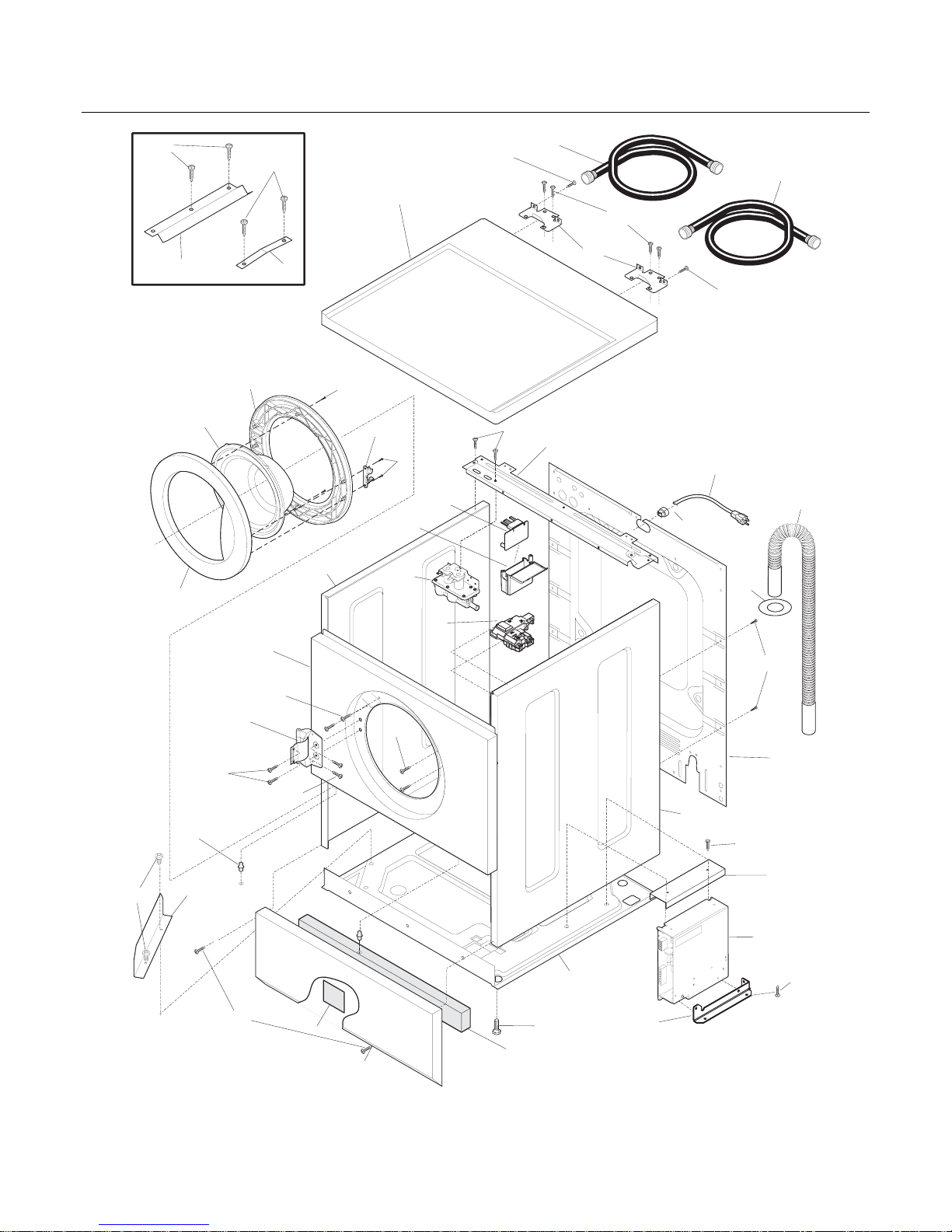

CABINET/TOP

58A 58

20 22

P12V0062

GLTF1570ES0 Publication No: 5995430831

# Functional Parts 5 03/05

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 131279602 Hose, water inlet, cold

2 131168200 Screw, pan head, 8-18B x 0.31

3 131279603 Hose, water inlet, hot

4 # 134149200 Controller Assy, speed, w/base & shield

7 131205300 Screw, 10-16 x 0.750

8 # 131763200 Door Lock/Switch Assy

9 131303300 Screw, pan head, 10-16AB x 0.500, locking

10 131278700 Frame, outer door, white

11 131278800 Panel, door glass

12 131278900 Frame, inner door, white

13 131302901 Screw, 10-16 x 0.750

14 131763310 Striker, door/lock/sw

15 134264600 Hinge, door

16 131696300 Screw, quad pan head, 10-16 x 0.312

17 131346400 Pin, panel locator, side

18 131279300 Panel, service, white, kick plate

19 131358400 Screw, hex washer hd, 8-18AB x 1.125

20 131460900 Bracket, top panel mtg., front

21 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

22 131279500 Retainer, spring steel

23 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

24 134086842 Panel, white, top

25 131668200 Bracket, top panel mtg.

26 134178901 Screw, 8-18AB x 0.455

28 131978500 Panel, back

29 131752030 Panel, cabinet front, white

30 131859600 Shield, overflow

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

33 # 5303207418 Valve, water

35 131732902 Bracket, reinforcement, top rear

36 131841600 Leveling Leg Assy, bolt, pad & nut

39 134178900 Screw, Quad, 8-18AB x 0.455

44 131707800 Ring, drain hose

45 134049200 Hose, drain

58 131800410 Noise Absorber

58A 131744202 Damper, vibration

64 # 134226600 Control Board, temperature, automatic

65 131894600 Housing, temp cont board

70 134048600 Shield, drip protector

71 134048400 Base, controller mtg

76 134390701 Panel, side, white, RS/LS, (2)

77 131458240 Base Plate

* 5303937142 Shipping Brace Kit

Publication No: 5995430831 GLTF1570ES0

03/05 6

MOTOR/TUB

GLTF1570ES0 Publication No: 5995430831

# Functional Parts 7 03/05

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131793302 Bolt, carriage, 1/4-20 x 4.00

6 131975300 Counterweight, one piece

7 131277300 Spring, boot retainer

8 134177600 Bellows, door boot

10 131304700 Nut, hex, 1/4-20 UNC-2B

11 131276900 Washer, Bellville, spring steel

12 131793500 Plate, counterweight

13 131618600 Shell, outer tub, front

14 134144700 Spring Assy, suspension, w/sleeves

14* 131560000 Sleeve, protector, lwr spring hook

14* 131592200 Sleeve, protector, upr spring hook

15 131303900 Screw, hex washer head, 1/4-10A x 2.165

16 131618500 Drum Assy, spin basket

17 131274600 Vane

18 131302800 Screw, 10-16AB x 0.375

19 # 131770600 Motor

20 131303500 Screw, hex washer head, 12-14AB x 1.50, motor mtg.

21 134146100 O-ring, tub

22 131462800 Shell, outer tub, rear, with bearing

23 134125900 Counterweight, drum rear

25 # 134051000 Belt, drive-V, 6-rib

26 131883400 Pulley, drum drive, large, rear

27 131304400 Washer, 0.41 x 1.50, 0.12 thick

28 131304500 Washer, lock, 3/8

29 131303700 Screw, pulley mtg., m10 x 0.92, metric

30 131268200 Shock Absorber, air, stabilizer

31 131268300 Pin, shock mtg.

32 131268100 Bracket, shock mtg.

33 134160900 Screw, quadrex, 10-16AB X 0.750

35 134051100 Pump, drain

41 134044200 Coin Trap

42 131333101 Clamp

43 131277500 Chamber, air

44 131277600 Hose, air pressure

45 131306202 Clamp, hose

48 131306234 Clamp, pump to trap

49 134266500 Clamp, bellows/boot, 0.059 OD wire, spring held

* 134488100 Energy Guide

Publication No: 5995430831 GLTF1570ES0

03/05 8

WIRING DIAGRAM

GLTF1570ES0 Publication No: 5995430831

# Functional Parts 9 03/05

* Non-Illustrated Parts

WIRING DIAGRAM
