Frigidaire FTF2140ES2 Manuel utilisateur

Product No. FTF2140ES2

Series Frigidaire

Market North America

Color white

Volts 115

Wiring Diagram 134541700

Owner's Guide 134667900

Energy Guide 134374400

Installation Instructions 134678000

Operating Instructions 134374500

P12L0051.eps P12C0356.eps P12V0082.eps P12T0084.eps 134541700.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459210

06/01/23

(EN/SERVICE/WC)

361

FRONT-LOAD

WASHING MACHINE

Model No.

FTF2140E

Publication No: 5995459210 FTF2140ES2

01/06 2

CONTROL PANEL

42 19

P12C0356

48 49

FTF2140ES2 Publication No: 5995459210

# Functional Parts 3 01/06

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 # 134484018 Control Board, pc, with housing

2 134432000 Knob, function

3 134431900 Knob, program

4 134347700 Pin, program knob

5 134347300 Pin, function knob

6 134429100 Light Pipe, array, 1 row of 5

7 134429300 Light Pipe, array, 3 row of 3

8 134429200 Light Pipe, array, 2 row of 4

9 134429400 Light Pipe, array, 4 start group

10 134385100 Push Button, function

11 134385201 Push Button, start

12 134385301 Push Button, pause

13 134349400 Spring, push button

14 134385400 Push Button, soil

15 # 134399300 Switch, reed

16 134364800 Bracket, top front

17 # 134528801 Switch, pressure, with shield

18 131302800 Screw, 10-16AB x 0.375

19 134402900 Screw, phillips, 6-19 x 0.650

20 134452600 Cover, hole plug

21 134407900 Dampener, vibration

23 # 134435300 Wiring Harness, controls

23*# 134543000 Wiring Harness, main

26 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

27 134442600 Panel, control console

28 131205300 Screw, 10-16 x 0.750

32 134371700 Hose, disp-to-bellows

33 131306216 Clamp

34 134446300 Clamp, hose, bellows

35 134371800 Gasket, disp hose seal

36 # 134371220 Valve, dispenser

36* 131311900 Screw, quadrex ph, 8-18AB x 0.500

37 134372300 Hose, disp-to-tub

38 134372400 Clamp, tub hose

39 134446110 Housing, dispenser, valve, cover

39* 134371300 Gasket, disp-to-valve

40 134372100 Tube, disp-to-overflo

41 134372200 O-ring, overflow tube

42 131168200 Screw, pan head, 8-18B x 0.31

44 134370200 Cover, dispenser

45 134370000 Drawer, dispenser

46 134349500 Spring, door latch

47 134386500 Latch, dispenser, slider lock

48 134453300 Handle, dispenser, front

49 134386200 Frame, drawer handle

50 134370100 Conveyor, dispenser, lower

51 131373800 Magnet

Publication No: 5995459210 FTF2140ES2

01/06 4

CABINET/TOP

15 16

P12V0082

FTF2140ES2 Publication No: 5995459210

# Functional Parts 5 01/06

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 131454100 Hose, water inlet, 4 ft., hose & washer

2 131168200 Screw, pan head, 8-18B x 0.31

4 # 134409902 Control Board, motor

4* # 134547600 Wiring Harness, motor control

5 134522900 Bracket, angle, motor control

8 # 131763200 Door Lock/Switch Assy

8* # 134606800 Wiring Harness, door switch

9 131303300 Screw, pan head, 10-16AB x 0.500, locking

11 134366400 Panel, door glass

12 134507300 Panel, inner door

13 131302901 Screw, 10-16 x 0.750

14 131763310 Striker, door/lock/sw

15 134412400 Hinge, door

16 134178901 Screw, 8-18AB x 0.455

17 134408700 Clip, assembly

18 134321702 Panel, front service, white

19 131258400 Screw, 10-16AB x 0.500

20 134434901 Bracket, LS panel, reinforcement

20* 134434900 Bracket, RS panel, reinforcement

21 134424700 Screw, comb flat head, 8-18AB x 0.75

22 134364700 Retainer, spring steel

23 134522100 Screw, #12 flat head, 10-14P, quad drive

24 134365000 Panel, work top, white

26 134521600 Screw, hex washer head, M5 0.8 x 15

28 134364300 Panel, service access, rear

29 134363300 Panel, cabinet front, white

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

35 134365100 Bracket, top support, rear

36 134548800 Leveling Leg, screw, plastic

42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

45 # 134369400 Hose, drain, external

46 134412800 Handle, door

48 134412103 Panel, outer door, white

50 134364600 Bracket, tub suspension

51 134562100 Protector, tub brkt, spring hook, (2)

52 131931202 Dampener, vibration, foam

53 134507401 Adapter, door glass ring

54 134364900 Fastener, wire harn clip

60 134372000 Grommet, dispenser, back panel

* 134591500 Plug Assy, shippingholes, back

* 134596200 Shipping Support Kit

Publication No: 5995459210 FTF2140ES2

01/06 6

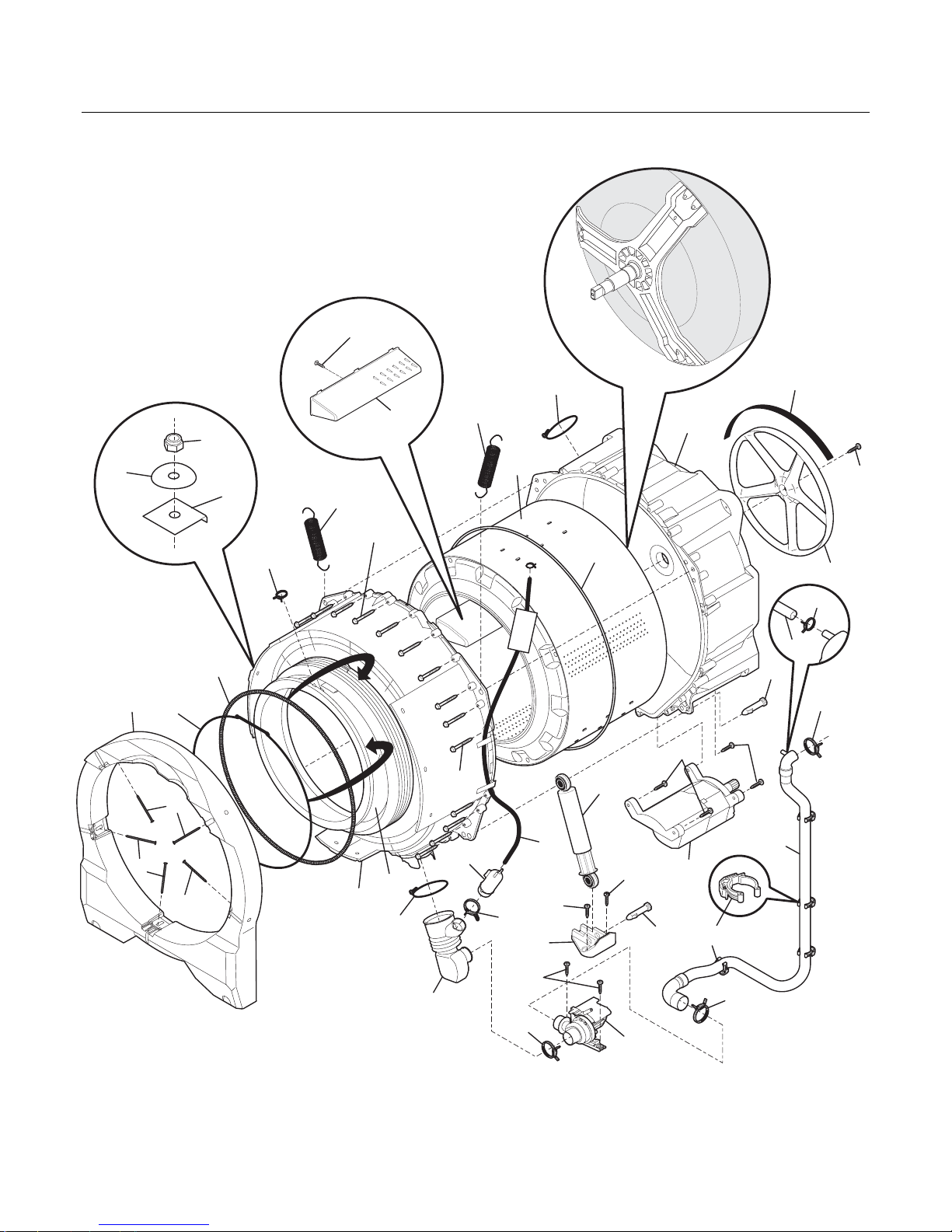

MOTOR/TUB

12 14

32 31

P12T0084

20 20

FTF2140ES2 Publication No: 5995459210

# Functional Parts 7 01/06

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131793303 Bolt, carriage, 1/4-20 x 2.60

6 134362200 Counterweight, front, one piece

7 134365300 Spring, bellows clamp, retainer

8 134365200 Bellows, door boot

10 131304700 Nut, hex, 1/4-20 UNC-2B, (2)

11 131276900 Washer, Bellville, spring steel

12 134430600 Plate, counterweight

13 134362000 Shell, tub, front

14 # 134362800 Spring Assy, suspension

15 134408300 Screw, hex head, 6.5 x 51 mm

16 134360900 Drum Assy, spin basket

17 134509600 Vane Kit, drum

18 131302800 Screw, 10-16AB x 0.375

19 # 134362500 Motor, 120 V

20 131303500 Screw, 12-14AB x 1.50, motor mtg.

21 134361900 O-ring, tub

22 134509500 Shell, outer tub, rear, w/bearing, seal

25 # 134051001 Belt, drive, poly-V, 6-rib

26 # 134362600 Pulley, drum drive, large, rear

29 134408400 Screw, 10.9 class, M10 x 25 mm

30 134560400 Shock Absorber, dual stage

31 131268300 Pin, shock mtg.

32 134363200 Bracket, shock mtg.

33 134160900 Screw, quadrex, 10-16AB X 0.750

34 134446300 Clamp, hose, bellows

35 # 134051200 Pump, drain

41 134455900 Hose, drain, tub>pump, coin trap

42 131333101 Clamp

43 134369000 Chamber, air

44 134369900 Hose, air pressure

45 131306202 Clamp, hose

46 134436100 Syphon Brake, hose, with clamps

48 131306234 Clamp, pump to trap

49 134527100 Clamp, bellows, spring held

52 131202300 Screw, 10-16AB x 0.625

55 134458300 Hose, internal drain

56 134369800 Fastener, hose clip, (3)

56* 134261300 Clip, drain hose, push-mount

* 134374400 Energy Guide

Publication No: 5995459210 FTF2140ES2

01/06 8

WIRING DIAGRAM
