Frigidaire FTF530F Manuel utilisateur

Product No. FTF530FS0

Series Frigidaire

Market North America

Color white

Volts 115

Wiring Diagram 134576100

Owner's Guide 134675000

Energy Guide 134763700

Installation Instructions 134127900

Operating Instructions 134576700

P12L0050.eps P12C0346.eps P12V0074.eps P12T0087.eps 134576100_en.eps

134576100_fr-sp.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995469482

06/07/06

(EN/SERVICE/KC)

361

FRONT-LOAD

WASHING MACHINE

Model No.

FTF530F

Publication No: 5995469482 FTF530FS0

07/06 2

CONTROL PANEL

MAX

LIQUID

BLEACH

LIQUID

BLEACH

MAX

FABRIC

SOFTEN

FABRIC

SOFTEN

33 38

29 31

P12C0346

FTF530FS0 Publication No: 5995469482

# Functional Parts 3 07/06

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 131272100 Cover, bleach

2 131272000 Cover, softener

3 131271910 Drawer, dispenser

6 131374500 Latch, disp drawer hdl

7 131427500 Spring

9 131691267 Handle, dispenser, with trim

13 # 134397500 Switch, temperature, 3 position

14 # 134126700 Buzzer, adjustable

16 # 131724700 Lamp, status light

17 # 134438301 Switch, pressure, water optimizer

18 # 134378400 Timer

19 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

21 131243700 Screw, pan head, 8-18AB x 0.375

26 131823400 Screw, 8-18 x 2.00

27 131887207 Console, frame/trim assy

29 131761704 Knob, rotary, white/dark gray

30 134191800 Knob, timer

31 131853900 Pointer, timer, white, gray indicator

32 131786100 Hose, siphon/valve

33 131306216 Clamp

36 # 131974700 Valve, dispenser, w/seal

37 131271600 Hose, tub

38 # 131803710 Dispenser Assy

39 131863300 Siphon

39* 131307900 Clamp, siphon/bellows

40 # 134040800 Switch, on/off, white, round

42 131168200 Screw, pan head, 8-18B x 0.31

43 131749200 Gasket, seal

44 131786000 Hose, dispenser

45 5303321107 Bushing, idler

46 134191412 Panel, control mtg., wing bend

* 131931201 Dampener, vibration, 3.5 x 2 x 2 in., foam

53 131724800 Lens, status light, clear

54 5308015493 Spacer, washer, timer shaft

69 # 134547500 Wiring Harness, main

Publication No: 5995469482 FTF530FS0

07/06 4

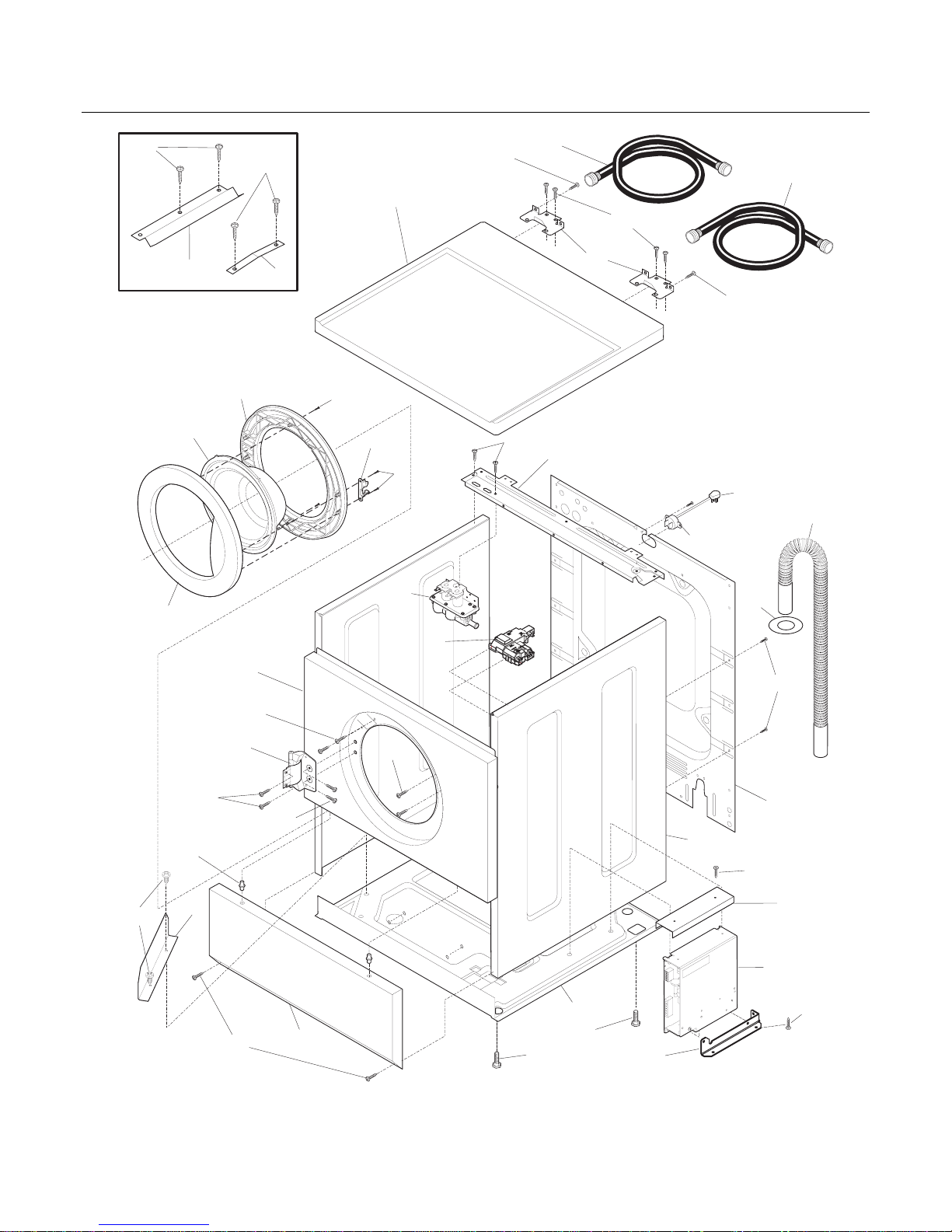

CABINET/TOP

20 22

19 18

P12V0074

FTF530FS0 Publication No: 5995469482

# Functional Parts 5 07/06

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 131279602 Hose, water inlet, cold

2 131168200 Screw, pan head, 8-18B x 0.31

3 131279603 Hose, water inlet, hot

4 # 134149200 Controller Assy, speed, w/base & shield

7 131205300 Screw, 10-16 x 0.750

8 # 131763245 Door Lock/Switch Assy

9 131303300 Screw, pan head, 10-16AB x 0.500, locking

10 131278700 Frame, outer door, white

11 131278800 Panel, door glass

12 131278900 Frame, inner door, white

13 131302901 Screw, 10-16 x 0.750

14 131763310 Striker, door/lock/sw

15 134264600 Hinge, door

16 131696300 Screw, quad pan head, 10-16 x 0.312

17 131346400 Pin, panel locator

18 131279300 Panel, service, white, front

19 131358400 Screw, hex washer hd, 8-18AB x 1.125

20 131460900 Bracket, top panel mtg., front

21 131243700 Screw, pan head, 8-18AB x 0.375

22 131279500 Retainer, spring steel

23 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

24 134086842 Panel, white, top

25 131668200 Bracket, top panel mtg.

26 134178901 Screw, 8-18AB x 0.455

28 131978500 Panel, back

29 131752030 Panel, cabinet front, white

30 131859600 Shield, overflow

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

33 # 5303207418 Valve, water

35 131732902 Bracket, reinforcement, top rear

36 131841600 Leveling Leg Assy, bolt, pad & nut

39 134178900 Screw, Quad, 8-18AB x 0.455

44 131707800 Ring, drain hose

45 # 134592700 Hose, drain

70 134048600 Shield, drip protector

71 134048400 Base, controller mtg

76 134390701 Panel, side, white, RS/LS, (2)

77 131458240 Base Plate

80 134547800 Screw, 10-16AB x 0.375

* 5303937142 Shipping Brace Kit

Publication No: 5995469482 FTF530FS0

07/06 6

MOTOR/TUB

14 16

13 19

42 32

P12T0087

FTF530FS0 Publication No: 5995469482

# Functional Parts 7 07/06

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131793302 Bolt, carriage, 1/4-20 x 4.00

6 131975300 Counterweight, one piece

7 131277300 Spring, boot retainer

8 134177600 Bellows, door boot

10 131304700 Nut, hex, 1/4-20 UNC-2B, (2)

11 131276900 Washer, Bellville, spring steel

12 131793500 Plate, counterweight

13 131618600 Shell, outer tub, front

14 134144700 Spring Assy, suspension, w/sleeves

14* 131560000 Sleeve, protector, lwr spring hook

14* 131592200 Sleeve, protector, upr spring hook

15 131303900 Screw, hex washer head, 1/4-10A x 2.165

16 131618500 Drum Assy, spin basket

17 131274600 Vane

18 131302800 Screw, 10-16AB x 0.375

19 # 131770600 Motor

20 131303500 Screw, 12-14AB x 1.50, motor mtg.

21 134146100 O-ring, tub

22 131462800 Shell, outer tub, rear, with bearing

23 134125900 Counterweight, drum rear

25 # 134051000 Belt, drive, 6-rib

26 # 131883400 Pulley, drum drive, large, rear

27 131304400 Washer, 0.41 x 1.50, 0.12 thick

28 131304500 Washer, lock, 3/8

29 131303700 Screw, pulley mtg., m10 x 0.92, metric

30 131268200 Shock Absorber, air, stabilizer

31 131268300 Pin, shock mtg.

32 131268100 Bracket, shock mtg.

33 134532200 Screw, 10-16AB x 0.500

35 # 134051100 Pump, drain

40 134565200 Filter, pump

41 134044200 Hose, coin trap, tub-to-pump

42 131333101 Clamp

43 131277500 Chamber, air

44 131277600 Hose, air pressure

45 131306202 Clamp, hose

48 131306234 Clamp, hose, wire

49 134266500 Clamp, bellows/boot, 0.059 OD wire, spring held

58 134160900 Screw, quadrex, 10-16AB X 0.750

* 134763700 Energy Guide

Publication No: 5995469482 FTF530FS0

07/06 8

WIRING DIAGRAM

FTF530FS0 Publication No: 5995469482

# Functional Parts 9 07/06

* Non-Illustrated Parts

WIRING DIAGRAM
