Frigidaire PLHT219TC Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

PLHT219TCB0 PLHT219TC R134a Profesion stain/blk (RH) 115

PLHT219TCK0 PLHT219TC R134a Profesion stain/blk (RH) 115

MARKET

North America

Publication No.

5995380267

021025

-EN/SERVICE/KHB

357

TOP MOUNT

REFRIGERATOR

Model No.

PLHT219TC

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC

P.O. Box 212378, Augusta, GA 30917

ENERGY GUIDE - 240465047

OWNER’S GUIDE - 240400107

SERVICE DATA SHEET - 240379010

10/02 2

Publication No. PLHT219TC

5995380267

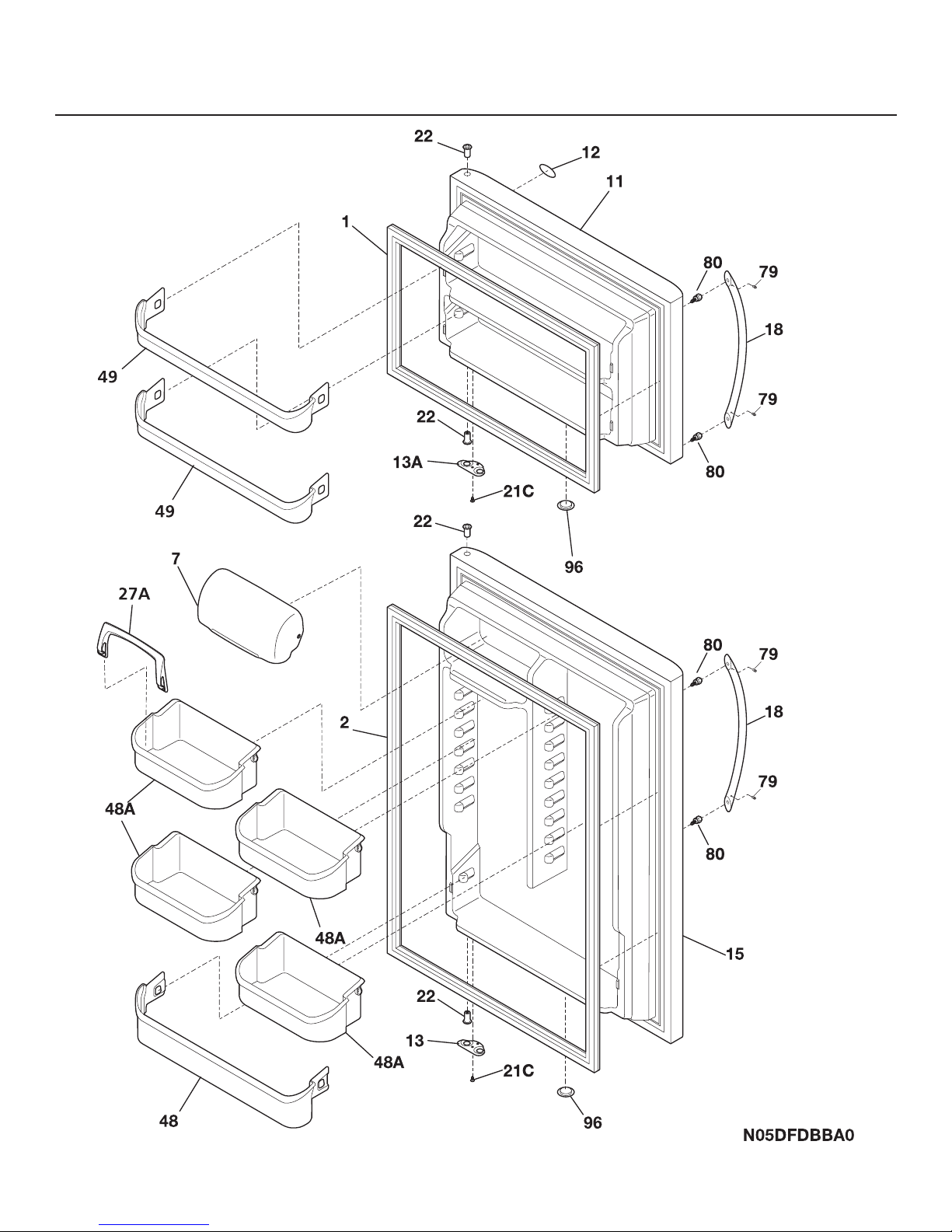

DOOR

# = Fast-moving Parts 3 10/02

* = Non-Illustrated Parts

PLHT219TC Publication No.

5995380267

A = PLHT219TC (PLHT219TCB0)

B = PLHT219TC (PLHT219TCK0)

POS. NO PART NO DESCRIPTION

1 # 240514611 A B Gasket,seal ,black ,frzr door ,magnetic

2 # 240514612 A B Gasket,seal ,black ,refr door ,magnetic

7 240338311 A B Door-dairy

11 240450317 A - Panel-frzr door, stainless steel, complete assy

11 240450318 - B Panel-frzr door, stainless steel, complete assy

12 240558801 A B Nameplate,aluminum

13 240312405 A B Door Stop,black ,refr

13A 240312406 A B Door Stop,black ,frzr

15 240450419 A - Panel-refr door, stainless steel, complete assy

15 240450420 - B Panel-refr door, stainless steel, complete assy

18 240413701 A B Handle-door, stainless steel, with insert

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240527102 A B Bearing-hinge,black

27A 240396105 A B Retainer,tall bottle

48 240338101 A B Bin-door,pseudo ,bottom

48A 240338208 A B Bin-door,gallon ,aqua

49 240495807 A B Bin-door,pseudo ,frzr

79 218755402 A B Screw-set,10-32 x 0.375

80 218755503 A B Screw-shoulder,#10 AB ,handle mounting

* 218490900 A B Cleaner,stainless steel

DOOR

10/02 4

Publication No. PLHT219TC

5995380267

CABINET

# = Fast-moving Parts 5 10/02

* = Non-Illustrated Parts

PLHT219TC Publication No.

5995380267

A = PLHT219TC (PLHT219TCB0)

B = PLHT219TC (PLHT219TCK0)

POS. NO PART NO DESCRIPTION

1 240355404 A B Cover-fan

5 # 5308000010 A B Fan Blade,red ,evaporator fan

8 5300157666 A B Bushing-motor mtg,(2)

9 5303292396 A B Bracket-motor mtg,front

10 240313603 A B Cover-evap coil

10* 240371303 A B Seal, insulation, 53.23 in. Long, foam, coil cover

10*# 240524801 A B Wiring Harness, freezer section, with light

11 5303208309 A B Plug-hole,factory test

13 # 240369701 A B Motor-evap fan

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg,rear

14* 240433201 A B Screw,hex washer head ,8-18 x 0.375

15 215812200 A B Light Bulb/Lamp,25W

16 218906801 A B Socket-light/lamp

18 240411901 A B Support-evap cover,(2)

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 215774918 A B Plug-button,black ,upr hinge holes

28 240335501 A B Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020,(2) ,special

30 240314003 A B Bracket-lower hinge,black

34 240311301 A B Washer,hinge ,nylon ,(2)

35 240313803 A B Bracket-ctr hinge,black

35A 240336801 A B Spacer-hinge,center

36 240516401 A B Pin-center hinge

37 240337603 A B Trim-cabinet corner,black ,(2)

38 240313701 A B Bracket-upper hinge

40 240354404 A B Cover-upper hinge,black

41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH

42 240315301 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B Roller Assy,front ,(2)

47 218233300 A B Channel-shelf mtg,side ,(2)

48 5303292395 A B Channel-shelf mtg,center

49 218362500 A B Screw,hex washer head ,8-18AB x 1.250

56 240516501 A B Pin-lower hinge

58 5303001343 A B Screw,hex washer head ,8-15A x 0.500

59 240442703 A B Screw-#10-32 X 3/4,black

72 240368207 A B Grille/Kickplate,black

74 240354301 A B Shield-light,frzr

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 5303316859 A B Rivet,flat head ,1/4 OD x 1-3/4, roller pin

89 240326115 A B Cover-access,with label

89* 241500301 A B Screw,hex washer head ,8-18AB x 0.500

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

114# 240505801 A B Switch,light/lamp

* 240542601 A B Clip-wiring harness

* 5303305345 A B Paint,touch-up ,black

CABINET

10/02 6

Publication No. PLHT219TC

5995380267

SHELVES

# = Fast-moving Parts 7 10/02

* = Non-Illustrated Parts

PLHT219TC Publication No.

5995380267

A = PLHT219TC (PLHT219TCB0)

B = PLHT219TC (PLHT219TCK0)

POS. NO PART NO DESCRIPTION

11 240358003 A B Shelf,freezer ,full-width ,wire

11* 5303299664 A B Spacer,shelf

12 240417802 A B Diffuser-air,top

12* 240466001 A B Seal,air diffuser

13 240362601 A B Diffuser,air ,bottom

14 # 240505801 A B Switch,light/lamp

15 240436702 A B Light Bulb, A-15, clear, 40 W, 120 V, miniature

16 240364201 A B Socket-light/lamp,dual

17 240407301 A B Control Box

17*# 240375501 A B Wiring Harness,control box

18 240360801 A B Knob,temp control

21 # 5304421256 A B Control,temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 240545401 A B Control-defrost, adaptive timer, PC board

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240350119 A B Shelf-"Spill-Safe", cantilever, half-width, sliding

24A 240355228 A B Shelf-"Spill-Safe", cantilever, half-width, fixed

25 240364718 A B Cover-crisper pan

25B 240361201 A B Control-humidity

25C 240361301 A B Damper,humidity cont.

26 240343806 A B Pan-crisper

31 240530909 A B Pan-meat,aqua

34 240385201 A B Container,ice bin

42 240356501 A B Track,meat pan hanger ,RH

42 240365401 A B Track,meat pan hanger ,LH

47 240443301 A B Panel,pan cover ,glass

81 5308016566 A B Screw, hex washer hd, 8-15A x 0.625, low profile

120 240366401 A B Guide-follower,cam follower

121 240366602 A B Cam Follower

122 240366501 A B Cam,damper

123 215005100 A B Screw,hanger/rlr mtg ,8-10 x 0.438

130 240366101 A B Damper-control box

130* 218249806 A B Seal,insulation ,foam ,damper

131 240366201 A B Retainer-damper,damper

132 240366302 A B Control Rod,damper

136 240424505 A B Dispenser-can,auqa

SHELVES

10/02 8

Publication No. PLHT219TC

5995380267

SYSTEM

# = Fast-moving Parts 9 10/02

* = Non-Illustrated Parts

PLHT219TC Publication No.

5995380267

A = PLHT219TC (PLHT219TCB0)

B = PLHT219TC (PLHT219TCK0)

POS. NO PART NO DESCRIPTION

1 # 240444401 A B Condenser,dynamic

4 # 218944001 A B Drier-filter,R134a System

6 # 240496101 A B Wiring Harness, machine compt, w/electric cord

6* # 240375501 A B Wiring Harness,control box

6* # 240524801 A B Wiring Harness, freezer section, with light

14 # 5303918247 A B Defrost Heater Kit

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater,aluminum ,(2)

17 240434002 A B Trough-drain

18 240362301 A B Insulation,evap block ,foam ,RH

20 240518401 A B Insulation,evap block ,foam ,LH/RH

21 # 5303918202 A B Thermostat-defrost,kit

22 240330006 A B Plate-compr mtg

22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 A B Grommet-compr mtg,(4)

25 240491501 A B Screw-compressor mtg,1/4-28 x 1.16, shoulder, typ CF

26 240332602 A B Pan-defrost drain

29 # 5303918251 A B Compressor,w/electricals

30 # 218721119 A B Starter,PTC

32 218973501 A B Clamp,elec cont mtg ,compressor

34 240405201 A B Grommet,rubber ,black ,cond tube/wire

41 218897001 A B Screw,hex washer head ,8-32 x 1/4

44 215174700 A B Clamp-service cord, strain relief, galv steel

45 5308016566 A B Screw,hex washer head ,8-15A x 0.625, low profile

55 # 216787800 A B Capacitor, run, 50/60 Hz, 220 VAC, 12 microfarad

57 240542601 A B Clip-wiring harness

58 215004600 A B Screw, hx wshr hd, 8-36 x 7/16, cond fan motor, (2)

59 240315501 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal,shroud

59* 240359401 A B Screw-fan shroud,(2)

59A 240346501 A B Bracket-support,cond mtr ,(3)

59B 240346601 A B Grommet-bracket,(3)

60 # 240334001 A B Motor,condenser fan

61 # 240315401 A B Fan Blade,galv steel ,condenser fan

61A 215004700 A B Nut,speed

61B 215004800 A B Grommet-silencer

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 A B Tube-drain,rubber ,lower

85 240493101 A B Tube-connector,suction

86 240409302 A B Spacer-cond tube,black

* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural

* 5308000039 A B Screw,hex wshr hd, 8-32CA x 0.500, serrated head

* # 5303918210 A B Heat Exchanger Kit,suction line

* # 5304421289 A B Hot Tube Repair Kit,Service

SYSTEM

10/02 10

Publication No. PLHT219TC

5995380267

ICE MAKER
