Frigidaire PLHS37EF Manuel utilisateur
N58L00001.eps N58FFCBBC1.eps N58RFDAAB1.eps N58BAAAAB3.eps
N58SKDEBD11.eps N58TCAAAB3.eps N58CAAAAA10.eps N58XEAAAA0.eps
N58YAAAAA0.eps N58I115.eps W241689601.eps S241689601.eps
Product No. PLHS37EFSB0
Series R134a
Color stain/blk
Volts 115
Wiring Diagram 241689601
Owner's Guide 241695101
Market North America
Energy Guide 241649254
Service Data Sheet 240389627
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995463816
06/03/22
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
PLHS37EF
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995463816 PLHS37EFSB0
03/06 2
FREEZER DOOR
PLHS37EFSB0 Publication No: 5995463816
# Functional Parts 3 03/06
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241674808 Gasket-frzr door, black, magnetic
4A 240367301 Bin-door, frzr-upper
4B 240359001 Bin-door
4C 240358401 Bin-door, frzr-dispenser
11 241668192 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 240536801 Handle-door, stainless steel, with insert
21A 240598401 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755402 Screw-set, 10-32 x 0.375
80 218755503 Screw-shoulder, #10 AB, handle mounting
* 240352102 Connector-water, straight
* 240552102 Harness-wiring, door
* 5303918256 Dispenser heater kit
Publication No: 5995463816 PLHS37EFSB0
03/06 4
REFRIGERATOR DOOR
PLHS37EFSB0 Publication No: 5995463816
# Functional Parts 5 03/06
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241674807 Gasket-refr door, black, magnetic
4 240363702 Bin-door, 2-liter
7 240338303 Door, dairy, clear
12 240558802 Label-nameplate
13 240581905 Door Stop, black, ref
15 241534542 Door-refr, stainless, complete assy
18 240536801 Handle-door, stainless steel, with insert
21A 240598401 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
27A 240396102 Retainer, tall bottle
49 240430313 Bin-door, gallon
79 218755402 Screw-set, 10-32 x 0.375
80 218755503 Screw-shoulder, #10 AB, handle mounting
Publication No: 5995463816 PLHS37EFSB0
03/06 6
CABINET
58
58
40 66
40
92
92
38
38
37
37
14A
14
91
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB3
10
90
11
45
45
81
81
81
47
PLHS37EFSB0 Publication No: 5995463816
# Functional Parts 7 03/06
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435905 Cover-air duct
10A 240475906 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603701 Bracket-lower hinge, ref
30A 241603702 Bracket-lower hinge
37 240337603 Trim-cabinet corner, black, (2)
38 240327201 Bracket-upper hinge
40 240327007 Cover-upper hinge, black
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 Roller Assy, adjustable, front, (2)
45 241500301 Screw, hex washer head, 8-18AB x 0.500
47 240349402 Channel-shelf mtg, side, (2)
58 218781100 Screw, pan head, 8-18 x 0.625
66 5304424968 Damper Cover Assy
66* 240518802 Pin-push, push-in, plastic
72 240324405 Grille/Kickplate, black
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574601 Cover access
90 218249807 Seal-coil cover
91 240380101 Duct-ice maker
92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes, (2)
* 5303321321 Paint, touch-up, black
Publication No: 5995463816 PLHS37EFSB0
03/06 8
SHELVES
11
39
11A
39
126
81
81
126
52
52A
109
51
51A
49B
2
97
51
52
101
101
49
N58SKDEBD11
100
25A
27
47A
15A
16A
81
25
26
47
26A
26A
42A
62
123
42
24A
24
140
120
24B
136
PLHS37EFSB0 Publication No: 5995463816
# Functional Parts 9 03/06
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510603 Trim-basket
11 240350648 Shelf-freezer, glass, lower
11A 240350647 Shelf-freezer, glass, upper
15A 241555401 Light Bulb
16A 241513901 Socket-light
16A* 241537603 Harness-wiring
24 240355201 Shelf-"Spill-Safe", fixed, (1)
24A 240355204 Shelf-"Spill-Safe", fixed, (3)
24B 240350103 Shelf-"Spill-Safe", sliding, (2)
25 240354502 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240354602 Cover-crisper pan, lower
26 240354705 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26A 240351101 Control-humidity
27 240354805 Pan-crisper, lower
39 240367601 Trim-shelf, front
42 240356501 Track, meat pan hanger, RH
42A 240349701 Hanger-meat pan, LH
42A* 240349901 Block-meat pan rail, LH
42A* 240350001 Spring-meat pan rail
47 240350613 Insert-pan cover, glass
47A 240350614 Insert-pan cover, glass
49 240564301 Basket-sliding
49B 240530503 Basket-sliding, upper, full
51 240343002 Hanger-basket, RH
51A 240395502 Hanger-basket, RH
52 240343102 Hanger-basket, LH
52A 240395602 Hanger-basket, LH
62 240355505 Pan-meat
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545306 Water Tank
100 240326301 Cover-water tank
101 218493100 Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 Base-crisper light socket
120 240342901 Shelf-ice cream
123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
136 240424501 Dispenser-can, white
140 240430501 Channel, wtr tube cover
Publication No: 5995463816 PLHS37EFSB0
03/06 10

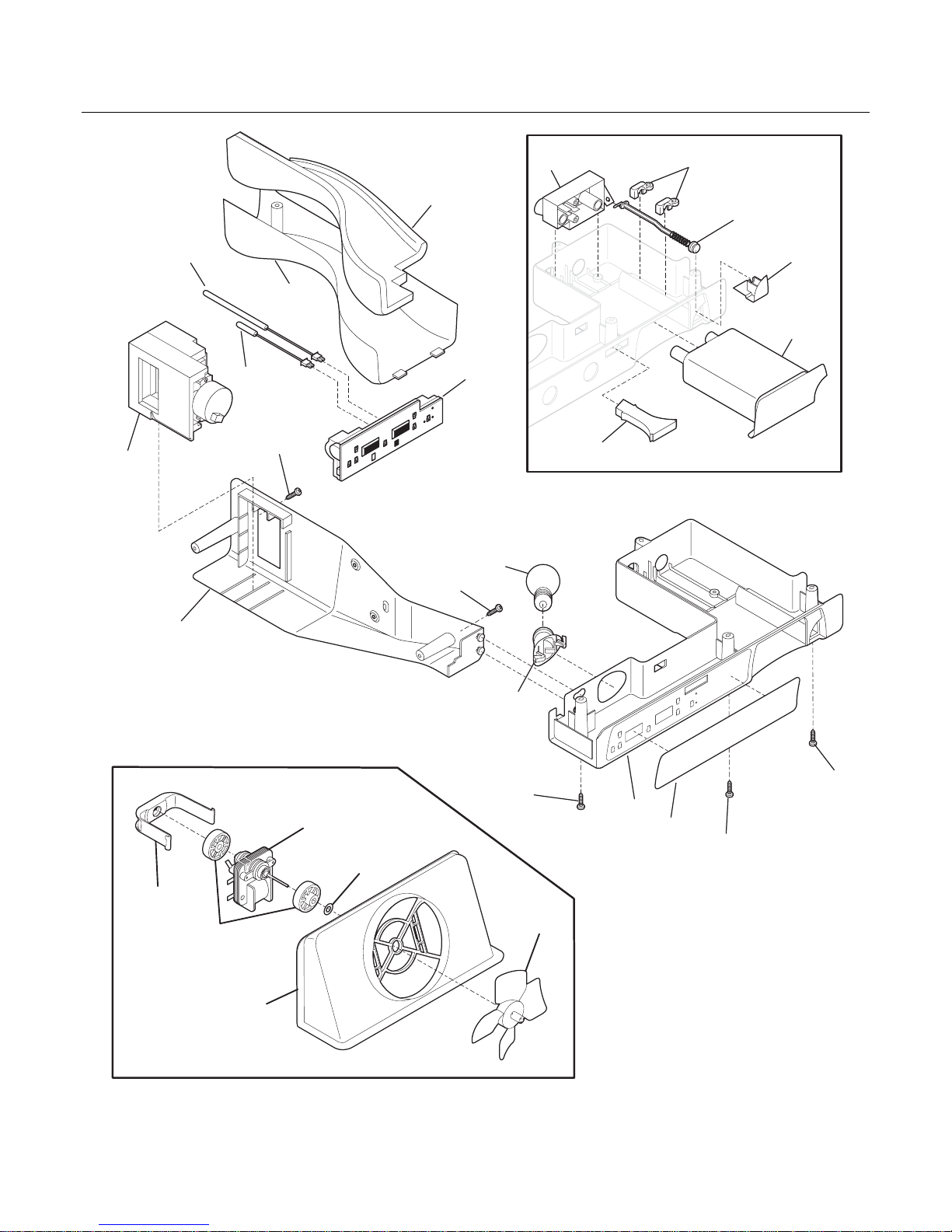

CONTROLS
149
14
13
9
8
5
139
138
198
199
137
200
151
150
21
21A 23
115
53
81
101
15
16
20
N58TCAAAB3
81
81
17
81
