Frigidaire PLHS37EE Manuel utilisateur

Product No. PLHS37EESB5 PLHS37EESB7

Series R134a R134a

Color stain/blk stain/blk

Volts 115 115

Wiring Diagram 241660401 241660401

Owner's Guide 241660600 241660600

Market North America North America

Energy Guide 241649207 241649207

Service Data Sheet 240389623 240389623

N58L00001.eps N58FFCBBC1.eps N58RFDAAB1.eps N58BAAAAB2.eps

N58SKDLBD11.eps N58TCAAAB3.eps N58CAAAAA8.eps N58XEAAAA0.eps

N58YDAAAC0.eps N58I115T.eps W241660401.eps S241660401.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995445656

05/08/23

(EN/SERVICE/RF)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

PLHS37EE

Publication No: 5995445656 PLHS37EE

08/05 2

FREEZER DOOR

PLHS37EE Publication No: 5995445656

# Functional Parts 3 08/05

* Non-Illustrated Parts

FREEZER DOOR

Model Index: APLHS37EES (PLHS37EESB5)

BPLHS37EES (PLHS37EESB7)

POS. NO PART NO. DESCRIPTION

1 # 241569808 A B Gasket-frzr door, black, magnetic

4A 240367301 A B Bin-door, frzr-upper

4B 240359001 A B Bin-door

4C 240358401 A B Bin-door, frzr-dispenser

11 241615117 A - Door-frzr, stainless, complete assy

11 241668192 - B Door-frzr, stainless, complete assy

13A 240581906 A B Door Stop, black, frzr

18 240536801 A B Handle-door, stainless steel, with insert

21A 240598401 A B Screw, 10-32 x 1/2

22A 240328204 A B Bearing-hinge(frz), black, closer

22C 240328404 A B Bearing-hinge, black, upper

68 241525101 A B Chute-ice

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755503 A B Screw-shoulder, #10 AB, handle mounting

* 5303918256 A B Dispenser heater kit

* 240352102 A B Connector-water, straight

* 240552102 A B Harness-wiring, door

Publication No: 5995445656 PLHS37EE

08/05 4

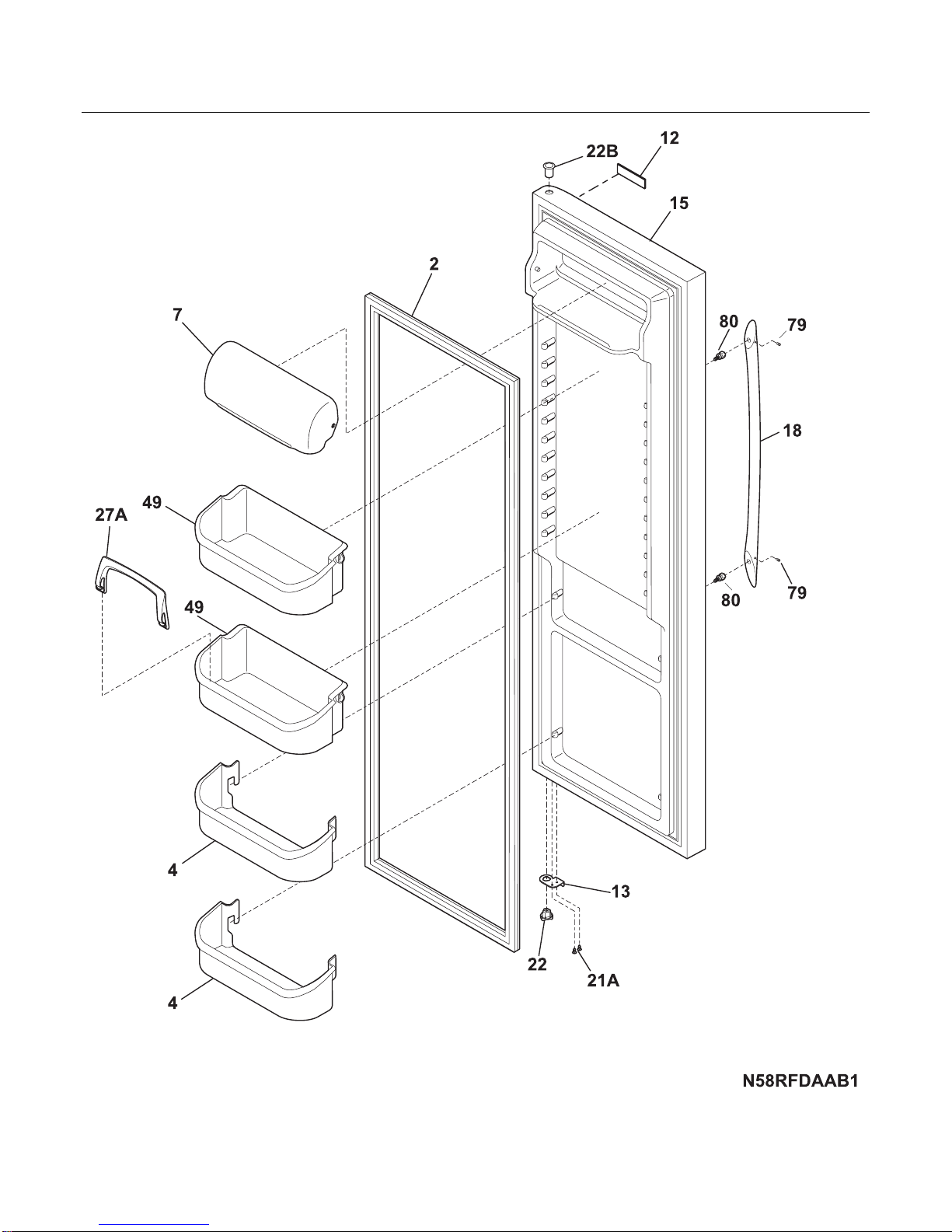

REFRIGERATOR DOOR

PLHS37EE Publication No: 5995445656

# Functional Parts 5 08/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: APLHS37EES (PLHS37EESB5)

BPLHS37EES (PLHS37EESB7)

POS. NO PART NO. DESCRIPTION

2 # 241569807 A B Gasket, refr door seal, black, magnetic

4 240363702 A B Bin-door, 2-liter

7 240338303 A B Door, dairy, clear

12 240558802 A B Label-nameplate

13 240581905 A B Door Stop, black, ref

15 241534542 A B Door-refr, stainless, complete assy

18 240536801 A B Handle-door, stainless steel, with insert

21A 240598401 A B Screw, 10-32 x 1/2

22 240328203 A B Bearing-hinge, black, closer

22B 240328404 A B Bearing-hinge, black, upper

27A 240396102 A B Retainer, tall bottle

49 240430313 A B Bin-door, gallon

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755503 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995445656 PLHS37EE

08/05 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB2

PLHS37EE Publication No: 5995445656

# Functional Parts 7 08/05

* Non-Illustrated Parts

CABINET

Model Index: APLHS37EES (PLHS37EESB5)

BPLHS37EES (PLHS37EESB7)

POS. NO PART NO. DESCRIPTION

10 240435907 A B Cover-air duct

10A 240475906 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B Bracket-lower hinge, ref

30A 241603702 A B Bracket-lower hinge

37 240337603 A B Trim-cabinet corner, black, (2)

38 240327201 A B Bracket-upper hinge

40 240327007 A B Cover-upper hinge, black

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, adjustable, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B Channel-shelf mtg, side, (2)

58 218781100 A B Screw, pan head, 8-18 x 0.625

66 5304424968 A B Damper Cover Assy

66* 240518802 A B Pin-push, push-in, plastic

72 240324405 A B Grille/Kickplate, black

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574601 A B Cover access

90 218249807 A B Seal-coil cover

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes, (2)

* 5303305345 A B Paint, touch-up, black

Publication No: 5995445656 PLHS37EE

08/05 8

SHELVES

120

122

121

11A

126

52A

109

51A

49B

101

N58SKDLBD11

100

25A

47A

15A

16A

26A

42A

123

24A

140

24B

136

PLHS37EE Publication No: 5995445656

# Functional Parts 9 08/05

* Non-Illustrated Parts

SHELVES

Model Index: APLHS37EES (PLHS37EESB5)

BPLHS37EES (PLHS37EESB7)

POS. NO PART NO. DESCRIPTION

2 241510603 A B Trim-basket

11 240350648 A B Shelf-freezer, glass, lower

11A 240350647 A B Shelf-freezer, glass, upper

15A 241555401 A B Light Bulb

16A 241513901 A B Socket-light

16A* 241537602 A B Harness-wiring

24 240355201 A B Shelf-"Spill-Safe", fixed, (1)

24A 240355204 A B Shelf-"Spill-Safe", fixed, (3)

24B 240350103 A B Shelf-"Spill-Safe", sliding, (2)

25 240354502 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240354602 A B Cover-crisper pan, lower

26 240354705 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240351101 A B Control-humidity

27 240354805 A B Pan-crisper, lower

39 240367601 A B Trim-shelf, front

42 240356501 A B Track, meat pan hanger, RH

42A 240349701 A B Hanger-meat pan, LH

42A* 240349901 A B Block-meat pan rail, LH

42A* 240350001 A B Spring-meat pan rail

47 240350613 A B Insert-pan cover, glass

47A 240350614 A B Insert-pan cover, glass

49 240564301 A B Basket-sliding

49B 240530503 A B Basket-sliding, upper, full

51 240343002 A B Hanger-basket, RH

51A 240395502 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

52A 240395602 A B Hanger-basket, LH

62 240355505 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B Water Tank Assy, coiled tubing, front filter

100 240326301 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B Base-crisper light socket

120 241558901 A B Shelf-ice cream

121 241561001 A B Rail-ice cream shelf, LH

122 241561101 A B Rail-ice cream shelf, RH

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

126 241630701 A B Channel, auger mtg, LH

126 241630702 A B Channel, auger mtg, RH

136 240424501 A B Dispenser-can, white

140 240430501 A B Channel, wtr tube cover

Publication No: 5995445656 PLHS37EE

08/05 10

CONTROLS

149

139

138

198

199

137

200

151

150

21A 23

115

101

N58TCAAAB3
