Frigidaire GLHS36EJSB - 22.6 cu. Ft. Refrigerator Guide de l'utilisateur

N58L00001.eps N58FCCBBC5.eps N58RCCBBB16.eps N58BAAAAB3.eps

N58SJCBBB11.eps N58TCBAAB0.eps N58CAAAAC10.eps N58XBAAAB1.eps

N58YAAAAA4.eps N58I1151.eps W241725001.eps S241725001.eps

Product No. GLHS36EJB0 GLHS36EJW0 GLHS36EJSB0

Series R134a R134a R134a

Color black white stainless

Volts 115 115 115

Wiring Diagram 241725001 241725001 241725001

Owner's Guide 241856000 241856000 241856000

Market North America North America North America

Energy Guide 241868065 241868065 241868075

Service Data Sheet 240389633 240389633 240389633

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995508206

08/03/05

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

GLHS36EJ

Publication No: 5995508206 GLHS36EJ

03/08 2

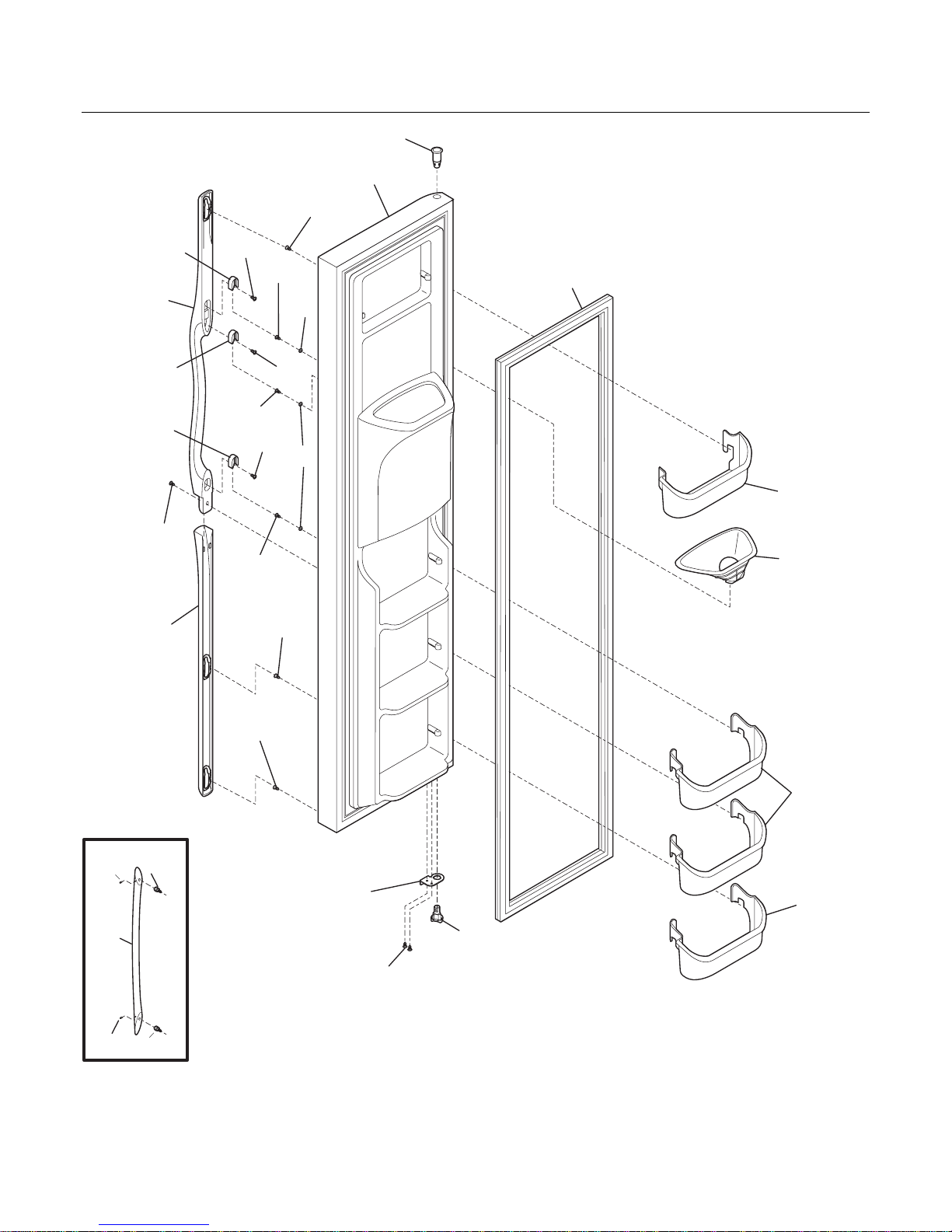

FREEZER DOOR

21C

22C

13A

22A

21A

N58FCCBBC5

79 80

Stainless Handle

GLHS36EJ Publication No: 5995508206

# Functional Parts 3 03/08

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AGLHS36EJ (GLHS36EJB0)

BGLHS36EJ (GLHS36EJW0)

CGLHS36EJ (GLHS36EJSB0)

POS. NO PART NO. DESCRIPTION

1 241786008 A - C Gasket-frzr door, black, magnetic

1 241786004 - B - Gasket-frzr door, white, magnetic

4A 240367301 A B C Bin-door, frzr-upper

4B 240359001 A B C Bin-door

11 241668153 A - - Door-frzr, black, complete assy

11 241668104 - B - Door-frzr, white, complete assy

11 241837139 - - C Door-frzr, stainless, complete assy

13A 240581906 A - C Door Stop, black, frzr

13A 240581902 - B - Door Stop, white, frzr

18 241934305 A - - Handle-door, black

18 241934304 - B - Handle-door, white

18 240536818 - - C Handle-door, stainless steel, with insert, & set screw

21 218781101 A B C Screw, pan head, 8-18 x 0.625

21A 240598402 A B C Screw, 10-32 x 1/2

21C 240521304 A B - Screw, #8-18 x 3/4

22A 240328204 A - C Bearing-hinge(frz), black, closer

22A 240328202 - B - Bearing-hinge(frz), closer

22C 240328404 A - C Bearing-hinge, black, upper

22C 240328402 - B - Bearing-hinge, natural, upper

37 241927002 A - - Trim-door handle, black, bottom

37 241927001 - B - Trim-door handle, white, bottom

68 241525101 A B C Chute-ice

72 240421701 A B - Button-handle mtg, dovetail

73 218396700 A B - Block-handle mtg, dovetail

74 215503204 A B - Screw, cr pan hd, 10-16

79 218755402 - - C Screw-set, 10-32 x 0.375

80 218755504 - - C Screw-shoulder, #10 AB, handle mounting

* 240552102 A B C Harness-wiring, door

* 240451503 A B C Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* 241806601 A B C Connector-water, straight

* 5303918256 A B C Dispenser heater kit

Publication No: 5995508206 GLHS36EJ

03/08 4

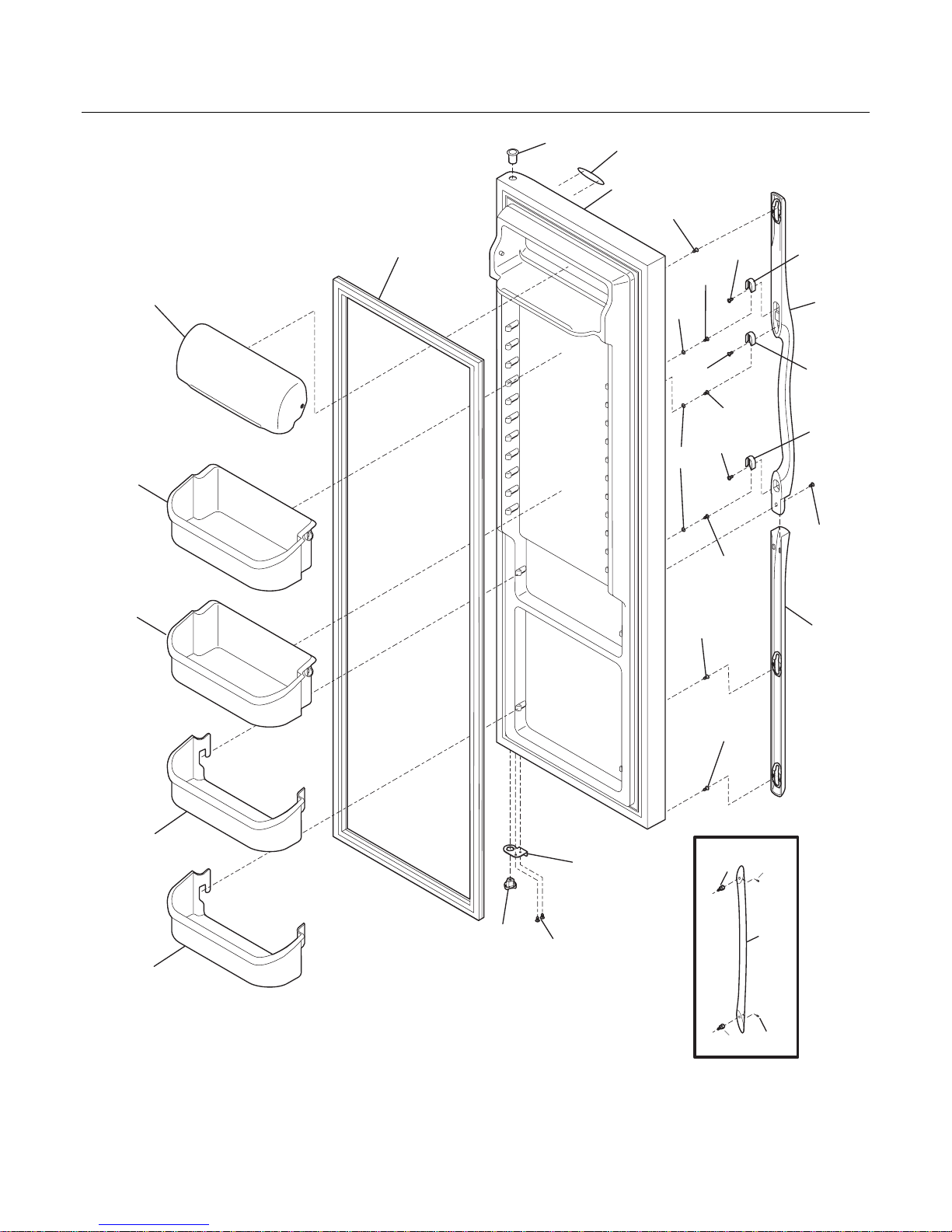

REFRIGERATOR DOOR

21C

21A

22B

N58RCCBBB16

Stainless Handle

GLHS36EJ Publication No: 5995508206

# Functional Parts 5 03/08

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AGLHS36EJ (GLHS36EJB0)

BGLHS36EJ (GLHS36EJW0)

CGLHS36EJ (GLHS36EJSB0)

POS. NO PART NO. DESCRIPTION

2 241786007 A - C Gasket-refr door, black, magnetic

2 241786003 - B - Gasket-refr door, white, magnetic

4 240363702 A B C Bin-door, 2-liter

7 240338303 A B C Door, dairy, clear

12 241808601 A B C Label-nameplate

13 240581905 A - C Door Stop, black, ref

13 240581901 - B - Door Stop, white, refr

15 240451919 A - - Door-refr, black, complete assy

15 240451913 - B - Door-refr, white, complete assy

15 241534569 - - C Door-refr, stainless, complete assy

18 241934302 A - - Handle-door, black

18 241934301 - B - Handle-door, white

18 240536818 - - C Handle-door, stainless steel, with insert, & set screw

21 218781101 A B C Screw, pan head, 8-18 x 0.625

21A 240598402 A B C Screw, 10-32 x 1/2

21C 240521304 A B - Screw, #8-18 x 3/4

22 240328203 A - C Bearing-hinge, black, closer

22 240328201 - B - Bearing-hinge(ref), closer

22B 240328404 A - C Bearing-hinge, black, upper

22B 240328402 - B - Bearing-hinge, natural, upper

37 241927002 A - - Trim-door handle, black, bottom

37 241927001 - B - Trim-door handle, white, bottom

49 241808203 A B C Bin-door, gallon

49* 241780301 A B C Liner, bin

72 240421701 A B - Button-handle mtg, dovetail

73 218396700 A B - Block-handle mtg, dovetail

74 215503204 A B - Screw, cr pan hd, 10-16

79 218755402 - - C Screw-set, 10-32 x 0.375

80 218755504 - - C Screw-shoulder, #10 AB, handle mounting

Publication No: 5995508206 GLHS36EJ

03/08 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB3

GLHS36EJ Publication No: 5995508206

# Functional Parts 7 03/08

* Non-Illustrated Parts

CABINET

Model Index: AGLHS36EJ (GLHS36EJB0)

BGLHS36EJ (GLHS36EJW0)

CGLHS36EJ (GLHS36EJSB0)

POS. NO PART NO. DESCRIPTION

10 240435911 A B C Cover-air duct

10A 240475910 A B C Cover-evap coil, lower

11 5303208309 A B C Plug-hole, factory test

14 # 240505801 A B C Switch, light/lamp

14A 241547901 A B C Switch-light/lamp, frzr door

21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A - C Plate-door closer

22 240457701 - B - Plate-door closer

23 240402702 A B C Screw-#10-32 x 1/4 flat hd

28 241708801 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 A B C Bracket-lower hinge, ref

30A 241603704 A B C Bracket-lower hinge

37 240337610 A - C Trim-cabinet corner, black, (2)

37 240337608 - B - Trim-cabinet corner, white, (2)

38 240327206 A - C Bracket-upper hinge

38 240327207 - B - Bracket-upper hinge

40 240327007 A - C Cover-upper hinge, black

40 240327005 - B - Cover-upper hinge, white

41 241550801 A B C Grommet-shelf mtg, 1.40" long

41* 241550701 A B C Grommet-shelf mtg, .96" long

42 240578902 A B C Screw, hex head, 1/4-20 x 5/8

43 241882901 A B C Roller Assy, adjustable, front, (2)

45 241500303 A B C Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B C Channel-shelf mtg, side, (2)

58 218781101 A B C Screw, pan head, 8-18 x 0.625

66 5304424968 A B C Damper Cover Assy

66* 240518802 A B C Pin-push, push-in, plastic

72 240324405 A - C Grille/Kickplate, black

72 240324401 - B - Grille/Kickplate, white

81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733901 A B C Cover-access, w/label

90 218249807 A B C Seal-coil cover

91 240380101 A B C Duct-ice maker

92 241710601 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B C Support, crisper cover, front, (4)

100* 240350802 A B C Support, crisper cover, rear, (4)

* 240396801 A B C Clamp, tube/wiring, nylon, black/natural

* 240479601 A B C Plug, button, cab liner holes

* 5303321321 A - C Paint, touch-up, black

* 5303321319 - B - Paint, touch-up, white

Publication No: 5995508206 GLHS36EJ

03/08 8

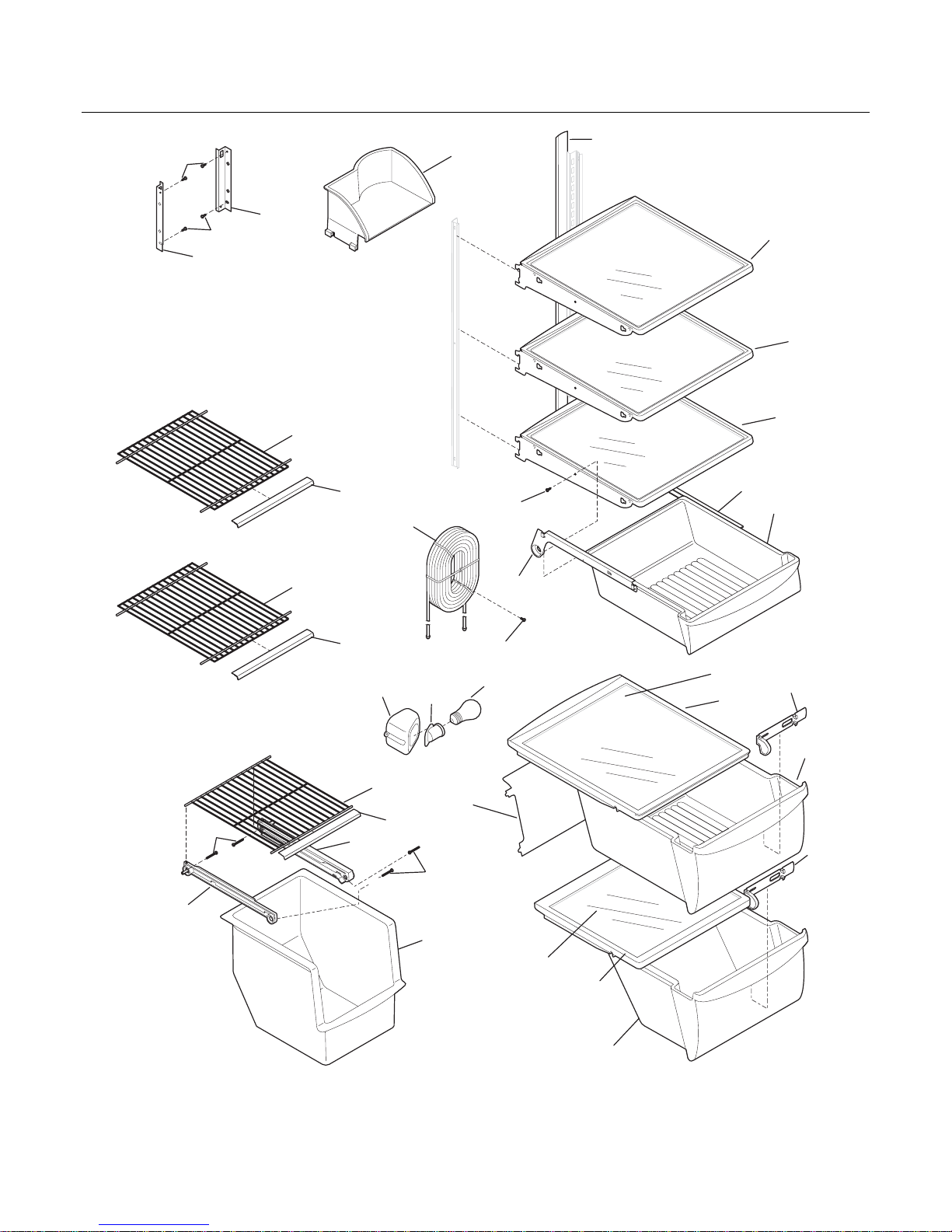

SHELVES

11B

11A

126

39A

24A

42A

123

100

25A

47A

101

26A

140

109 16A

15A

26A

120

N58SJCBBB11

GLHS36EJ Publication No: 5995508206

# Functional Parts 9 03/08

* Non-Illustrated Parts

SHELVES

Model Index: AGLHS36EJ (GLHS36EJB0)

BGLHS36EJ (GLHS36EJW0)

CGLHS36EJ (GLHS36EJSB0)

POS. NO PART NO. DESCRIPTION

11 241657601 A B C Shelf, flip up, wire

11A 241657501 A B C Shelf, fixed, freezer

11B 241657503 A B C Shelf, fixed upper, freezer

15A 241555401 A B C Light Bulb

16A 241513901 A B C Socket-light

16A* 241537603 A B C Harness-wiring

21 5304455658 A B C Screw, hx wshr hd sems, 8-15A x 0.625

24 240355201 A B C Shelf-"Spill-Safe", fixed, (1)

24A 240355204 A B C Shelf-"Spill-Safe", fixed, (3)

25 240354502 A B C Cover-crisper pan, upper

25* 240362101 A B C Clip-slide, cover-crisper

25A 240354602 A B C Cover-crisper pan, lower

26 240354705 A B C Pan-crisper, upper

26* 240349801 A B C Clip-slide, pan-crisper

26A 240351101 A B C Control-humidity

27 240354805 A B C Pan-crisper, lower

39 240430705 A B C Trim-shelf, front

39A 240430701 A B C Trim-shelf, front

42 240356501 A B C Track, meat pan hanger, RH

42A 240349701 A B C Hanger-meat pan, LH

42A* 240349901 A B C Block-meat pan rail, LH

42A* 240350001 A B C Spring-meat pan rail

47 240350613 A B C Insert-pan cover, glass

47A 240350614 A B C Insert-pan cover, glass

49 240564301 A B C Basket-sliding

51 240343002 A B C Hanger-basket, RH

52 240343102 A B C Hanger-basket, LH

62 240355505 A B C Pan-meat

81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile

97 240545307 A B C Water Tank

100 240326303 A B C Cover-water tank

101 218493101 A B C Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B C Base-crisper light socket

120 240342901 A B C Shelf-ice cream

123 215005101 A B C Screw, hanger/rlr mtg, 8-10 x 7/16

126 241674401 A B C Channel, auger mtg, LH

126 241674402 A B C Channel, auger mtg, RH

140 240430501 A B C Channel, wtr tube cover

* 241868065 A B - Energy Guide

* 241868075 - - C Energy Guide

Publication No: 5995508206 GLHS36EJ

03/08 10

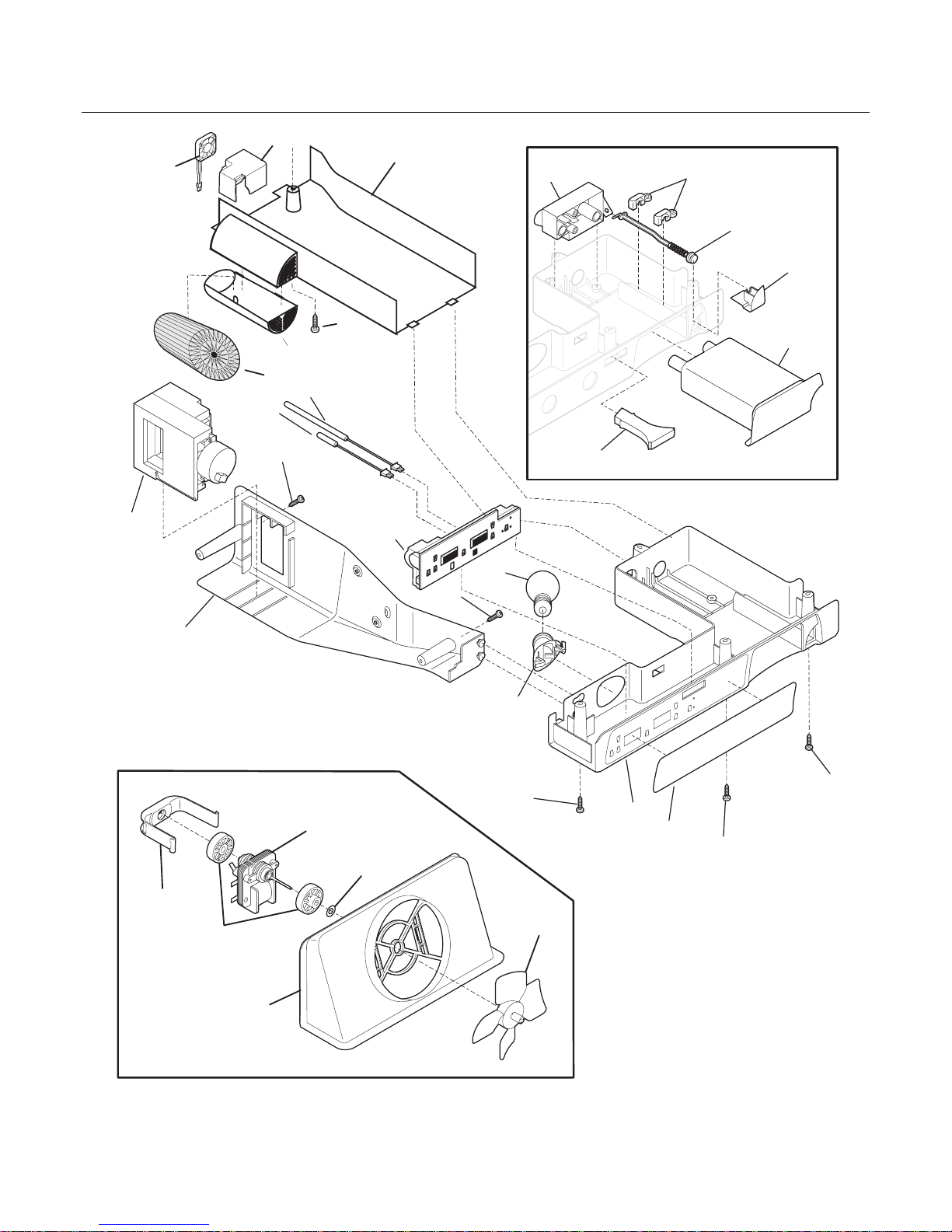

CONTROLS

149

139

138

198

199

137

200

21A

115

101

N58TCBAAB0

151

155

154

206

205
