INTRODUCTION

Doors

Handles are secure and tight

Door seals completely to cabinet on

all sides

Leveling

Refrigerator is level side-to-side and

slightly elevated in front to assist

with door and drawer closing (front

should be higher than back)

Cabinet is setting solid on all corners

Electrical Power

House power turned on

Refrigerator plugged in

Ice Maker

House water supply connected to

refrigerator (Warning: Potable water

supply only.)

No water leaks present at all

connections - recheck in 24 hours

Ice maker is turned ON

Ice & water dispenser operates

correctly

Final Checks

Shipping material removed

Fresh food and freezer temperatures set

Registration submitted

Installation Checklist



Welcome to our family

Thank you for bringing Frigidaire into

your home! We see your purchase as the

beginning of a long relationship together.

This manual is your resource for the use

and care of your product. Please read

it before using your appliance. Keep it

handy for quick reference. If something

doesn’t seem right, the troubleshooting

section will help you with common issues.

FAQs, helpful tips and videos, cleaning

products, and kitchen and home accessories

are available at Frigidaire.com.

We are here for you! Visit our website,

chat with an agent, or call us if you need

help. We may be able to help you avoid

a service visit. If you do need service, we

can get that started for you.

Let’s make it ocial! Be sure to register

your product.

Keep your product info here so it’s easy

to ﬁnd.

Model Number

Serial Number

Purchase Date

jfdka; jfdk;a jfdk; jfdk;a j;da

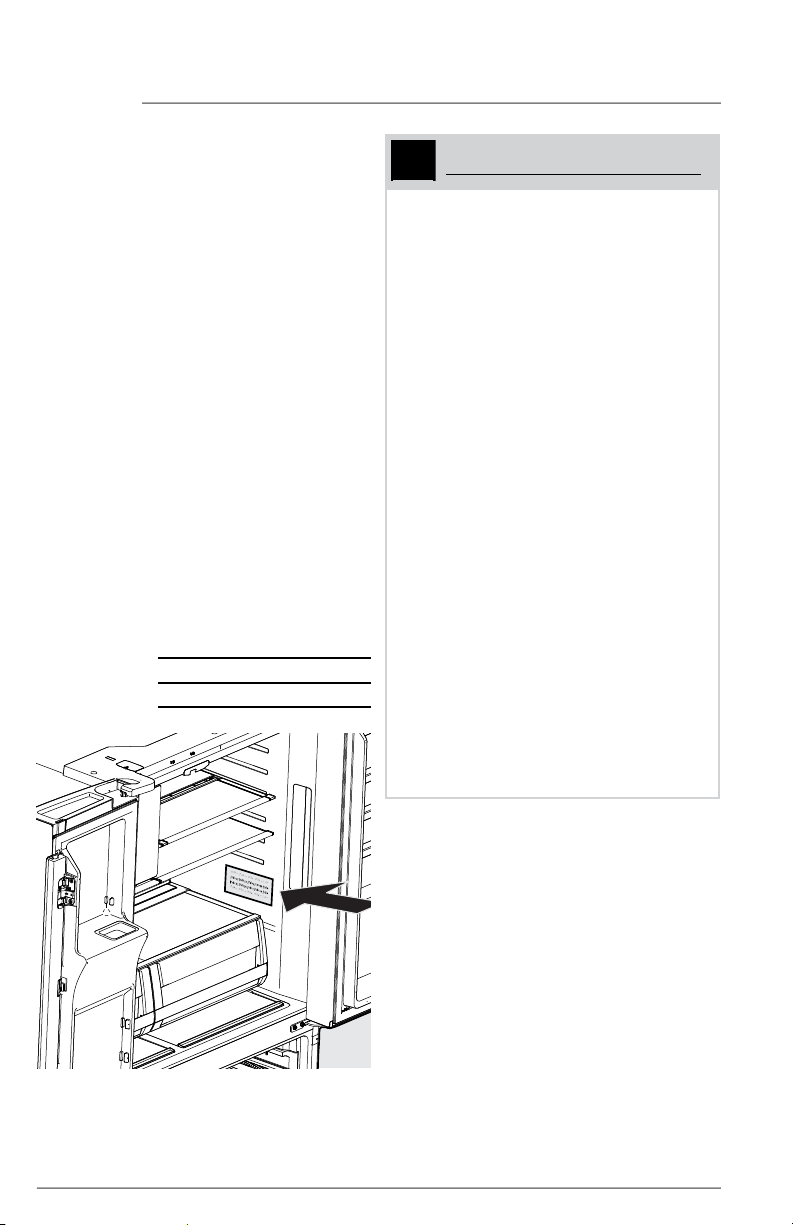

Serial Number Location

WARNING

WARNING indicates a potentially

hazardous situation which, if not

avoided, could result in death or serious

injury.

IMPORTANT

IMPORTANT indicates installation, oper-

ation or maintenance information which

is important but not hazard-related.

DANGER

DANGER indicates an imminently

hazardous situation which, if not

avoided, will result in death or serious

injury.

CAUTION

CAUTION indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

Safety Deﬁnitions

This is the safety alert symbol. It is

used to alert of potential personal injury

hazards. Obey all safety messages that

follow this symbol to avoid possible injury

or death.

WARNING

CALIFORNIA RESIDENTS ONLY

Cancer and Reproductive Harm

www.P65Warnings.ca.gov

IMPORTANT SAFETY INFORMATION

WARNING

Please read all instructions before using

this refrigerator.

DANGER

DANGER Risk of ﬁre or explosion.

Flammable refrigerant used. Do not use

mechanical devices to defrost refrigera-

tor. Do not puncture refrigerant tubing.

DANGER Risk of ﬁre or explosion.

Flammable refrigerant used. To be

repaired only by trained service person-

nel. Use only manufacturer-authorized

service parts. Any repair equipment

used must be designed for ﬂammable

refrigerants. Follow all manufacturer

repair instructions. Do not puncture

refrigerant tubing.

CAUTION

CAUTION Risk of ﬁre or explosion.

Dispose of refrigerator properly

in accordance with the applicable

federal or local regulations. Flammable

refrigerant used.

CAUTION Risk of ﬁre or explosion

due to puncture of refrigerant tubing.

Follow handling instructions carefully.

Flammable refrigerant used.

4IMPORTANT SAFETY INFORMATION

Safety Instructions

• DO NOT store or use gasoline, or

other ﬂammable liquids in the vicinity

of this or any other appliance. Read

product labels for warnings regard-

ing ﬂammability and other hazards.

• DO NOT operate the refrigerator in

the presence of explosive fumes.

• Avoid contact with any moving parts

of automatic ice maker.

• Remove all staples from the carton.

Staples can cause severe cuts, and

also destroy ﬁnishes if they come in

contact with other appliances

or furniture.

IMPORTANT

CFC/HCFC Disposal

Some old refrigerators may have a

cooling system that used CFCs or

HCFCs (chloroﬂuorocarbons or

hydrochloroﬂuorocarbons). CFCs

and HCFCs are believed to harm

stratospheric ozone if released to the

atmosphere. Other refrigerants may

also cause harm to the environment if

released to the atmosphere.

If disposing of an old refrigerator,

make sure the refrigerant is removed

for proper disposal by a qualiﬁed

technician. Intentionally released

refrigerant may subject one to ﬁnes

and imprisonment under provisions of

environmental legislation.

Before disposing of an old

refrigerator/freezer:

• Remove doors.

• Leave shelves in place so children

may not easily climb inside.

• Have refrigerant removed by a

qualiﬁed service technician.

WARNING

Do not use electrical appliances inside

the food storage compartments of the

appliance unless they are of the type

recommended by the manufacturer.

Child Safety

Destroy or recycle the carton, plastic

bags, and any exterior wrapping material

immediately after the refrigerator is

unpacked. Children should NEVER use

these items to play. Cartons covered with

rugs, bedspreads, plastic sheets or stretch

wrap may become airtight chambers, and

can quickly cause suocation.

Proper Disposal of Refrigerator

or Freezer

Risk of child entrapment

Child entrapment and suocation are not

problems of the past. Junked or aban-

doned refrigerators or freezers are still

dangerous – even if they will sit for “just

a few days”. When disposing of an old

refrigerator or freezer, please follow the in-

structions below to help prevent accidents.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appli-

ance recycling/disposal methods. Check

with the utility company or visit energy-

star.gov/recycle for more information on

recycling an old refrigerator.

IMPORTANT SAFETY INFORMATION

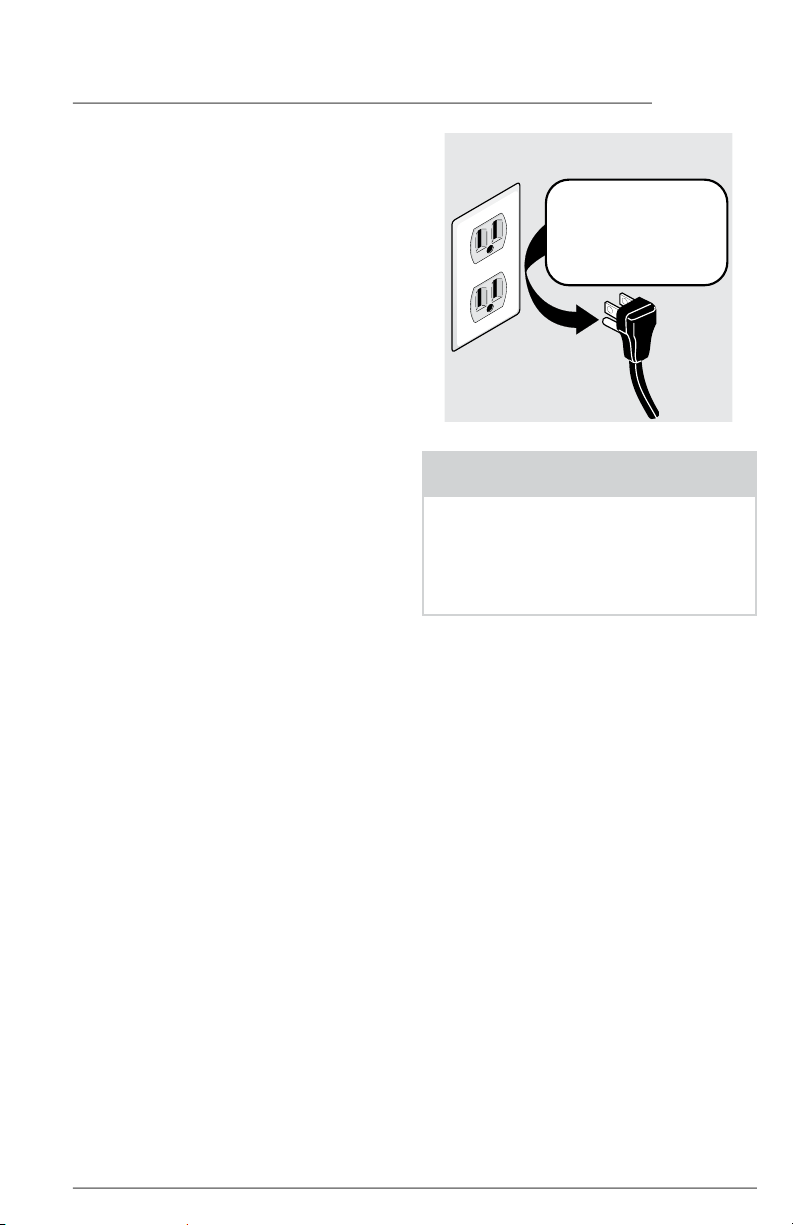

Grounding type wall receptacle

Power cord with

3-prong grounded plug

Do not, under

any circumstances,

cut, remove,

or bypass the

grounding prong.

Electrical information

• The refrigerator must be plugged

into its own dedicated 115 Volt, 60

Hz., 15 Amp, AC only electrical outlet.

The power cord of the appliance

is equipped with a three-prong

grounding plug for protection against

electrical shock hazards. It must

be plugged directly into a properly

grounded three prong receptacle.

The receptacle must be installed in

accordance with local codes and

ordinances. Consult a qualiﬁed

electrician. Avoid connecting

refrigerator to a Ground Fault

Interrupter (GFI) circuit. Do not use

an extension cord or adapter plug.

• If the power cord is damaged, it

should be replaced by an authorized

service technician to prevent any risk.

• Never unplug the refrigerator by

pulling on the power cord. Always

grip the plug ﬁrmly, and pull straight

out from the receptacle to prevent

damaging the power cord.

• Unplug the refrigerator before

cleaning and before replacing a light

bulb to avoid electrical shock.

• Performance may be aected if

the voltage varies by 10% or more.

Operating the refrigerator with

insucient power can damage the

compressor. Such damage is not

covered under the warranty.

• Do not plug the unit into an electrical

outlet controlled by a wall switch or

pull cord to prevent the refrigerator

from being turned o accidentally.

NOTE

This unit is equipped with a cooling

system where one of the Refrigerator/

Freezer sections may cool slower

than the other initially. Allow 24 hours

for unit to stabilize and reach the

desired temperatures.

IMPORTANT

Accessories are available for refrigerator and can be purchased at Frigidaire.com

or by calling 1-800-374-4432.

6FEATURES

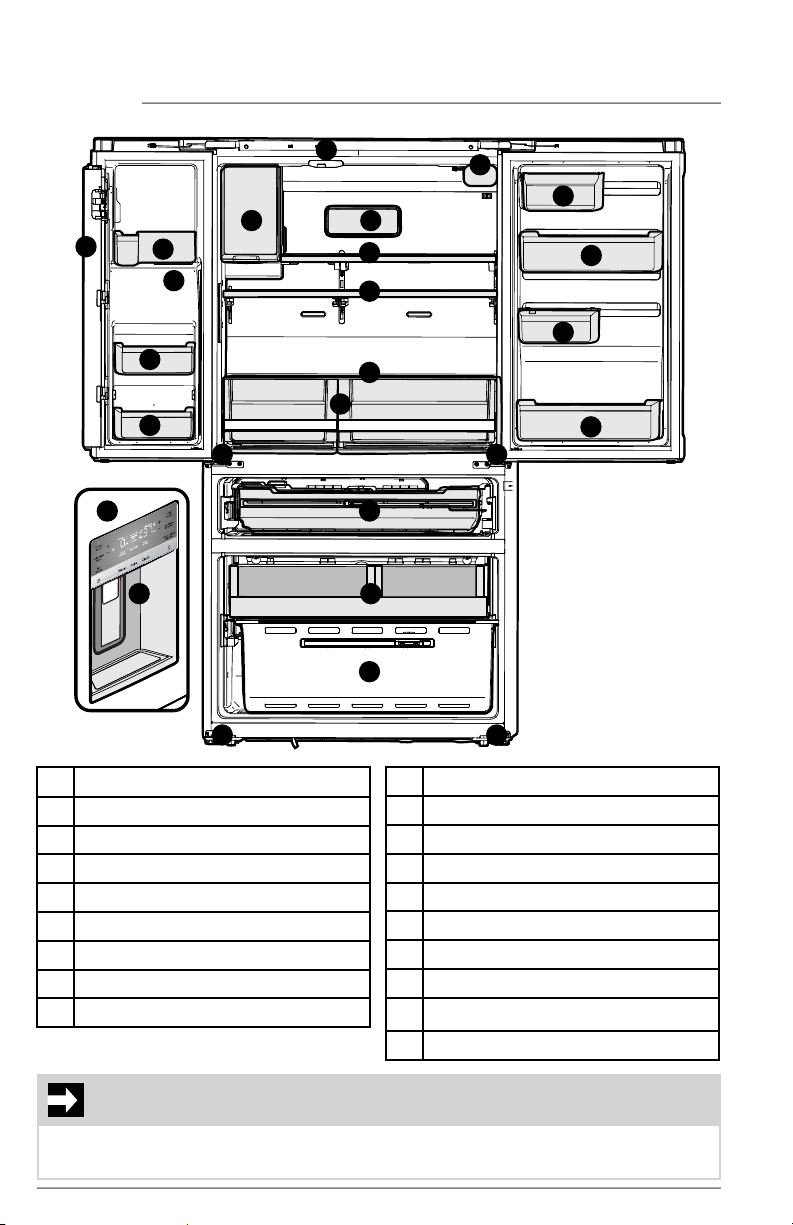

A Anti-tip Leg

B Lower Freezer Basket

C Upper Freezer Basket

D Custom-Flex™ Temp Drawer

E Ice/Water Dispenser

F External Appliance Control Display

G Adjustable Hinges

H Door Bin

I Flipper Mullion

J Ice Chute

K Ice Maker

L Flipper Guide

MWater Filter

N Dairy Compartment

O Air Filter

P Shelves

Q Adjustable Door Bin

RCrispSeal�Fresh Crispers

S Gallon Door Bins

K O

CAUTION

Do Not install the refrigerator where

the temperature will drop below 55°F

(13°C) or rise above 110°F (43°C).

The compressor will not be able to

maintain proper temperatures inside

the refrigerator.

WARNING

Installation

Allow the following clearances for

ease of installation, proper

air circulation, and plumbing and

electrical connections:

Sides & Top ⅜" (9.5 mm)

Back 1" (25.4 mm)

WARNING

This appliance is intended for use

in residential household and similar

interior applications such as:

• a kitchen/kitchenette

• a pantry room

• a basement

• an enclosed garage

• other interior

residential-type environments

INSTALLATION

This Use & Care Manual provides general

installation and operating instructions

for this model. We recommend using

a service or kitchen contracting

professional to install the refrigerator.

Use the refrigerator only as instructed in

this Use & Care Manual. Before starting

the refrigerator, follow these important

ﬁrst steps.

Location

• Choose a place near a grounded, non-

GFCI, electrical outlet. Do Not use an

extension cord or an adapter plug.

• If possible, place the refrigerator

out of direct sunlight and away

from the range, dishwasher, or

other heat sources.

• You must install the refrigerator on a

ﬂoor that is level and strong enough

to support a fully loaded refrigerator.

• Consider water supply availability for

models equipped with an automatic

ice maker.

Door opening

Position the refrigerator to allow easy

access to a counter when removing food.

For best use of the refrigerator drawers

and freezer baskets, position

the refrigerator where you can fully

open both.

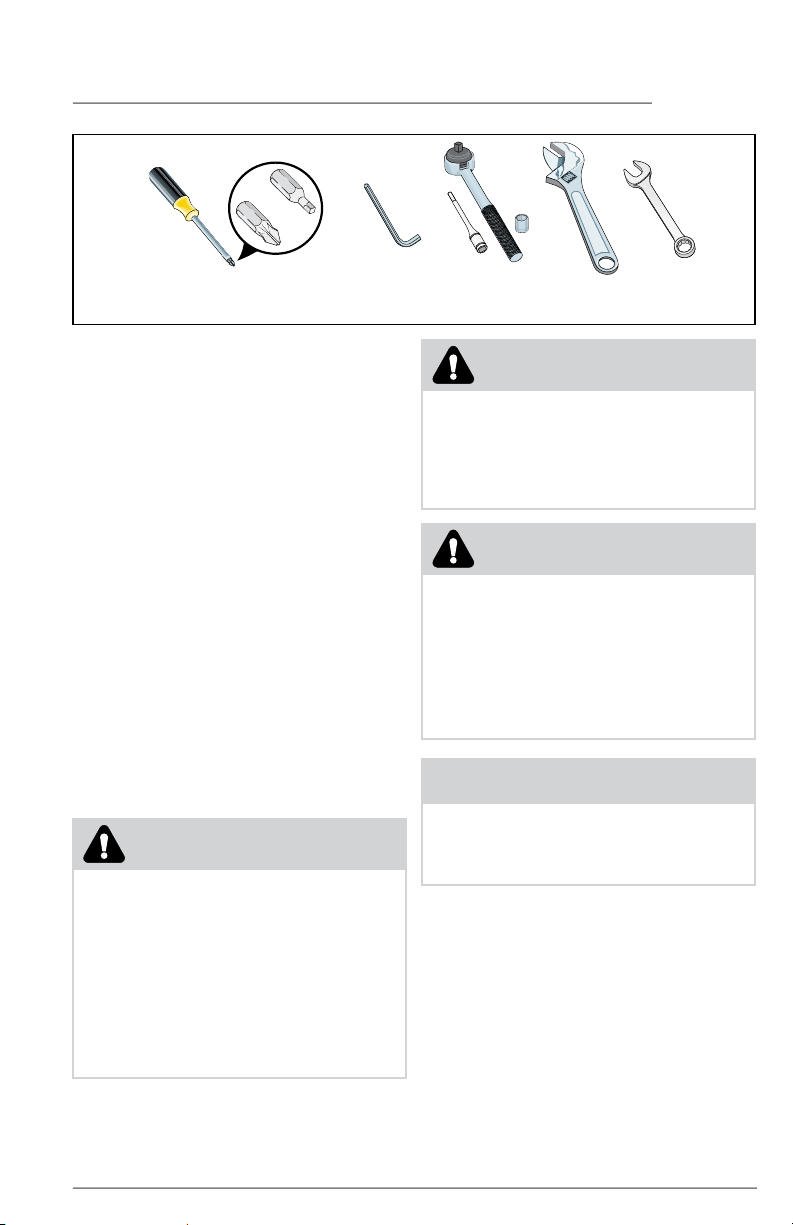

Tools Necessary:

Phillips Head

Quadrex Head

Screwdriver

(OR) OR

8mm Socket

Wrench

Adjustable

Wrench

⅜"

Fixed

Wrench

ANDAND

6mm

Allen Wrench

NOTE

If you place the refrigerator with the

door hinge side against a wall, allow

additional space so you can open the

door wider.

8INSTALLATION

Cabinet Leveling & Refrigerator

Door Alignment (if necessary)

Guidelines for ﬁnal positioning of refrigerator:

• Rest all 4 corners of the cabinet

ﬁrmly on the ﬂoor.

• Slightly elevate the front to ensure

the doors close and seal properly.

• Align and level the doors with

each other.

Meet most of these conditions by raising

or lowering the adjustable anti-tip legs.

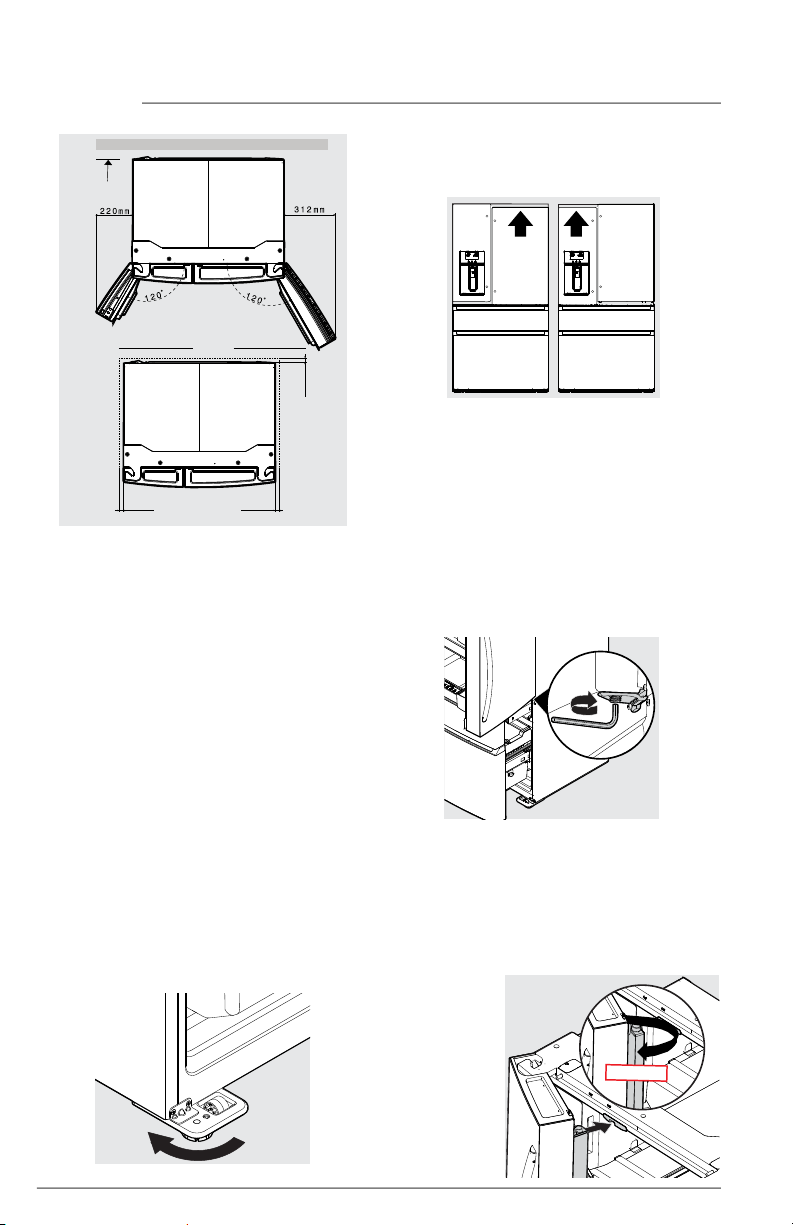

To level the cabinet using the anti-tip legs:

1. Slightly open the freezer drawer.

2. Lower the anti-tip legs until they are

both touching the ﬂoor. Use a pair of

pliers to adjust.

To raise unit: turn leg clockwise

(as shown).

To lower unit: turn leg counterclockwise.

Raise

Flipper Mullion

Adjust the ﬂipper mullion for proper

connection with the mullion guide by

ensuring the ﬂipper mullion is folded

and perpendicular to the fresh food

door. If the mullion guide is not in the

correct position, it could prevent the door

from closing

completely.

WRONG

Anti-Tip

Legs

3. Ensure both doors are bind-free with

their seals touching the cabinet on

all 4 sides, and the cabinet is stable.

Door

To make ﬁnal door height adjustments:

1. Open the Custom-Flex Temp drawer

to make the lower hinge visible.

2. Insert 6 mm Allen wrench into the

shaft of the lower hinge.

To lower door: turn the adjustment

screw clockwise.

To raise door: turn the adjustment

screw counterclockwise

(as shown).

12.25 in

8.75 in

1 in

36.75 in

933.4 mm

25.4 mm

.37 in

9.5 mm

.37 in

9.5 mm

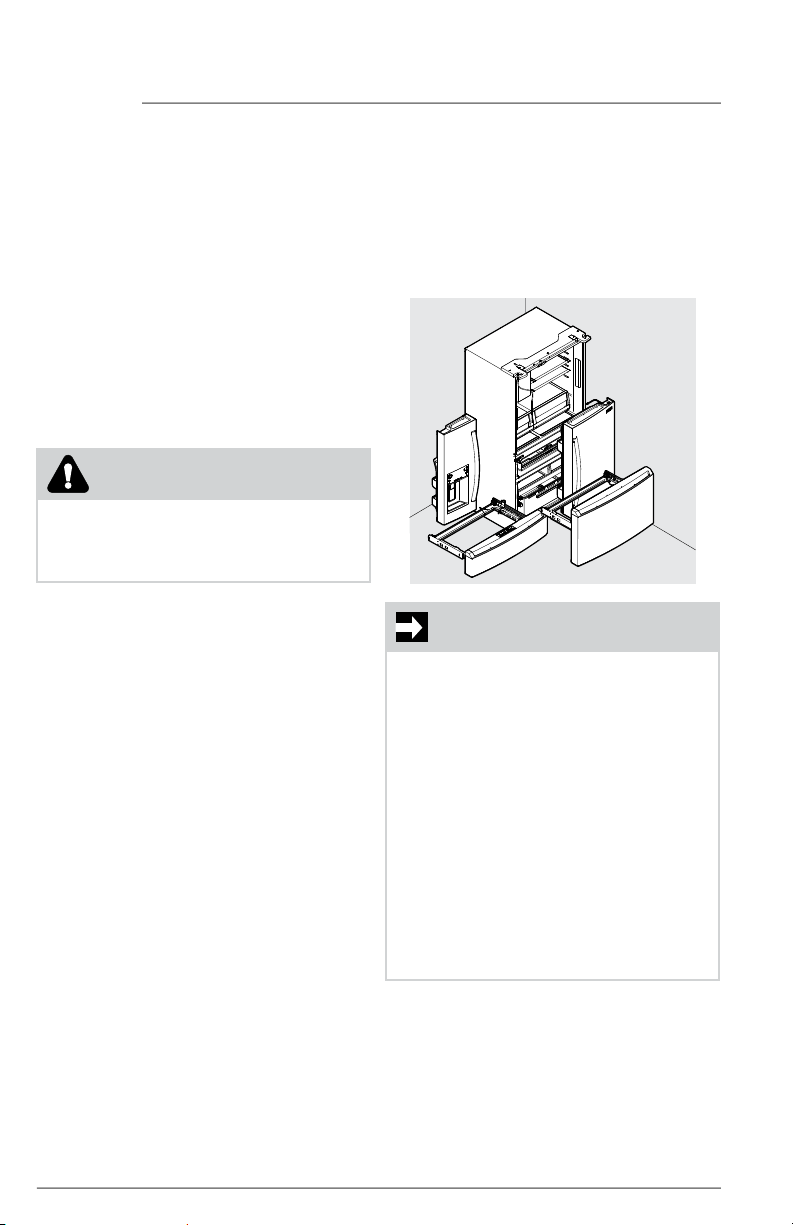

CAUTION

Be sure doors are set aside in a secure

position where they cannot fall and

cause personal injury, or damage to the

doors or handles.

DOOR REMOVAL

Getting through narrow spaces

If the refrigerator will not ﬁt through an

entrance area, you can remove the doors.

Check ﬁrst by measuring the entrance.

To prepare for removing the doors:

1. Unplug the electrical power cord

from the wall outlet.

2. Remove any food from the door

shelves and close the doors.

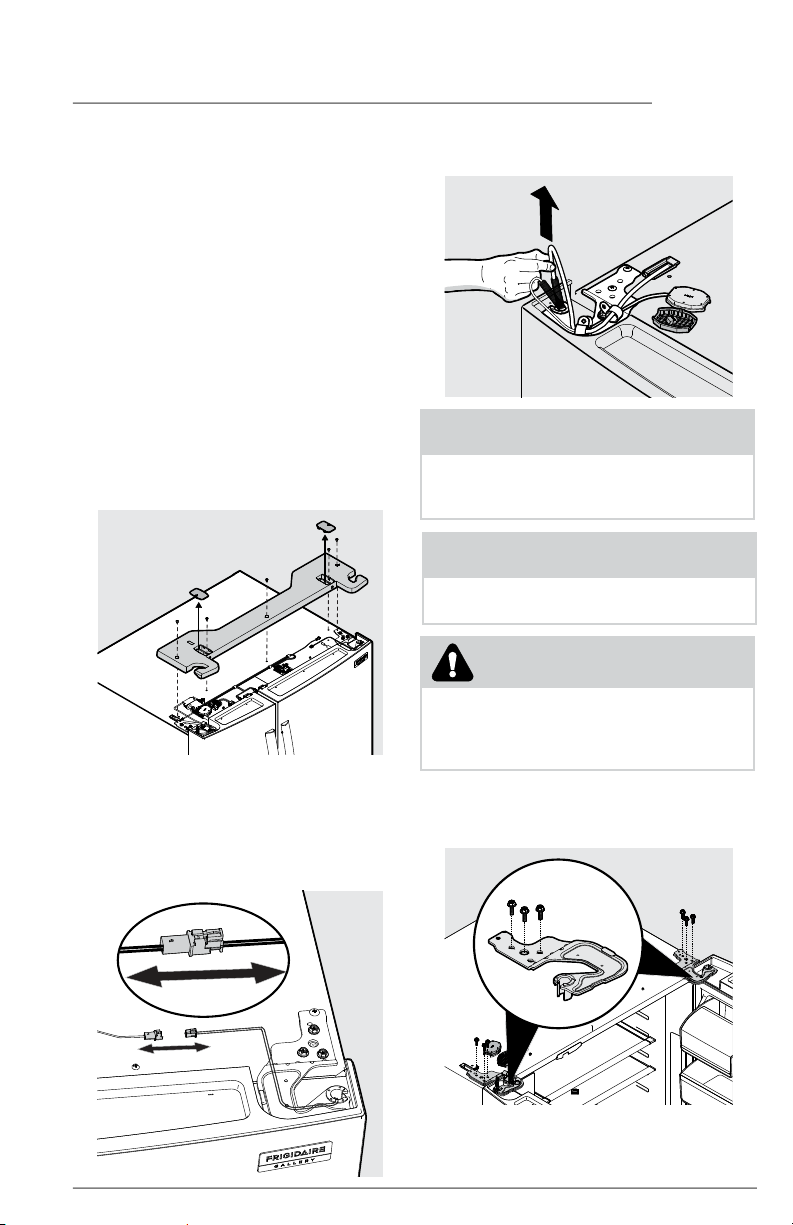

To remove the refrigerator doors:

1. Open doors to 90°.

2. Remove all 5 Phillips screws from

top hinge cover and lift up. You can

easily access 3 Phillips screws. You

can access the other 2 screws by

removing the 2 panels from the top

hinge cover as shown.

5. Pull up on water line gently to

remove from door.

3. Trace lightly around the door’s top

hinges with a pencil. This makes

reinstallation easier.

4. Disconnect any electrical harnesses

running from the doors to the

hinge cover.

6. Remove three 8 mm bolts from both

top hinges. Lift doors up o lower

hinges and carefully set aside.

NOTE

Use care while pulling the water tube

from the door to be sure the tube does

not kink.

NOTE

You will pull approximately 4' of water

tube from the refrigerator door.

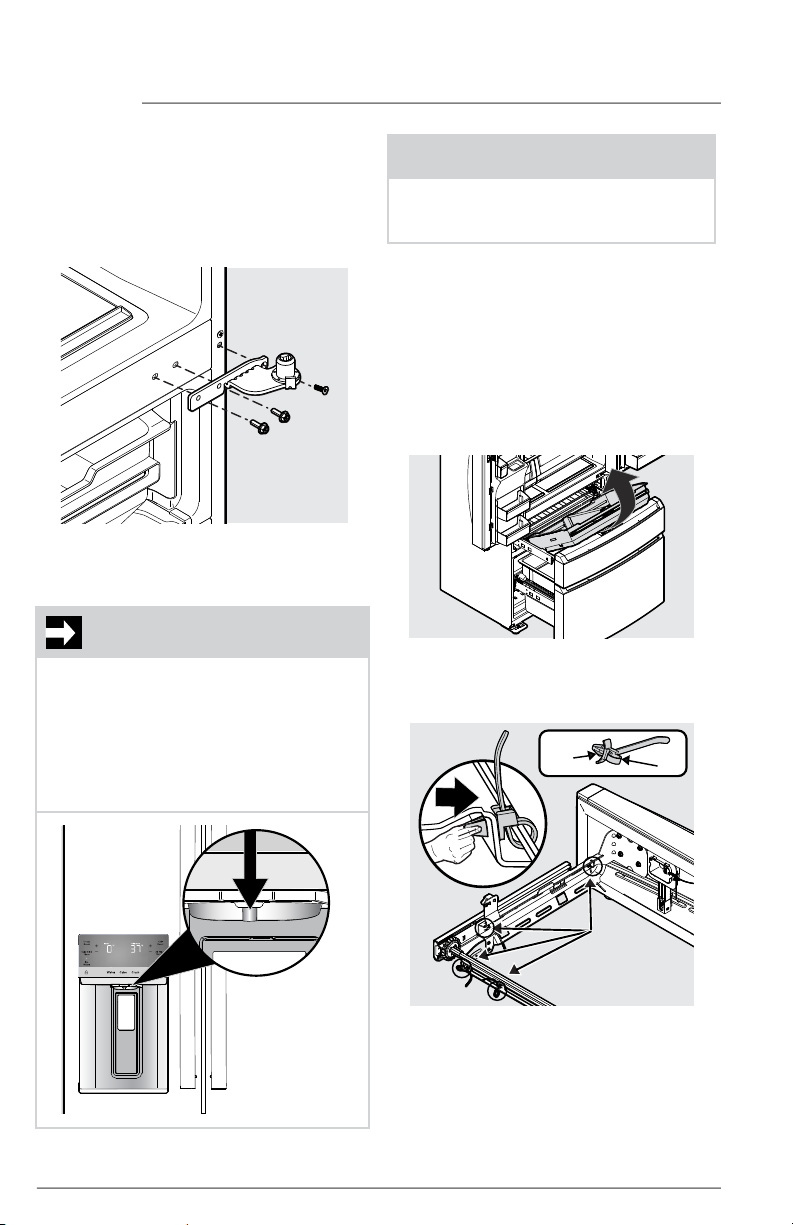

Lower Hinge Removal

Once both doors are in place, ensure they

are aligned with each other and level

(Reference INSTALLATION for more de-

tails), and replace the top hinge cover.

8. To reinstall the doors, reverse

the procedure.

7. In certain circumstances, you may

need to remove the lower hinges for

clearance purposes. To gain access

to the lower hinges, ﬁrst extend the

Custom-Flex Temp Drawer. Unscrew

the 3 lower hinge screws and slide the

hinge inward.

To remove the Custom-Flex

Temp Drawer

1. Fully open the drawer.

2. Remove the basket from the drawer.

3. Unsnap the 4 cable ties by pressing

clip sides together and pushing

them through the opening.

NOTE

When reinserting the water tube and

replacing the top hinge cover, carefully

ensure the tube does not kink.

DOOR REMOVAL

IMPORTANT

Make sure the water line tubing goes

through the hole at the top of the

dispenser pocket. A metal wrap on the

tubing prevents damage from the hinge

rubbing against it. You need to ﬁx this

back around the tube in the proper loca-

tion upon reinstallation to protect the

tube from the hinge.

Autres manuels pour Gallery GRMS2773AF

Table des matières

Autres manuels Frigidaire Réfrigérateur

Frigidaire

Frigidaire FRT21P5A Manuel utilisateur

Frigidaire

Frigidaire FGRU19F6QF Manuel utilisateur

Frigidaire

Frigidaire GLHS36EFS Manuel utilisateur

Frigidaire

Frigidaire FGTC2349KS - Gallery 22.6 Cu. Ft.... Instructions d'installation

Frigidaire

Frigidaire FSC23F7HB - 22.6 cu. Ft. Refrigerator Guide de l'utilisateur

Frigidaire

Frigidaire FRS6LR5E Manuel utilisateur

Frigidaire

Frigidaire FRS6LE4F Manuel utilisateur

Frigidaire

Frigidaire PLHS269ZC Manuel utilisateur

Frigidaire

Frigidaire FRS23F4DB2 Manuel utilisateur

Frigidaire

Frigidaire PHT219WH Manuel utilisateur

Frigidaire

Frigidaire FGHT2146K F Manuel utilisateur

Frigidaire

Frigidaire LFHB2741PF Manuel du propriétaire

Frigidaire

Frigidaire FRT15B3J Mode d’emploi

Frigidaire

Frigidaire EFMIS129-ASST DG Manuel du propriétaire

Frigidaire

Frigidaire FRT18P6BS Manuel utilisateur

Frigidaire

Frigidaire Gallery FGHF2369M F Manuel utilisateur

Frigidaire

Frigidaire FRT21HP5A Manuel utilisateur

Frigidaire

Frigidaire FRT18S6A Manuel utilisateur

Frigidaire

Frigidaire FGHB2866PF Guide de l'utilisateur

Frigidaire

Frigidaire FRS24WSG Manuel utilisateur

Frigidaire

Frigidaire FRT21NNGB1 Manuel utilisateur

Frigidaire

Frigidaire FGHN2866P Manuel utilisateur

Frigidaire

Frigidaire FRT21HS6D Manuel utilisateur

Frigidaire

Frigidaire EFR285 Manuel du propriétaire

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
