Frigidaire FRU17G4JW Manuel utilisateur
REFRIGERATOR
Model number
FRU17G4JW
©2002 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
REFRIGERATOR
WIRING DIAGRAM - # 216758400
OWNER’S GUIDE - # 216781800
SERVICE DATA SHEET - #216758400
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRU17G4JW4 FRU17G4JW 134A white 115
FRU17G4JW5 FRU17G4JW 134A white 115
MARKET
North America
Publication No.
5995364238
020121
-EN/SERVICE /BLT
365
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O BOX 212378, AUGUSTA , GA 30917
01/02 2
Publication No FRU17G4JW4/5
5995364238

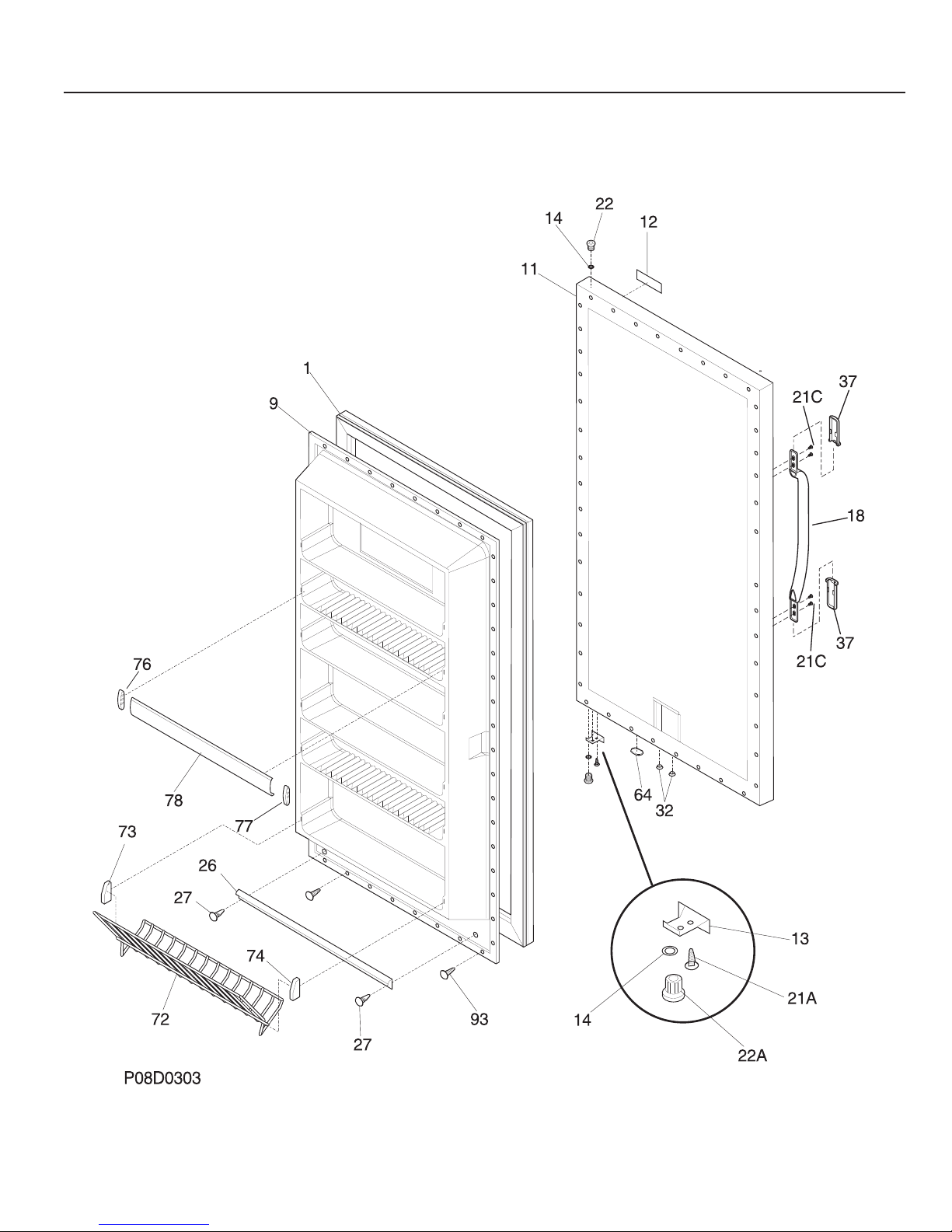

DOOR
# = Fast-moving Parts 3 01/02
* = Non-Illustrated Parts
FRU17G4JW4/5 Publication No.
5995364238
DOOR
A = FRU17G4JW (FRU17G4JW4)
B = FRU17G4JW (FRU17G4JW5)
POS. NO PART NO DESCRIPTION
1 216522309 A B Gasket-door,white
9 216527813 A B Panel-inner door,frzr
11 216526518 A B Panel-outer door,white
12 240415201 A B Label-nameplate,white
13 08016354 A B Door Stop
14 5303313518 A B Washer,sealing
18 218762701 A B Handle-door,white
21A 08005520 A B Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 216443600 A B Bearing
22A 216503200 A B Bearing-hinge,btm
26 216524200 A B Gasket,secondary
27 5303212828 A B Clip,panel
32 5309950074 A B Valve-breather
37 215870619 A B Trim-handle,2.47" ,white ,w/chrome band
64 216403700 A B Plug-button,door base
72 216514100 A B Shelf,tilt out ,wire
73 216513900 A B End Cap,tiltout ,LH
74 216514000 A B End Cap,tiltout ,RH
76 216521800 A B Support psuedo bin,LH
77 216522100 A B Support psuedo bin,RH
78 216806100 A B Rack-door,CONTOUR ,(5)
93 5303161215 A B Screw
* 216722100 A B Harness-lid/defrost
01/02 4
Publication No FRU17G4JW4/5
5995364238
CABINET
# = Fast-moving Parts 5 01/02
* = Non-Illustrated Parts
FRU17G4JW4/5 Publication No.
5995364238
A = FRU17G4JW (FRU17G4JW4)
B = FRU17G4JW (FRU17G4JW5)
POS. NO PART NO DESCRIPTION
3 216503100 A B Screen-drain
5 # 216325600 A B Fan Blade
6 216604200 A B Breaker Kit w/corners
9 216603300 A B Breaker Kit w/corners,32" ,top or bottom
10 216740900 A B Pan-drain assy
10A 216710400 A B Bracket,top drain pan
10B 216710500 A B Bracket,btm. drain pan
13 216787000 A B Motor-fan
14 216822900 A B Light/Lamp,ramp
15 # 216608600 A B Lamp,light bulb ,40 W ,120 V
16 # 216688600 A - Socket-light/lamp
16 5300136117 - B Socket-light/lamp
18 216807900 A - Knob-control
18 216707200 - B Knob-control cold
19 216204900 A B Gasket,evap cover
20 216230300 A B Cover,temp control
21 # 216759100 A - Control temperature
21 # 216807800 - B Control-temperature
22 216823500 A B Clamp,cap tube ,cold control
22A 5303916855 A B Tube,sensor sleeve ,plastic ,clear
24 5300052943 A B Screw-clamp,truss hd cr ,control
25 216737100 A B Cover-evaporator
26 216503300 A B Ramp,closer ,door
27 5303205738 A B Screw-hinge,cr ,1/4-20 x 1.000 ,btm
28 216247400 A B Hinge-bottom
29 216313503 A B Hose-drain
31 216732400 A B Pan-drain
32 5308005500 A B Drain
34 216816200 A B Shield-light
35 216273000 A B Clip,drain hose
38 216808900 A B Hinge-upper
39 5303294372 A B Nut-insert,hinge
40 216809000 A B Cover-hinge
41 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
42 216781700 A B Glass-,fixed ,full width
42A 216458200 A B Shelf,12.50x27.88 ,white
47 216661601 A B Baffle-plate
50 216394000 A B Bracket-motor mtg fan
59 216372800 A B Basket,(2)
60 5303212693 A B Slide-basket
63 216396900 A B Foot-adjustable
69 5305878546 A B Bumper-basket
71A 216347500 A B Screw,quadrex
72 216174000 A B Grille/Kickplate,white
79 3017666 A B Nut-insert
80 06594601 A B Bracket,control
93 5303161215 A B Screw
93A 5303302760 A B Screw
101 216835200 A B Kit-top hinge
132 5303283898 A B Screw,6-20AB x 3/8
137A 216781600 A B Frame,fixed ,full width
138A 216492200 A B Trim-cantilever/fixed shelf,24.21" ,glass,front ,1
144 216781500 A B Shelf-assy,fixed,glass ,complete
253 216492300 A B Trim-cantilever/fixed shelf,24.21" ,Rear
* 09948773 A B Insulation,drain tube
* 216502400 A B Grommet-shelf mtg
* 216758400 A B Service Data Sheet
CABINET
01/02 6
Publication No FRU17G4JW4/5
5995364238

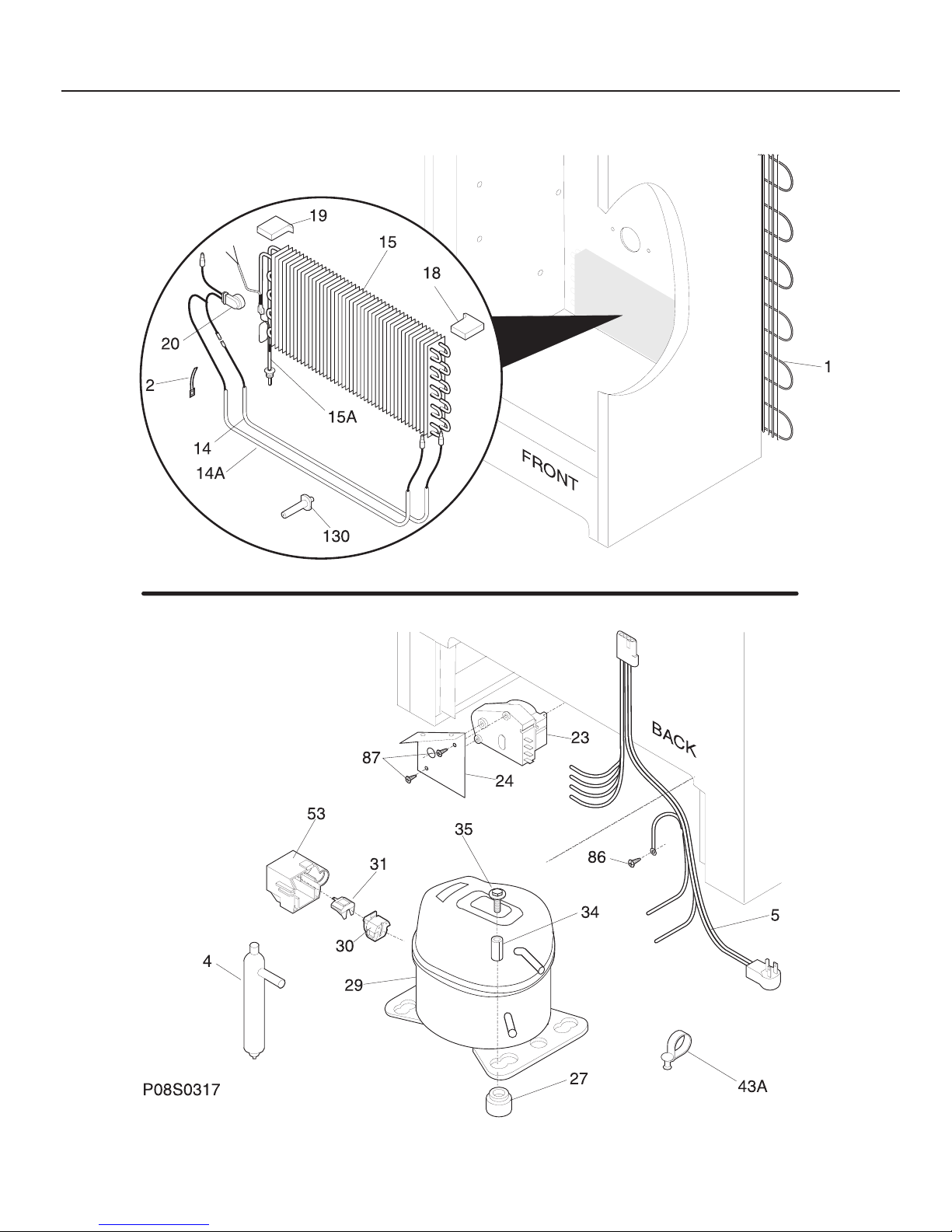

SYSTEM
# = Fast-moving Parts 7 12/01
* = Non-Illustrated Parts
FRU17G4JW4/5 Publication No.
5995364238
SYSTEM
A = FRU17G4JW (FRU17G4JW4)
B = FRU17G4JW (FRU17G4JW5)
POS. NO PART NO DESCRIPTION
1 # 5300083897 A B Condenser
2 5308000110 A B Strap-evap/heater,aluminum ,(2)
4 216634500 A B Drier-filter
5 216790200 A B Harness-main
5* 216695300 A B Relay
5* 216703900 A B Thermostat-heater
14 216730700 A B Heater-defrost
14A# 216730500 A B Heater-internal
15 # 216737300 A B Evaporator
15A 216751100 A B Heat Exchanger
18 216727600 A B Insulator-evap,styrofoam
19 216727700 A B Insulator-evap,styrofoam
20 216731000 A B Thermostat-defrost
23 216744400 A B Timer-defrost
24 08016580 A B Bracket
27 216498900 A - Grommet,compressor
27 5308002681 - B Grommet,compressor
29 # 216681000 A B Compressor,w/electricals
30 216681100 A B Starter
31 216100118 A B Overload Protector
34 5306594529 A B Sleeve-compressor
35 5303272328 A B Screw,Ind hex sems ,1/4-28 unfx ,compressor
43A 216629700 A B Clip-harness
53 216347800 A B Cover terminal,cover-comp term
86 216036600 A B Screw,rwhd (gx-ca) ,8-32 x 1/2
87 08037849 A B Screw
130 216730400 A B Support-evaporator
* 216694500 A B Clip,controller
* 216502500 A B Sleeve-tube insert
