Frigidaire FRU17G4J Manuel utilisateur
REFRIGERATOR
Model No.
FRU17G4J
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
REFRIGERATOR
WIRING DIAGRAM - # 216758400
OWNER’S GUIDE - # 216781800
SERVICE DATA SHEET - #216758400
ELECTROLUX HOME PRODUCTS NORTH AMERICA.
P.O.Box 212378, Augusta, GA 30917
PRODUCT NO. BASE MODEL NO. SERIES COLOR
FRU17G4JW0 FRU17G4J R134a white
MARKET
USA
Publication No.
5995353389
010507
-EN/SERVICE /DJH
365
05/01 2
Publication No. FRU17G4J
5995353389
DOOR
# = Fast-moving Parts 3 05/01
* = Non-Illustrated Parts
FRU17BG4J Publication No.
5995353389
DOOR
POS. NO PART NO DESCRIPTION
1 216522309 Gasket-door,white
9 216527815 Panel-inner door,white
11 216526518 Panel-outer door,white
12 316095402 Label-nameplate,Frigidaire ,white
12A 216373000 Frame-nameplate
13 08016354 Door Stop
14 5303313518 Washer,sealing
18 218762701 Handle-door,white
21A 08005520 Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7
21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500
22 216443600 Bearing
22A 216503200 Bearing-hinge,btm
26 216524200 Gasket,secondary
27 5303212828 Clip,panel
32 5309950074 Valve-breather
37 215870619 Trim-handle,2.47" ,white ,w/chrome band
62 216022800 Screw,washer head ,8-18 X 1/2
64 216403700 Plug-button,base door
72 216514100 Shelf,tilt out ,wire
73 216513900 End Cap,tiltout ,LH
74 216514000 End Cap,tiltout ,RH
76 216521800 Support psuedo bin,LH
77 216522100 Support psuedo bin,RH
78 216579500 Rack shelf,psuedo ,32
93 5303161215 Screw
05/01 4
Publication No. FRU17G4J
5995353389
CABINET
# = Fast-moving Parts 5 05/01
* = Non-Illustrated Parts
FRU17BG4J Publication No.
5995353389
CABINET
POS. NO PART NO DESCRIPTION
3 216503100 Screen-drain
5 # 216325600 Fan Blade
6 216604200 Breaker Kit w/corners
9 216603300 Breaker Kit w/corners,32" ,top or bottom
10 # 216768500 Heater-Drain Pan Assy
10A 216710400 Bracket,top drain pan
10B 216710500 Bracket,btm. drain pan
13 # 216690400 Motor-fan
14 # 216472300 Switch-light plunger
15 # 216608600 Lamp,light bulb ,40 W ,120 V
16 # 5300136117 Socket-light/lamp
18 216591700 Knob-control
19 216204900 Gasket,evap cover
20 216230300 Cover,temp control
21 216717900 Control-temperature
22 05878562 Clamp,cap tube ,cold control
22A 5303916855 Tube,sensor sleeve ,plastic ,clear
24 5300052943 Screw-clamp,truss hd cr ,control
25 216665300 Cover,evaporator
26 216503300 Ramp,closer ,door
27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm
28 216247400 Hinge-bottom
29 216313503 Hose-drain
31 216732400 Pan-drain
32 5308005500 Drain
34 216557600 Shield-light
35 216273000 Clip,drain hose
38 5303925086 Hinge-upper
39 5303294372 Nut-insert,hinge
40 5303212912 Cover-hinge
41 5303212937 Screw-top hinge
42 216781700 Glass-,fixed ,full width
42A 216458200 Shelf,12.50x27.88 ,white
47 216661601 Baffle-plate
50 216394000 Bracket-motor mtg fan
56 09950853 Screw-control knob,phillips ,4-40 x 3/8
59 216372800 Basket,(2)
60 5303212693 Slide-basket
62 131420300 Screw,cr truss head ,8-18AB x 0.750
63 216396900 Foot-adjustable
69 5305878546 Bumper-basket
71A 216347500 Screw,quadrex
72 216174000 Grille/Kickplate,white
79 3017666 Nut-insert
80 06594601 Bracket,control
93 5303161215 Screw
93A 5303302760 Screw
132 5303283898 Screw,6-20AB x 3/8
137A 216781600 Frame,fixed ,full width
138A 216492200 Trim-cantilever/fixed shelf,24.21" ,glass,front ,1
144 216781500 Shelf-assy,fixed,glass ,complete
208 216504500 Screw,AB ,8-18x.500
253 216492300 Trim-cantilever/fixed shelf,24.21" ,rear
* 09948773 Insulation,drain tube
* 216502400 Grommet-shelf mtg
05/01 6
Publication No. FRU17G4J
5995353389

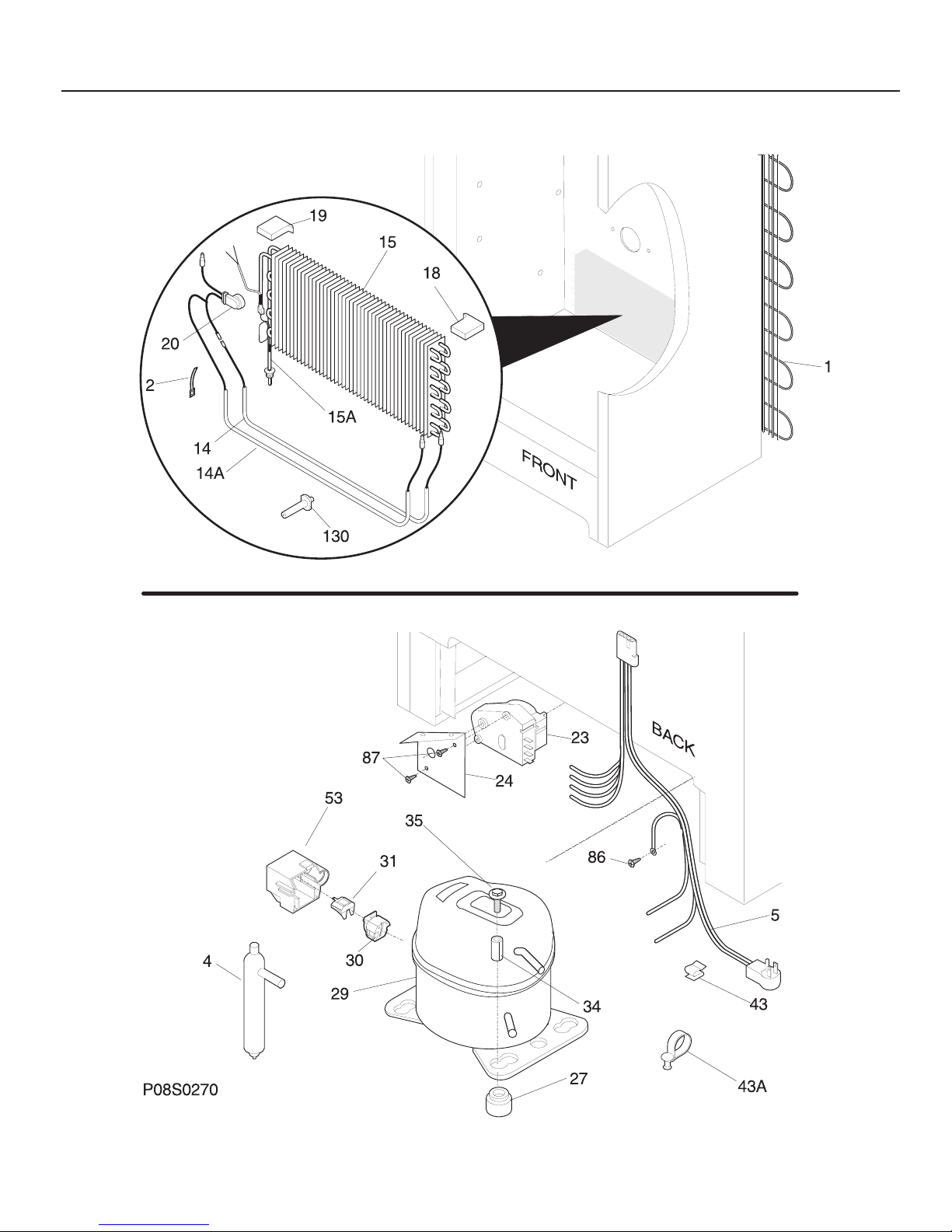

SYSTEM
# = Fast-moving Parts 7 05/01
* = Non-Illustrated Parts
FRU17BG4J Publication No.
5995353389
SYSTEM
POS. NO PART NO DESCRIPTION
1 # 5300083897 Condenser
2 5308000110 Strap-evap/heater,aluminum ,(2)
4 216634500 Drier-filter
5 # 216722200 Harness-main
5* 216695300 Relay
5* 216703900 Thermostat-heater
14 216730700 Heater-defrost
14A# 216730500 Heater-internal
15 # 216737300 Evaporator
15A 216751100 Heat Exchanger
18 216727600 Insulator-evap,styrofoam
19 216727700 Insulator-evap,styrofoam
20 216731000 Thermostat-defrost
23 216744400 Timer-defrost
24 08016580 Bracket
27 216498900 Grommet,compressor
29 # 216681000 Compressor,w/ electricals
30 216681100 Starter
31 216100118 Overload Protector
34 5306594529 Sleeve-compressor
35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor
43 09950610 Clip,cord
43A 216629700 Clip-harness
53 216347800 Cover terminal,cover-comp term
86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2
87 08037849 Screw
130 216730400 Support-evaporator
* 216502500 Sleeve-tube insert
